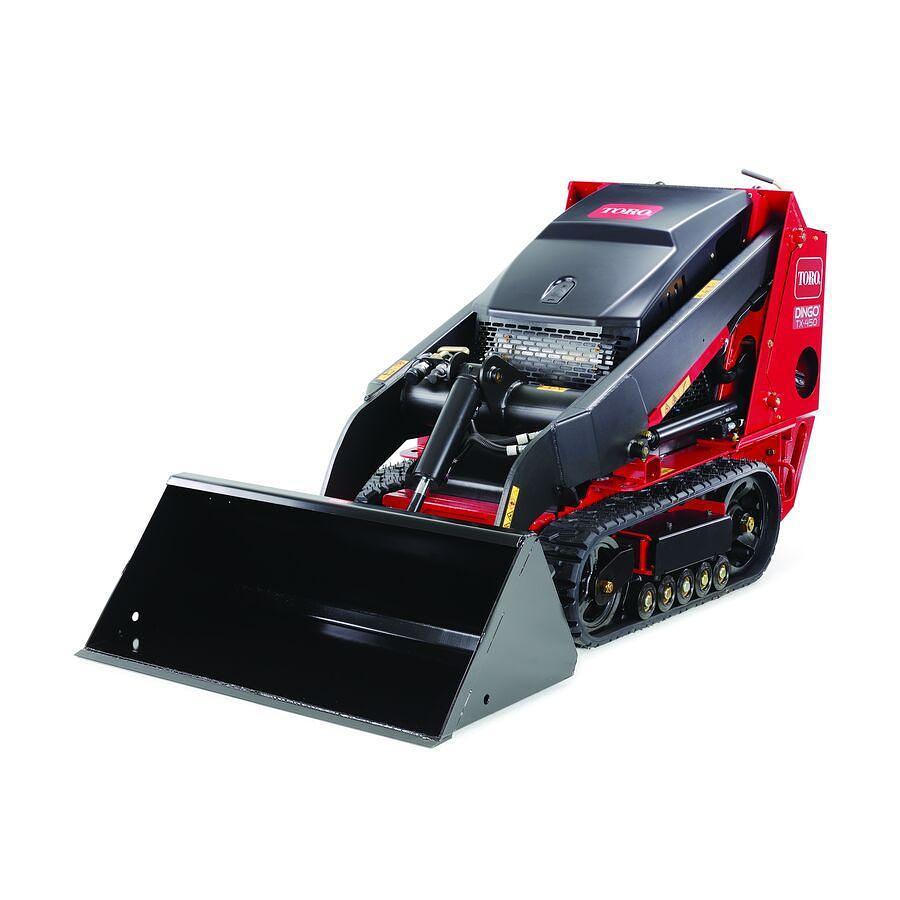

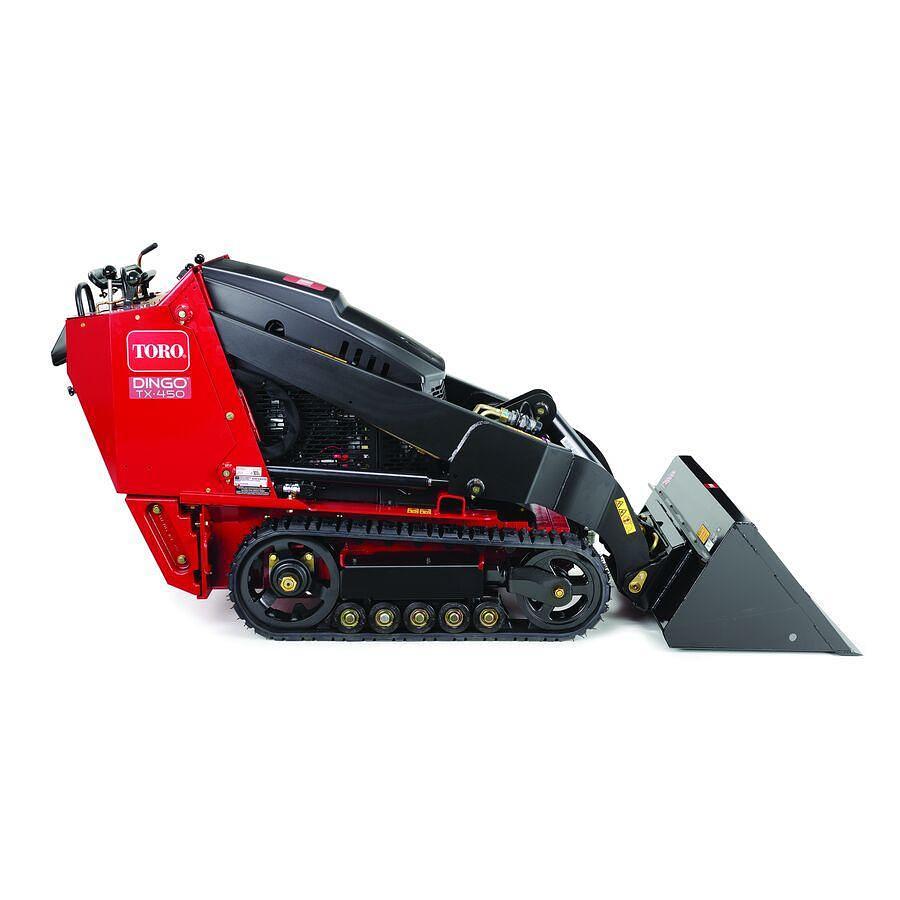

Dingo® TX 450 Track Loader
or
Call (914) 738-4400
Specifications
| Manufacturer | Toro |
| Condition | New |
| Air Filter | Two-stage, heavy-duty, remote |
| Cooling System | Air Cooled |
| Dump Angle | 38 deg |
| Dump Height | 46.1 in. / 117.0 cm |
| Engine Displacement | 725 cc (44 cu. in.) |
| Engine Horsepower | 25 hp (18.6 kW) @ 3,600 rpm |
| Engine Make | Kohler |
| Engine Model | Command Pro Series CH740 |
| Fuel Tank | 6 gal. / 22.7 L |
| Fuel Type | Gasoline |
| Ground Clearance | 4.6 in. / 11.56 cm |
| Ground Pressure | 5.1 psi |
| Ground Speed - Forward | Up to 4.5 mph / 7.2 kph |
| Ground Speed - Reverse | Up to 2.0 mph / 3.2 kph |
| Height | 46.1 in. / 117.0 cm |
| Height - With Bucket | 46.1 in. / 117.0 cm |
| Hinge Pin Height | 65.8 in. / 167.1 cm |
| Hydraulic Flow - Auxiliary | 11.4 GPM |
| Hydraulic Flow - Traction | 16.9 GPM |
| Hydraulic Pressure | 3,000 psi |
| Length | 70.7 in. / 179.5 cm |
| Length - With Bucket | 92 in. / 233.6 cm |
| Loader Arms | Radial |
| Max Operating Height | 90.1 in. / 228.8 cm |
| Oil Capacity | 2 qt / 1.9 L |
| Rated Operating Capacity* | 535 lbs / 242.67 kg |
| Reach - Fully Raised | 21.8 in. / 55.3 cm |
| Reservoir Capacity | 10 gal. / 37.8 L |
| Tip Capacity | 1,530 lbs / 694 kg |
| Track Length | 96.6 in. / 245.3 cm |
| Track Width | 5.9 in. / 14.9 cm |
| Tracks | Sprocket-drive, 10 road wheels per side |
| Traction | Dual Hydrostatic Pump |
| Weight | 1,882 lbs / 854 kg |
| Wheelbase | 31.2 in. / 79.2 cm |
| Width | 33.7 in. / 85.5 cm |
| Width - With Bucket | 33.7 in. / 85.5 cm |
