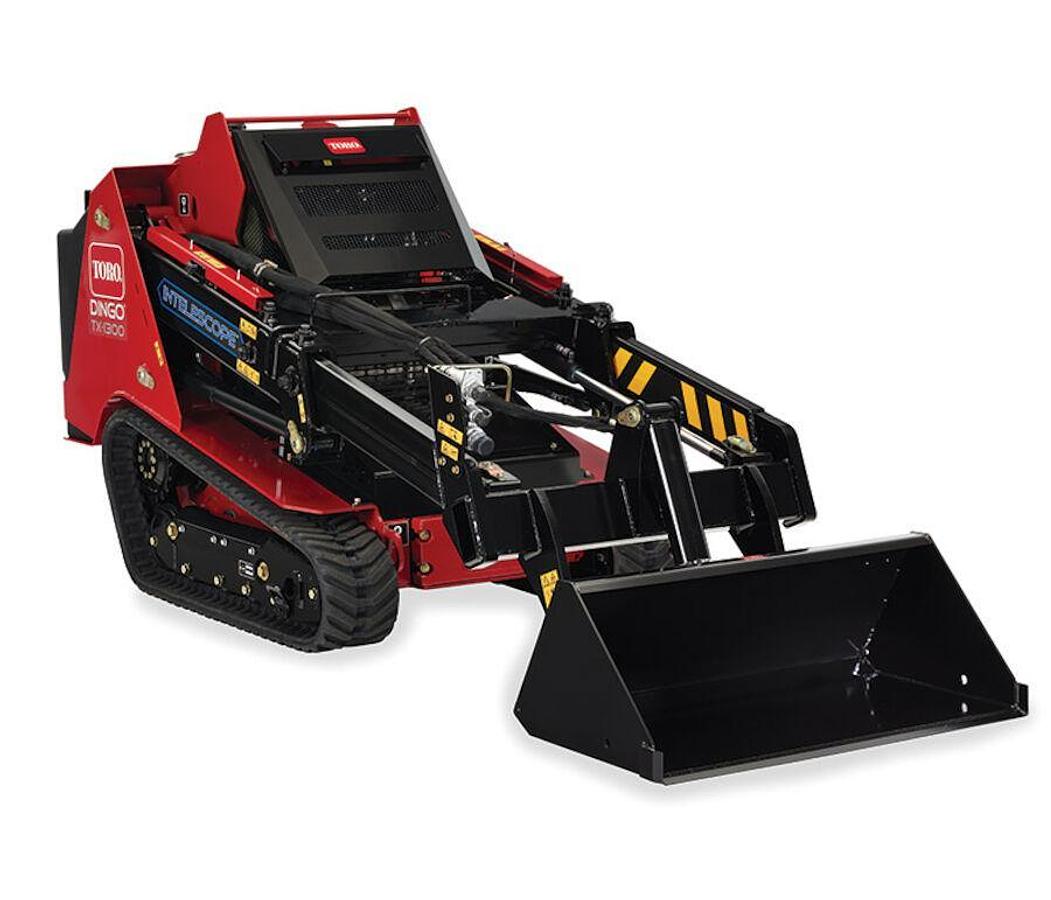

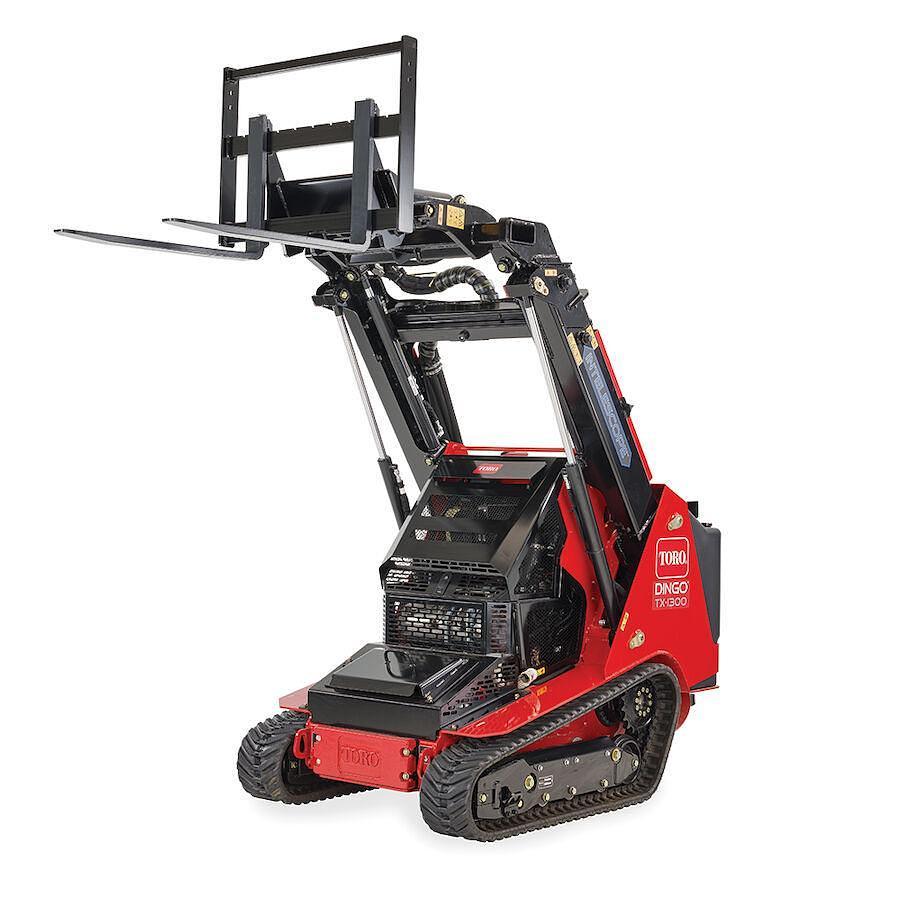

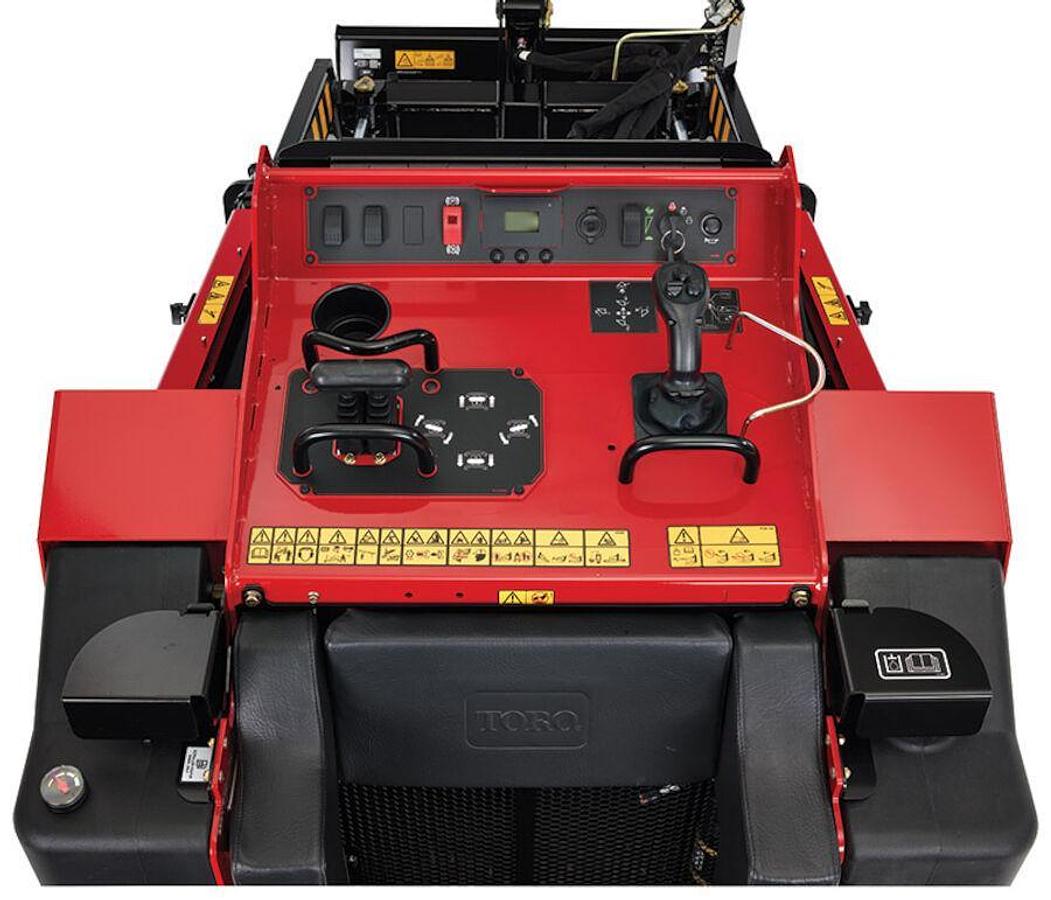

Dingo® TX 1300 Track Loader
or
Call (914) 738-4400
Specifications
| Manufacturer | Toro |
| Condition | New |
| Air Filter | Remote dual element |
| Cooling System | Combo Downflow Radiator and Oil Cooler, Independent Fuel |
| Dump Angle | 38 deg |
| Dump Height - Extended | 90.7 in. / 230.3 cm |
| Dump Height - Retracted | 70.9 in. / 180.0 cm |
| Engine Horsepower | 37 hp (27 kW) |
| Engine Make | Yanmar |
| Engine Model | 3TNV88C |
| Fuel Tank | 11 gal. / 41.6 L |
| Fuel Type | Diesel |
| Ground Clearance | 5.9 in. / 14.9 cm |
| Ground Pressure | 5.5 psi |
| Ground Speed - Forward | Up to 4.7 mph / 7.6 km/h |
| Ground Speed - Reverse | Up to 4.7 mph / 7.6 km/h |
| Height | 56.5 in. / 143.5 cm |
| Height - With Bucket | 56.5 in. / 143.5 cm |
| Hinge Pin Height - Extended | 109.2 in. / 277.3 cm |
| Hinge Pin Height - Retracted | 89.4 in. / 227.0 cm |
| Hydraulic Flow - Auxiliary | 14.3 GPM |
| Hydraulic Flow - Traction | 13.4 GPM |
| Hydraulic Pressure | 3,200 psi |
| Length | 84.9 in. / 215.6 cm |
| Length - With Bucket | 103.1 in. / 261.8 cm |
| Loader Arms | Radial |
| Max Operating Height | 133 in. / 337.8 cm |
| Oil Capacity | 5 qt / 4.7 L |
| Rated Operating Capacity - Extended* | 618 lbs / 280.3 kg |
| Rated Operating Capacity - Retracted* | 1,300 lbs / 589.6 kg |
| Reach - Fully Raised | 26.7 in. / 67.8 cm |
| Reservoir Capacity | 9.2 gal. / 34.8 L |
| Tip Capacity | 3,714 lbs / 1,685 kg |
| Track Length | 126.6 in. / 321.5 cm |
| Track Width | 9.1 in. / 23.1 cm |
| Tracks | MERT track with "TF" style tread |
| Traction | Dual Hydrostatic Pump |
| Weight | 3,858 lbs / 1,750 kg |
| Wheelbase | 39 in. / 99.0 cm |
| Width | 46 in. / 116.8 cm |
| Width - With Bucket | 46 in. / 116.8 cm |
