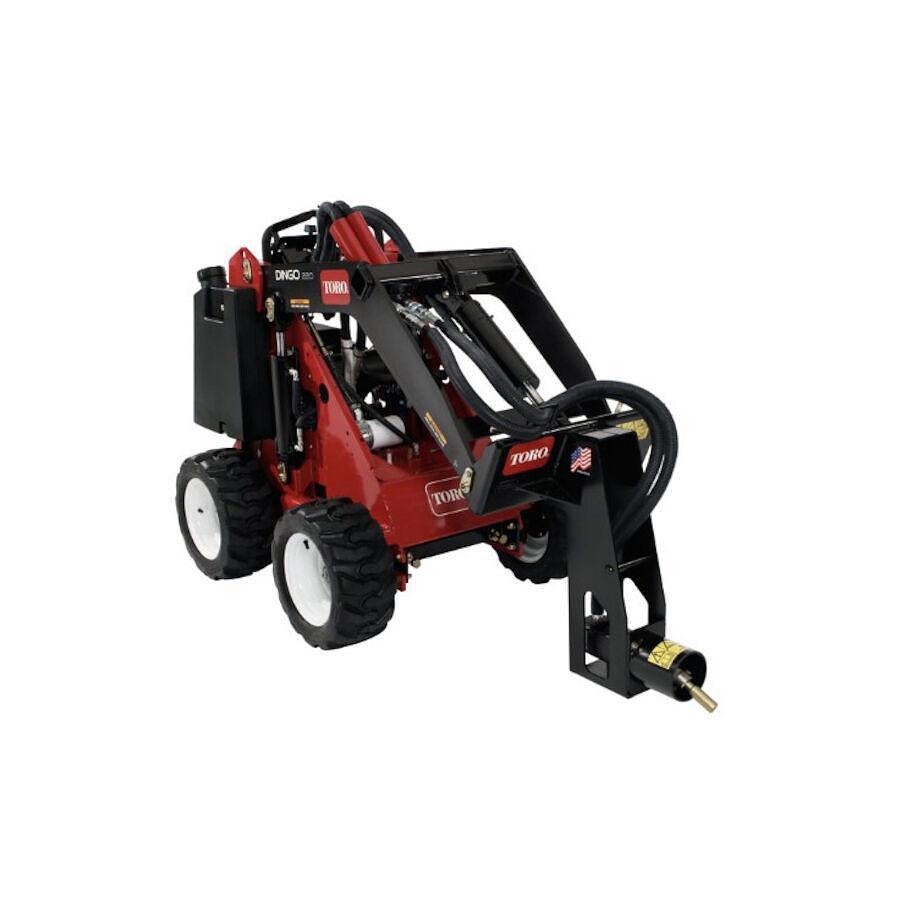

Bore Drive Head Attachment
or
Call (914) 738-4400
Specifications
| Manufacturer | Toro |
| Condition | New |
| Construction | Fabricated, welded steel frame |
| Height | 25 in. / 63.5 cm |
| Length | 22 in. / 55.8 cm |
| Models | Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700 |
| Mounting Frame | Dingo® quick-attach mount plate, fabricated, welded base |
| Quick Couplers | Dripless, flush face quick couplers |
| Rated Pressure | 3,000 PSI (207 BAR) |
| Rod Connection | Hex coupler with snap button |
| Torque | 430 ft/lbs at 2000 psi (59 KgVm at 138 bar) |
| Weight | 120 lbs / 54.4 kg |
| Width | 24 in. / 60.9 cm |
| Working Width | 6 in. / 15.2 cm |
