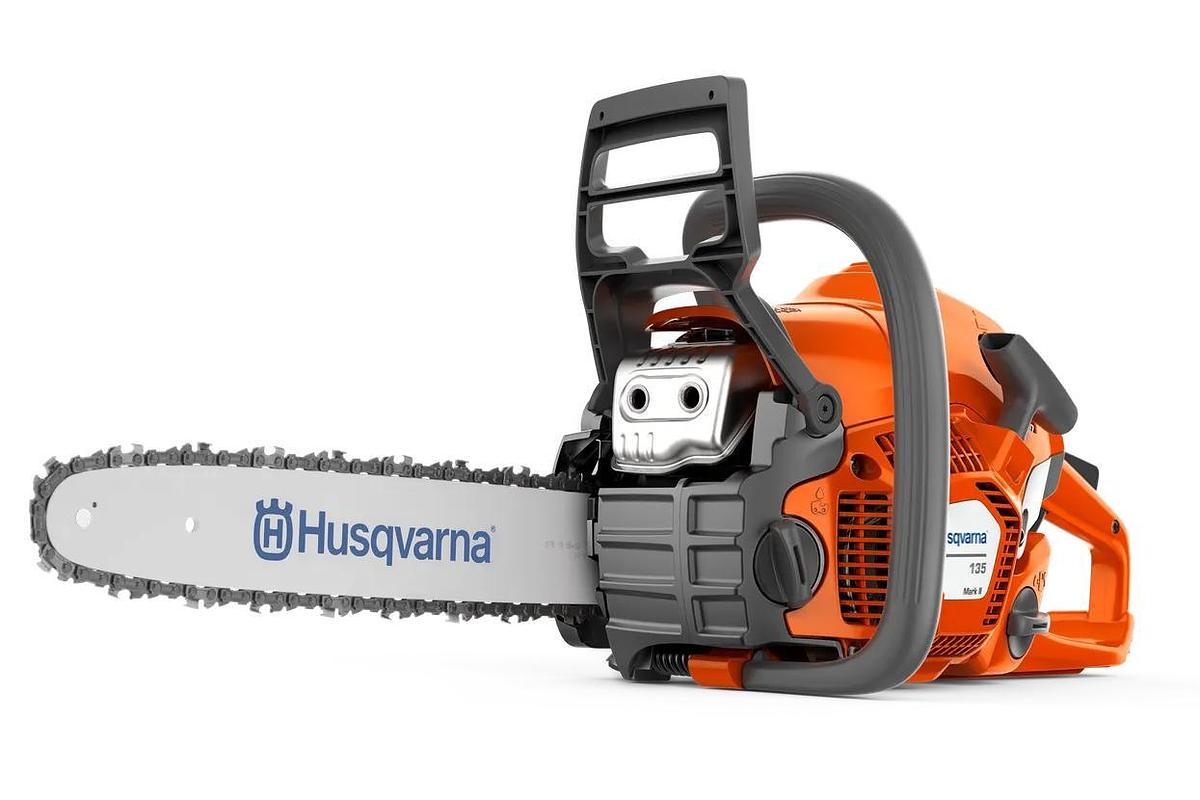

HUSQVARNA 135 Mark II
or
Call (914) 738-4400
Specifications
| Manufacturer | Husqvarna |
| Condition | New |
| Output shaft power1 | 2.1 hp |
| Cylinder displacement | 38 cm³ |
| Torque, max. | 1.84 Nm |
| Torque, max. at rpm | 8,000 rpm |
| Chain speed at max power | 55 fts |
| Clutch engagement speed (±120) | 4,000 rpm |
| Electrode gap | 0.022 in |
| Idling speed | 3,000 rpm |
| Ignition module air gap | 0.012 in |
| Maximum power speed | 9,000 rpm |
| Oil pump type | Automatic |
| Spark Plug | NGK BPMR7A |
| Recommended bar length, min | 14 in |
| Pitch | 3/8" mini |
| Recommended bar length, max | 16 in |

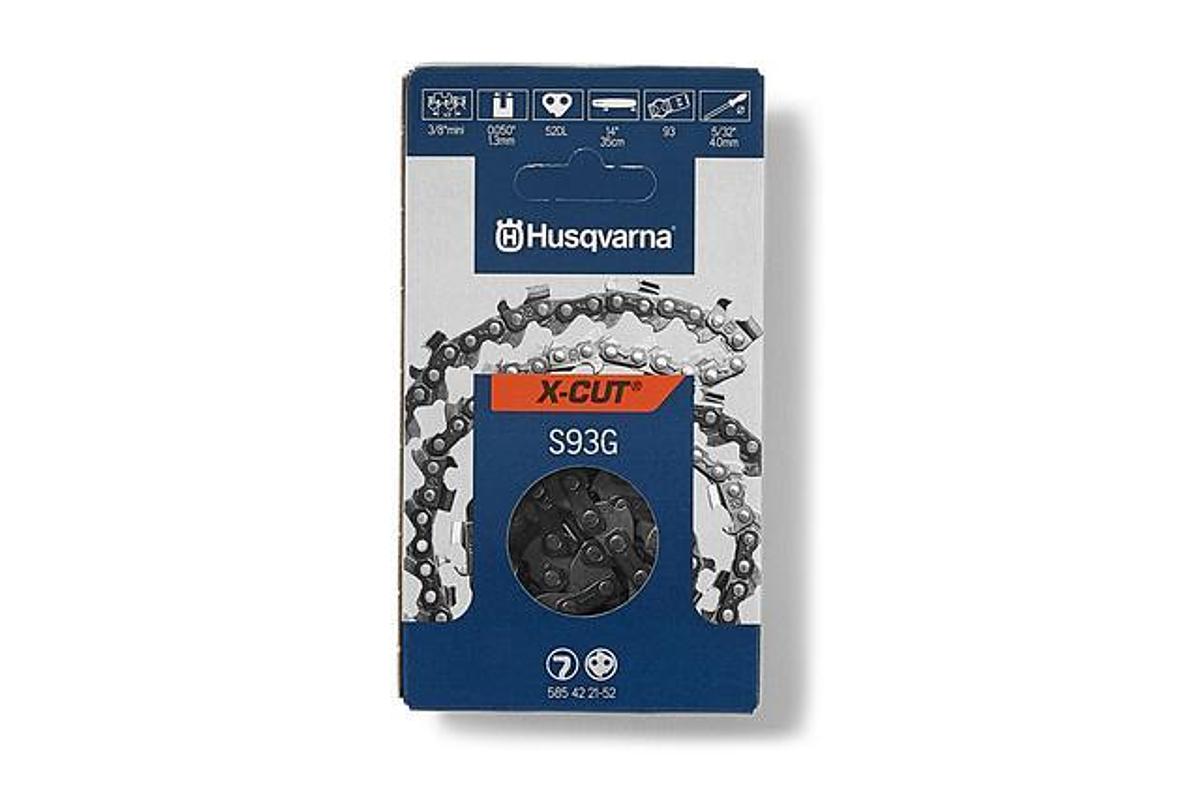

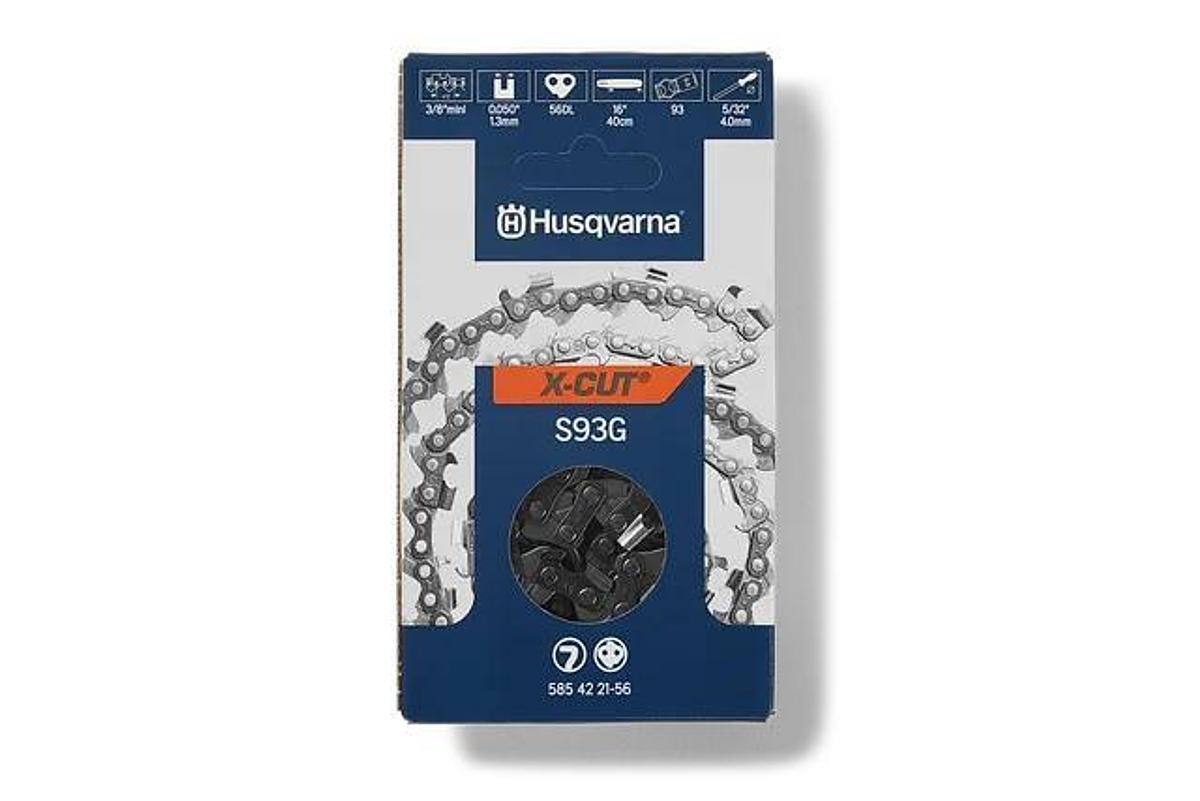

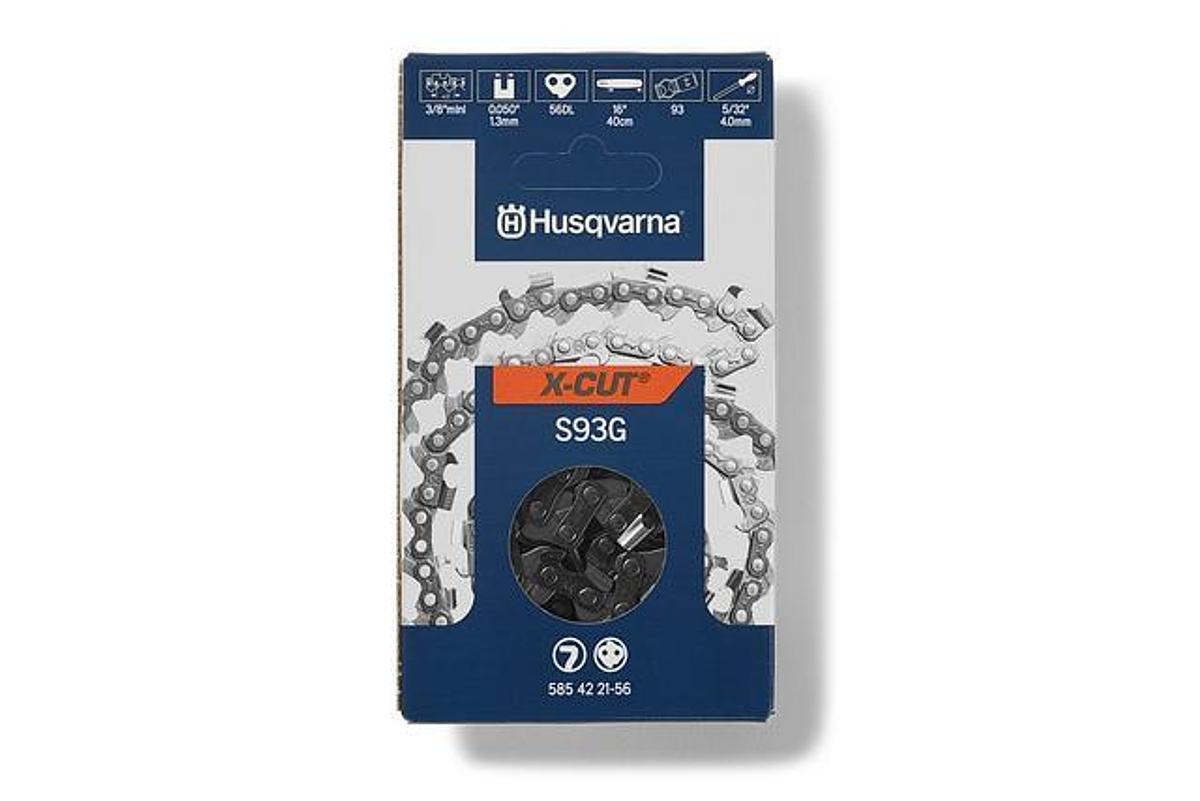

| Chain type | S93G |
| Bar length (inch) | 16 in |
| Sprocket type | Spur 6 |
| Gauge | .050" |
| Weight (excl. cutting equipment) | 10.36 lbs |
| Sound pressure level at operators ear | 102 dB(A) |
| Sound power level, guaranteed (LWA) | 116 dB(A) |
| Sound power level, measured | 113 dB(A) |
| Equivalent vibration level (ahv, eq) rear handle | 5.5 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 3.72 m/s² |
| Oil tank volume | 0.549 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Exhaust emissions (CO₂ EU V)2 | 804 g/kWh |
