ZTX5 60ZTX5 60
Specifications
| Manufacturer | Cub Cadet |
| Condition | New |
| Stock Number | Model #938040 |
| Engine Brand | Kawasaki® |
| Engine Model | FS Series |
| Engine Model Number | 730V |
| Engine Displacement | 726cc |
| Engine Output | 24HP |
| Starter Type | Electric |
| Fuel Tank Capacity | 5.5 gal. US (20.82 L) |
| Cylinders | Twin |
| Engine Start | Ignition Key |
| Engine Oil Capacity | 2.1 qt US ( 2 L) |
| Lubrication | Fully pressurized |
| Charging System | 12 amp regulated |
| Fuel Gauge | Yes |
| Governor | Mechanical |
| Choke | Separate Choke |
| Air Filter | Single element |
| Oil Filter | Yes |
| Fuel Delivery | Carburetor |
| Battery | 210 CCA |
| Battery Type | Lead Acid |
| Battery Voltage | 12V |
| Transmission | Hydro-Gear ZT 3200 |
| Forward Speed | 8.5 MPH / 13.7 km/h |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| Drive System | Hydrostatic |
| Serviceable Transmission | Yes (Serviceable) |
| Deck Cutting Width | 60 in |
| Deck Wash | No |
| Deck Material | 10-gauge steel with 2-gauge reinforcement |
| Deck Engagement (PTO) | Electric |
| Deck Construction | Reinforced Fabricated |
| Blade(s) | Three |
| Deck Lift | Foot pedal with Dial Adjust |
| Cutting Height Range | 1" - 4.75" |
| Anti-Scalping | Three gauge wheels |
| Deck Positions | 17 |
| Frame | 1.5" x 3" tubular steel |
| Turning Radius | 0° |
| ROPS | Yes |
| Rear Tow Hitch | Yes |
| Corrosion Protection | Yes |
| Front Caster Yokes | 5/16" Steel |
| Cruise Control | No |
| Brakes | Disc |
| Steering Control | Lap Bars |
| Seat Type | 24" high back |
| Armrests | Yes |
| Seat Adjustment | Lever |
| Front Caster Suspension | Yes |
| Rear Tires | 23"x 12"-12" |
| Front Tires | 13"x 6.5"-6" |
| Tire Tread | Turf Master / Multi Trac |
| Series | Ultima Series™ ZTX |
| Hour Meter | Yes |

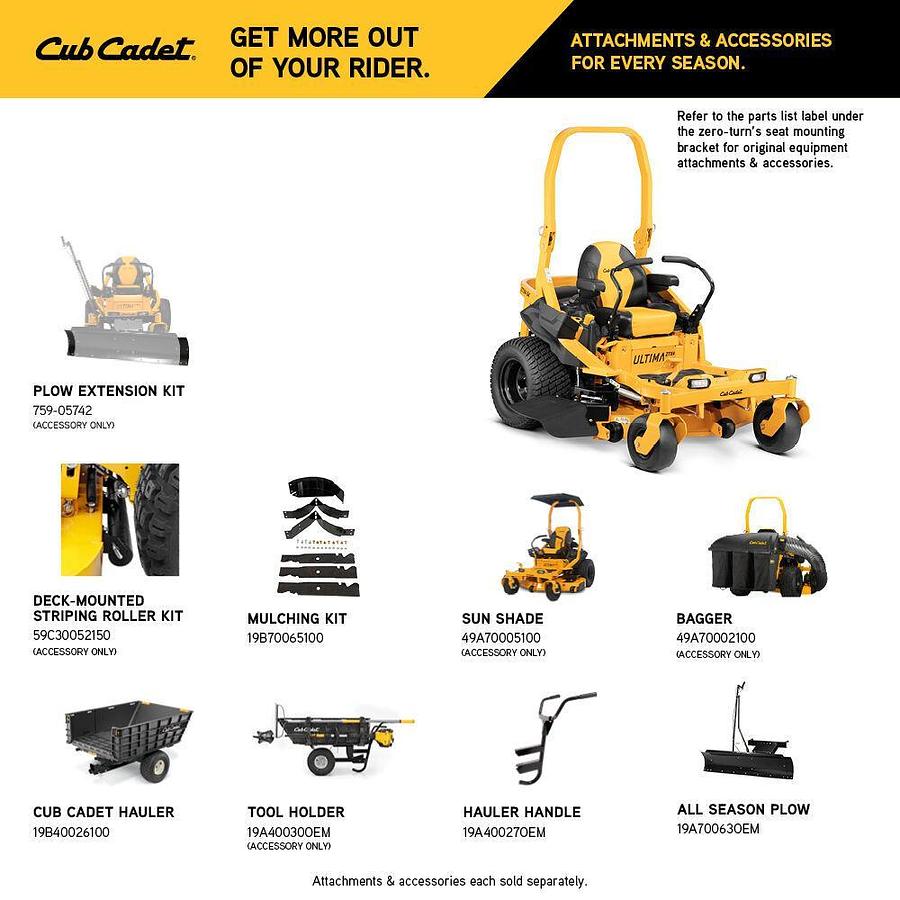

| Mulch Kit | Available separately |
| Headlight(s) | Dual-LED |
| Cup Holder | Yes |
| Operator Presence System | Yes |
| Parking Brake | Lap Bar Integrated |
| Model Number | 47AKAAA8A10 |
| Residential Warranty | 4-year 800 hours |
| Frame Warranty | Lifetime Limited |
| Deck Shell Warranty | Lifetime limited |
| Commercial Warranty | 4-year 800 hours |
Description

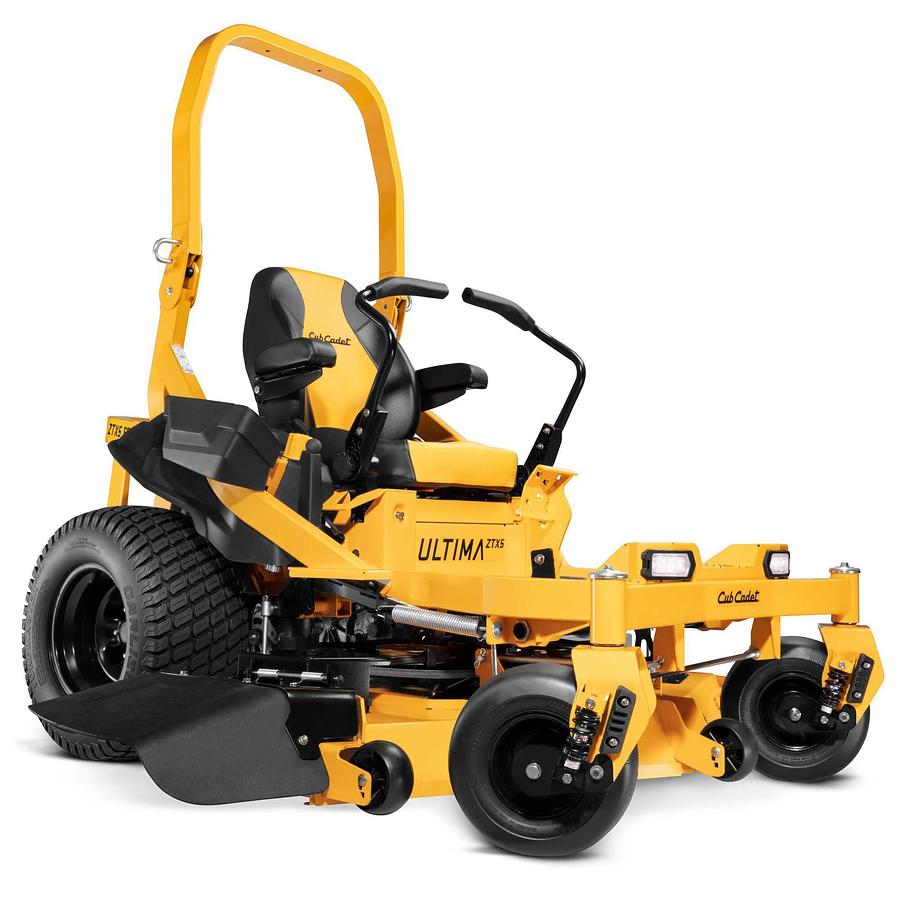

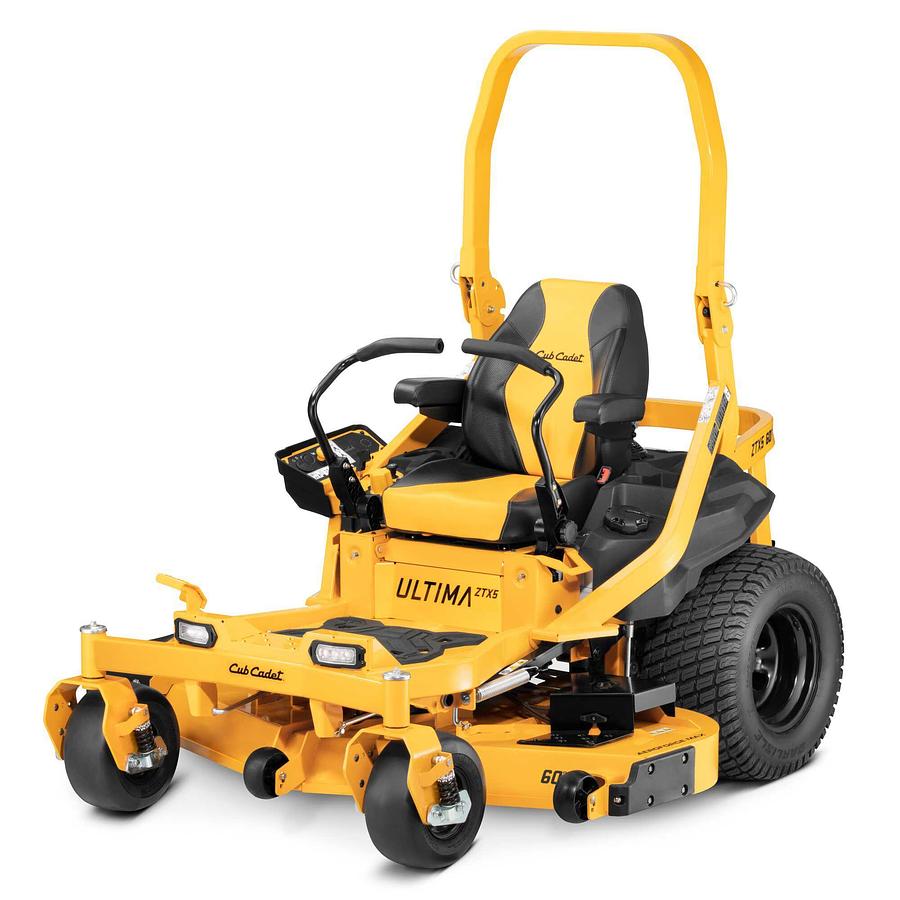

The Cub Cadet® Ultima Series ZTX5 60 is a 60-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.
Read More
ZTX5 60 Features
Hydro-Gear™ ZT 3200 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 8.5 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
High-Back Seat
A 24” premium high-back seat, cushioned armrests and a suspension system with polymer set isolators deliver a smoother ride than traditional seat springs.
Advanced Grass Collection
The AeroForce Max™ deck top discharge allows for superior flow of grass through the large 9" diameter boot, directly up into the larger capacity bags.
Front Suspension
Independent suspension caster wheels deliver a smooth ride with less vibration on challenging mowing terrains.
Quick-Adjust Lap Bars
No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.
Enhanced Traction
Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Rugged Frame
A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.
AeroForce Max™
A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.

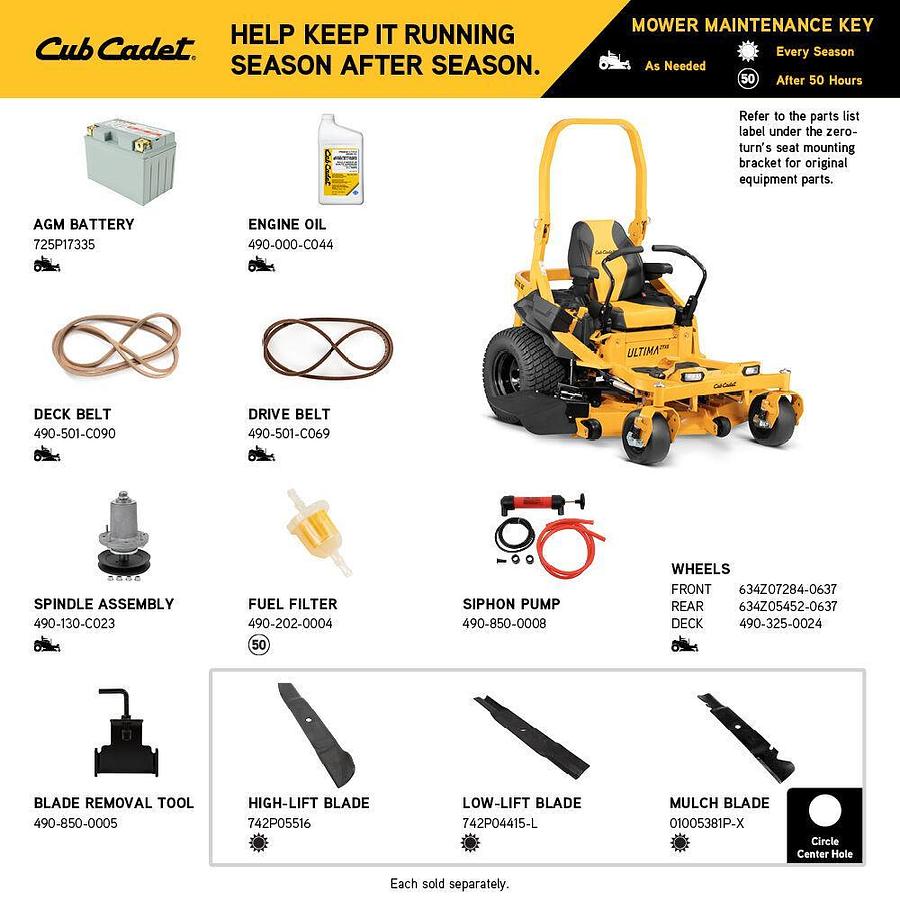

Easy Maintenance
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Hydro-Gear™ ZT 3200 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 8.5 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
High-Back Seat
A 24” premium high-back seat, cushioned armrests and a suspension system with polymer set isolators deliver a smoother ride than traditional seat springs.
Advanced Grass Collection
The AeroForce Max™ deck top discharge allows for superior flow of grass through the large 9" diameter boot, directly up into the larger capacity bags.
Front Suspension
Independent suspension caster wheels deliver a smooth ride with less vibration on challenging mowing terrains.
Quick-Adjust Lap Bars
No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.
Enhanced Traction
Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Rugged Frame
A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.
AeroForce Max™
A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easy Maintenance
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Hydro-Gear™ ZT 3200 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 8.5 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
High-Back Seat
A 24” premium high-back seat, cushioned armrests and a suspension system with polymer set isolators deliver a smoother ride than traditional seat springs.
Advanced Grass Collection
The AeroForce Max™ deck top discharge allows for superior flow of grass through the large 9" diameter boot, directly up into the larger capacity bags.
