ZTX4 48ZTX4 48
Specifications
| Manufacturer | Cub Cadet |
| Condition | New |
| Stock Number | Model #938040 |
| Engine Brand | Kohler® |
| Engine Model | Pro 7000 series |
| Engine Model Number | KT735 |
| Engine Displacement | 725cc |
| Engine Output | 24HP |
| Starter Type | Electric |
| Fuel Tank Capacity | 5.5 gal. US (20.82 L) |
| Cylinders | Twin |
| Engine Start | Ignition Key |
| Engine Oil Capacity | 2.0 qts. US (1.89 L) |
| Lubrication | Fully pressurized |
| Charging System | 12 amp regulated |
| Fuel Gauge | No |
| Governor | Mechanical |
| Choke | Separate Choke |
| Air Filter | Dual element |
| Oil Filter | Yes |
| Fuel Delivery | Carburetor |
| Battery | 210 CCA |
| Battery Type | Lead Acid |
| Battery Voltage | 12V |
| Transmission | Hydro-Gear ZT 3100 |
| Forward Speed | 8 MPH /12.9 km/h |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| Drive System | Hydrostatic |
| Serviceable Transmission | Yes (Serviceable) |
| Deck Cutting Width | 48 in |
| Deck Wash | No |
| Deck Material | 10-guage steel |
| Deck Engagement (PTO) | Electric |
| Deck Construction | Reinforced Fabricated |
| Blade(s) | Three |
| Deck Lift | Foot pedal with Dial Adjust |
| Cutting Height Range | 1" - 4.75" |
| Anti-Scalping | Three gauge wheels |
| Deck Positions | 17 |
| Frame | 1.5" x 3" tubular steel |
| Turning Radius | 0° |

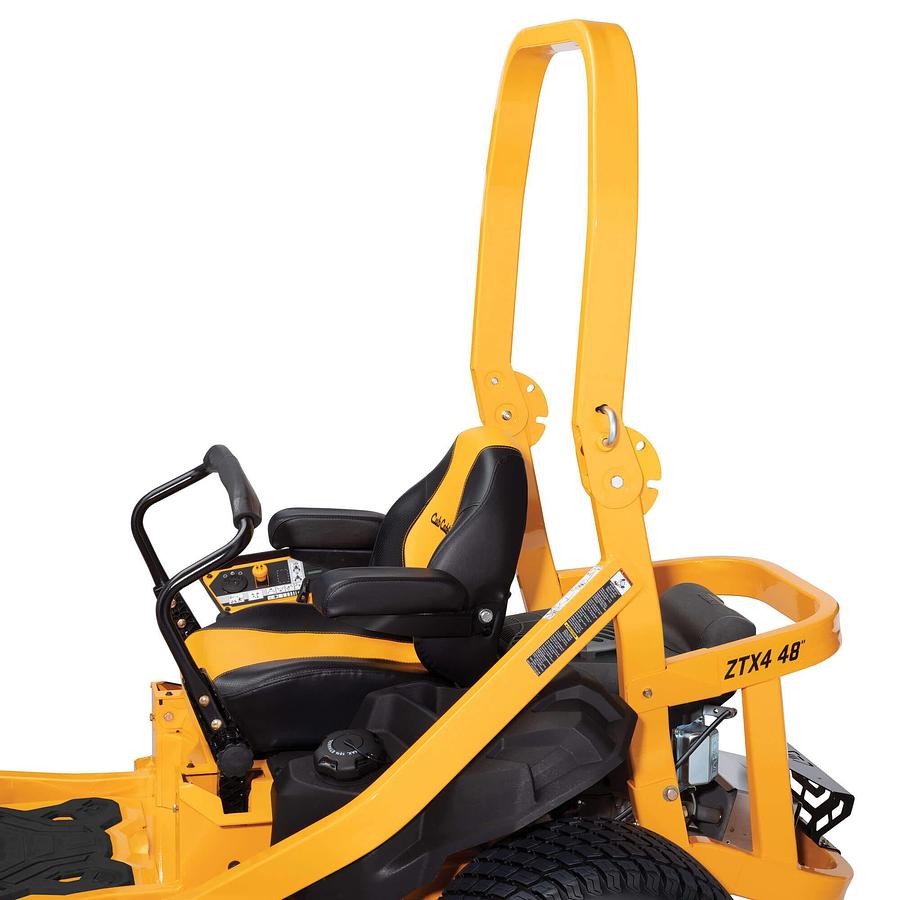

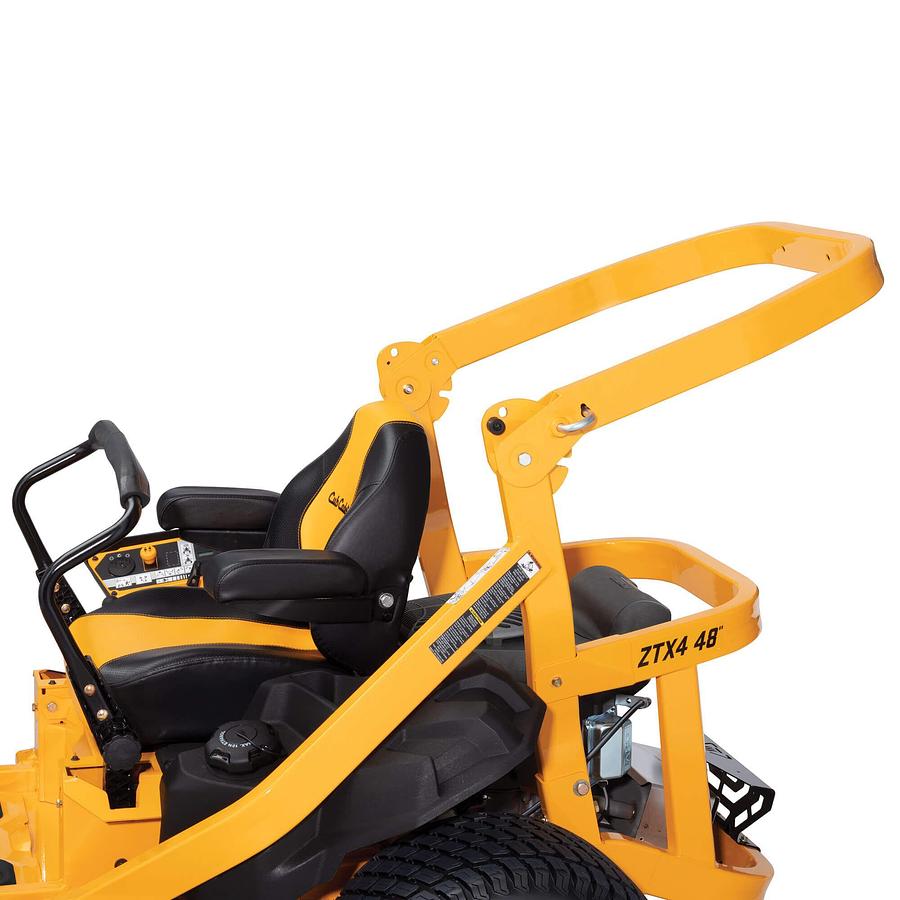

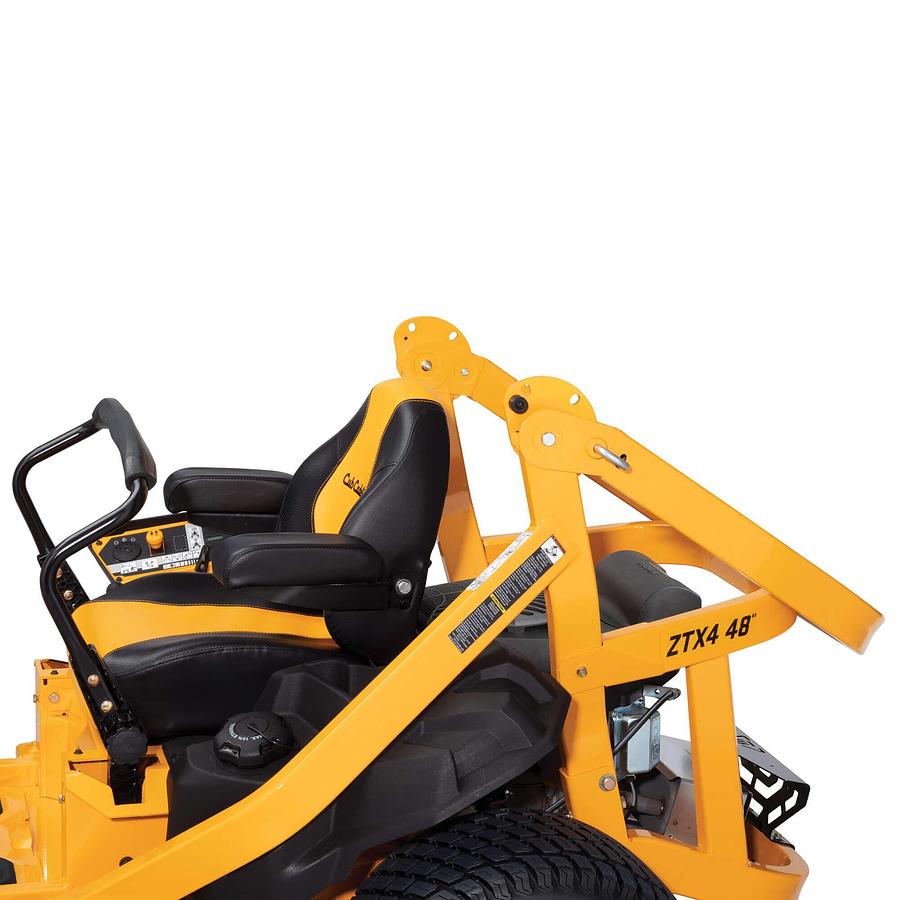

| ROPS | Yes |

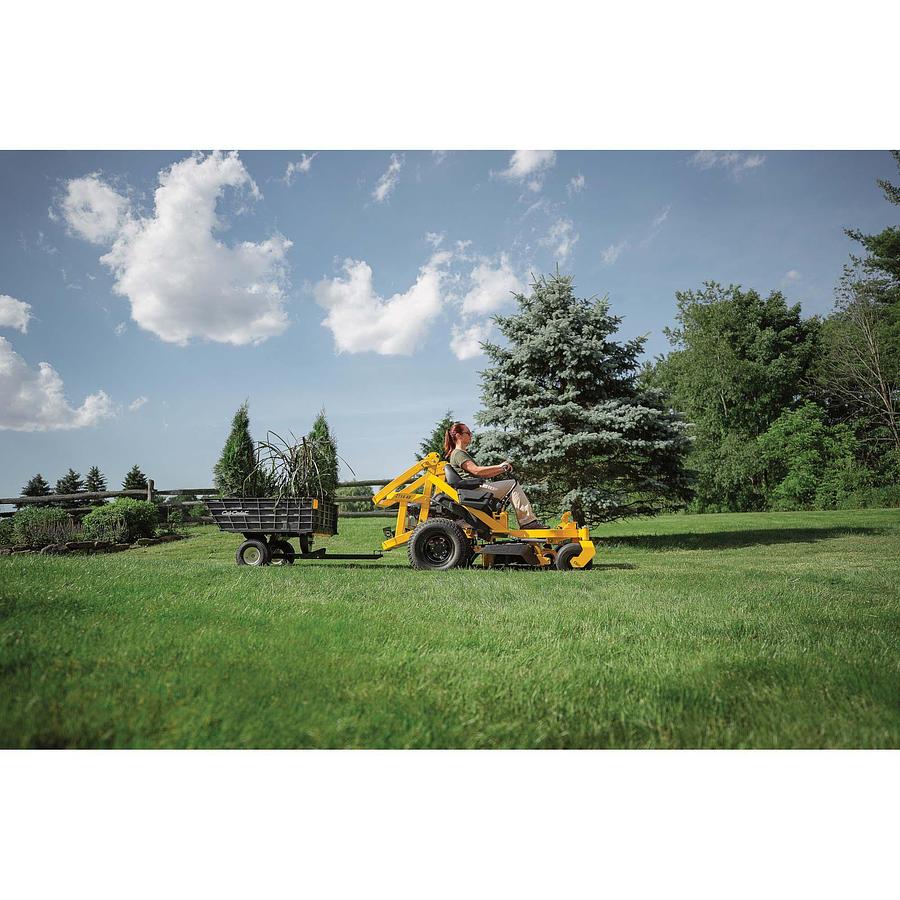

| Rear Tow Hitch | Yes |
| Corrosion Protection | Yes |
| Front Caster Yokes | 5/16" Steel |
| Cruise Control | No |
| Brakes | Disc |
| Steering Control | Lap Bars |
| Seat Type | 20" high back |
| Armrests | Yes |
| Seat Adjustment | Lever |
| Front Caster Suspension | No |
| Rear Tires | 22"x 12"-12" |
| Front Tires | 13"x 6.5"-6" |
| Tire Tread | Turf Master / Multi Trac |
| Series | Ultima Series™ ZTX |
| Hour Meter | Yes |
| Mulch Kit | Available separately |
| Headlight(s) | Dual-LED |
| Cup Holder | Yes |
| Operator Presence System | Yes |
| Parking Brake | Lap Bar Integrated |
| Model Number | 47TSAAA6A10 |
| Residential Warranty | 4-year 800 hours |
| Frame Warranty | Lifetime limited |
| Deck Shell Warranty | Lifetime limited |
| Commercial Warranty | 4-year 800 hours |
Description

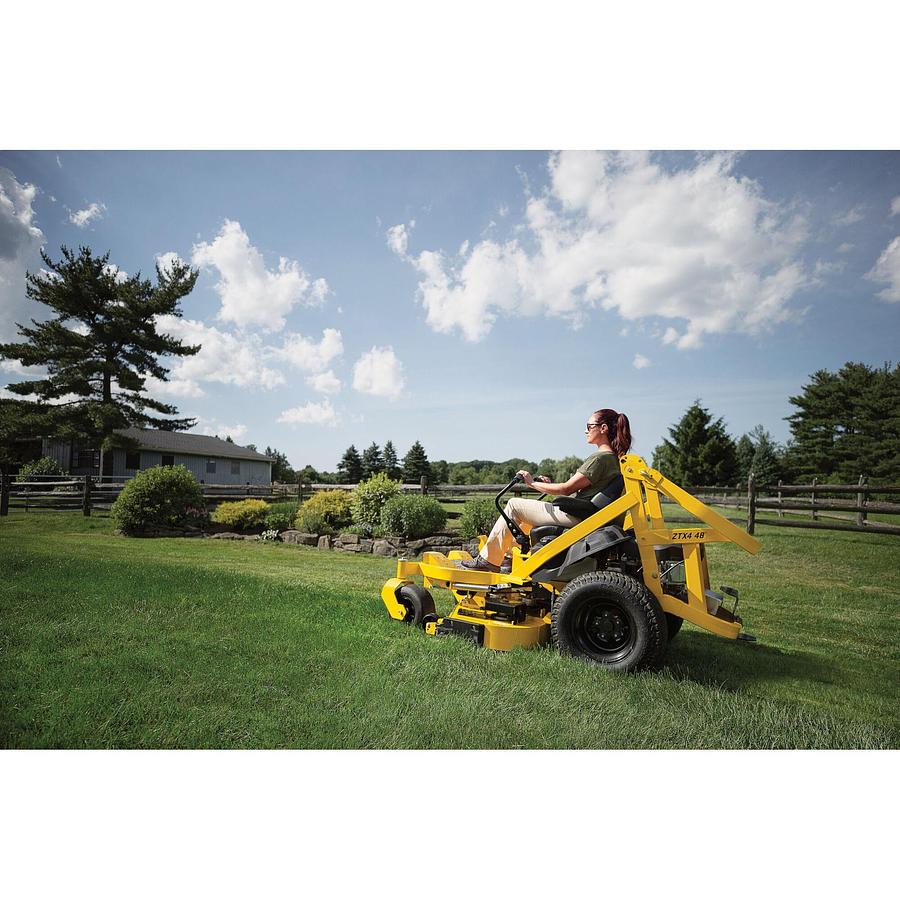

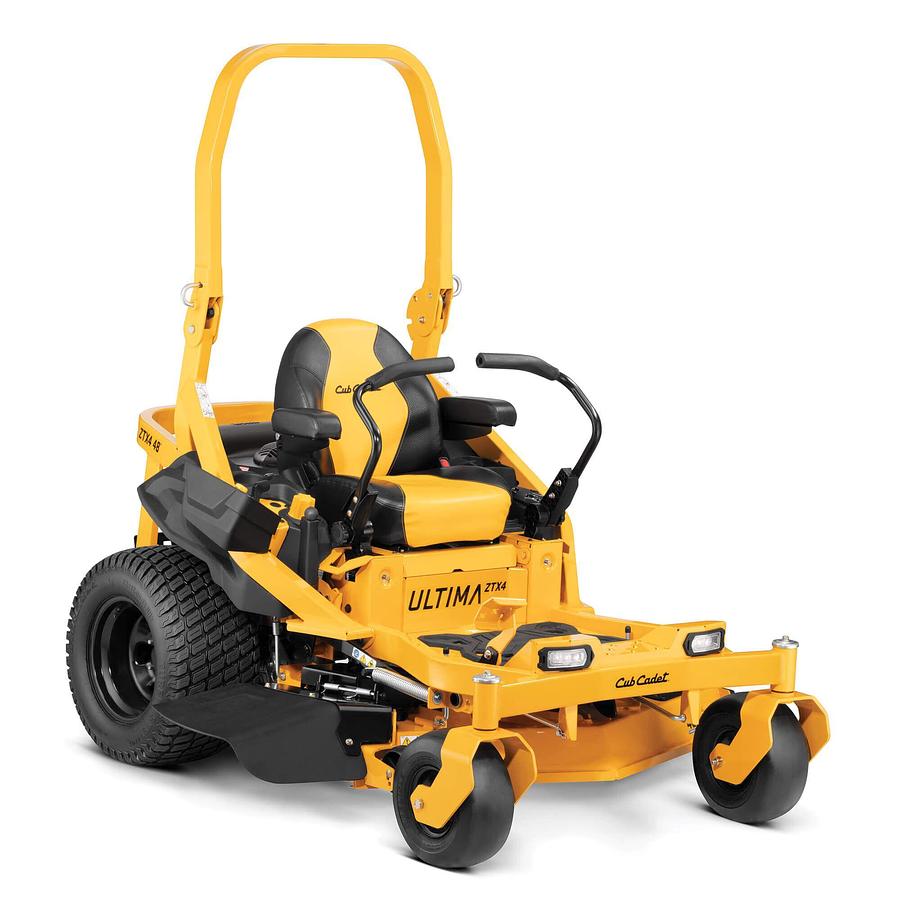

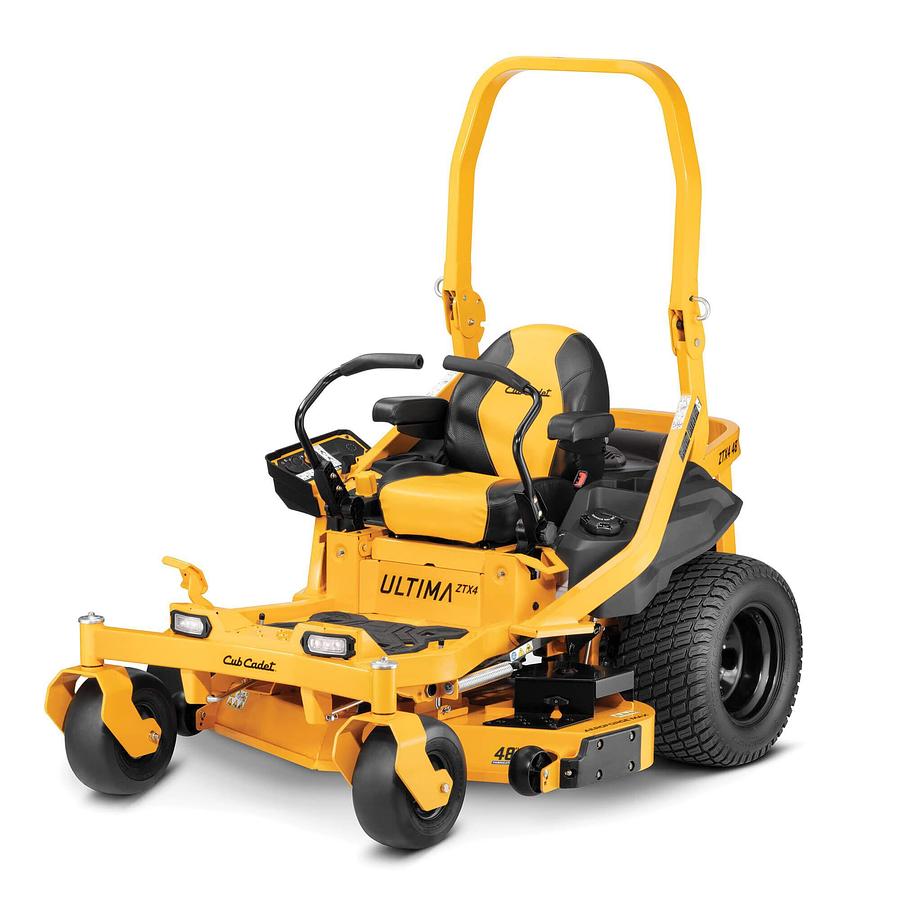

The Cub Cadet® Ultima Series ZTX4 48 is a 48-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower has 10-gauge reinforced steel, low-maintenance spindles, and smooth arc triple blades. Its deep dome deck design allows you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.
Read More
ZTX4 48 Features
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easy Maintenance
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Kohler 7000 Series PRO Engine
Smoother operation, better acceleration and seamless recovery powered by a reliable twin-cylinder Kohler engine.
Rugged Frame
A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.
AeroForce Max™
A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Hydro-Gear™ ZT 3100 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 8 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
Enhanced Traction
Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Quick-Adjust Lap Bars
No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.

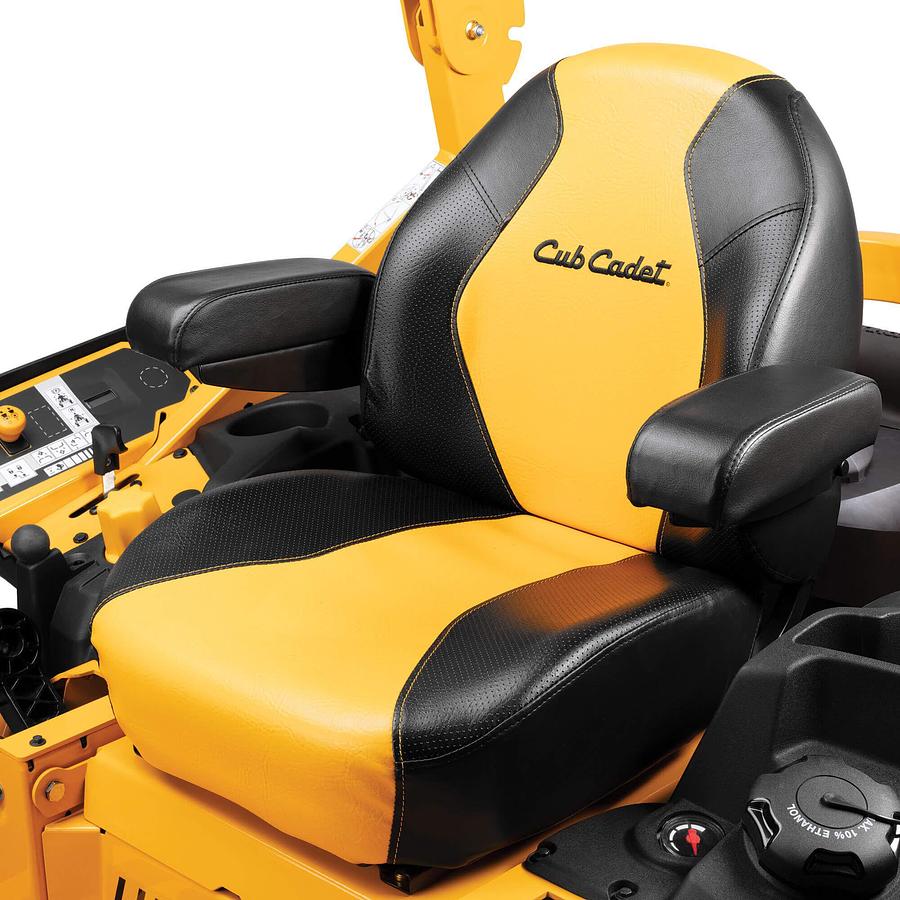

High-Back Seat
A 20” premium high-back seat, cushioned armrests and a suspension system with polymer set isolators deliver a smoother ride than traditional seat springs.
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easy Maintenance
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Kohler 7000 Series PRO Engine
Smoother operation, better acceleration and seamless recovery powered by a reliable twin-cylinder Kohler engine.
Rugged Frame
A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.
AeroForce Max™
A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Hydro-Gear™ ZT 3100 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 8 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
Enhanced Traction
Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Quick-Adjust Lap Bars
No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.
High-Back Seat
A 20” premium high-back seat, cushioned armrests and a suspension system with polymer set isolators deliver a smoother ride than traditional seat springs.
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easy Maintenance
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
