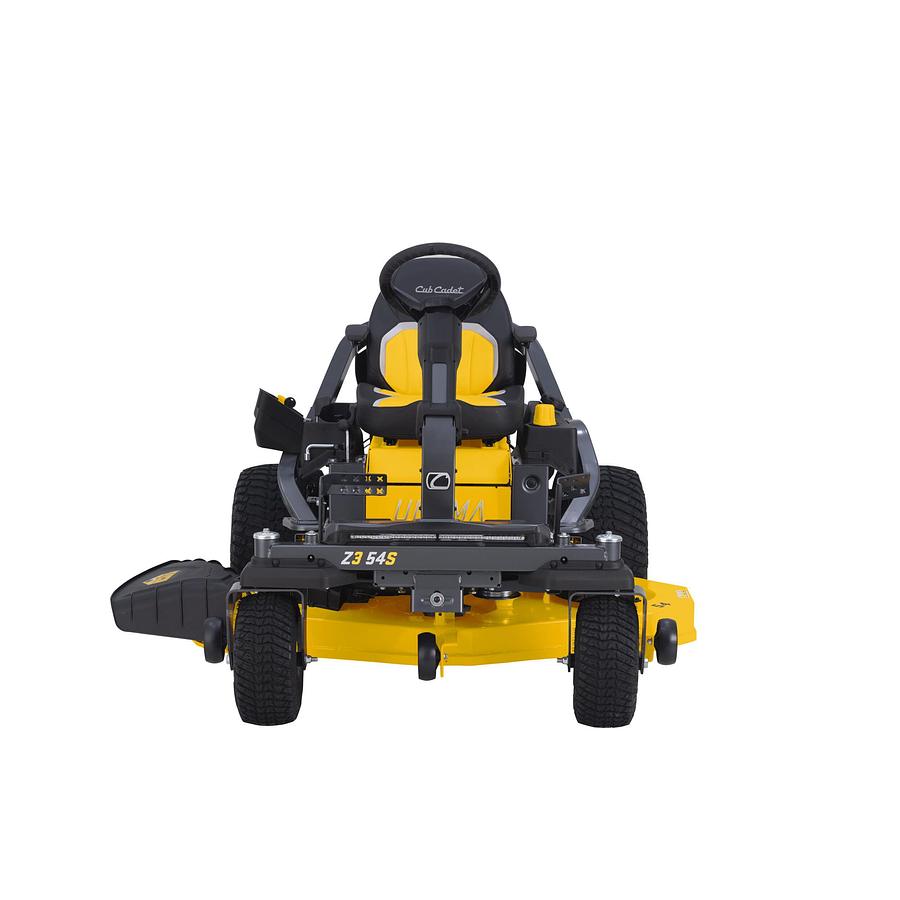

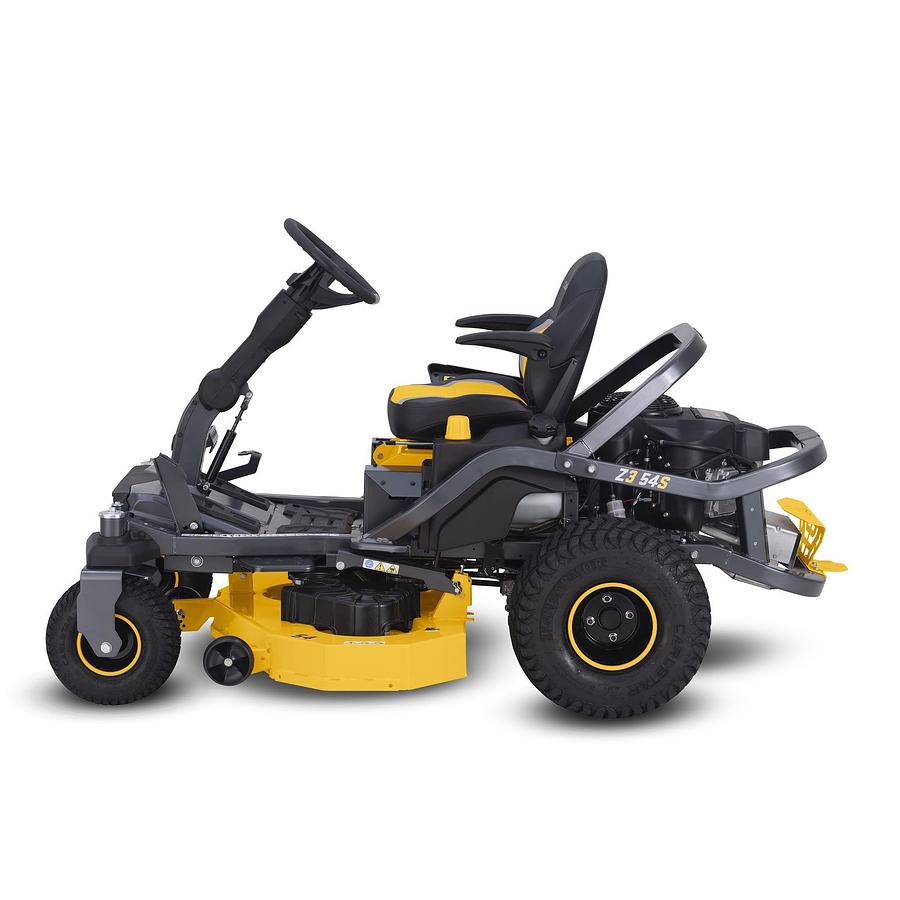

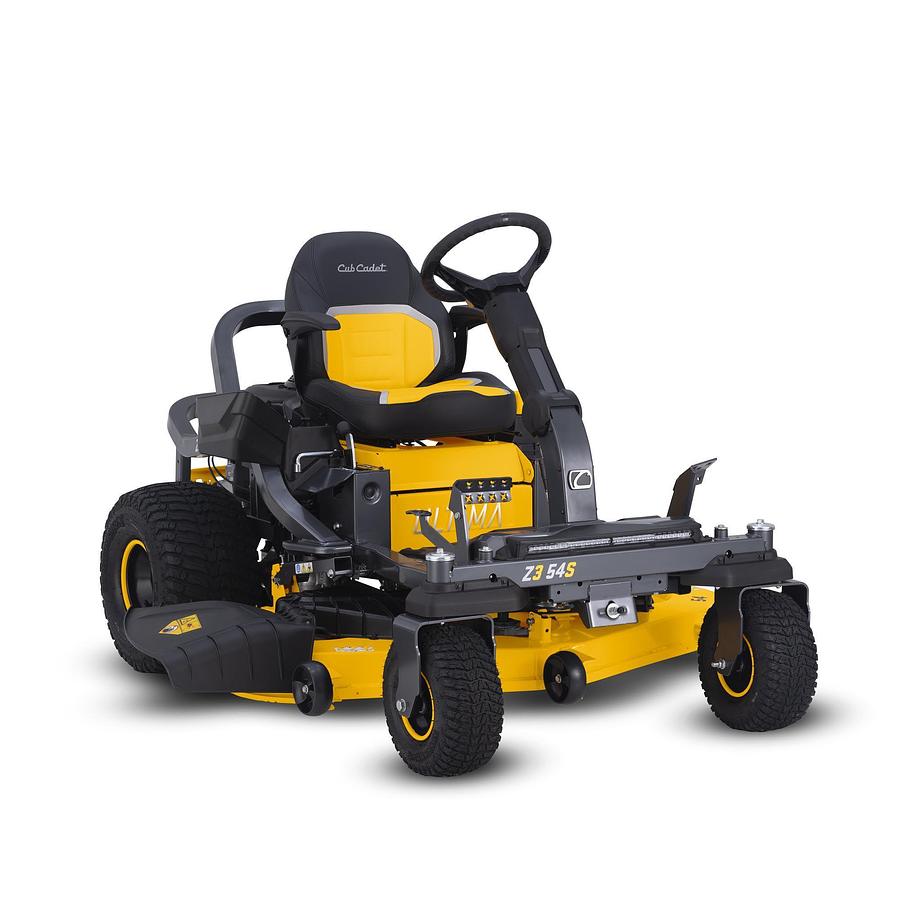

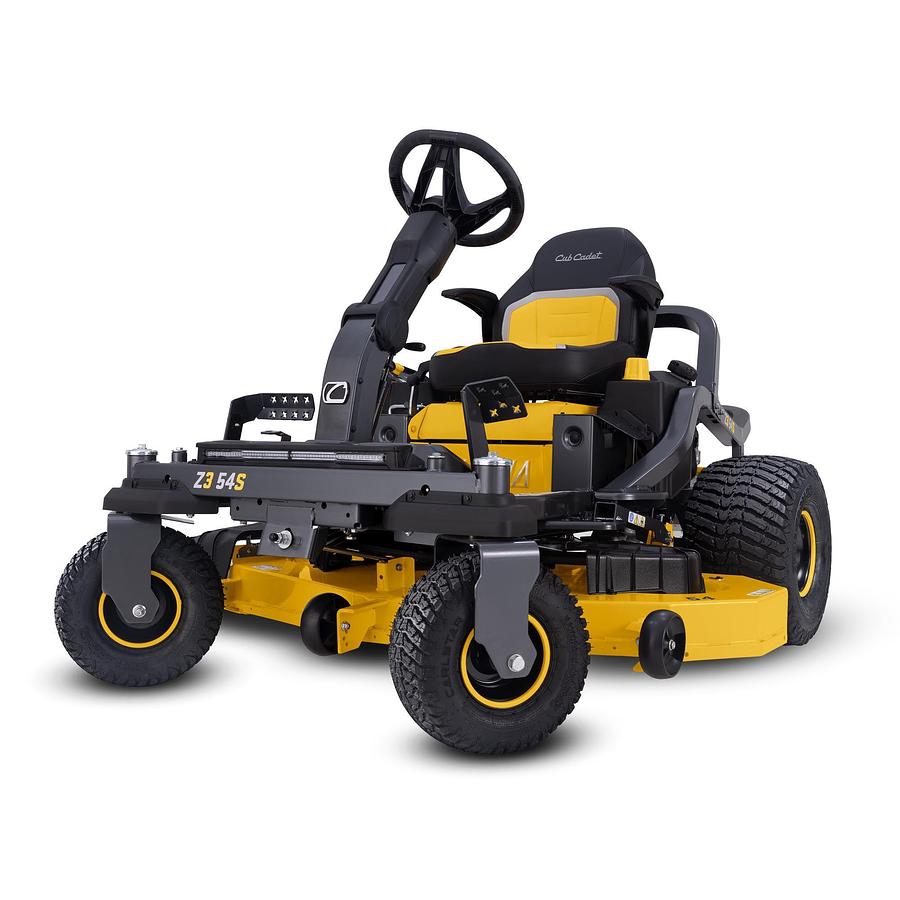

Z3 54SZ3 54S
Specifications
| Manufacturer | Cub Cadet |
| Condition | New |
| Stock Number | Model #938040 |
| Engine Brand | Kawasaki® |
| Engine Model | FR Series |
| Engine Model Number | 691V |
| Engine Displacement | 726cc |
| Engine Output | 23HP |
| Starter Type | Electric |
| Fuel Tank Capacity | 3.5 gal. US (13.25 L) |
| Cylinders | Twin |
| Engine Start | Ignition Key |
| Engine Oil Capacity | 2.1 qt US ( 2 L) |
| Lubrication | Fully pressurized |
| Charging System | 12 amp regulated |
| Fuel Gauge | No |
| Governor | Mechanical |
| Choke | Separate Choke |
| Air Filter | Single element |
| Oil Filter | Yes |
| Fuel Delivery | Carburetor |
| Battery | 230 CCA |
| Battery Type | Lead Acid |
| Battery Voltage | 12V |
| Transmission | Hydro-Gear ZT 2800 |
| Forward Speed | 7 MPH / 11.3 km/h |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| Drive System | Hydrostatic |
| Serviceable Transmission | Yes (Serviceable) |
| Deck Cutting Width | 54 in |
| Deck Wash | No |
| Deck Material | 11-gauge steel |
| Deck Engagement (PTO) | Electric |
| Deck Construction | Reinforced Fabricated |
| Blade(s) | Three |

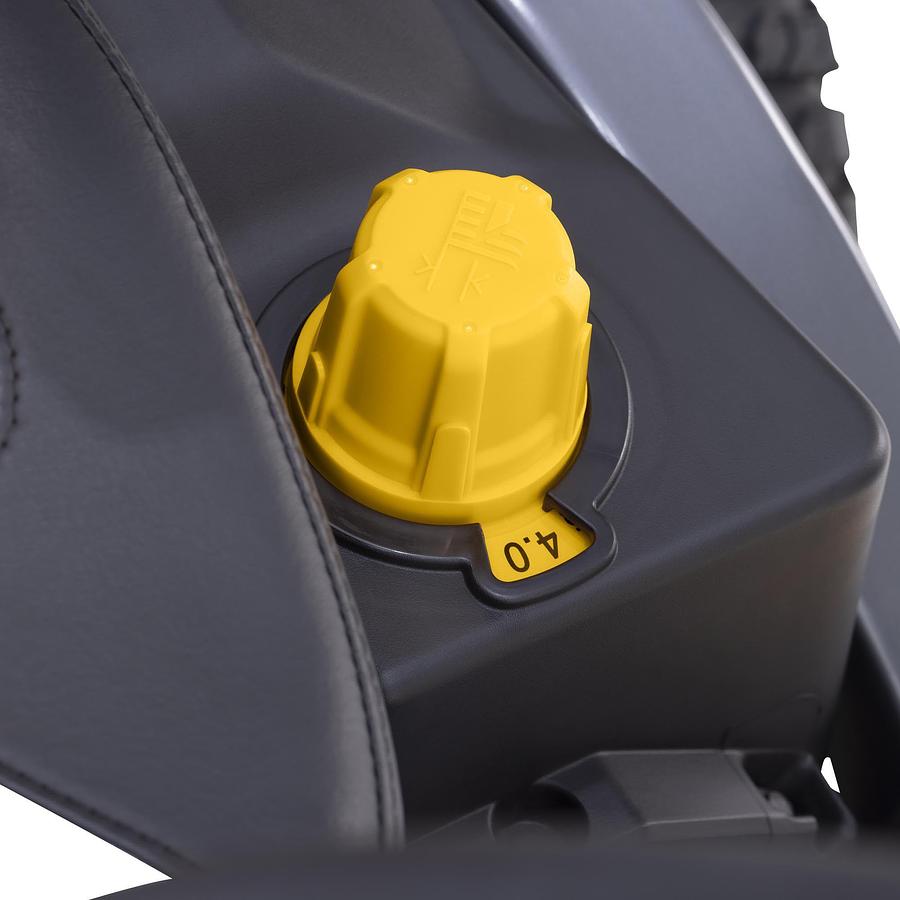

| Deck Lift | Foot pedal with Dial Adjust |
| Cutting Height Range | 1'' - 4.5'' |
| Anti-Scalping | Three gauge wheels |
| Deck Positions | 15 |
| Frame | 2'' x 2'' tubular steel |
| Turning Radius | 0° |
| ROPS | No |
| Rear Tow Hitch | Yes |
| Corrosion Protection | Yes |
| Front Caster Yokes | 1/4" Steel |
| Cruise Control | No |
| Brakes | Disc |
| Steering Control | Steering Wheel |
| Seat Type | 20" Cut-and-Sew with Head Bolster |
| Armrests | Yes |
| Seat Adjustment | Lever |
| Front Caster Suspension | No |
| Rear Tires | 20”x 12”-8" |
| Front Tires | 13"x 6.5"-6" |
| Tire Tread | Turf Armor |
| Series | Ultima Series™ ZS |
| Hour Meter | Yes |
| Mulch Kit | Available separately |
| Headlight(s) | LED Lightbar |
| Cup Holder | Yes |
| Operator Presence System | Yes |
| Parking Brake | Hand Lever |
| Model Number | 17CIGGY3A10 |
| Residential Warranty | 3-year unlimited hours |
| Frame Warranty | Lifetime Limited |
| Deck Shell Warranty | Lifetime Limited |
| Commercial Warranty | No |
Description

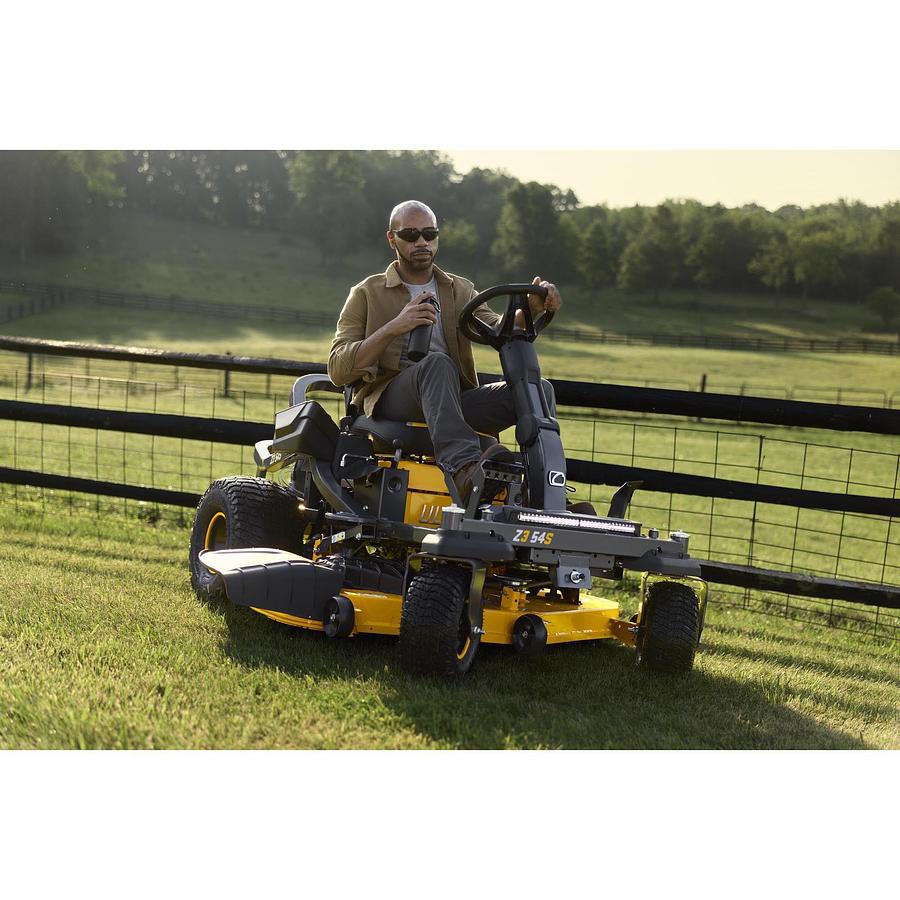

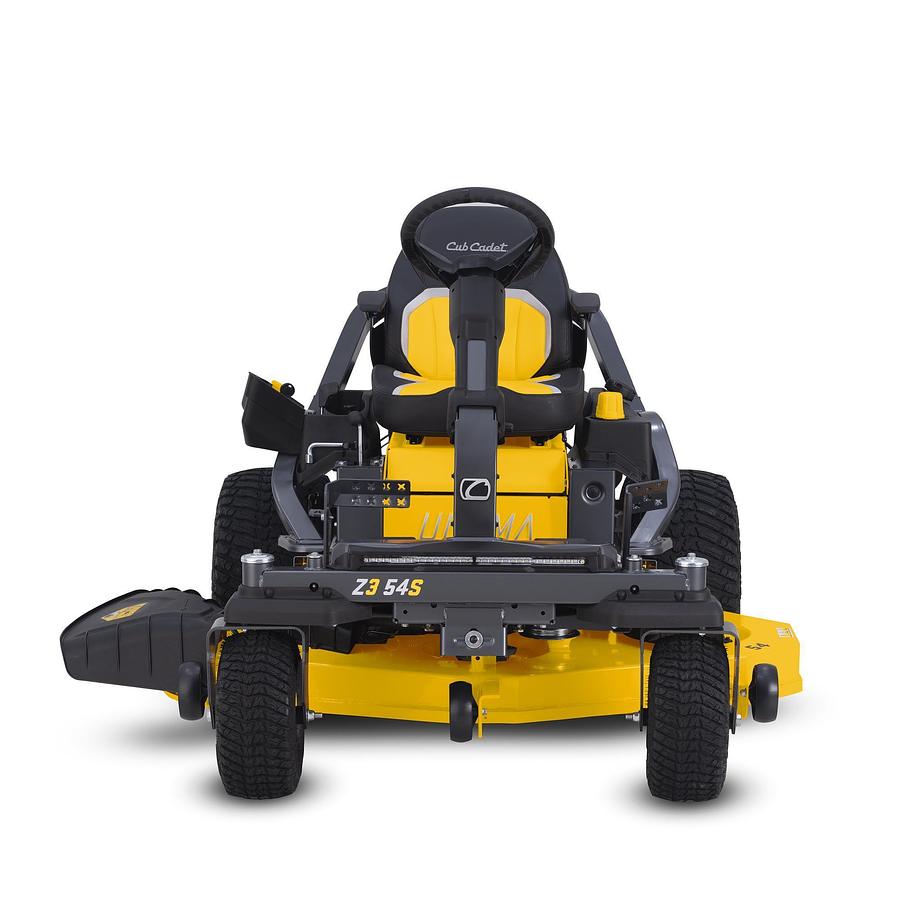

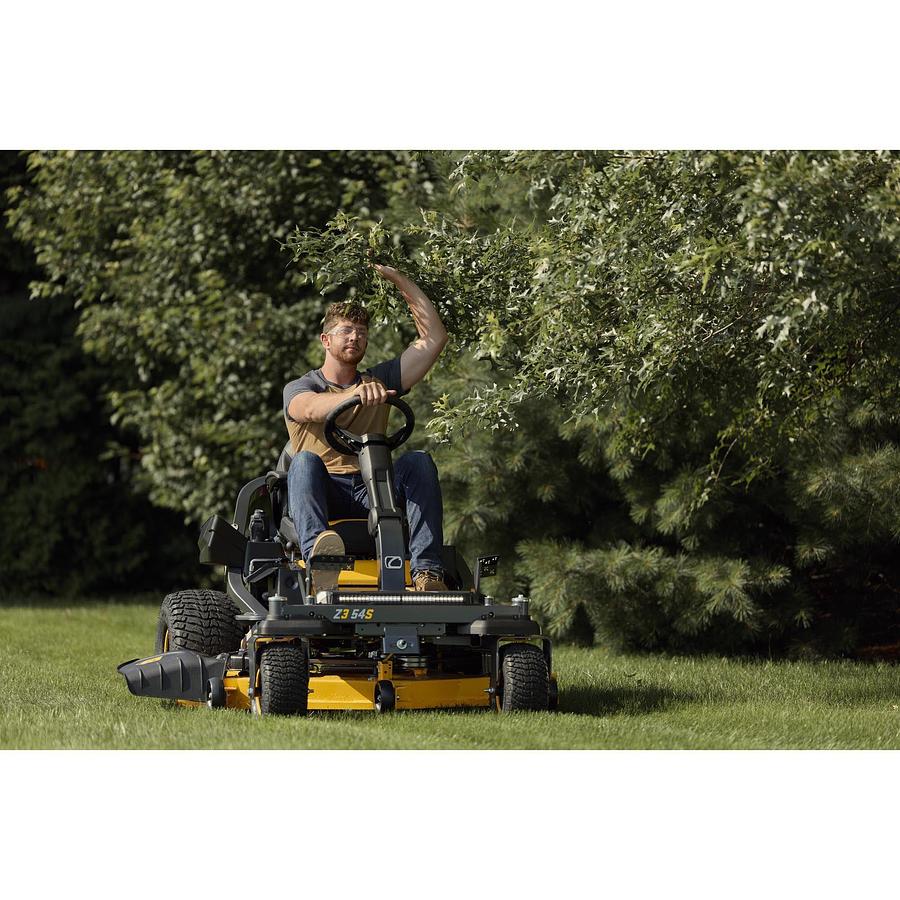

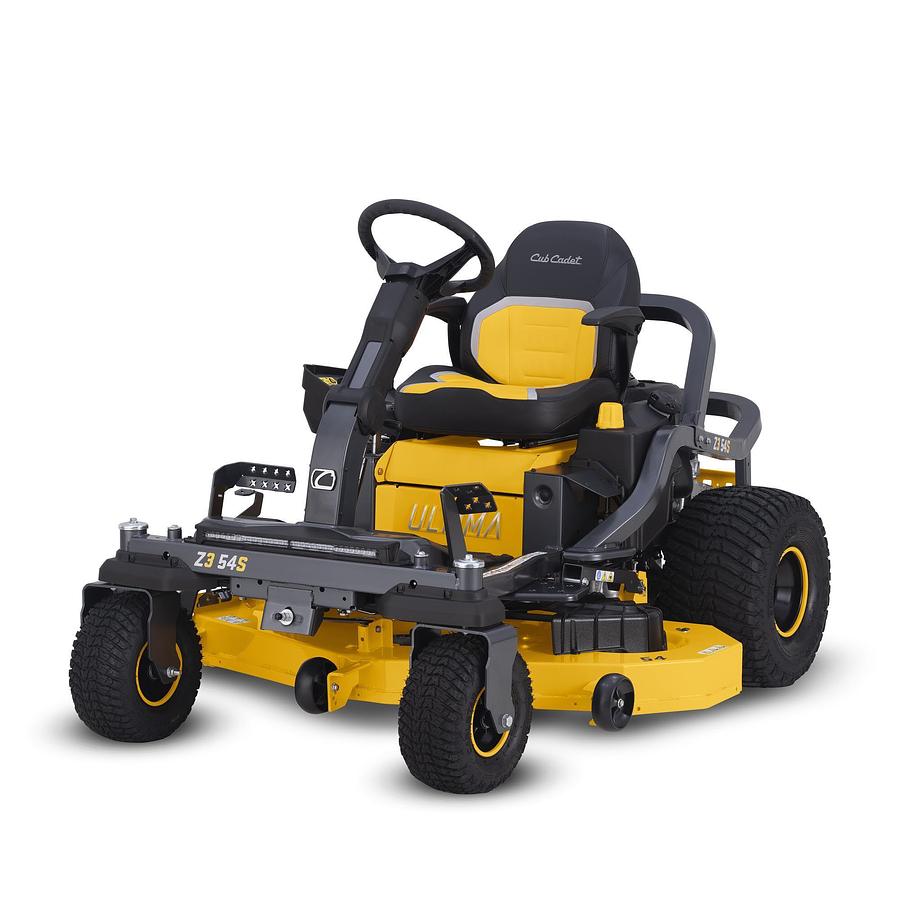

Step up to the advanced Ultima Series™, the Cub Cadet® Ultima Series Z3 54S 54-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is engineered for precision, control, and stability on challenging terrain. Don’t back down from hills and slopes up to 20-degrees**. Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides. Experience uncompromised performance and durable strength, designed to help you mow efficiently and maintain control.
Read More
Z3 54S Features
Smooth Drive
Dual hydrostatic transmissions are designed to eliminate shifting and allow for quick and easy 7 MPH forward (3.5 MPH reverse) ground speeds for a smooth drive.

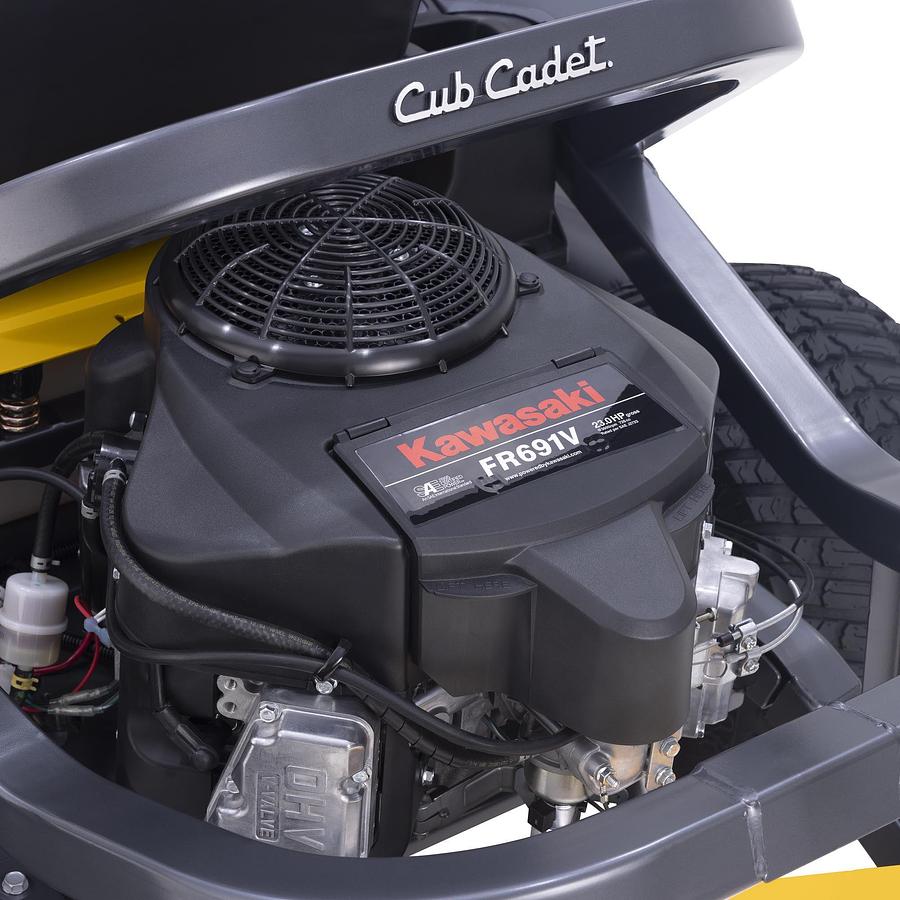

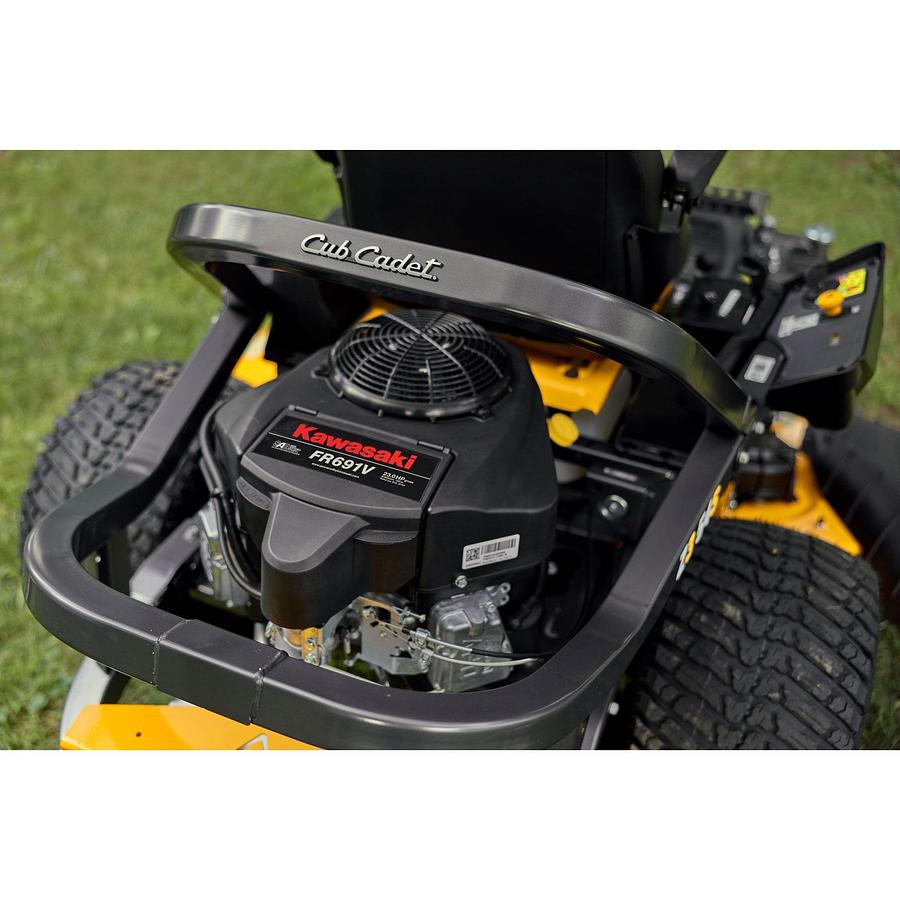

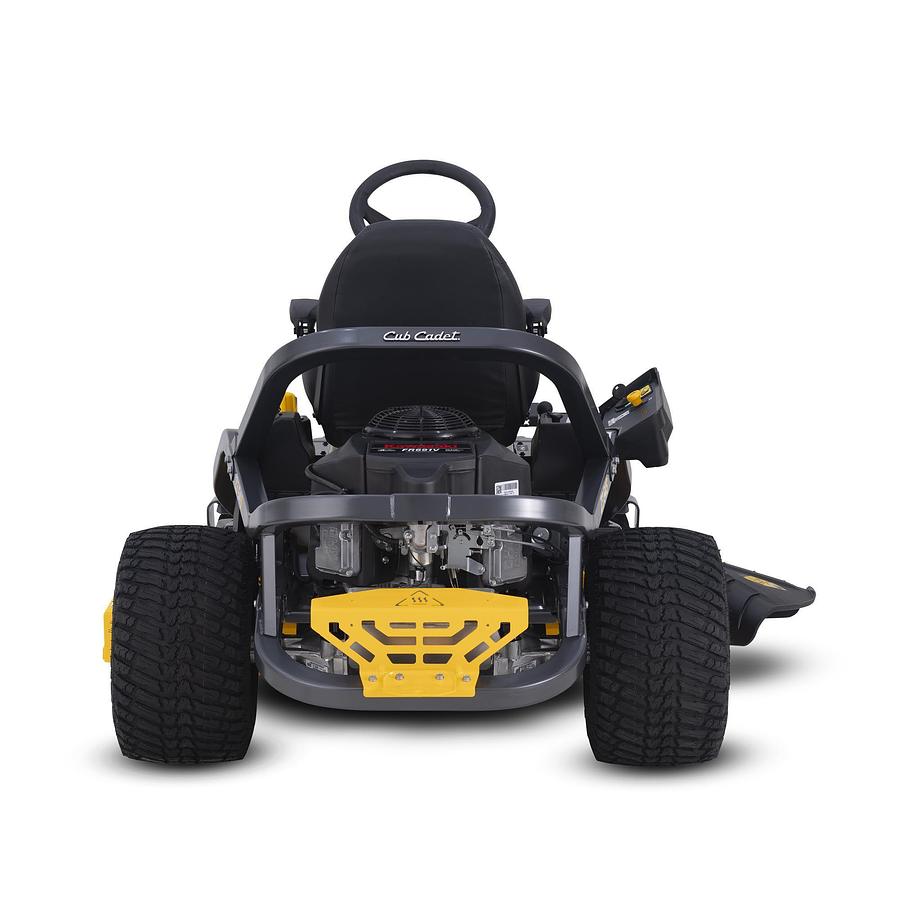

Kawasaki® Engine
The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine.

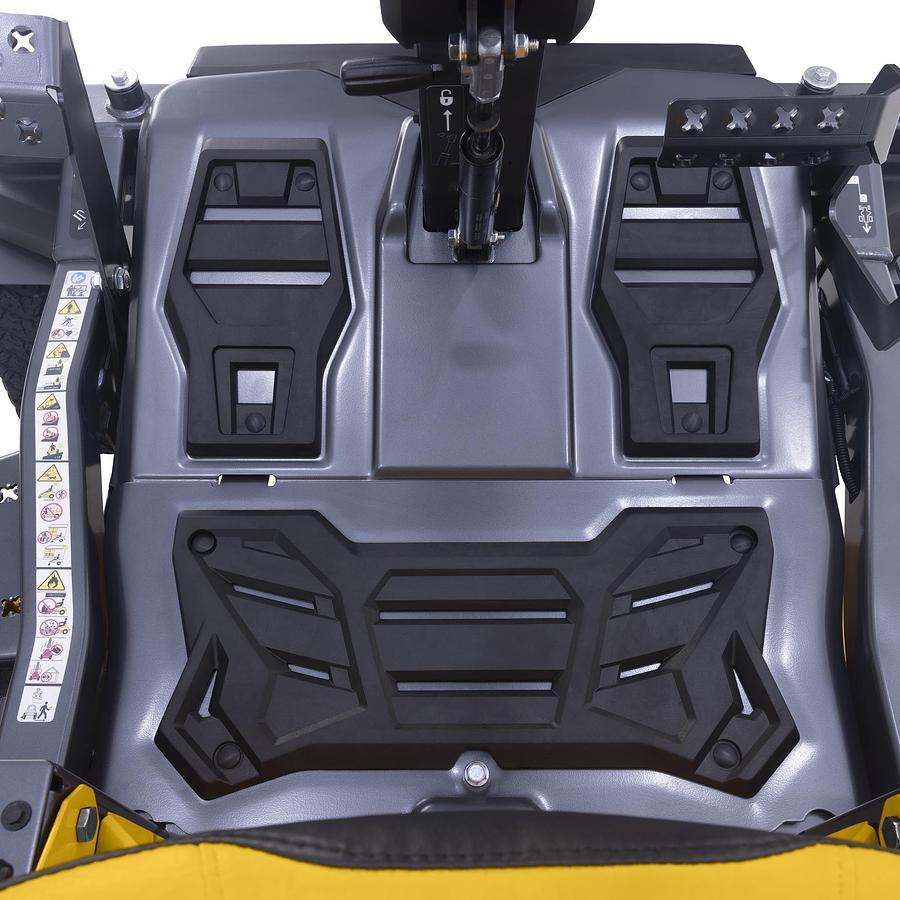

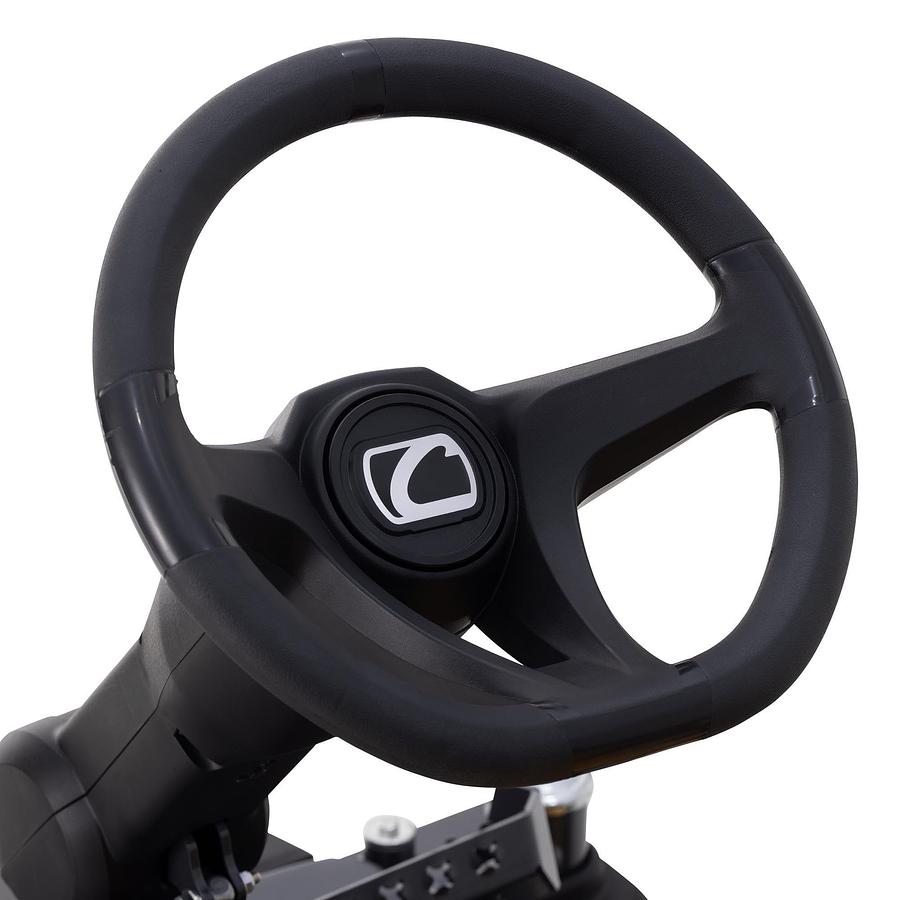

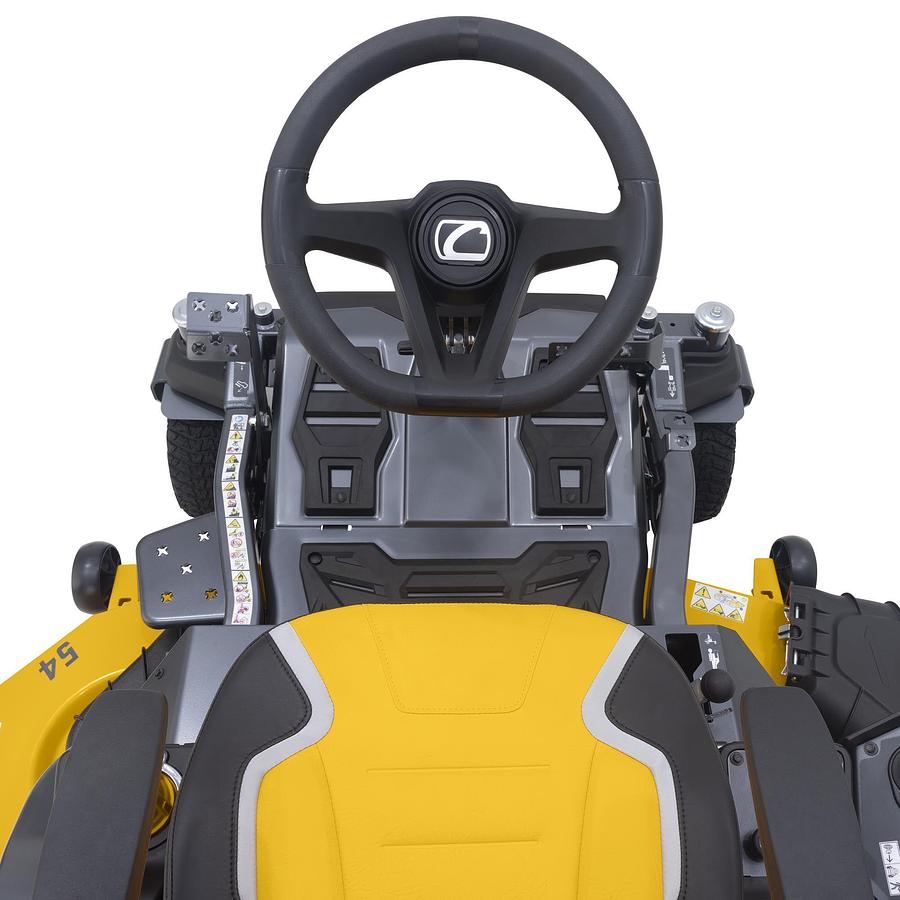

SoftTouch™ Steering

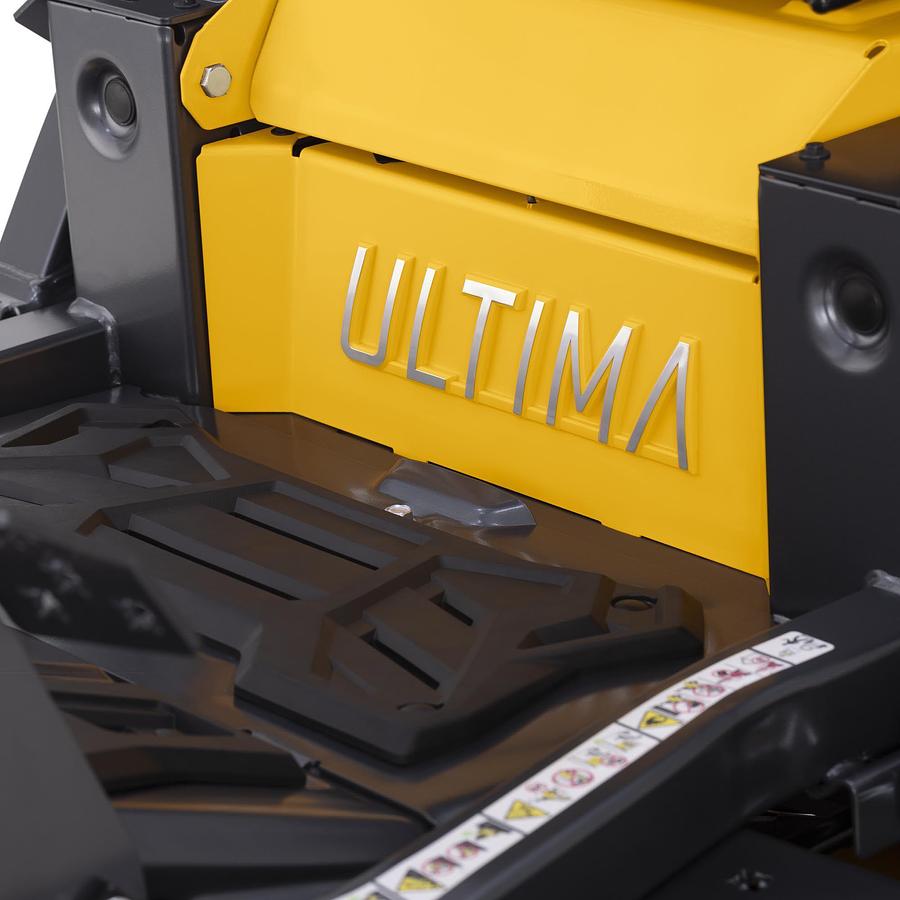

SoftTouch™ steering wheel and vibration-dampening rubber floor mat helps provide sure footing and maximize comfort.

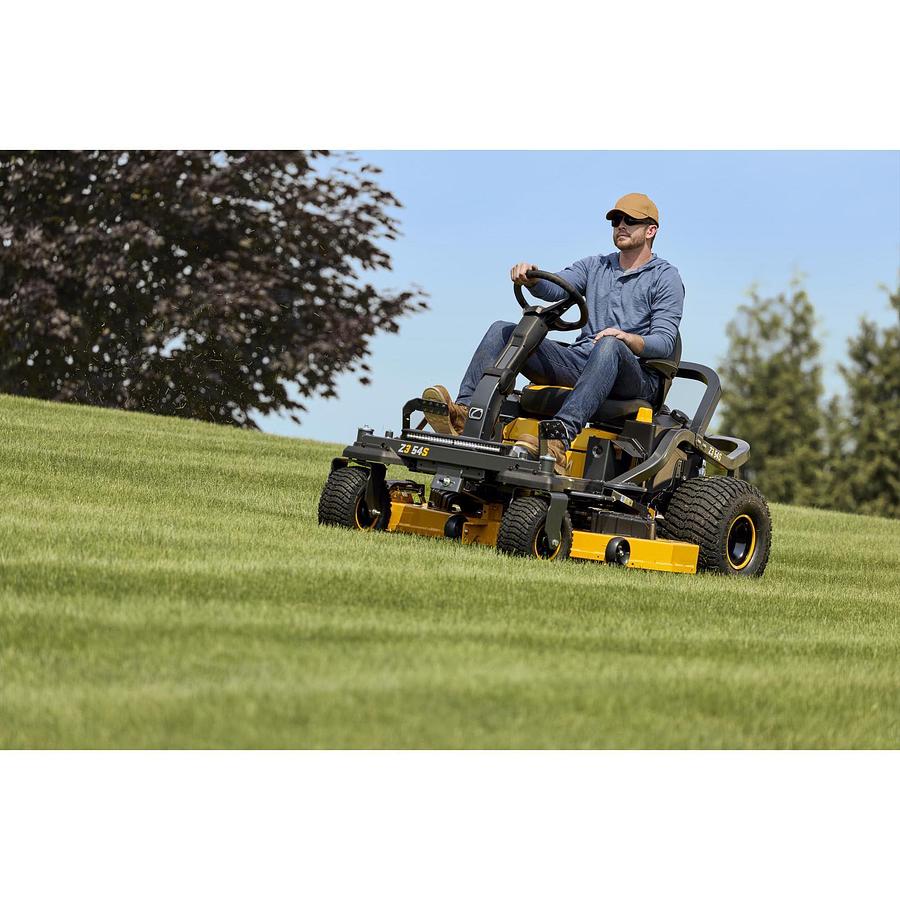

Synchro-Steer™ Technology
Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides and slopes up to 20-degrees*.
2x2 Tubular Frame
Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
Front Axle
Trim with precision thanks to an offset front axle designed to deliver a quality cut.

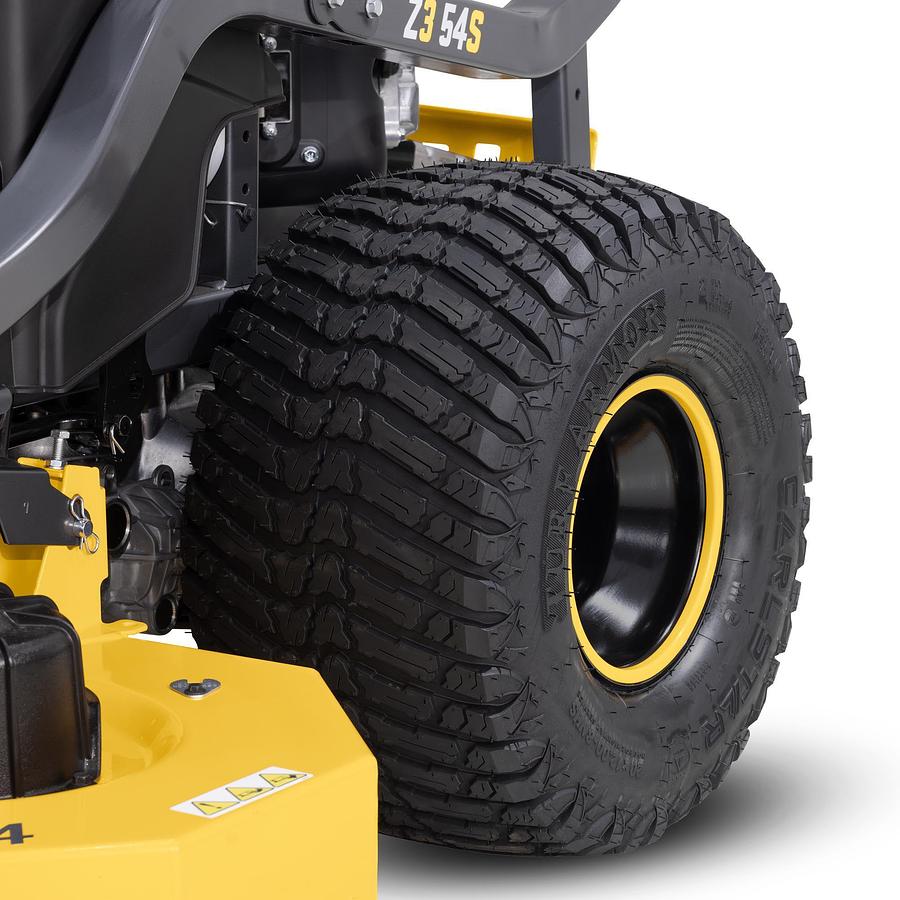

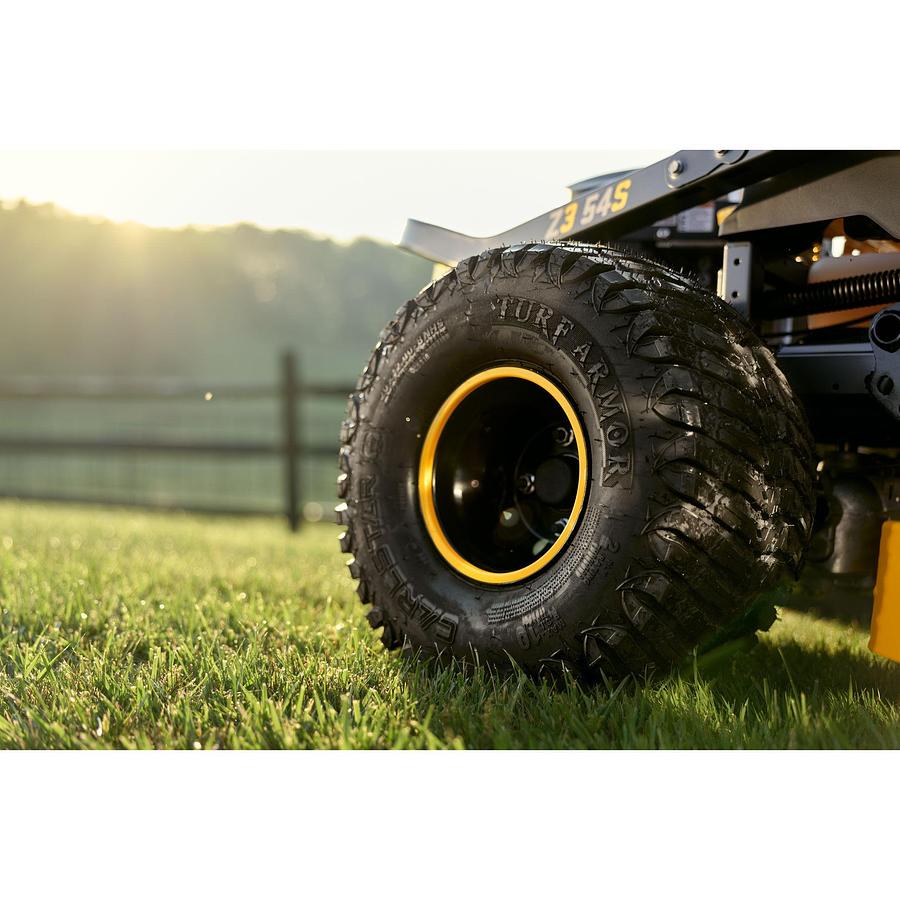

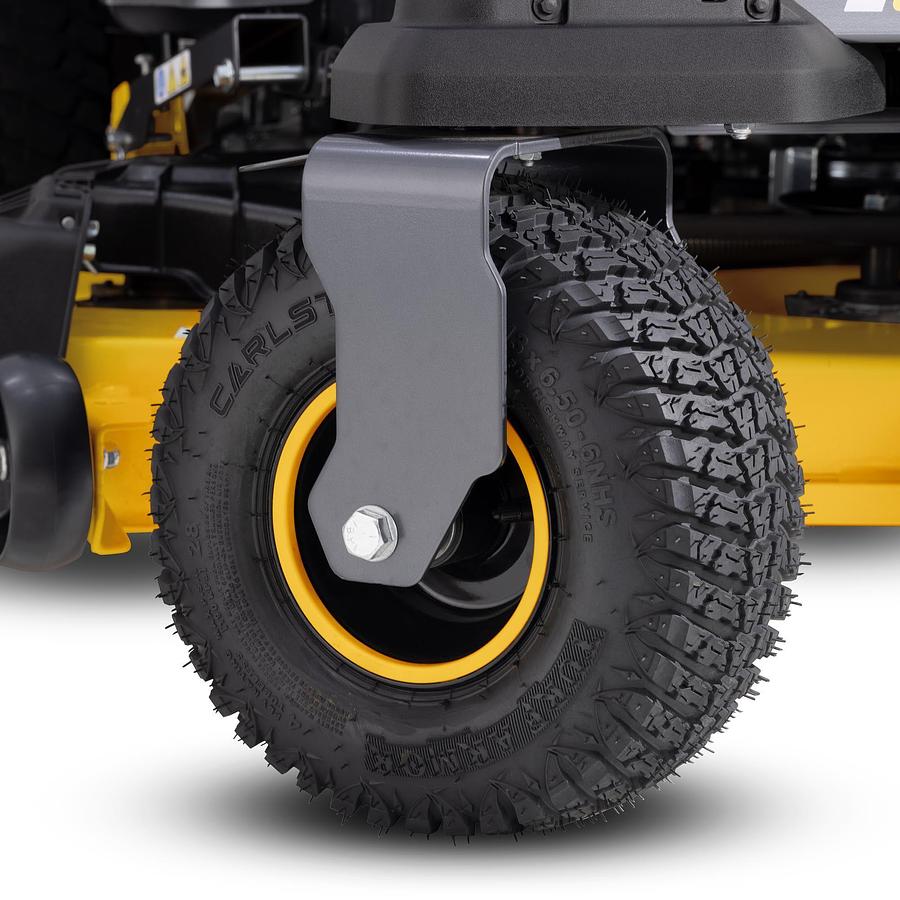

Turf Armor® Tires
Tackle wet, uneven terrain in style with an aggressive tire tread designed to deliver reliable traction and minimize turfing. .

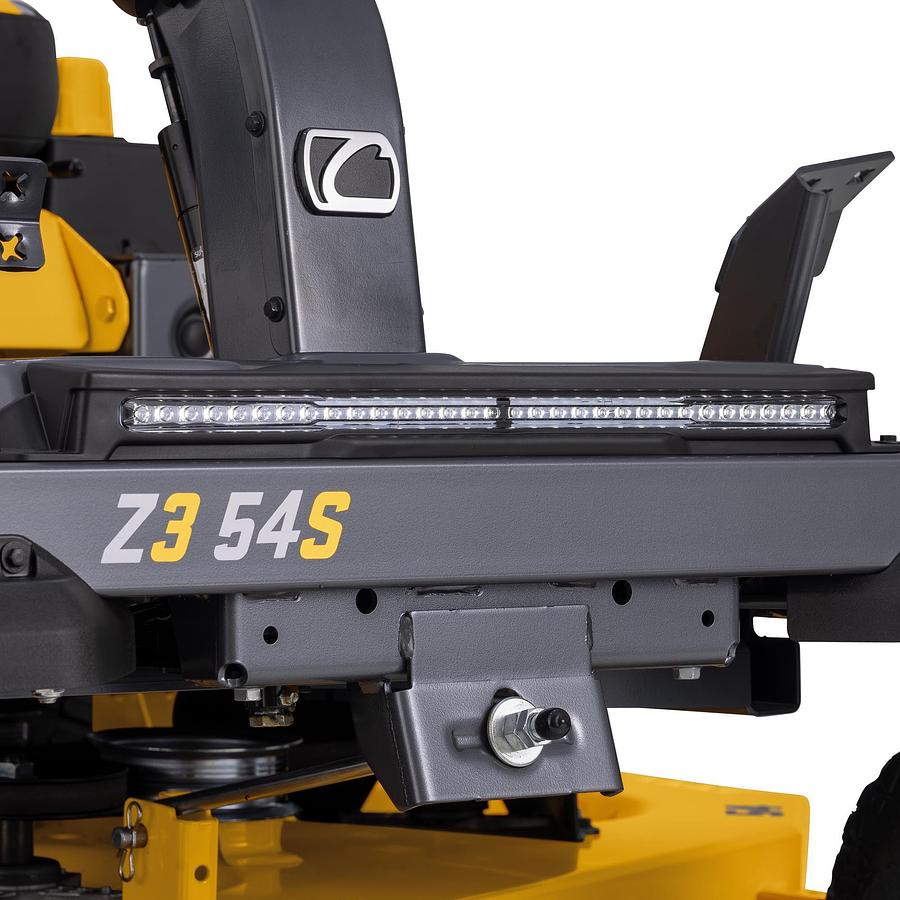

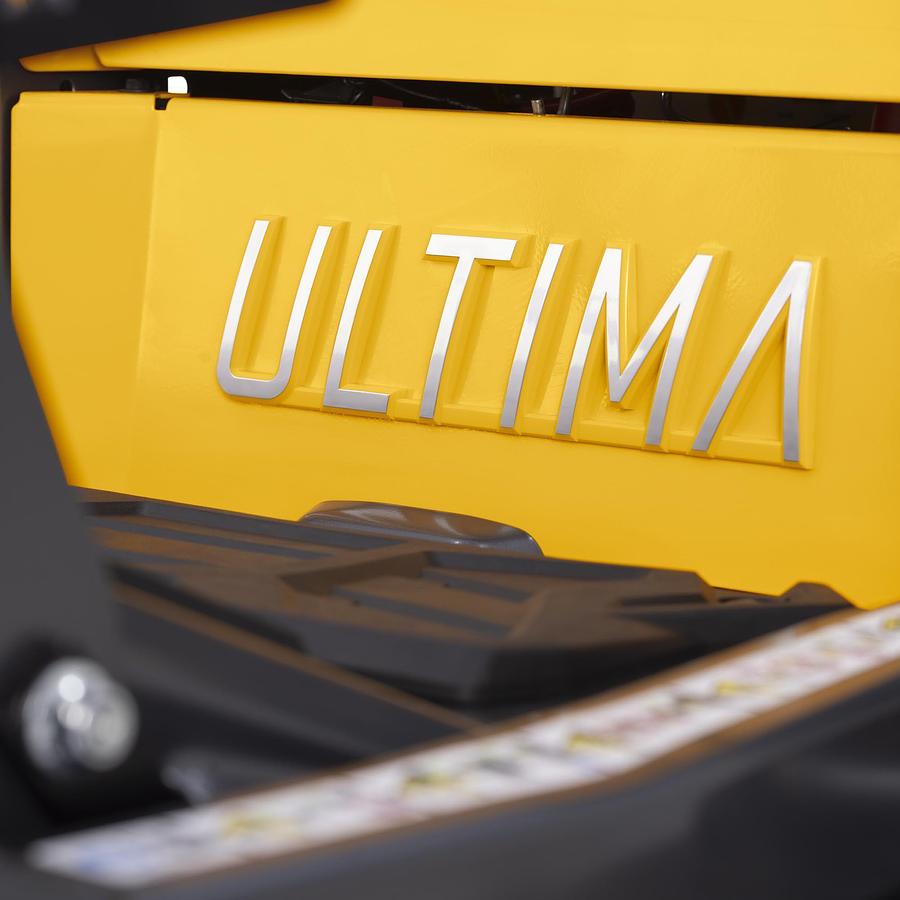

Front LED Bar Headlight
Illuminate your path with a front LED bar built to be 4x as bright.* Engineered for ultimate vision to help see hidden obstacles like tree roots, branches, and rocks in low light.*

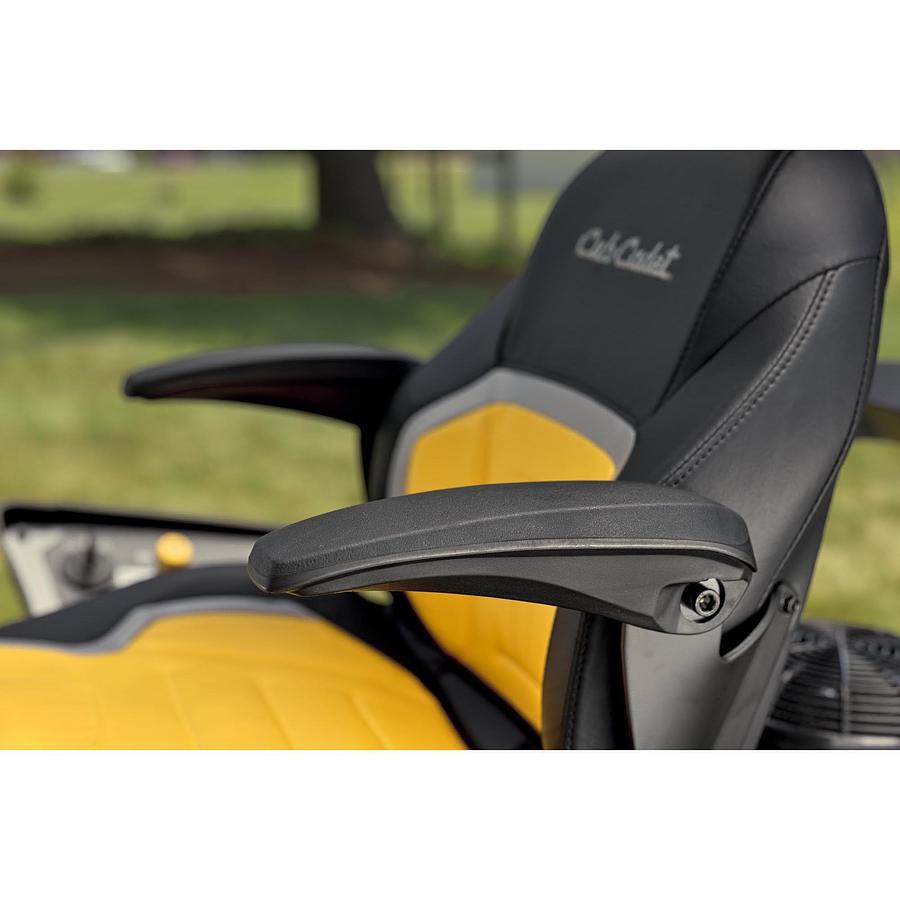

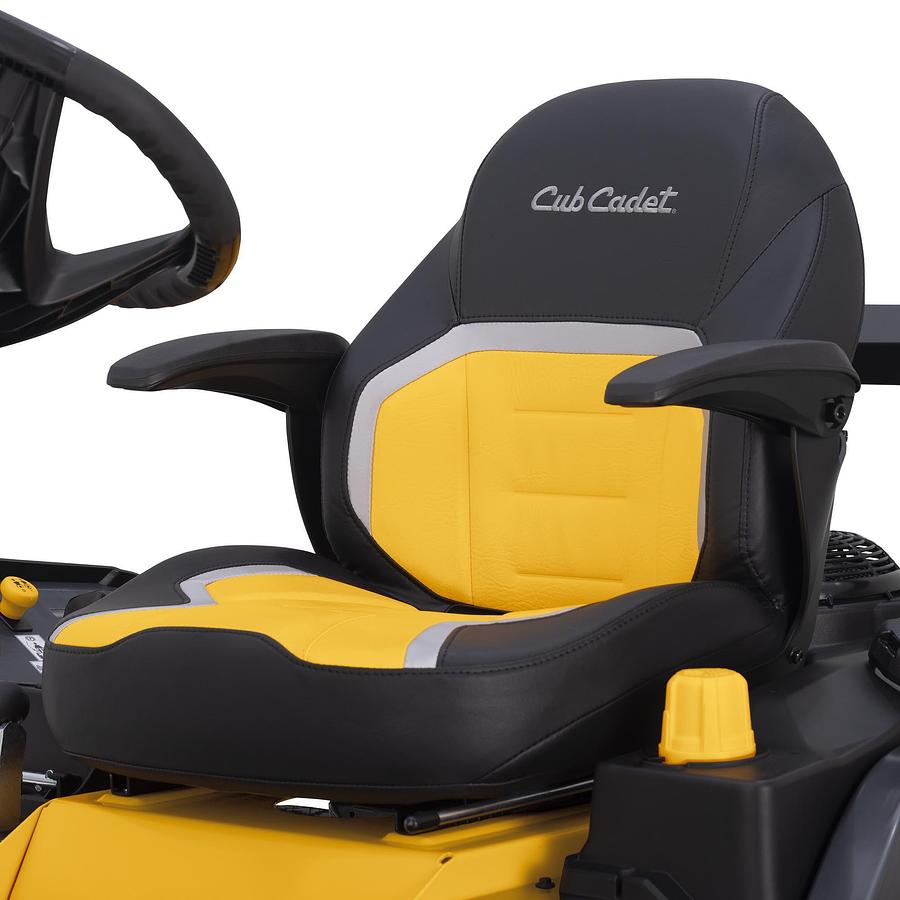

20" High Back Seat with Arm Rests
Mow comfortably with arm rests and an automotive-styled high-back seat equipped with a seat slide and bolstered using a custom foam designed to minimize vibration.

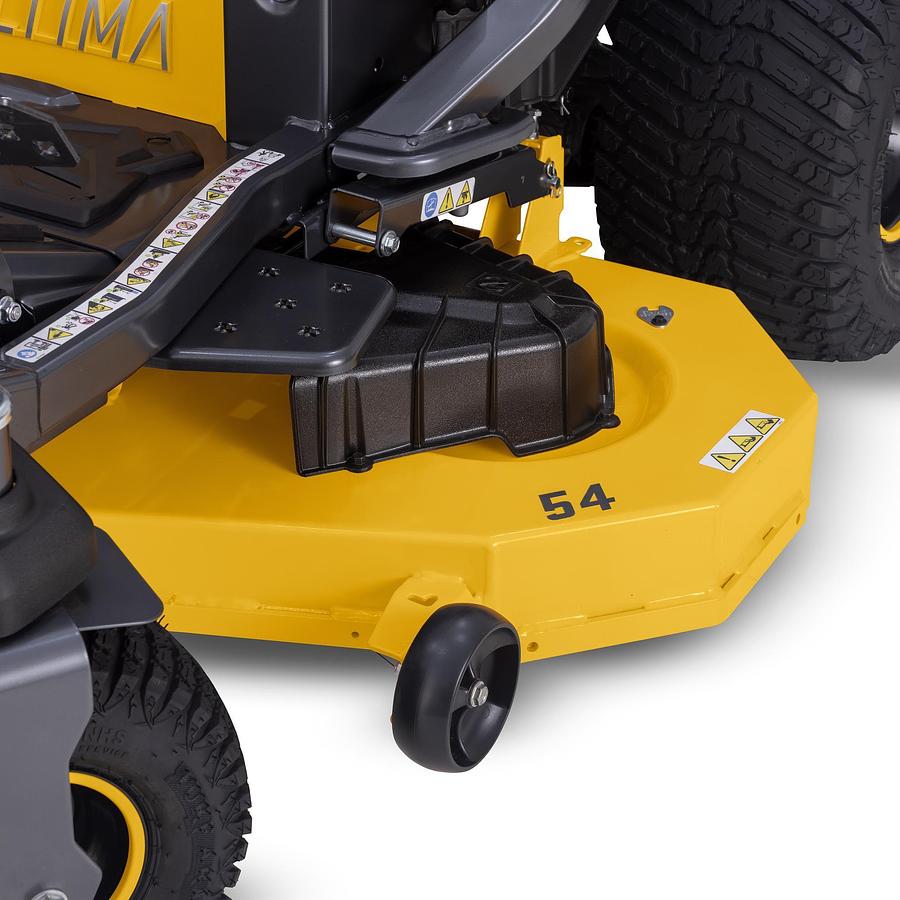

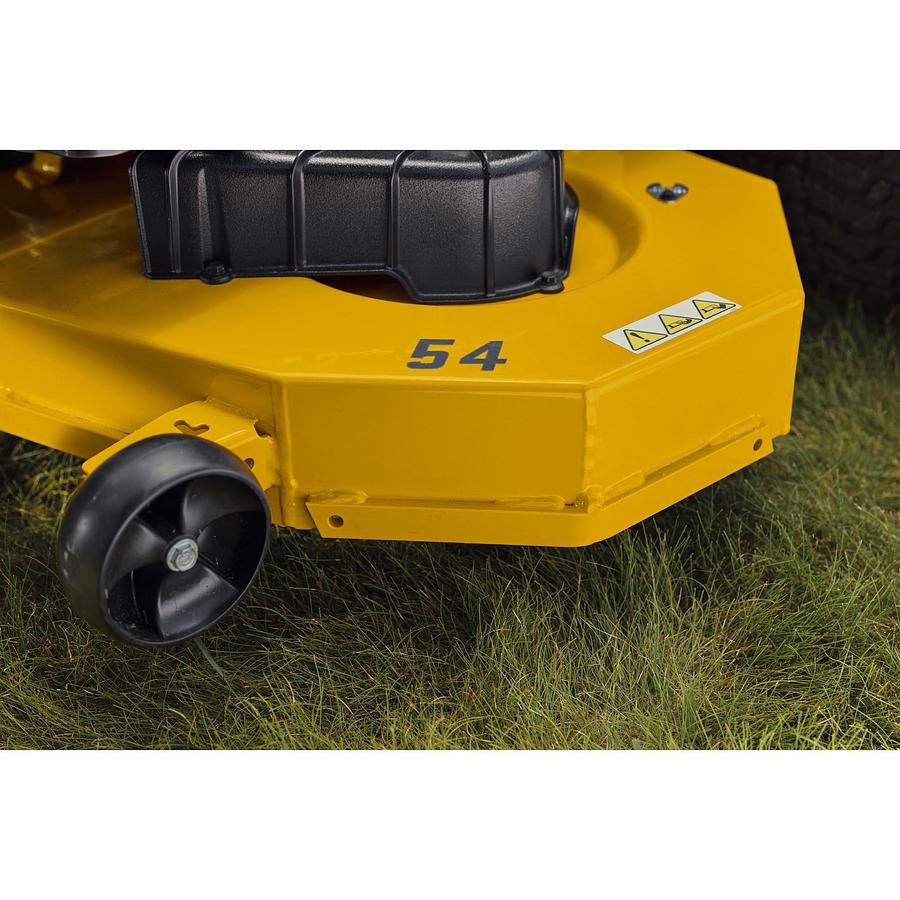

AeroForce™ Reinforced Fabricated Deck
A 10-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Strong Warranty
Backed by a 3-year no hour limit warranty, and lifetime limited frame and deck warranty.

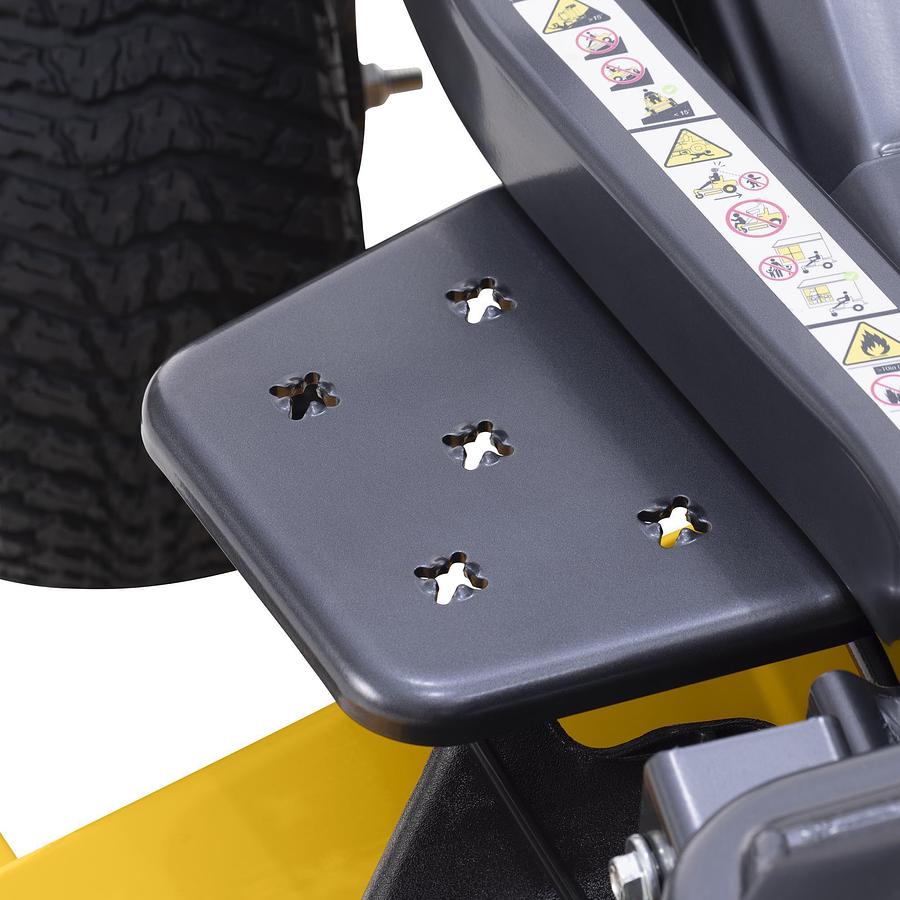

Step Assist
Climb aboard your zero-turn with a step assist that provides a stable and secure foothold.
Smooth Drive
Dual hydrostatic transmissions are designed to eliminate shifting and allow for quick and easy 7 MPH forward (3.5 MPH reverse) ground speeds for a smooth drive.
Kawasaki® Engine
The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine.
SoftTouch™ Steering
SoftTouch™ steering wheel and vibration-dampening rubber floor mat helps provide sure footing and maximize comfort.
Synchro-Steer™ Technology
Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides and slopes up to 20-degrees*.
2x2 Tubular Frame
Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
Front Axle
Trim with precision thanks to an offset front axle designed to deliver a quality cut.
Turf Armor® Tires
Tackle wet, uneven terrain in style with an aggressive tire tread designed to deliver reliable traction and minimize turfing. .
Front LED Bar Headlight
Illuminate your path with a front LED bar built to be 4x as bright.* Engineered for ultimate vision to help see hidden obstacles like tree roots, branches, and rocks in low light.*
20" High Back Seat with Arm Rests
Mow comfortably with arm rests and an automotive-styled high-back seat equipped with a seat slide and bolstered using a custom foam designed to minimize vibration.
AeroForce™ Reinforced Fabricated Deck
A 10-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Strong Warranty
Backed by a 3-year no hour limit warranty, and lifetime limited frame and deck warranty.
Step Assist
Climb aboard your zero-turn with a step assist that provides a stable and secure foothold.
Smooth Drive
Dual hydrostatic transmissions are designed to eliminate shifting and allow for quick and easy 7 MPH forward (3.5 MPH reverse) ground speeds for a smooth drive.
Kawasaki® Engine
The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine.
SoftTouch™ Steering
SoftTouch™ steering wheel and vibration-dampening rubber floor mat helps provide sure footing and maximize comfort.
