ZTXS4 60ZTXS4 60
Specifications
| Manufacturer | Cub Cadet |
| Condition | New |
| Stock Number | Model #938040 |
| Engine Brand | Kohler® |
| Engine Model | Pro 7000 series |
| Engine Model Number | KT745 |
| Engine Displacement | 747cc |
| Engine Output | 26HP |
| Starter Type | Electric |
| Fuel Tank Capacity | 5.5 gal. US (20.82 L) |
| Cylinders | Twin |
| Engine Start | Ignition Key |
| Engine Oil Capacity | 2.0 qt. US (1.89 L) |
| Lubrication | Fully pressurized |
| Charging System | 12 amp regulated |
| Fuel Gauge | Yes |
| Governor | Mechanical |
| Choke | Choke-a-matic |

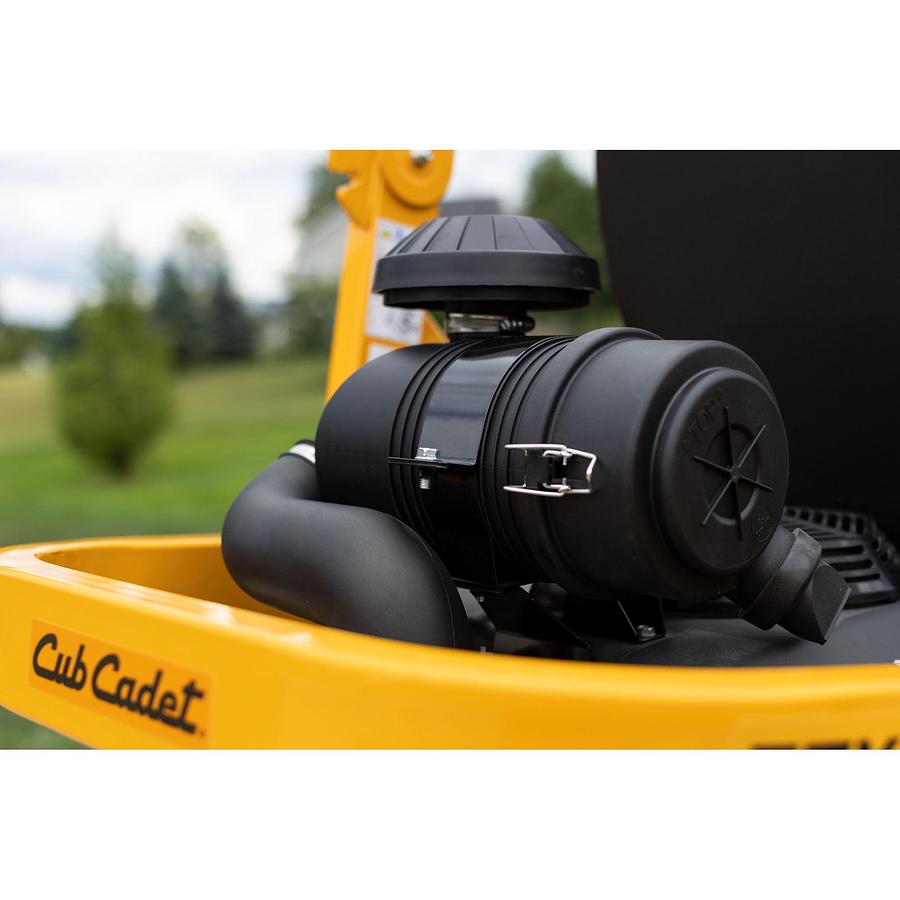

| Air Filter | Dual element |
| Oil Filter | Yes |
| Fuel Delivery | Carburetor |
| Battery | 210 CCA |
| Battery Type | Lead Acid |
| Battery Voltage | 12V |
| Transmission | Hydro-Gear ZT 3100 |
| Forward Speed | 8 MPH /12.9 km/h |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| Drive System | Hydrostatic |
| Serviceable Transmission | Yes (Serviceable) |
| Deck Cutting Width | 60 in |
| Deck Wash | No |
| Deck Material | 10-gauge steel with 2-gauge reinforcement |
| Deck Engagement (PTO) | Electric |
| Deck Construction | Reinforced Fabricated |
| Blade(s) | Three |
| Deck Lift | Foot pedal with Dial Adjust |
| Cutting Height Range | 1" - 4.75" |
| Anti-Scalping | Three gauge wheels |
| Deck Positions | 17 |
| Frame | 1.5" x 3" tubular steel |
| Turning Radius | 0° |
| ROPS | Yes |
| Rear Tow Hitch | Yes |
| Corrosion Protection | Yes |
| Front Caster Yokes | 5/16" Steel |
| Cruise Control | No |
| Brakes | Disc |
| Steering Control | Steering Wheel |
| Seat Type | 20" high back |
| Armrests | Yes |
| Seat Adjustment | Lever |
| Front Caster Suspension | No |
| Rear Tires | 22"x 12"-12" |
| Front Tires | 13"x 6.5"-6" |
| Tire Tread | Turf Master / Multi Trac |
| Series | Ultima Series™ ZTXS |
| Hour Meter | Yes |
| Mulch Kit | Available separately |
| Headlight(s) | Dual-LED |
| Cup Holder | Yes |
| Operator Presence System | Yes |
| Parking Brake | Foot Controlled |
| Model Number | 47TSCAB8A10 |
| Residential Warranty | 4-year 800 hours |
| Frame Warranty | Lifetime Limited |
| Deck Shell Warranty | Lifetime limited |
| Commercial Warranty | 4-year 800 hours |
Description

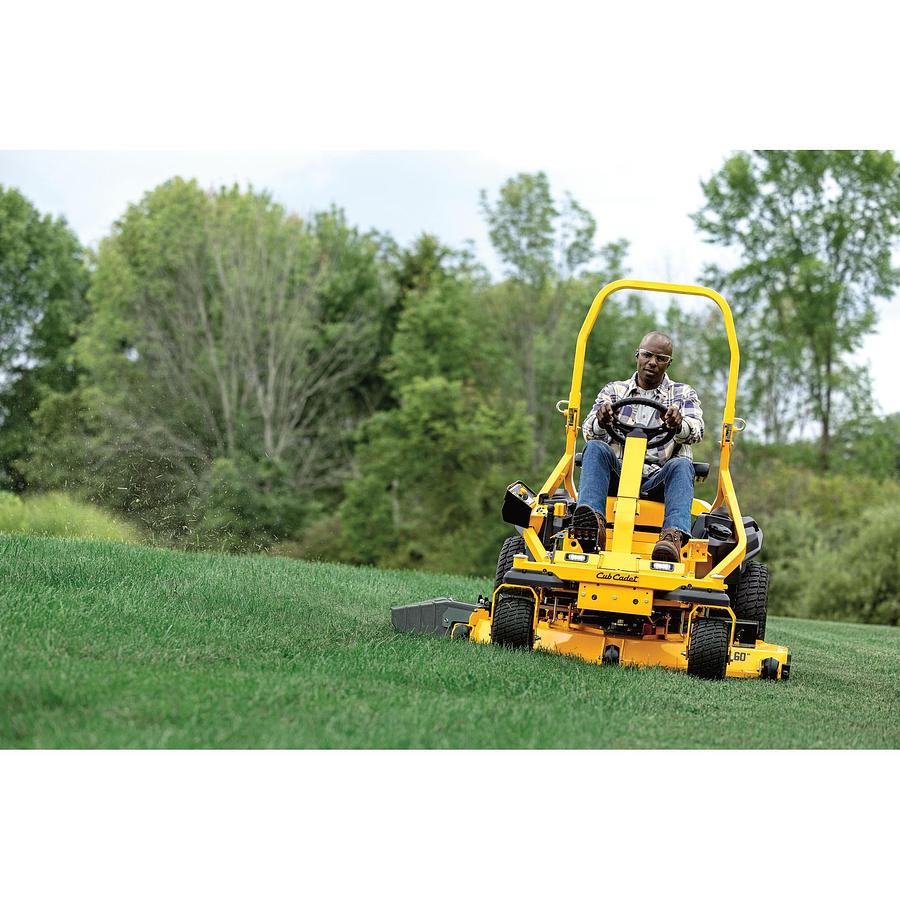

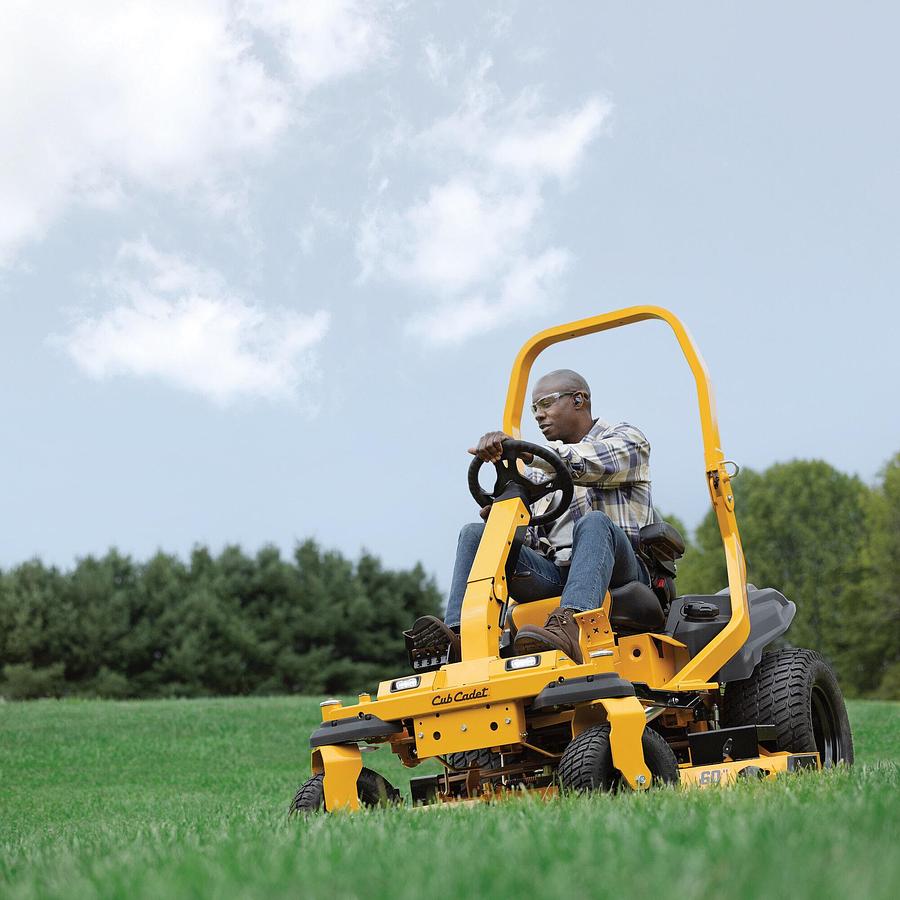

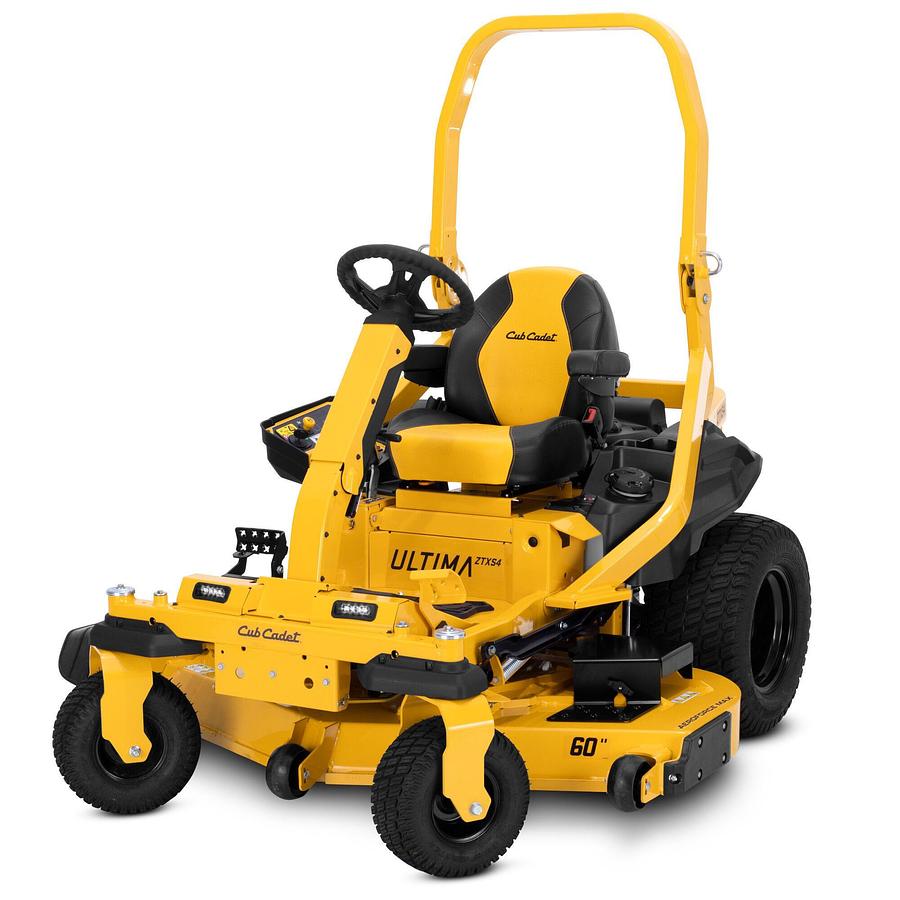

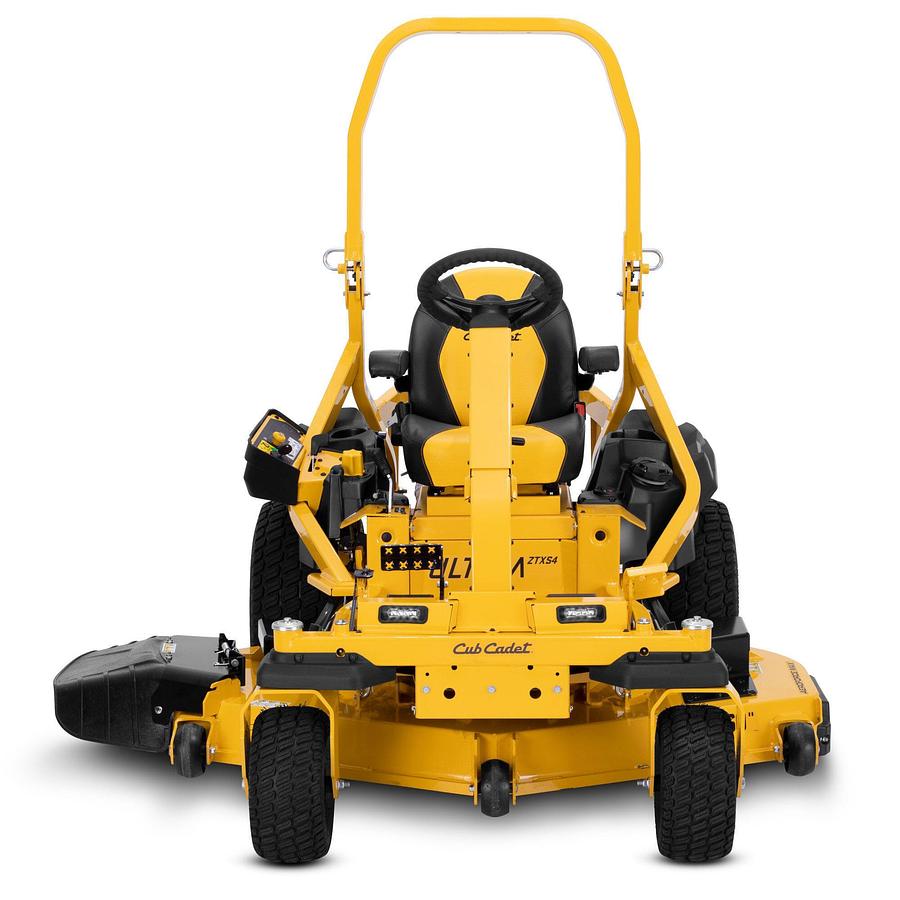

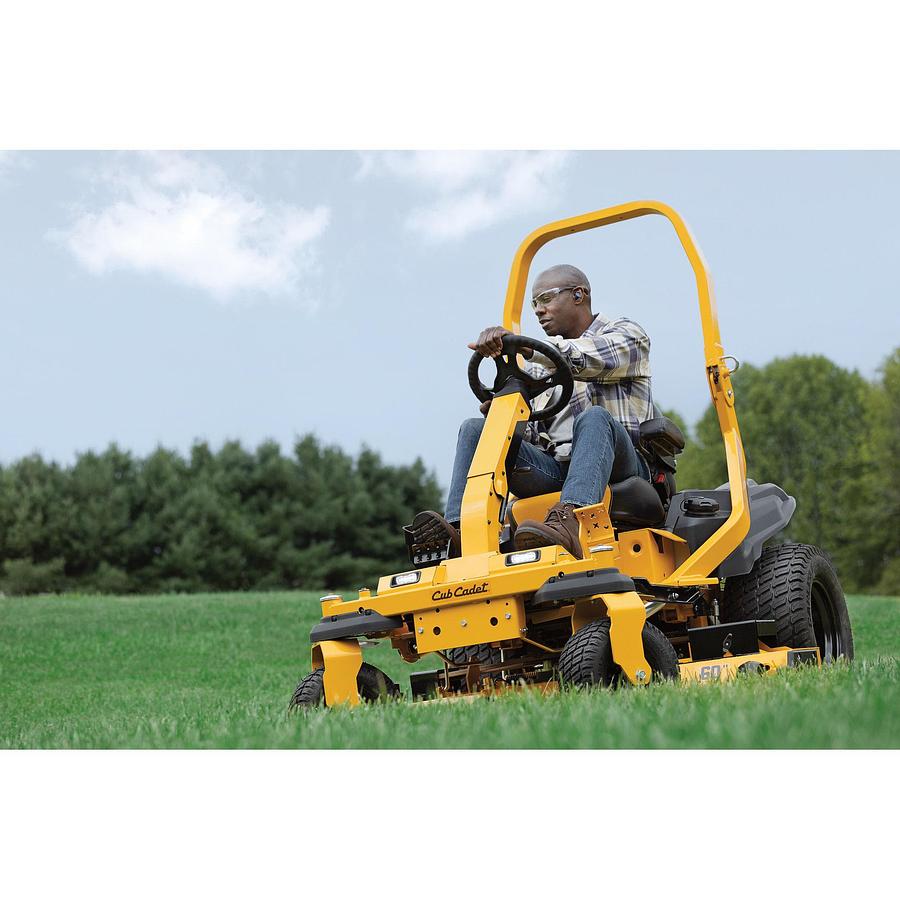

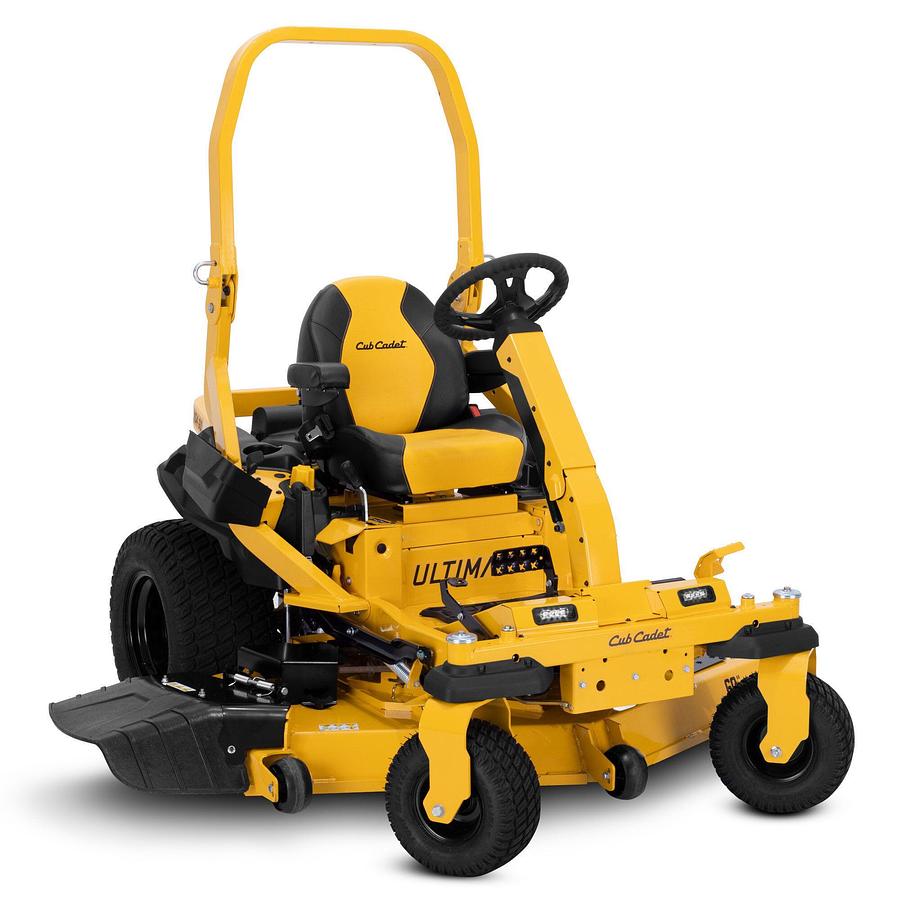

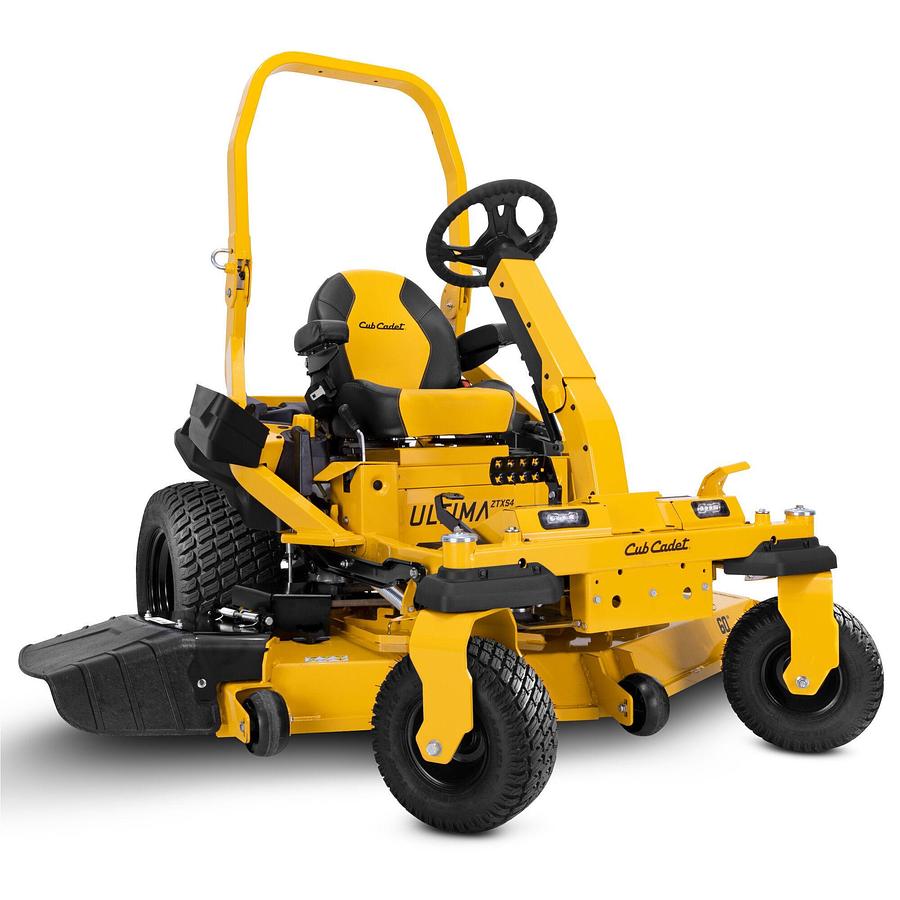

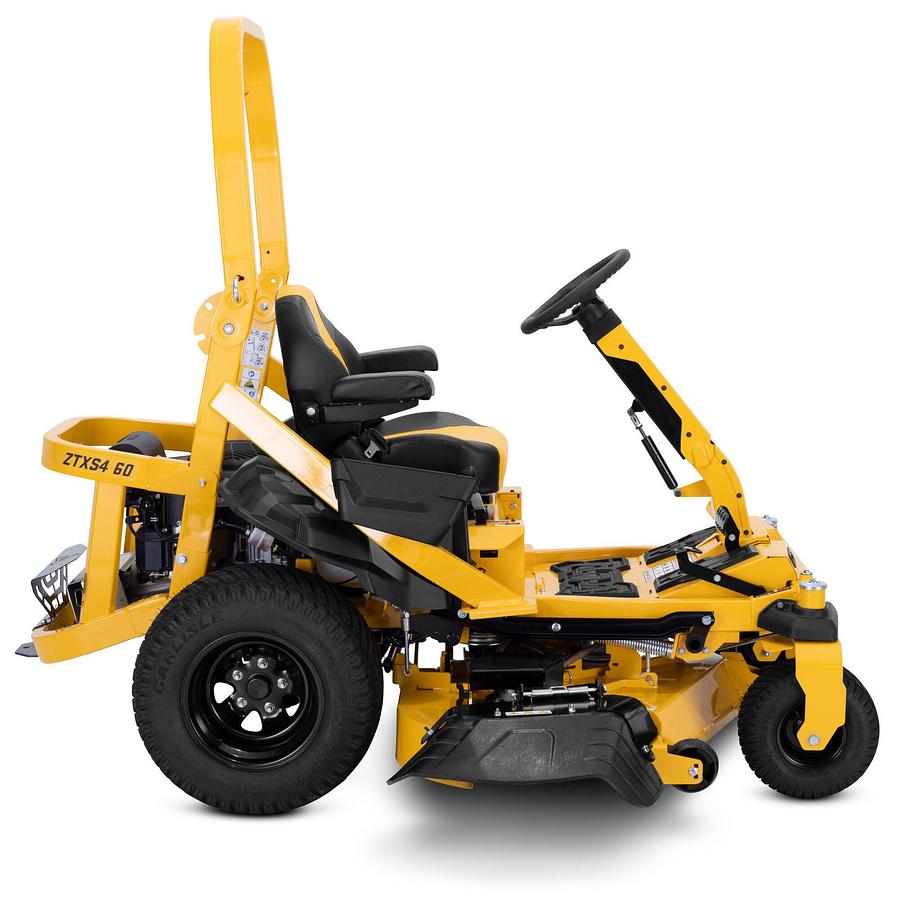

The Cub Cadet® Ultima Series ZTXS4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.
Read More
ZTXS4 60 Features
Customize Your Machine
Unlock the full potential of your Ultima ZTXS with a variety of attachments and accessories (sold separately).
Easy Maintenance
An open frame design and hinged/removable floor pan allow easy access to the deck and engine for easy maintenance
Strong Warranty
4-year/800-hour limited product warranty, lifetime limited frame and fabricated deck shell warranty for the ultimate peace of mind
Excellent Stability On Hills

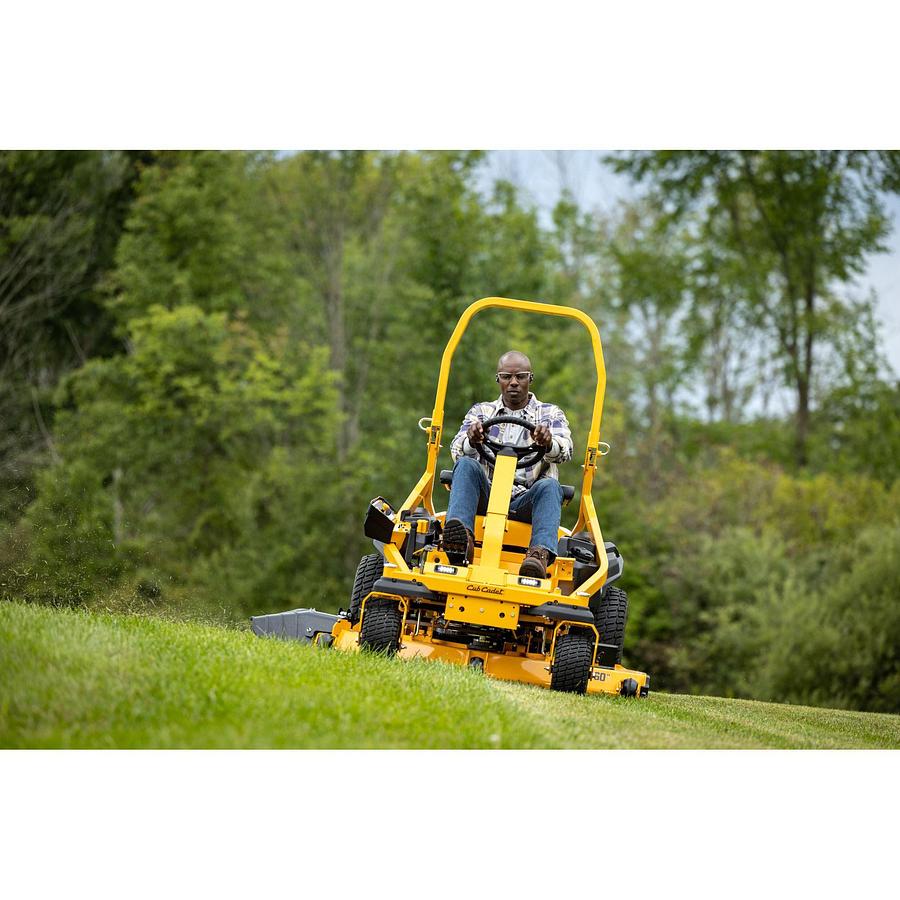

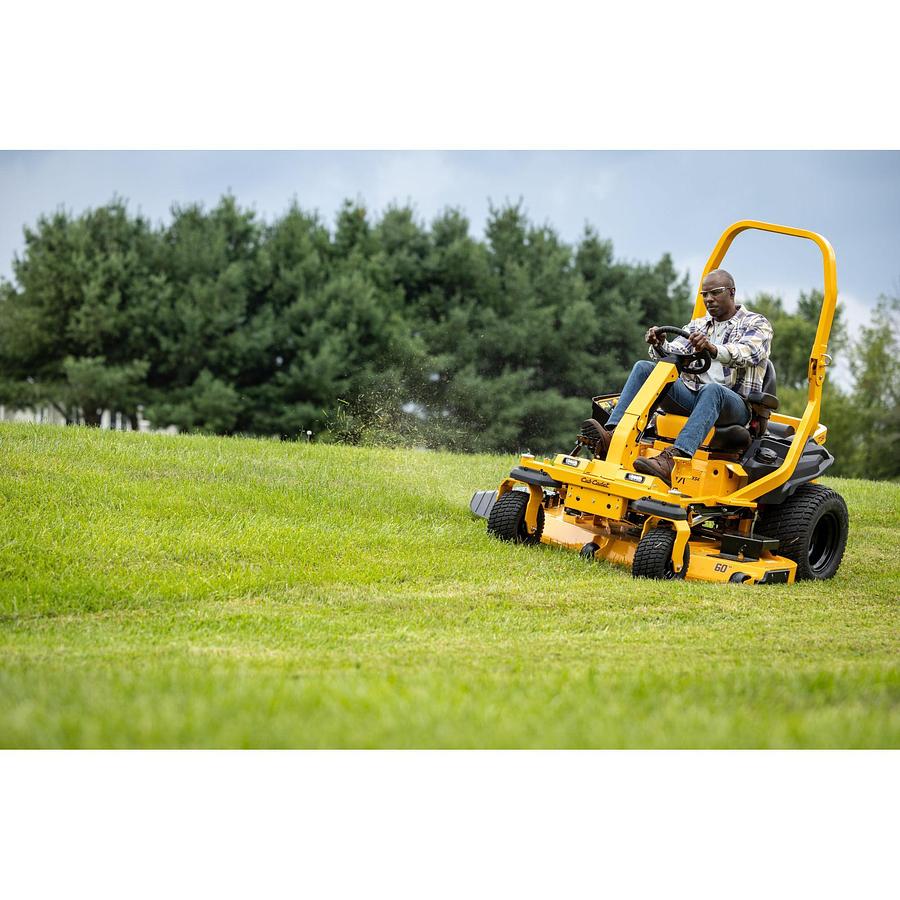

Synchro-Steer™ technology delivers four-wheel control, providing straight-line mowing on hillsides and slopes up to 20-degrees
Premium Cut
AeroForce™ Max reinforced fabricated steel cutting decks designed to deliver high quality results and mow a wide area of grass to help minimize cutting time.
Strong, Durable Frame
A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system helps protect against wear and tear
Turf Master® Tires

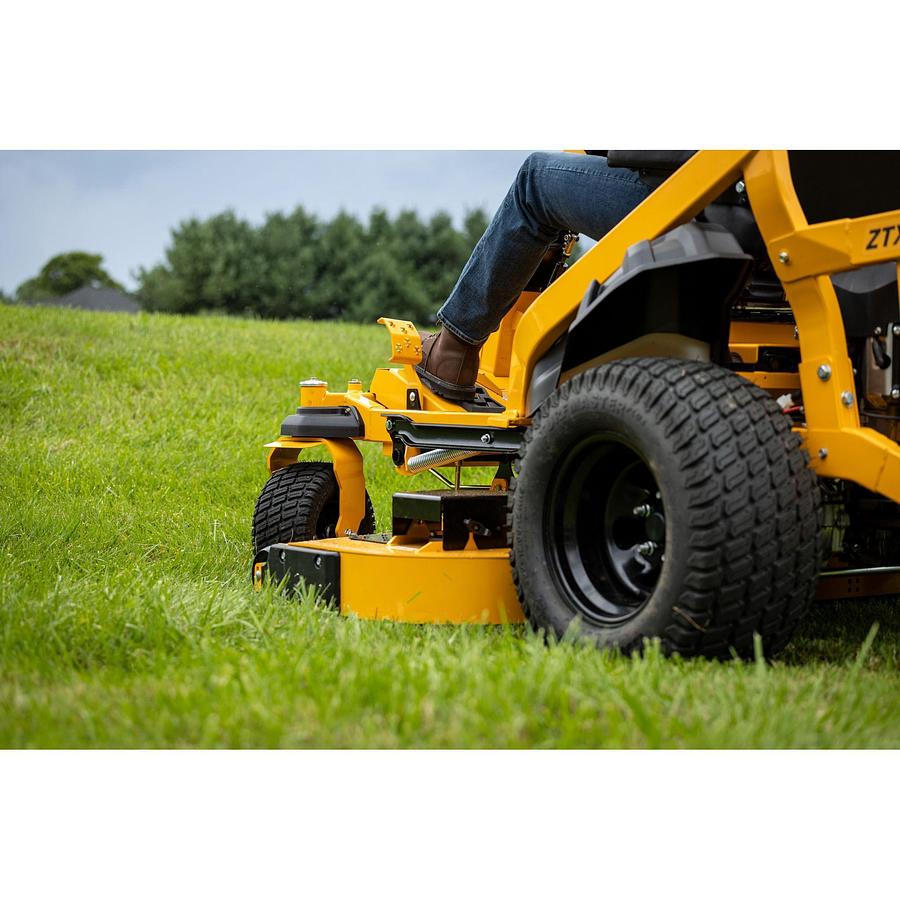

Turf Master® tires designed to help minimize turfing and provide traction and stability on hills.
Ride In Comfort
SoftTouch steering wheel and an adjustable steering column that tilts for easy steering and great handling on hills and uneven terrain.
Customize Your Machine
Unlock the full potential of your Ultima ZTXS with a variety of attachments and accessories (sold separately).
Easy Maintenance
An open frame design and hinged/removable floor pan allow easy access to the deck and engine for easy maintenance
Strong Warranty
4-year/800-hour limited product warranty, lifetime limited frame and fabricated deck shell warranty for the ultimate peace of mind
Excellent Stability On Hills
Synchro-Steer™ technology delivers four-wheel control, providing straight-line mowing on hillsides and slopes up to 20-degrees
Premium Cut
AeroForce™ Max reinforced fabricated steel cutting decks designed to deliver high quality results and mow a wide area of grass to help minimize cutting time.
Strong, Durable Frame
A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system helps protect against wear and tear
Turf Master® Tires
Turf Master® tires designed to help minimize turfing and provide traction and stability on hills.
Ride In Comfort
SoftTouch steering wheel and an adjustable steering column that tilts for easy steering and great handling on hills and uneven terrain.
Customize Your Machine
Unlock the full potential of your Ultima ZTXS with a variety of attachments and accessories (sold separately).
Easy Maintenance
An open frame design and hinged/removable floor pan allow easy access to the deck and engine for easy maintenance
Strong Warranty
4-year/800-hour limited product warranty, lifetime limited frame and fabricated deck shell warranty for the ultimate peace of mind
