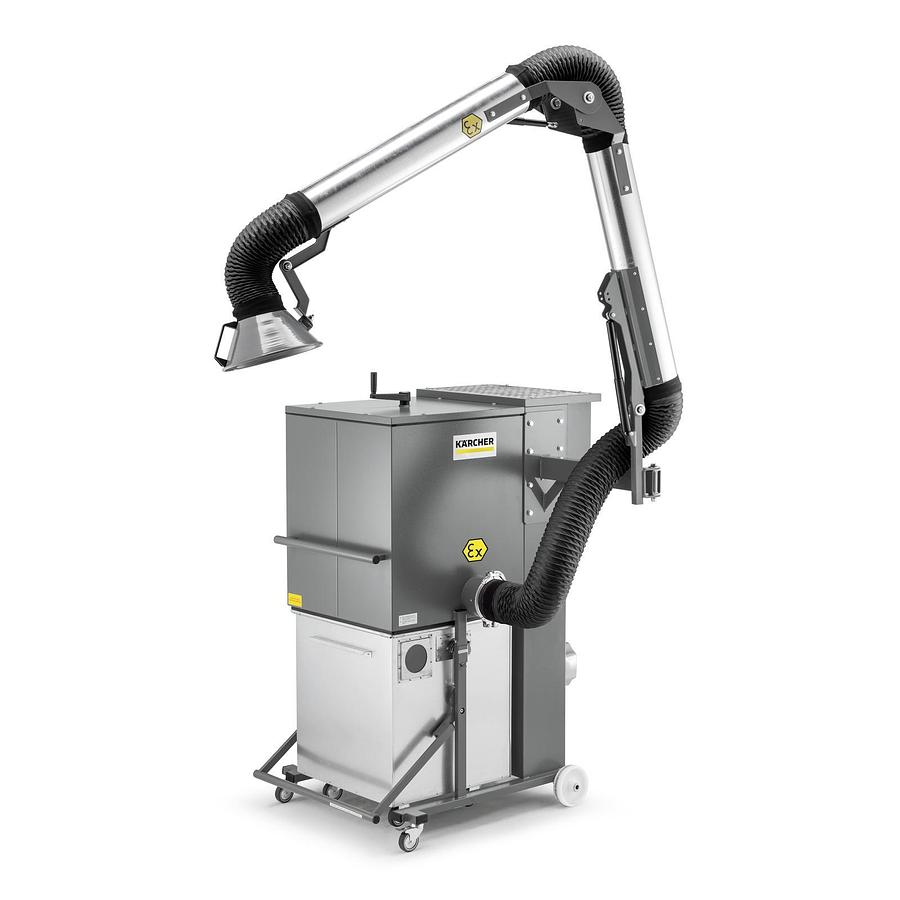

Dust removal system ID 130/22 Z22 with arm

ID 130/22 Z22 deduster with arm, suitable for use in Zone 22. Designed for vacuuming large quantities of fine shavings and hazardous dusts (OEL > 0.1 mg/m³). Mobile, three-phase powered, and featuring a hard-wearing steel casing for industrial use.

Designed for vacuuming large quantities of fine shavings and hazardous dusts (OEL > 0.1 mg/m³) as well as for use in Zone 22 potentially explosive atmospheres, the ID 130/22 mobile industrial deduster is engineered for continuous industrial three-shift operation. The gas-spring-supported, self-supporting suction arm with external joints extends the working radius with a total length of 3 metres. Its IE3 efficiency class radial compressor for air flow rates of up to 1,329 m³/h ensures reliable extraction performance. The three-phase powered mobile dust collector with a rated input power of 2.2 kW features a dust class M filter system, integrated mechanical filter shaking, and a 170-litre mobile recovery tank. Thanks to the set-down chassis, the tank can be emptied ergonomically without removing the drive head. A PE sack with an integrated closing mechanism and a pressure compensation hose on the dust collector ensure low-dust emptying and safe disposal of the vacuumed material.

Features and benefits

Equipped with a cartridge filter

Longer service life, less maintenance effort and lower costs.

Very effective filter cleaning thanks to reinforcing mesh in the filter bags.

Simple and safe emptying without removal of drive head

Set-down trolley and rolling container for ergonomic emptying.

Designed for dust class M for high occupational safety

Dust class M filter engineering for vacuuming hazardous dust (OEL > 0.1 mg/m³).

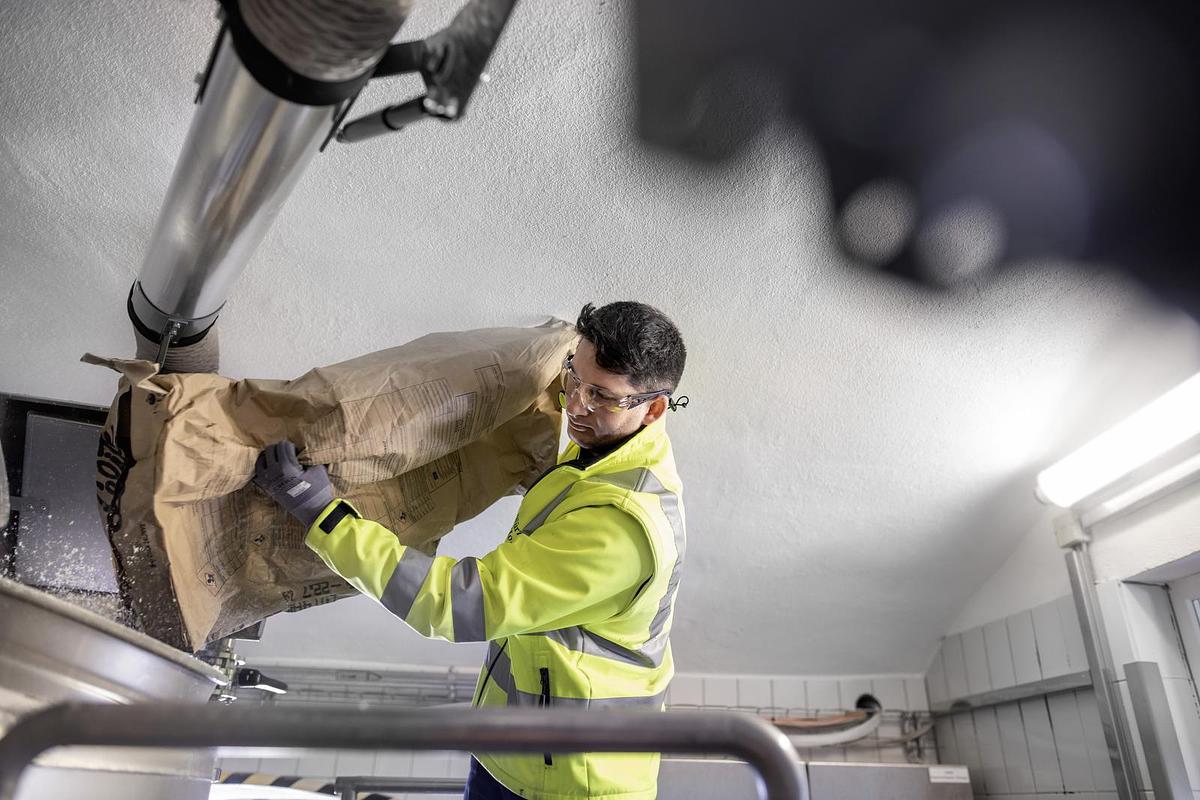

Low-dust emptying system for hazardous dusts of dust class M (OEL > 0.1 mg/m³)

Dust-free emptying thanks to PE sack with integrated closing mechanism.

Reliable disposal of dust in a PE bag.
