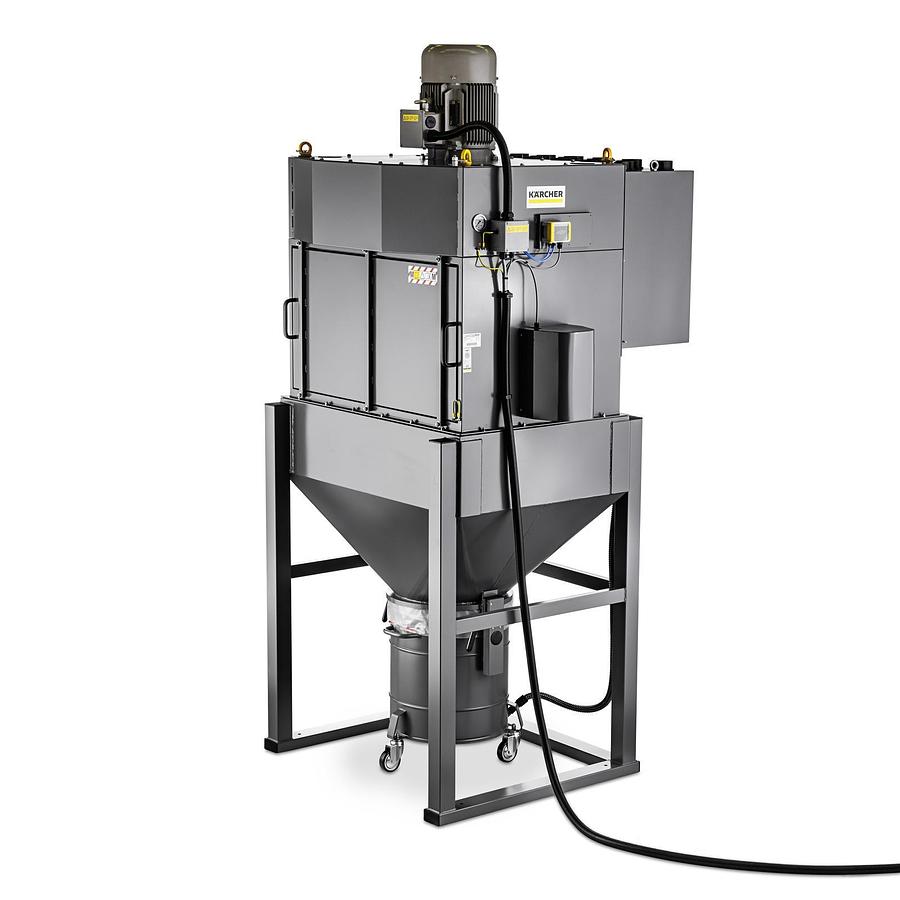

Dust removal system ID 350/110 Afc
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Air flow (l/s/m³/h) | 972 / 3500 |
| Vacuum (mbar/kPa) | 71 / 7,1 |
| Container capacity (l) | 100 |
| Rated input power (kW) | 11 |
| Vacuuming type | Electric |
| Filter area (m²) | 24 |
| Connection nominal diameter | DN 250 |
| Sound pressure level (dB(A)) | 75 |
| Main filter dust class | M |
| Weight without accessories (kg) | 754 |
| Weight incl. packaging (kg) | 797 |
| Dimensions (L × W × H) (mm) | 1460 x 1389 x 3093 |
Description
The ID 350/110 Afc medium-pressure dust removal system is used for the safe and clean vacuuming of large quantities of dust and fine swarf. The reliable solution for professional applications.
Vacuuming large quantities of dust and fine shavings on an industrial scale is the main application area of the ID 350/110 Afc medium-pressure dust extraction system. For this purpose, it features a dust class M pocket filter in accordance with DIN EN 60335-2-69 as well as a 100-litre mobile recovery tank (DN 250) with a sight glass and an integrated round-bottom sack with hold-down device and pressure compensation hose (DN 25) with quick-action coupling. To achieve a sound pressure level of 75 dB(A), the drive unit is fully sound-insulated and equipped with an IE3 efficiency class as well as a downstream exhaust sound insulation duct. A control cabinet with IP 54 protection class (in accordance with German VDE regulations 0113) is also included in the standard scope of delivery.
Features and benefits
Designed for dust class M for high occupational safety
Dust class M filter engineering for safe vacuuming of hazardous types of dust (OEL ≥ 0.1 mg/m³).Simple and safe emptying without removal of drive head
Dust-free emptying thanks to PE sack with integrated closing mechanism.Simple disposal of dust in a PE sack.Washable pocket filter and electric filter cleaning
Uninterrupted vacuuming at high suction power without any reduction in the filter effect.Welded seams guarantee a long service life of the pocket filter.For automatic filter cleaning and constant suction power.
