Dust removal system ID 130/22
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Air flow (l/s/m³/h) | 370 / 1329 |
| Vacuum (mbar/kPa) | 33 / 3,3 |
| Container capacity (l) | 170 |
| Rated input power (kW) | 2,2 |
| Vacuuming type | Electric |
| Filter area (m²) | 9 |
| Connection nominal diameter | DN 140 |
| Sound pressure level (dB(A)) | 75 |
| Main filter dust class | M |
| Weight without accessories (kg) | 158 |
| Weight incl. packaging (kg) | 158 |
| Dimensions (L × W × H) (mm) | 1170 x 790 x 1580 |
Description

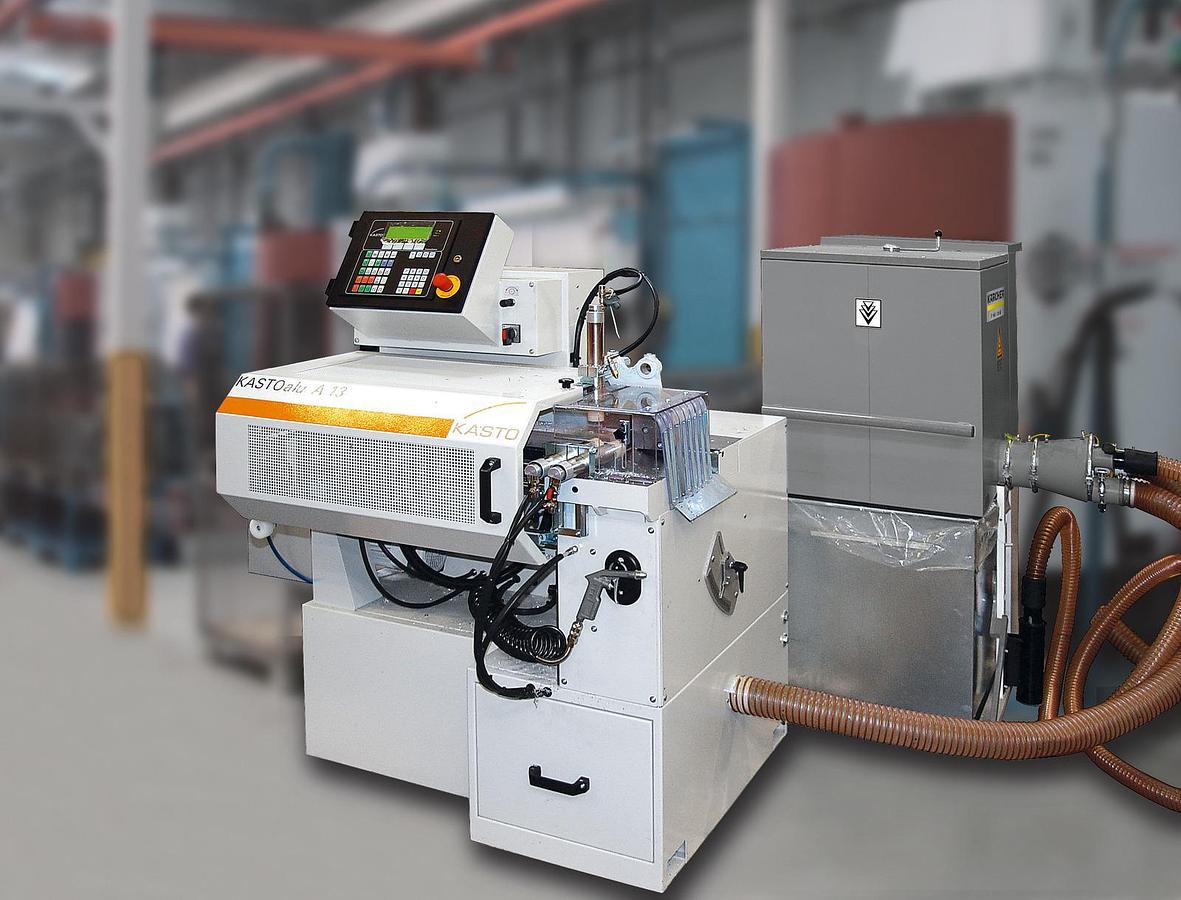

Mobile, three-phase dust extraction system ID 130/22 for vacuuming fine shavings and hazardous dusts (OEL > 0.1 mg/m³) with 170-liter collection container. Steel housing for high mechanical stress.
The mobile dust extraction plant ID 130/22 with 2.2 kW power input features an IE3-certified radial compressor designed for continuous three-shift operation. Equipped with a certified Dust Class M filter system, it captures 99.9% of fine shavings and dusts with an occupational exposure limit (OEL) > 0.1 mg/m³. The manual shaking mechanism cleans the compact filter, while the set-down chassis enables ergonomic emptying of the 170-litre container without removing the drive head. A PE bag with an integrated closing mechanism and pressure compensation hose ensures low-dust emptying
Features and benefits
Designed for dust class M for high occupational safety
Dust class M filter engineering for vacuuming hazardous dust (OEL > 0.1 mg/m³).Simple and safe emptying without removal of drive head
Set-down trolley and rolling container for ergonomic emptying.Low-dust emptying system for hazardous dusts of dust class M (OEL > 0.1 mg/m³)
Dust-free emptying thanks to PE sack with integrated closing mechanism.Simple disposal of dust in a PE sack.Equipment
