Industrial vacuums IVS 100/55 M Z22

The IVS 100/55 M Z22 is a super-class industrial vacuum with powerful 5.5 kW side channel blower for safely vacuuming large quantities of potentially explosive M class dusts.

Designed for vacuuming large quantities of hazardous dusts (dust class M according to EN/IEC) as well as for use in Ex zone 22: our Ex industrial vacuum cleaner IVS 100/55 M Z22 with a powerful 5.5 kW side-channel blower. The device features an efficiency class IE2 motor, is designed for both stationary and mobile continuous use, and, thanks to the integrated soft start, can be operated on standard industrial sockets protected with 16 amperes. Horizontal filter shaking ensures reliable cleaning of the M-tested star filter. The gearbox for targeted power transmission assists the user with filter cleaning. The set-down mechanism of the 100-litre stainless steel container also facilitates ergonomic handling. Numerous options for the safe storage of accessories complete the equipment features.

Features and benefits

Certified for ATEX Zone 22

Explosion-proof industrial vacuum for safe vacuuming in ATEX Zone 22.

Dust class M

Complete device certified according to DIN EN 60335-2-69 for dust class M.

Wear-resistant side channel blower

With 5.5 kW power and soft start for large quantities of dust and solids.For strong suction power and service life of at least 20,000 hours.Suitable for multiple shift operation and/or with multiple suction points.

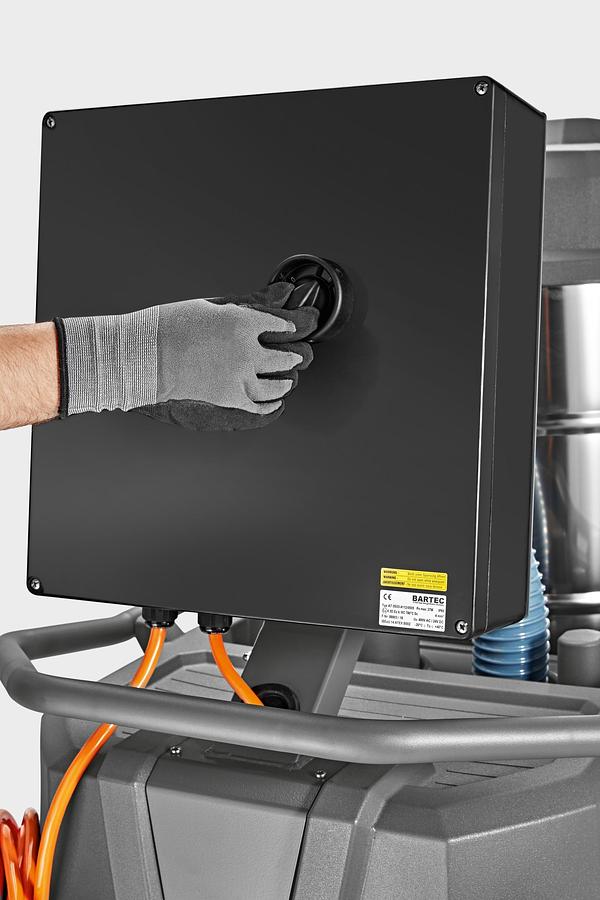

Manual IVS filter cleaning

Effortless operation by means of an ergonomically placed lever if required.

Extends the life of the filter and thus reduces the maintenance effort.

Identical cleaning results, regardless of the amount of force used.

Equipped with extra-large star filter

Also suitable for oily and adhesive dusts thanks to special coating.

Also suitable for large quantities of dust.

Equipment

Accessories included in the scope of delivery: no
