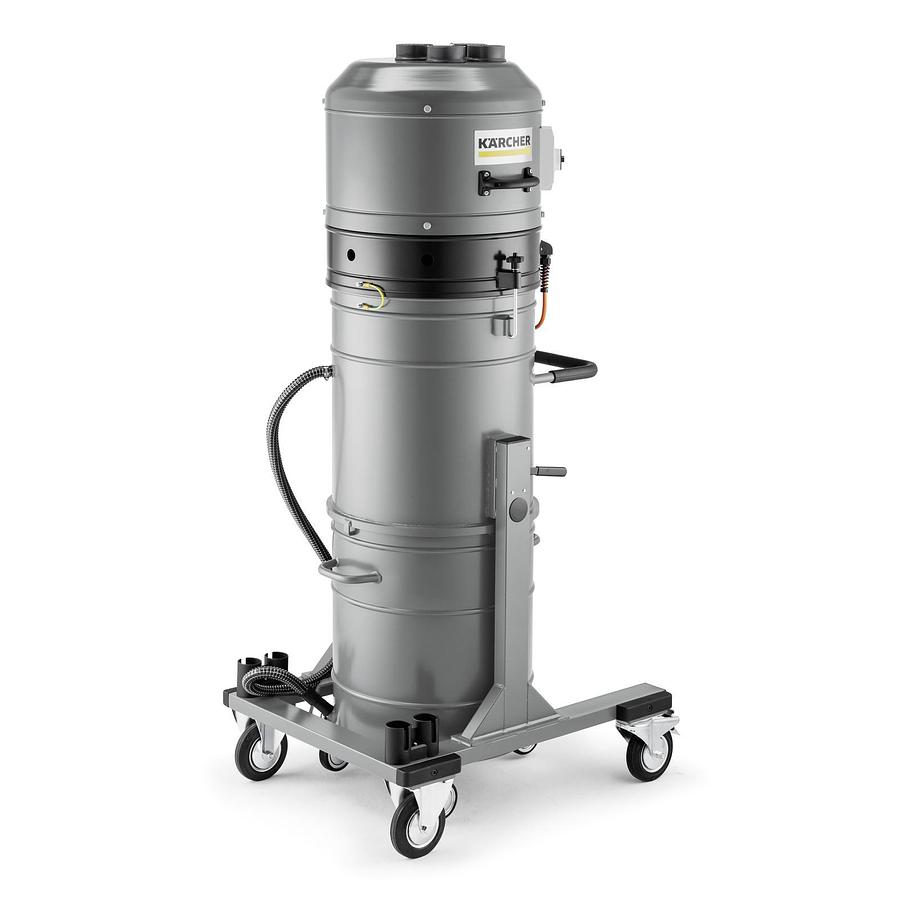

Industrial vacuums IVR 100/30 Sc M ACD
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 - 60 |
| Air flow (l/s/m³/h) | 88 / 315 |
| Vacuum (mbar/kPa) | 260 / 26 |
| Container capacity (l) | 100 |
| Container material | Steel |
| Rated input power (kW) | 3 |
| Vacuuming type | Electric |
| Connection nominal diameter | DN 70 |
| Accessory nominal diameter | DN 50 |
| Sound pressure level (dB(A)) | 62 |
| Cable length (m) | 7,5 |
| Main filter dust class | M |
| Filter area for main filter (m²) | 1,75 |
| Colour | anthracite |
| Weight without accessories (kg) | 159 |
| Weight incl. packaging (kg) | 159,9 |
| Dimensions (L × W × H) (mm) | 915 x 760 x 1975 |
Description
The IVR 100/30 Sc M ACD with a 100-litre container capacity for mobile and stationary vacuuming of fine, combustible and hazardous dusts (OEL ≥ 0.1 mg/m³) and solids in non-explosive areas.
Industrial vacuum cleaner IVR 100/30 Sc M ACD designed for mobile and stationary use in non-explosive areas and for three-shift operation. The three-phase powered vacuum cleaner with dust class M filter technology is suitable for vacuuming large quantities of fine, combustible and hazardous shavings and dusts (OEL ≥ 0.1 mg/m³). Thanks to manual filter cleaning of the washable pocket filter with constant suction power and a maintenance-accessible design, the machine meets high industrial demands. An ergonomic set-down chassis and a PE bag with integrated closing mechanism and pressure compensation hose enable low-dust emptying of the 100-litre mobile collection container. The direct-drive motor with 3 kW rated input power and an efficiency class IE2 side channel blower with optimised impeller geometry ensure operation with consistently strong suction power at 62 dB(A).
Features and benefits
ACD – Applied for Combustible Dust
For the safe and economical vacuuming of combustible dusts.Conforms to the IEC 60335-2-69 standard.Designed for high mechanical stress and versatile in use.
With practical, movable suction hose port/pipe bend.With numerous options for accessory storage.The device and chassis are designed for industrial use due to their wall thickness.Wear-resistant side channel blower
With 3 kW power and soft start for vacuuming large quantities of dust and solids.For strong suction power and service life of at least 20,000 hours.Optimally suited for mobile use in multiple shift operation.Convenient, manual filter cleaning
Equipped with large pocket filter
