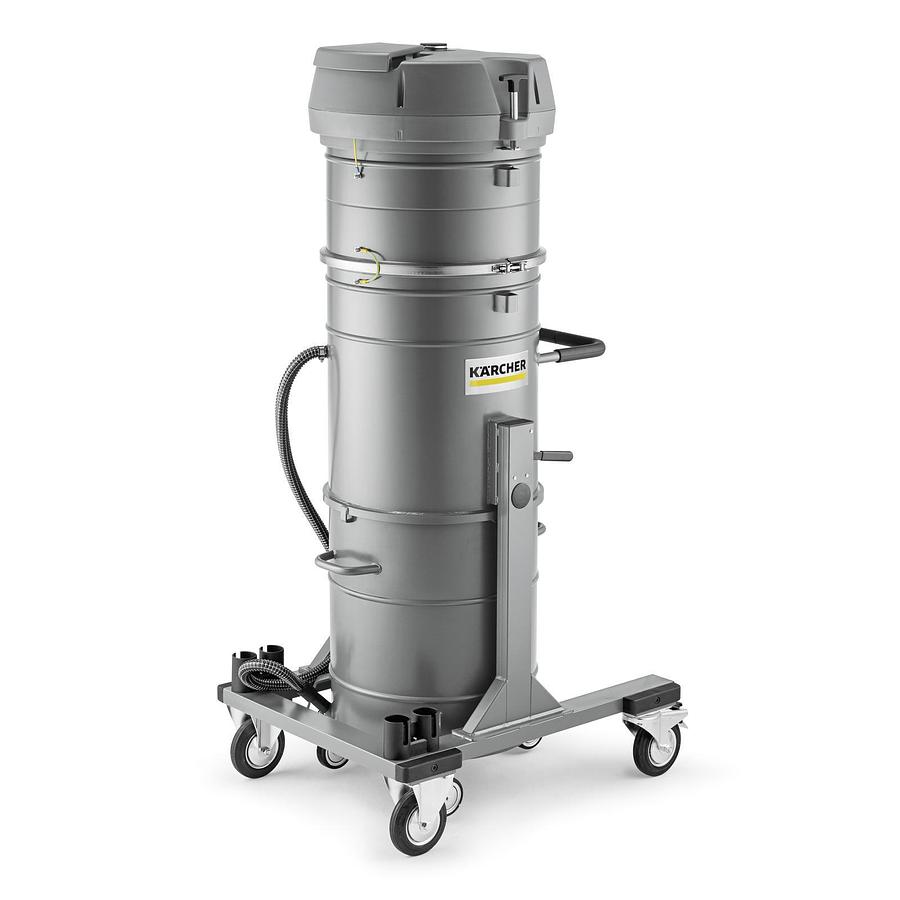

Industrial vacuums IVR 100/24-2 Sc H ACD
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 1 |
| Voltage (V) | 220 - 240 |
| Frequency (Hz) | 50 - 60 |
| Air flow (l/s/m³/h) | 148 / 532 |
| Vacuum (mbar/kPa) | 230 / 23 |
| Container capacity (l) | 100 |
| Container material | Steel |
| Rated input power (kW) | 2,4 |
| Vacuuming type | Electric |
| Connection nominal diameter | DN 70 |
| Accessory nominal diameter | DN 50 |
| Sound pressure level (dB(A)) | 68 |
| Cable length (m) | 10 |
| Main filter dust class | M |
| Filter area for main filter (m²) | 1,75 |
| Secondary filter dust class | H |
| Filter area for secondary filter (m²) | 3 |
| Colour | anthracite |
| Weight without accessories (kg) | 113 |
| Weight incl. packaging (kg) | 113 |
| Dimensions (L × W × H) (mm) | 855 x 760 x 1869 |
Description
With a rated input power of 2.4 kW, the AC-powered IVR 100/24-2 Sc impressively vacuums combustible dusts and fine swarf. For use in non-explosive areas.

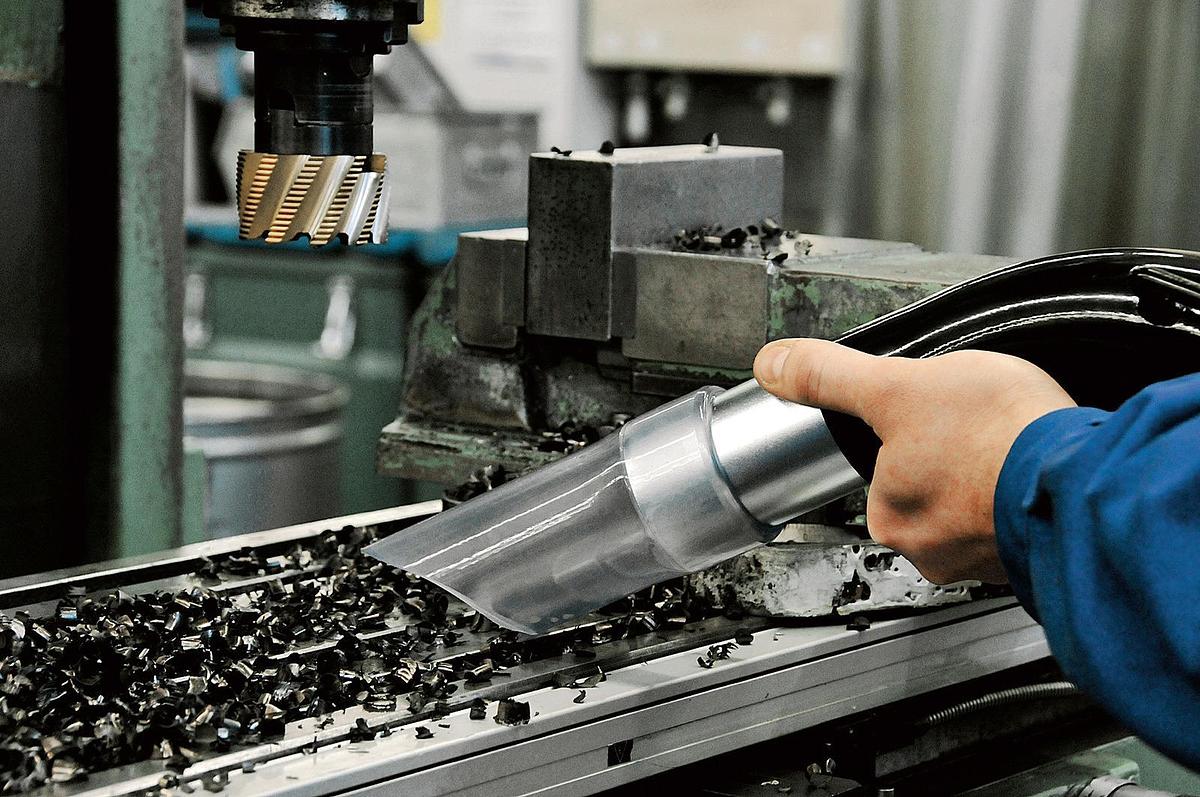

Industrial vacuum cleaner IVR 100/24-2 Sc H ACD designed for vacuuming medium quantities of shavings and combustible dusts in non-explosive areas. With a rated input power of 2.4 kW, an AC-powered two-turbine solution ensures consistently strong suction power. This is permanently maintained thanks to a washable dust class M pocket filter, a dust class H cartridge filter, and effective manual filter cleaning. Low-dust emptying of the 100-litre mobile collection container is carried out via an ergonomic set-down chassis without removing the drive head, while a safety filter bag enables safe disposal of the vacuumed material. The mobile chassis, sound-dampened operation at 68 dB(A), and a maintenance-accessible design complete the equipment of the AC-powered vacuum cleaner.
Features and benefits
ACD – Applied for Combustible Dust
For the safe and economical vacuuming of combustible dusts.Conforms to the IEC 60335-2-69 standard.Designed for high mechanical stress and versatile in use.
With practical, movable suction hose port/pipe bend.With numerous options for accessory storage.The device and chassis are designed for industrial use due to their wall thickness.Fitted with two very quiet fan motors
For powerful suction power and optimum cleaning performance.Fans can be switched on separately for individual suction power as required.The drive head with a sound pressure level of 68 dB(A) ensures an even discharge of the cooling air.Convenient, manual filter cleaning
Equipped with large pocket filter
