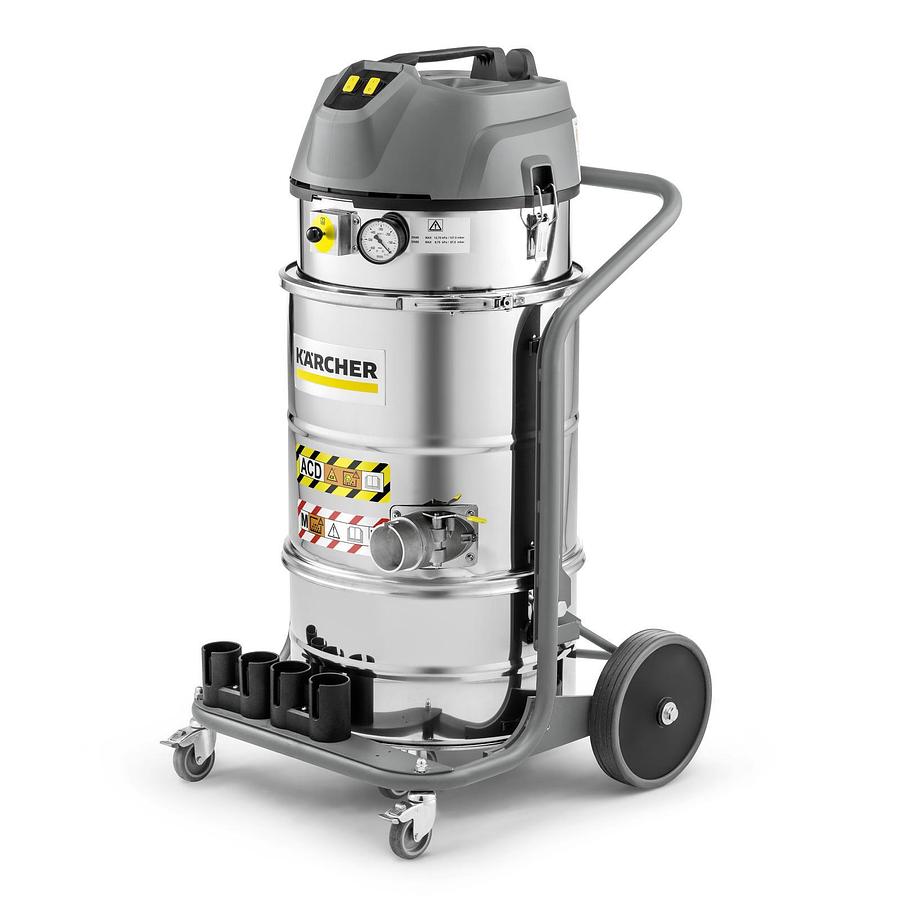

Industrial vacuums IVM 40/24-2 M ACD
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 1 |
| Voltage (V) | 220 - 240 |
| Frequency (Hz) | 50 - 60 |
| Air flow (l/s/m³/h) | 100 / 360 |
| Vacuum (mbar/kPa) | 225 / 22,5 |
| Container capacity (l) | 40 |
| Container material | Stainless steel |
| Rated input power (kW) | 2,3 |
| Vacuuming type | Electric |
| Connection nominal diameter | DN 70 |
| Accessory nominal diameter | DN 50 |
| Sound pressure level (dB(A)) | 77 |
| Cable length (m) | 10 |
| Main filter dust class | M |
| Filter area for main filter (m²) | 1,5 |
| Weight without accessories (kg) | 35,7 |
| Weight incl. packaging (kg) | 36,3 |
| Dimensions (L × W × H) (mm) | 645 x 655 x 1150 |
Description
The two-motor, mobile mid-class industrial vacuum cleaner IVM 40/24-2 M ACD with a hard-wearing all-metal design is designed for the safe vacuuming of fine and coarse combustible dusts.
Compact and mobile: our two-motor mid-class industrial vacuum cleaner IVM 40/24-2 M ACD with an all-metal design for the universal vacuuming of fine and coarse combustible solids outside an ATEX zone. The machine operates in single-phase mode, with both motors individually controllable. The large, certified dust class M PTFE star filter can be cleaned manually using the Pull and Clean filter cleaning system without switching off the vacuum cleaner. The filter container and collection container are made of acid-resistant stainless steel, while the chassis is made of steel and features large wheels for easy manoeuvrability on site.
Features and benefits
ACD – Applied for Combustible Dust
For the safe and economical vacuuming of combustible dusts.Conforms to the IEC 60335-2-69 standard.Dust class M
Complete device certified according to DIN EN 60335-2-69 for dust class M.Manual pull-and-clean filter cleaning
Filter is cleaned in a single step during operation.Low-wear dedusting by means of air reversal.Fitted with two blower motors
Equipped with a large star filter
