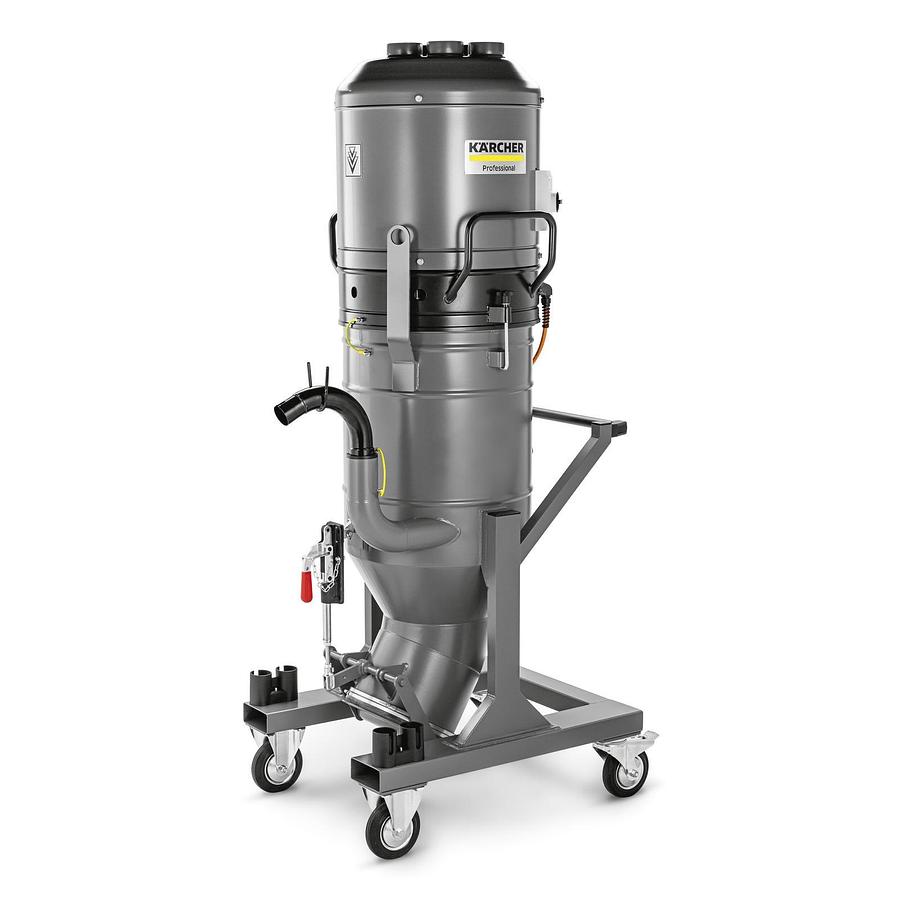

Industrial vacuums IVR 100/30 Ef
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 - 60 |
| Air flow (l/s/m³/h) | 88 / 315 |
| Vacuum (mbar/kPa) | 260 / 26 |
| Container capacity (l) | 100 |
| Rated input power (kW) | 3 |
| Vacuuming type | Electric |
| Connection nominal diameter | DN 70 |
| Accessory nominal diameter | DN 50 |
| Sound pressure level (dB(A)) | 62 |
| Main filter dust class | M |
| Filter area for main filter (m²) | 1,75 |
| Weight without accessories (kg) | 160 |
| Weight incl. packaging (kg) | 160 |
| Dimensions (L × W × H) (mm) | 950 x 715 x 1600 |
Description

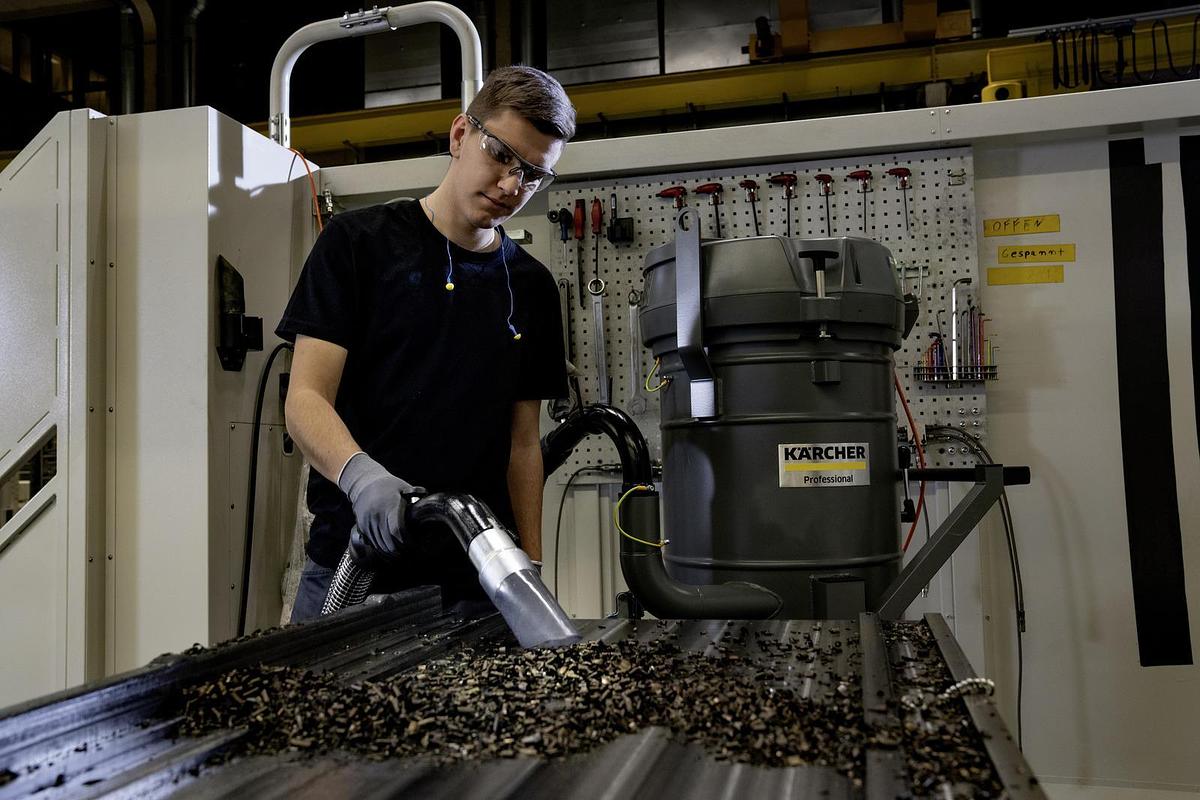

IVR 100/30 Ef robust industrial vacuum cleaner. For mobile and stationary vacuuming of solids – from fine swarf and hazardous dust through to sand and blasting abrasive.
The IVR 100/30 Ef mobile, torque-operated industrial vacuum cleaner is specially designed for performance, robustness and user-friendliness to fulfil the most demanding industrial requirements. Featuring welded-on forklift plug-in units, crane eyes, a discharge flap and ergonomic set-down trolley, there are various options to conveniently empty its 100 l container without having to remove the drive head. This means large quantities of solids, such as fine, coarse and hazardous swarf and dust (OEL ≥ 0.1 mg/m³), sand or blasting abrasive, can be disposed of quickly and easily. The dust class M filter system with durable, washable pocket filter and manual filter cleaning guarantees safe vacuuming with consistently high suction power at all times. This is ensured by the powerful, energy-efficient side channel blower (IE2) and the directly driven low-maintenance motor with a rated input power of 3 kW, which was also designed for continuous use.
Features and benefits
Convenient, manual discharge flap
For easy emptying, for example into underfloor conveyors or containers.Convenient and time-saving emptying of the suction material, even with large quantities.Crane lugs enable safe grabbing and emptying by crane.Designed for high mechanical stress and versatile in use.
With practical, movable suction hose port/pipe bend.With numerous options for accessory storage.The device and chassis are designed for industrial use due to their wall thickness.Wear-resistant side channel blower
With 3 kW power and soft start for vacuuming large quantities of dust and solids.For strong suction power and service life of at least 20,000 hours.Optimally suited for mobile use in multiple shift operation.Convenient, manual filter cleaning
Equipped with large pocket filter
