Industrial vacuums IVR-L 120/24-2 Tc Me Dp

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)1
Voltage (V)220 - 240
Frequency (Hz)50 - 60
Air flow (l/s/m³/h)148 / 532
Vacuum (mbar/kPa)235 / 23
Container capacity (l)120
Container materialStainless steel
Rated input power (kW)2,4
Vacuuming typeElectric
Connection nominal diameterDN 50
Accessory nominal diameterDN 50
Main filter dust classL
Filter area for main filter (m²)0,45
Sound pressure level (dB(A))68
Cable length (m)10
Weight without accessories (kg)72
Weight (with accessories) (kg)72
Weight incl. packaging (kg)72,8
Dimensions (L × W × H) (mm)745 x 710 x 1420

Description

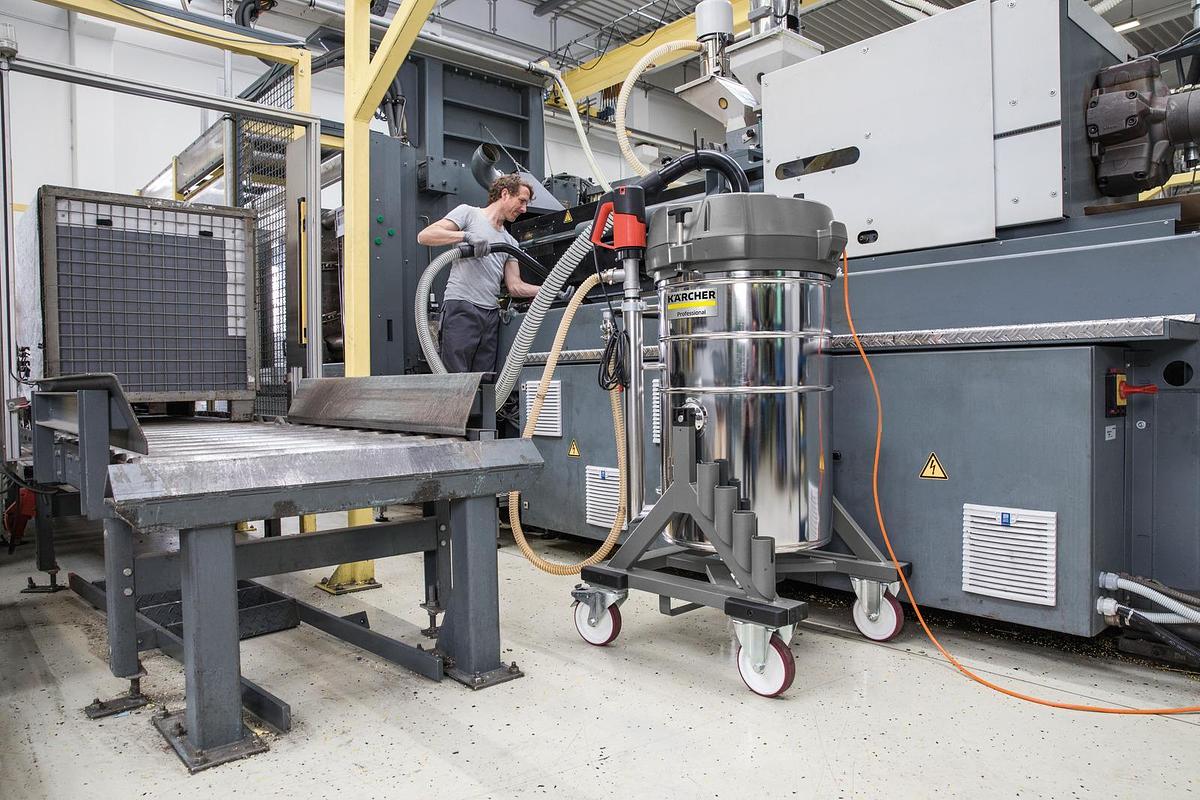

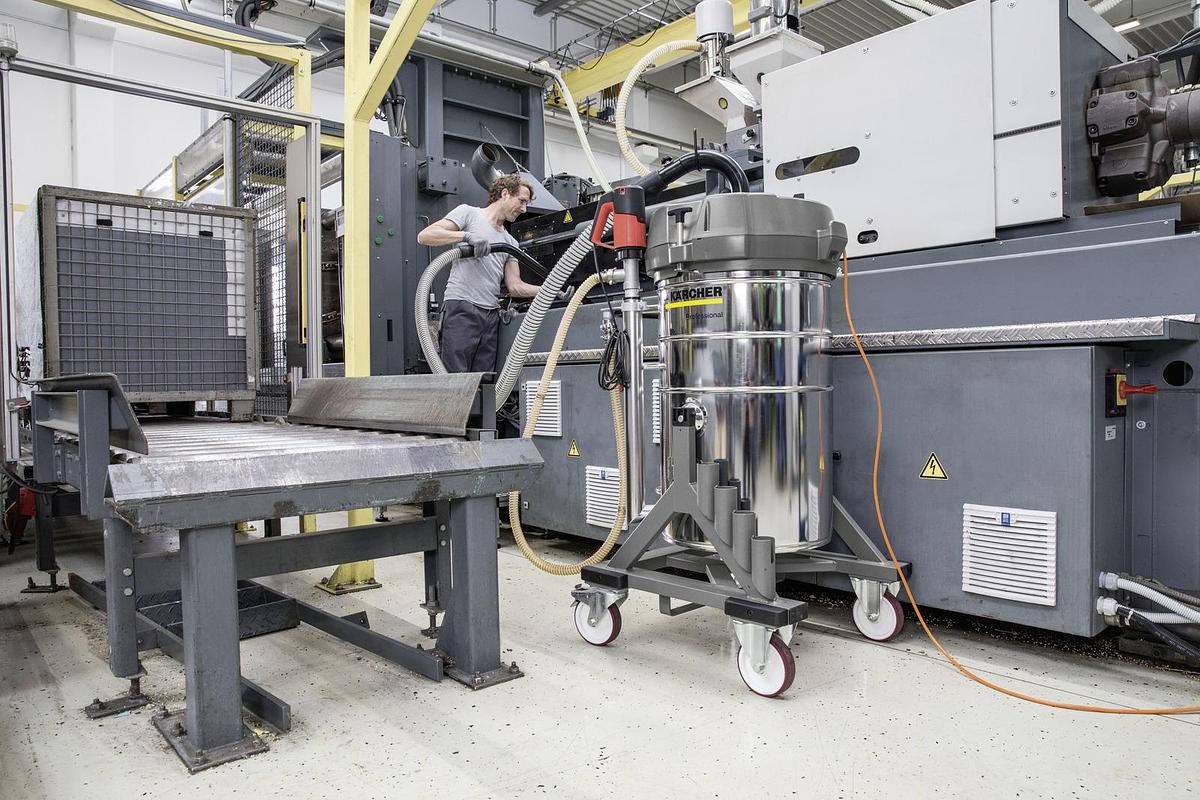

The IVR-L 120/24-2 Tc Me Dp oil vacuum cleaner with 120-litre container and autonomous drum pump is ideal for vacuuming, separating and returning cooling or drilling oils containing solids such as metal shavings.

The oil vacuum cleaner IVR-L 120/24-2 Tc Me Dp is a compact industrial vacuum cleaner with a tilting chassis and a 120-litre stainless steel container. The device vacuums large quantities of liquids as well as largely dust-free solids (e.g., swarf). Thanks to an optional swarf basket, these solids can be separated from the vacuumed liquids. Due to the stainless steel design, the IVR-L 120/24-2 Tc Me Dp is also suitable for vacuuming corrosive media. The 360° rotatable hose connection on the suction head prevents the suction hose from knotting and increases flexibility. The current fill level is visible at all times via the drain hose. An autonomous barrel pump enables the return of the vacuumed liquids. The design made of 1.25 mm thick stainless steel, including oil-resistant castors and mains cable, is designed for tough industrial use. Furthermore, it allows for forklift pick-up. It also allows the machine to be lifted by forklift truck.

Features and benefits

Ergonomic tilting chassis

  • Sophisticated system for safe, manual, effortless emptying.
  • Chassis system enables ergonomic tilted emptying using the roll-off mechanism.
  • Quick and easy emptying of the container: just tip backwards and you are done!

    • High-quality stainless steel collection container

  • Very easy to clean.
  • Suitable for corrosive suction material.
  • Transparent hose as filling level indicator and for draining liquids.

    • Drum pump function

  • An autonomous barrel pump significantly increases the ability for vacuumed matter to be returned.
  • Transparent hose for checking the amount of fluid absorbed.

    • High robustness, flexibility and modularity

  • The device and chassis are designed for industrial use due to their wall thickness.
  • Rotatable hose connection with up to 360° rotatable pipe bend.
  • Optionally available with overfill protection, strainer or accessories holder.

    • Fitted with two very quiet fan motors

  • For powerful suction power and optimum cleaning performance.
  • Fans can be switched on separately for individual suction power as required.
  • The drive head with a sound pressure level of 68 dB(A) ensures an even discharge of the cooling air.

    • Equipment

  • Main filter: Surface filter
  • Accessories included in the scope of delivery: no
  • Drum pump function
    • Show All
