Industrial vacuums IVR-L 100/24-2 Tc Me Dp
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 1 |
| Voltage (V) | 220 - 240 |
| Frequency (Hz) | 50 - 60 |
| Air flow (l/s/m³/h) | 148 / 532 |
| Vacuum (mbar/kPa) | 230 / 23 |
| Container capacity (l) | 100 |
| Container material | Stainless steel |
| Rated input power (kW) | 2,4 |
| Vacuuming type | Electric |
| Connection nominal diameter | DN 50 |
| Accessory nominal diameter | DN 50 |
| Main filter dust class | L |
| Filter area for main filter (m²) | 0,45 |
| Cable length (m) | 10 |
| Weight without accessories (kg) | 56 |
| Weight (with accessories) (kg) | 56 |
| Weight incl. packaging (kg) | 56,8 |
| Dimensions (L × W × H) (mm) | 740 x 620 x 1180 |
Description

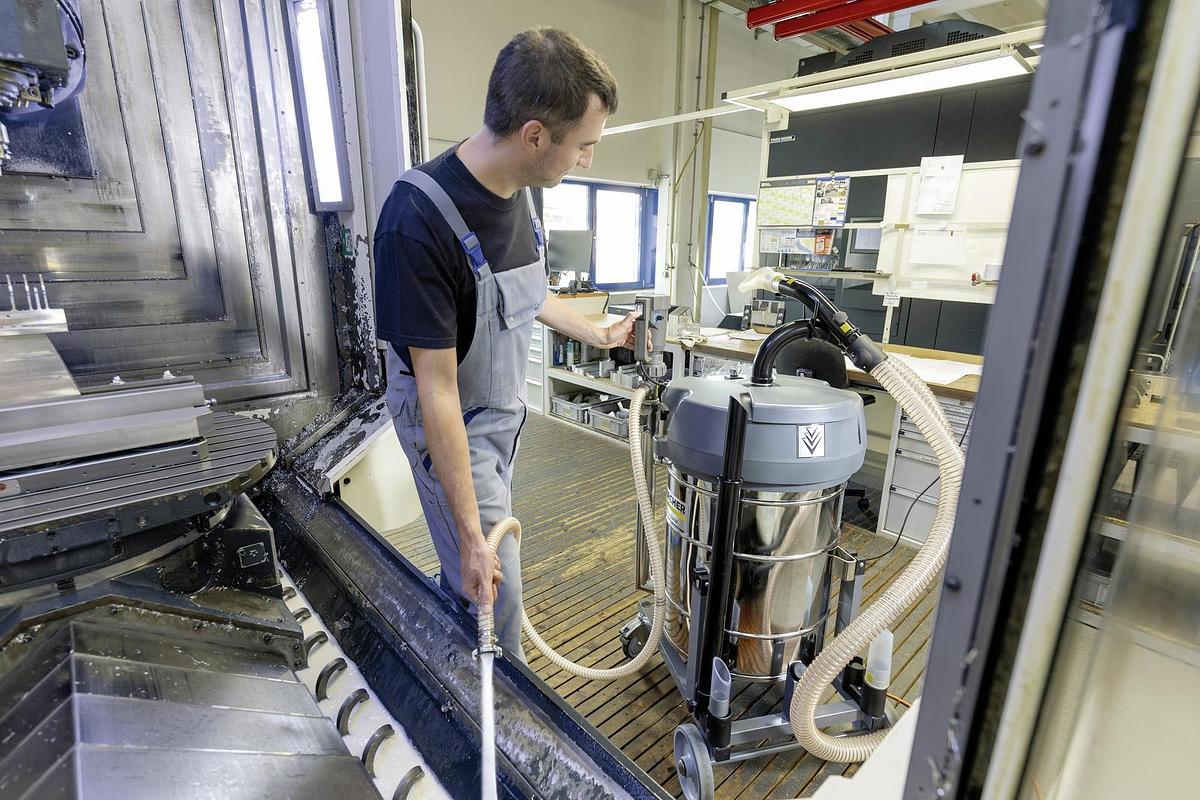

With its 100-litre container capacity and autonomous barrel pump, the IVR-L 100/24-2 Tc Me Dp is suited to vacuuming, separating and returning liquids containing solids such as metal shavings.
The IVR-L 100/24-2 Tc Me Dp is a compact industrial vacuum cleaner with a tilting chassis. The vacuum cleaner offers a 100-litre stainless steel container and enables the vacuuming of large quantities of liquids and/or largely dust-free solids such as swarf. Thanks to the optional swarf basket, the solids can be separated from the liquids. Due to the stainless steel design, the IVR-L 100/24-2 Tc Me Dp is versatile; even corrosive media can be vacuumed. The 360° rotatable hose connection on the suction head allows dirt around the vacuum cleaner to be removed without the suction hose knotting. The current fill level can be checked at all times via the drain hose. The autonomous barrel pump enables the return of the vacuumed liquids. The design made of 1.25 mm thick stainless steel, including oil-resistant castors and mains cable, is designed for industrial use. Furthermore, this design allows for forklift pick-up.
Features and benefits
Ergonomic tilting chassis
Sophisticated system for safe, manual, effortless emptying.Chassis system enables ergonomic tilted emptying using the roll-off mechanism.Quick and easy emptying of the container: just tip backwards and you are done!High-quality stainless steel collection container
Very easy to clean.Suitable for corrosive suction material.Transparent hose as filling level indicator and for draining liquids.Drum pump function
An autonomous barrel pump significantly increases the ability for vacuumed matter to be returned.Transparent hose for checking the amount of fluid absorbed.High robustness, flexibility and modularity
Fitted with two very quiet fan motors
