Industrial vacuums IVR-L 120/24-2 Tc

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)1
Voltage (V)220 - 240
Frequency (Hz)50 - 60
Air flow (l/s/m³/h)148 / 532
Vacuum (mbar/kPa)235 / 23
Container capacity (l)120
Container materialMetal
Rated input power (kW)2,4
Vacuuming typeElectric
Connection nominal diameterDN 50
Accessory nominal diameterDN 50
Main filter dust classL
Filter area for main filter (m²)0,45
Cable length (m)10
Weight without accessories (kg)66
Weight (with accessories) (kg)68
Weight incl. packaging (kg)68,8
Dimensions (L × W × H) (mm)740 x 620 x 1180

Description

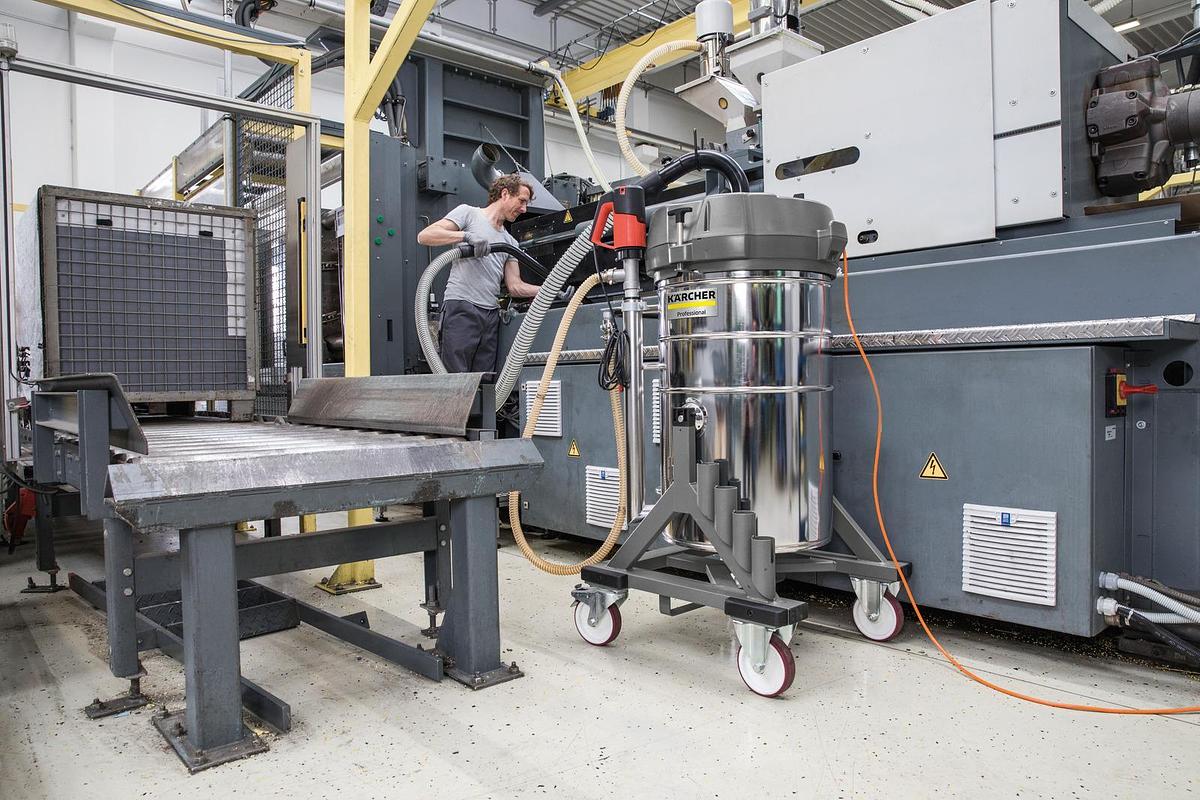

The IVR-L 120/24-2 Tc is the basic version of the IVR-L 120 Tc models and is perfect for vacuuming and separating cooling lubricants and shavings in the metalworking industry.

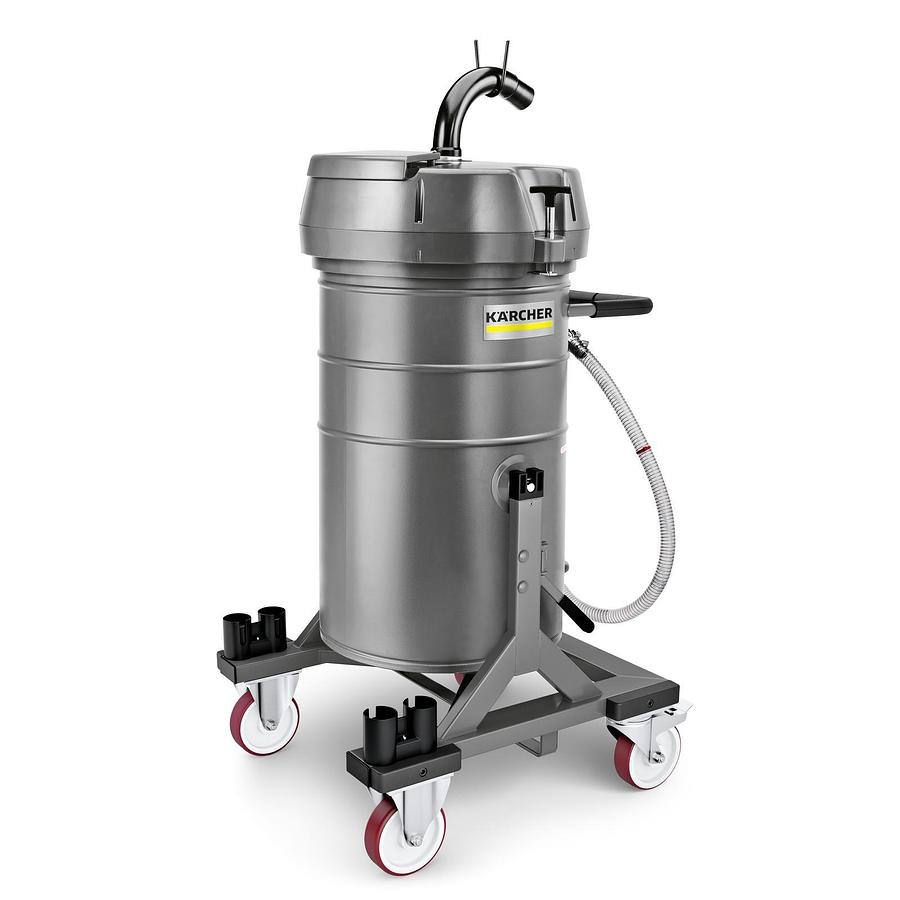

The compact industrial vacuum cleaner IVR-L 120/24-2 Tc is suitable for separating coolants and swarf. With its design made of 1.25 mm thick steel, oil-resistant castors, and an oil-resistant mains cable, the vacuum cleaner is designed for industrial use. The device features a tilting chassis and a 120-litre collection container for large quantities of liquids and/or largely dust-free solids such as swarf. With the optional swarf basket, solids can be separated from the vacuumed liquid. The hose connection on the suction head is 360° rotatable and prevents knotting. The fill level can be read at any time via the drain hose. Emptying is carried out via the drain hose or the tilting chassis. Forklift pick-up is possible due to the design.

Features and benefits

New drive head for increased safety, convenience and power

  • The low weight of the drive head ensures easier handling during transport, emptying and servicing.
  • Greater work safety during transport thanks to cable storage on the machine head.
  • Integrated exhaust air cover prevents dirt ingress in the motor compartment.

    • 360° working radius

  • Clean in all directions thanks to the rotatable hose connection on the suction head. Tangle-free suction hose.

    • Practical tilting chassis

  • Quick and easy emptying of the container: just tip backwards and you are done!

    • Oil-resistant

  • Oil-resistant rollers and cable for a long service life ensure excellent mobility even under aggressive conditions.

    • Engineered for continuous commercial and industrial use

  • Ideal for use in the metals processing industry.

    • Equipment

  • Main filter: Surface filter
  • Accessories included in the scope of delivery: no
