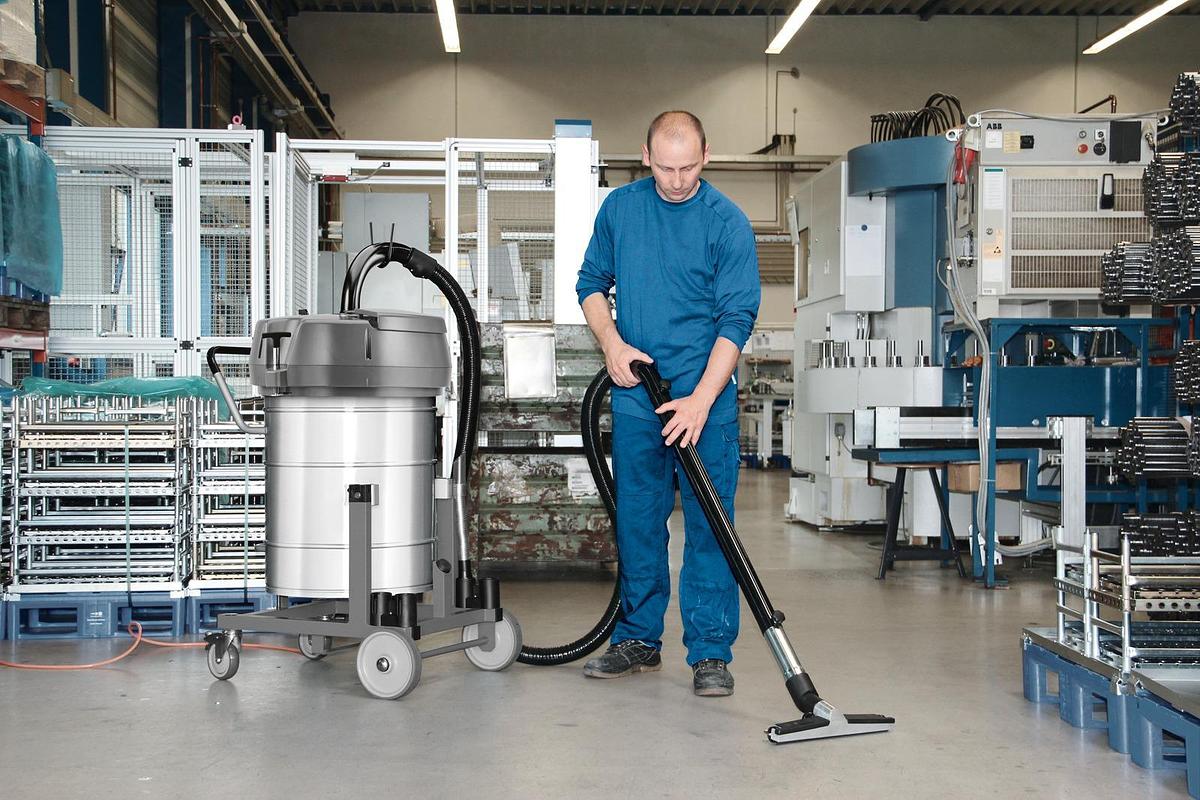

Industrial vacuums IVR-L 100/24-2 Tc Me Set
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 1 |
| Voltage (V) | 220 - 240 |
| Frequency (Hz) | 50 - 60 |
| Air flow (l/s/m³/h) | 148 / 532 |
| Vacuum (mbar/kPa) | 230 / 23 |
| Container capacity (l) | 100 |
| Container material | Stainless steel |
| Rated input power (kW) | 2,4 |
| Vacuuming type | Electric |
| Connection nominal diameter | DN 50 |
| Accessory nominal diameter | DN 50 |
| Main filter dust class | L |
| Filter area for main filter (m²) | 0,45 |
| Cable length (m) | 10 |
| Weight without accessories (kg) | 57 |
| Weight (with accessories) (kg) | 57 |
| Weight incl. packaging (kg) | 57 |
| Dimensions (L × W × H) (mm) | 844 x 637 x 1324 |
Description
The IVR-L 100/24-2 Tc Me industrial vacuum kit in glass bead blasted stainless steel design is suitable for vacuuming and separating liquids and solids as well as corrosive media.
The IVR-L 100/24-2 Tc Me Set is a compact industrial vacuum cleaner. Its construction made of 1.25 mm thick stainless steel, oil-resistant castors, and an oil-resistant power cable make the unit suitable for industrial use. A forklift pocket is also provided. The vacuum cleaner features a 100-liter stainless steel container with a tilting chassis for vacuuming liquids and largely dust-free solids such as shavings. These can be separated from liquids by means of an optional shavings basket. The glass-bead-blasted stainless steel design also enables the vacuuming of corrosive media. The 360° rotatable hose connection on the suction head prevents the suction hose from knotting. The current filling level is visible on the drain hose. Emptying can take place via the drain hose or the tilting chassis.carried out either using the drainage tube or the tilting chassis.
Features and benefits
Ergonomic tilting chassis
Sophisticated system for safe, manual, effortless emptying.Chassis system enables ergonomic tilted emptying using the roll-off mechanism.Quick and easy emptying of the container: just tip backwards and you are done!High-quality stainless steel collection container
Very easy to clean.Suitable for corrosive suction material.Transparent hose as filling level indicator and for draining liquids.High robustness, flexibility and modularity
The device and chassis are designed for industrial use due to their wall thickness.Rotatable hose connection with up to 360° rotatable pipe bend.Optionally available with overfill protection, strainer or accessories holder.Fitted with two very quiet fan motors
Equipped with compact surface filter of dust class L
Equipment
