Industrial vacuums IVR-L 100/24-2 Tc
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 1 |
| Voltage (V) | 220 - 240 |
| Frequency (Hz) | 50 - 60 |
| Air flow (l/s/m³/h) | 148 / 532 |
| Vacuum (mbar/kPa) | 230 / 23 |
| Container capacity (l) | 100 |
| Container material | Steel |
| Rated input power (kW) | 2,4 |
| Vacuuming type | Electric |
| Connection nominal diameter | DN 50 |
| Accessory nominal diameter | DN 50 |
| Main filter dust class | L |
| Filter area for main filter (m²) | 0,45 |
| Cable length (m) | 10 |
| Weight without accessories (kg) | 50 |
| Weight (with accessories) (kg) | 50 |
| Weight incl. packaging (kg) | 50,8 |
| Dimensions (L × W × H) (mm) | 640 x 620 x 1060 |
Description

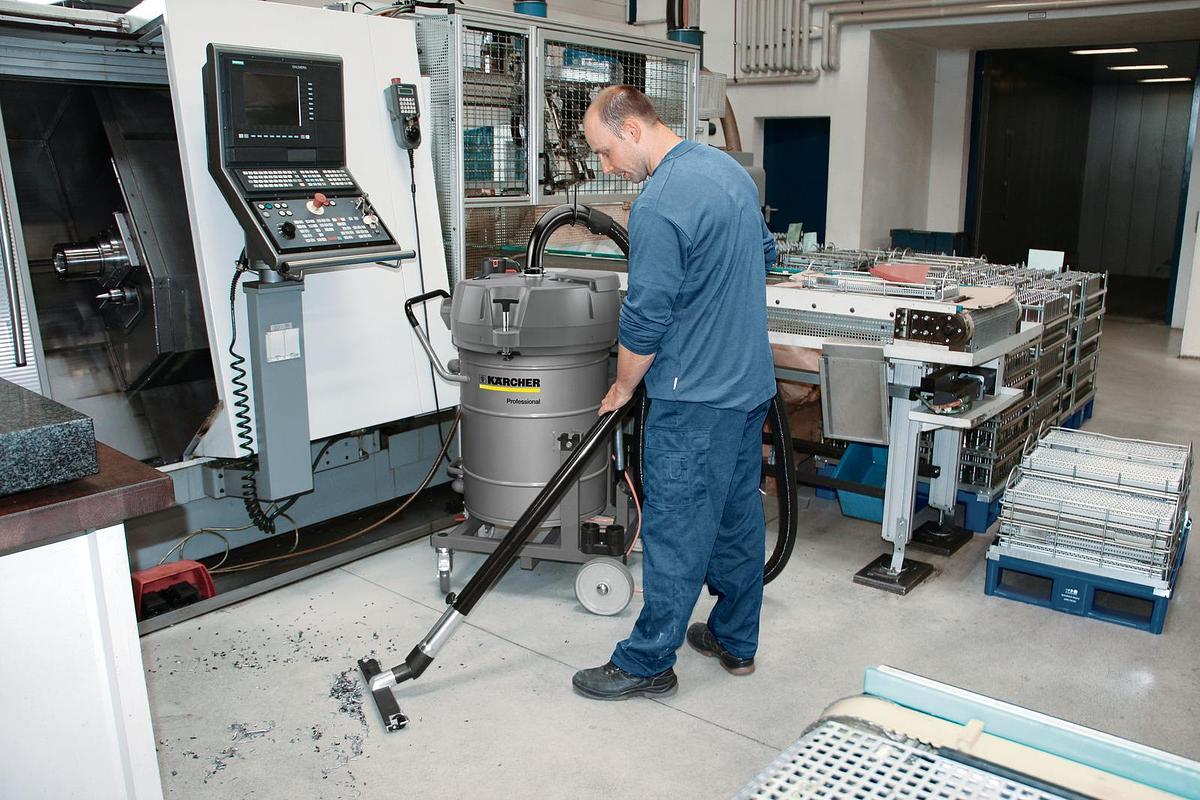

The IVR-L 100/24-2 Tc is the basic version of all IVR-L 100 Tc models. The perfect machine for vacuuming and separating cooling lubricants and shavings in the metalworking industry.
The compactly built IVR-L 100/24-2 Tc is an industrial vacuum cleaner with a tilting chassis and a 100-litre collection container. This makes the vacuum cleaner suitable for taking in large quantities of liquids and/or solids such as swarf (as dust-free as possible). With the help of the optional swarf basket, the solids can be separated from the liquid. Thanks to the 360° rotatable hose connection on the suction head, vacuuming around the device can be carried out without the suction hose knotting. The current fill level is visible at all times via the drain hose. Emptying is carried out either via the drain hose or the tilting chassis. The design made of 1.25 mm thick steel, the oil-resistant castors, and the oil-resistant mains cable are designed for industrial use. Furthermore, this design allows for forklift pick-up.
Features and benefits
Ergonomic tilting chassis
Sophisticated system for safe, manual, effortless emptying.Chassis system enables ergonomic tilted emptying using the roll-off mechanism.Quick and easy emptying of the container: just tip backwards and you are done!High robustness, flexibility and modularity
The device and chassis are designed for industrial use due to their wall thickness.Rotatable hose connection with up to 360° rotatable pipe bend.Optionally available with overfill protection, strainer or accessories holder.Visual filling level indicator
Transparent hose for checking the amount of fluid absorbed.The hose is also used for easy emptying.Fitted with two very quiet fan motors
Equipped with compact surface filter of dust class L
