Industrial vacuums IVR-L 100/24-2 Tc Set
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 1 |
| Voltage (V) | 220 - 240 |
| Frequency (Hz) | 50 - 60 |
| Air flow (l/s/m³/h) | 148 / 532 |
| Vacuum (mbar/kPa) | 230 / 23 |
| Container capacity (l) | 100 |
| Container material | Steel |
| Rated input power (kW) | 2,4 |
| Vacuuming type | Electric |
| Connection nominal diameter | DN 50 |
| Accessory nominal diameter | DN 50 |
| Main filter dust class | L |
| Filter area for main filter (m²) | 0,45 |
| Cable length (m) | 10 |
| Weight without accessories (kg) | 57,4 |
| Weight (with accessories) (kg) | 57,4 |
| Weight incl. packaging (kg) | 58,1 |
| Dimensions (L × W × H) (mm) | 844 x 637 x 1329 |
Description

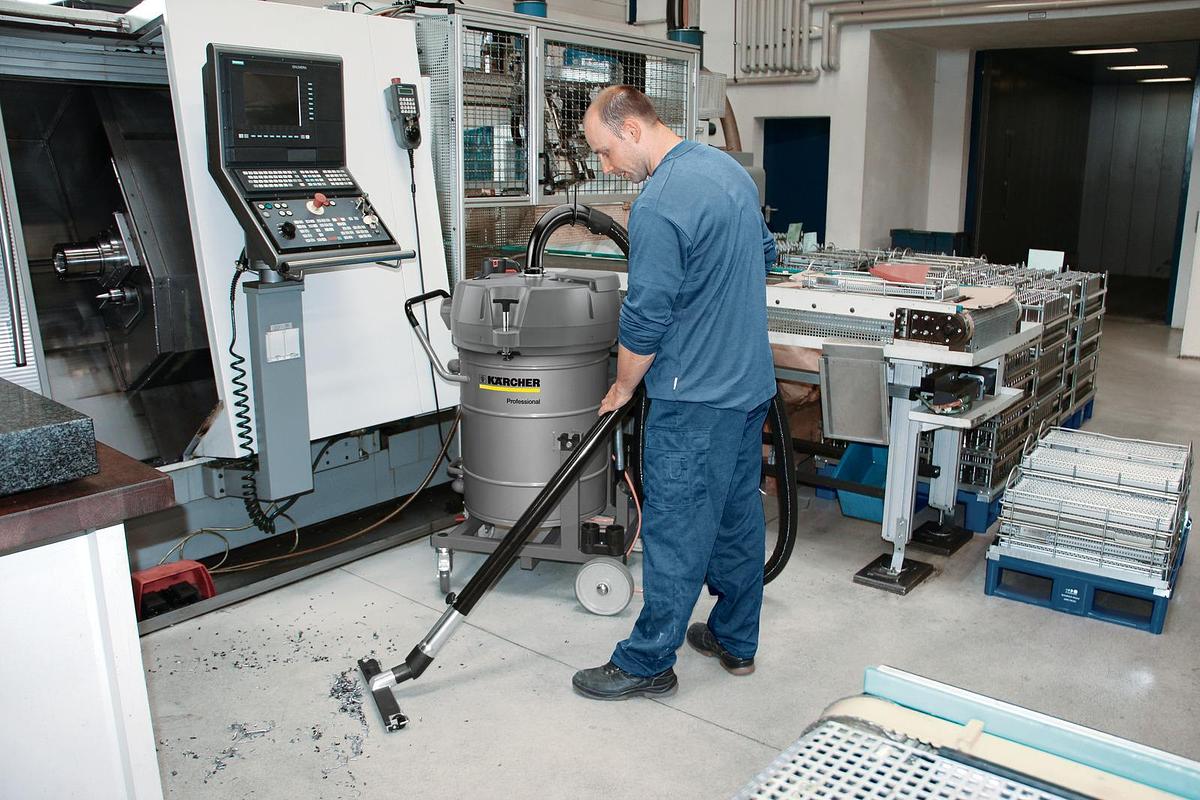

The IVR-L 100/24-2 Tc set, including accessories, is the perfect solution for vacuuming and separating cooling lubricants and swarf in the metalworking industry.

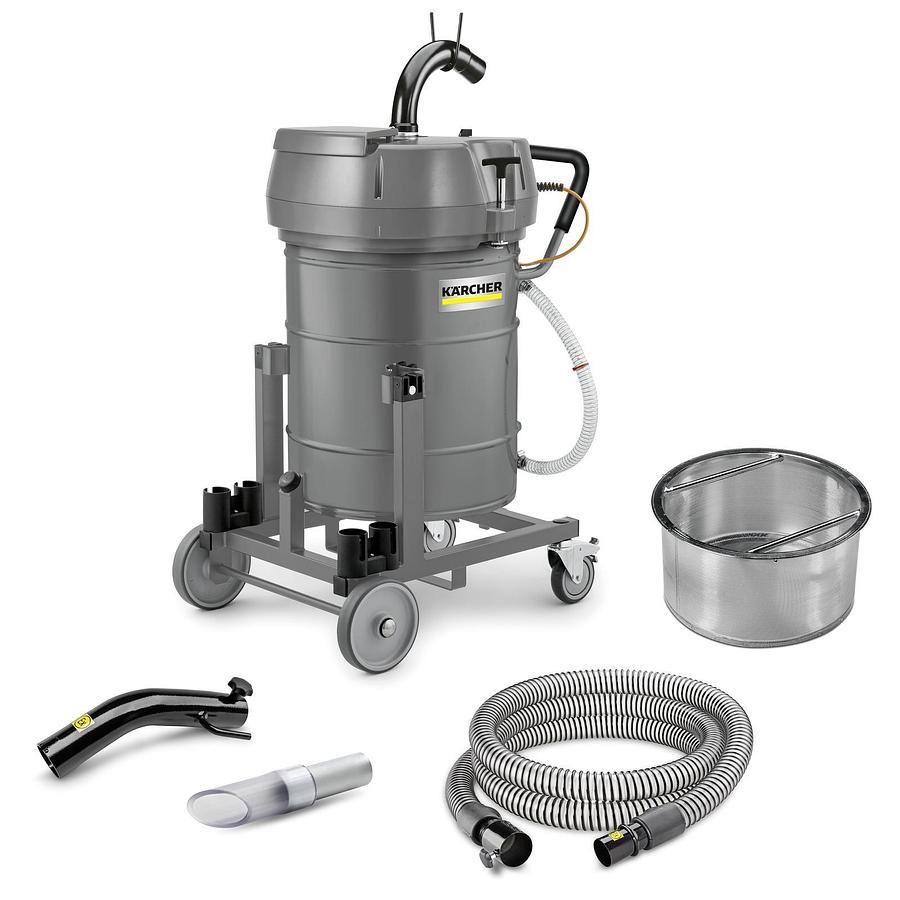

The IVR-L 100/24-2 Tc Set is an industrial vacuum cleaner with a tilting chassis, 100-litre collection container, and accessories (PU hose, handle, PVC standard nozzle, and sieve basket). The vacuum cleaner is suitable for picking up liquids and largely dust-free solids such as swarf. Using the swarf basket, solids can be separated from the liquid. The hose connection on the suction head, which can be rotated by 360°, prevents the suction hose from knotting. The fill level is visible on the drain hose; emptying takes place via the drain hose or the tilting chassis. Its construction made of 1.25 mm thick steel, oil-resistant castors, and an oil-resistant power cable are designed for industrial use. A forklift pick-up is available.
Features and benefits
Ergonomic tilting chassis
Sophisticated system for safe, manual, effortless emptying.Chassis system enables ergonomic tilted emptying using the roll-off mechanism.Quick and easy emptying of the container: just tip backwards and you are done!High robustness, flexibility and modularity
The device and chassis are designed for industrial use due to their wall thickness.Rotatable hose connection with up to 360° rotatable pipe bend.Optionally available with overfill protection, strainer or accessories holder.Visual filling level indicator
Transparent hose for checking the amount of fluid absorbed.The hose is also used for easy emptying.Fitted with two very quiet fan motors
Equipped with compact surface filter of dust class L
