Industrial vacuums IVR-L 100/24-2

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)1
Voltage (V)220 - 240
Frequency (Hz)50 - 60
Air flow (l/s/m³/h)148 / 532
Vacuum (mbar/kPa)230 / 23
Container capacity (l)100
Container materialMetal
Rated input power (kW)2,4
Vacuuming typeElectric
Connection nominal diameterDN 50
Accessory nominal diameterDN 50
Main filter dust classL
Filter area for main filter (m²)0,45
Cable length (m)10
Weight without accessories (kg)44
Weight (with accessories) (kg)44
Weight incl. packaging (kg)44,6
Dimensions (L × W × H) (mm)640 x 620 x 1060

Description

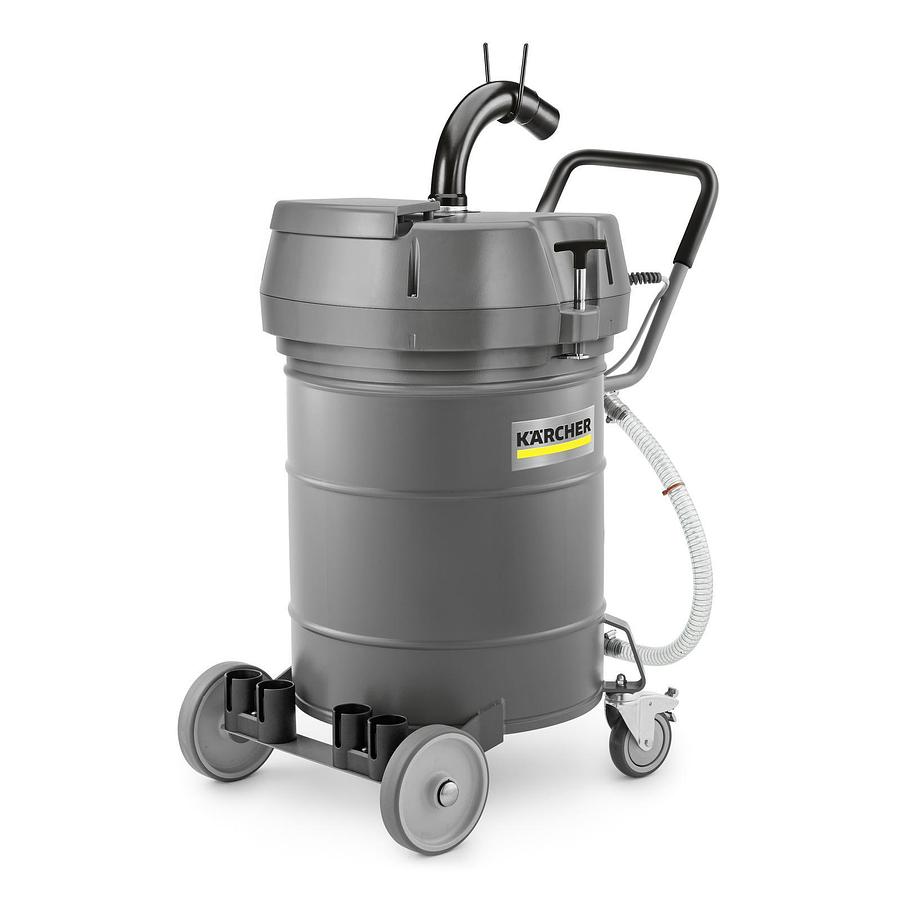

IVR-L 100/24-2 – the compact industrial vacuum with 100-litre container capacity. Convenient vacuuming and easy separation of shavings and cutting fluids.

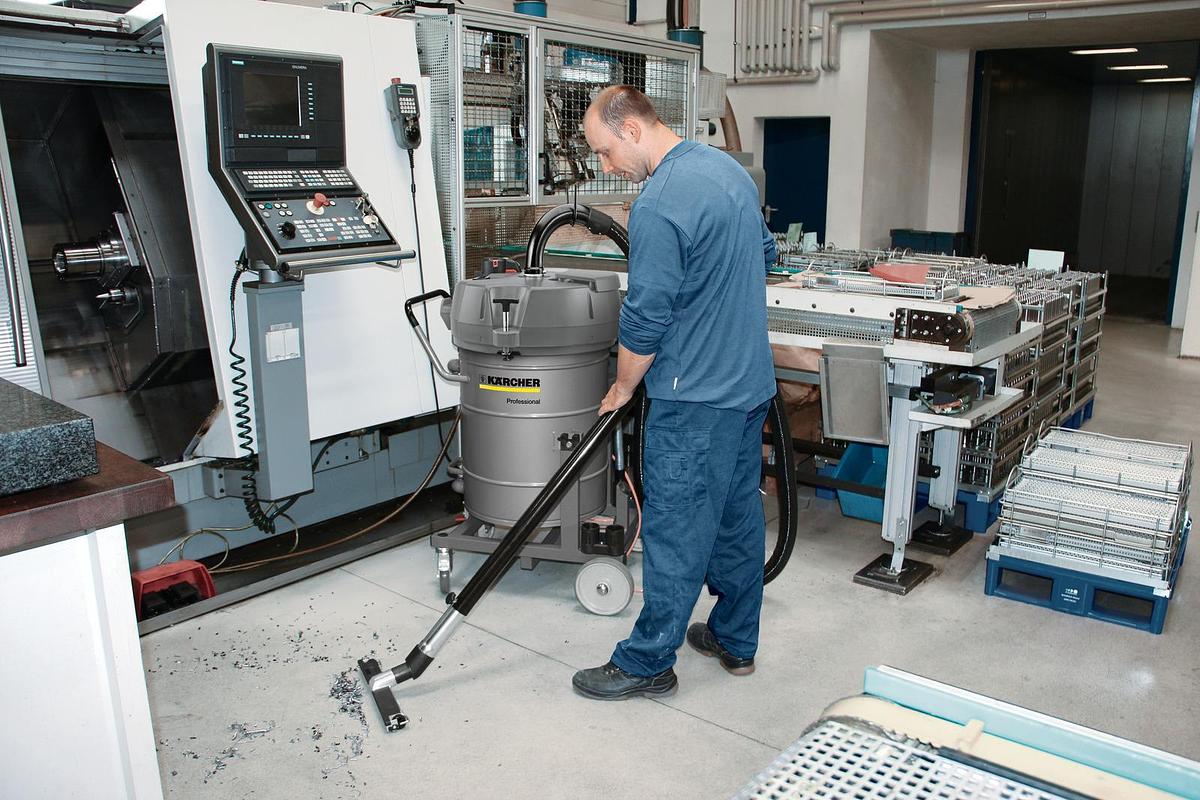

The IVR-L 100/24-2 is a compact industrial vacuum from Kärcher. The vacuum cleaner has a 100-litre container capacity. Liquids and coarse solids (e.g. chips) can be reliably suctioned and conveniently separated from each other thanks to the optional chip cage. The hose connection at the suction head is very flexible (360° rotation) and guarantees maximum flexibility and knot-free vacuuming. The filling level can be comfortably read at any time on the emptying hose. Flange-mounted crane lugs facilitate daily handling, also when fully loaded. The high-quality castors made of ABS material guarantee maximum mobility.

Features and benefits

High robustness, flexibility and modularity

The device and chassis are designed for industrial use due to their wall thickness.Rotatable hose connection with up to 360° rotatable pipe bend.Optionally available with overfill protection, strainer or accessories holder.

Visual filling level indicator

Transparent hose for checking the amount of fluid absorbed.The hose is also used for easy emptying.

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance.Fans can be switched on separately for individual suction power as required.The drive head with a sound pressure level of 68 dB(A) ensures an even discharge of the cooling air.

Equipped with compact surface filter of dust class L

  • Reliably prevents coarse particles from entering the suction turbines.
  • Equipment

  • Main filter: Surface filter
  • Accessories included in the scope of delivery: no
