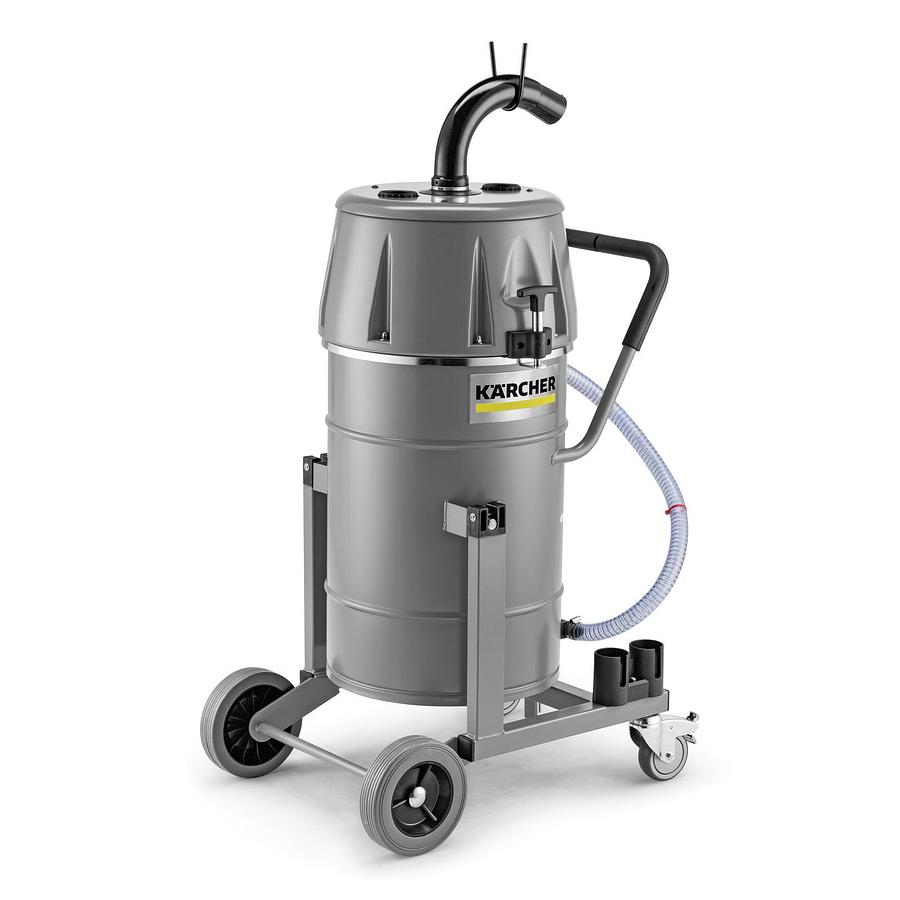

Industrial vacuums IVR-L 65/24-2 Tc

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)1
Voltage (V)220 - 240
Frequency (Hz)50 - 60
Air flow (l/s/m³/h)144 / 520
Vacuum (mbar/kPa)235 / 23,5
Container capacity (l)65
Container materialSteel
Rated input power (kW)2,4
Vacuuming typeElectric
Connection nominal diameterDN 50
Accessory nominal diameterDN 50
Main filter dust classL
Filter area for main filter (m²)0,25
Sound pressure level (dB(A))68
Cable length (m)10
Weight without accessories (kg)42,6
Weight (with accessories) (kg)42,6
Weight incl. packaging (kg)43,2
Dimensions (L × W × H) (mm)737 x 532 x 1085

Description

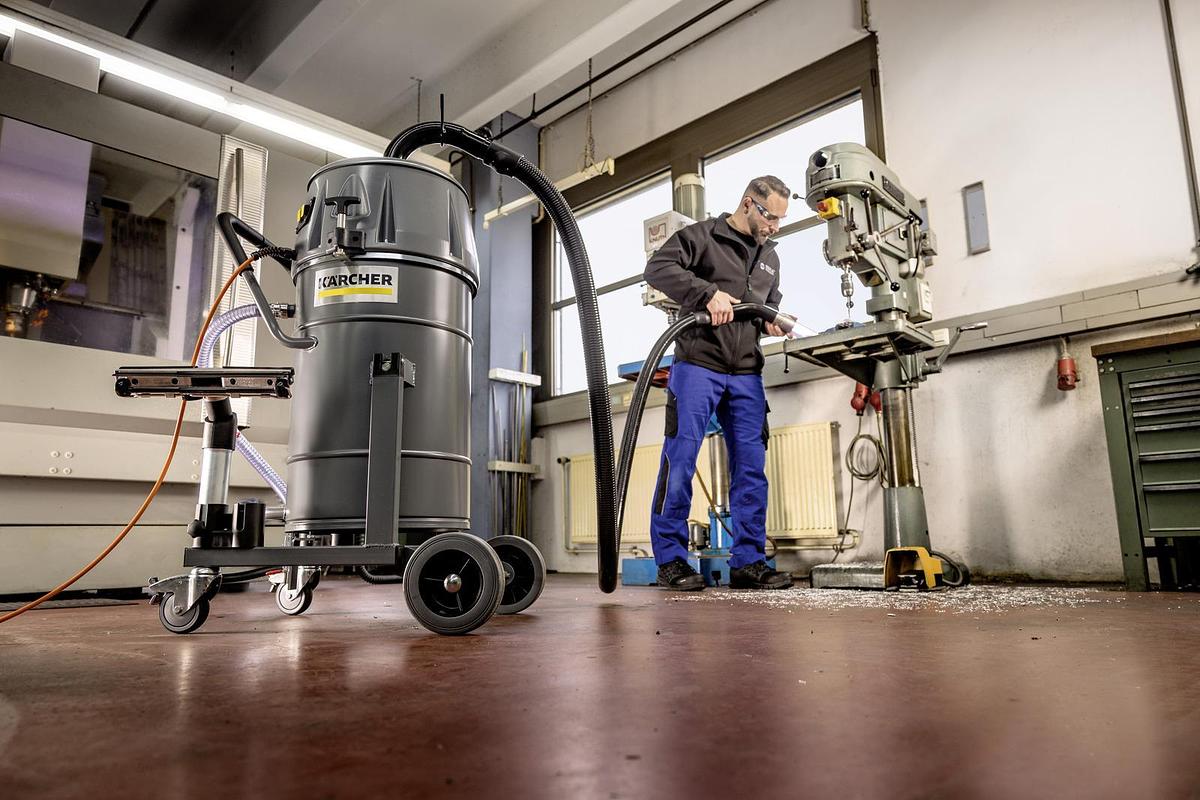

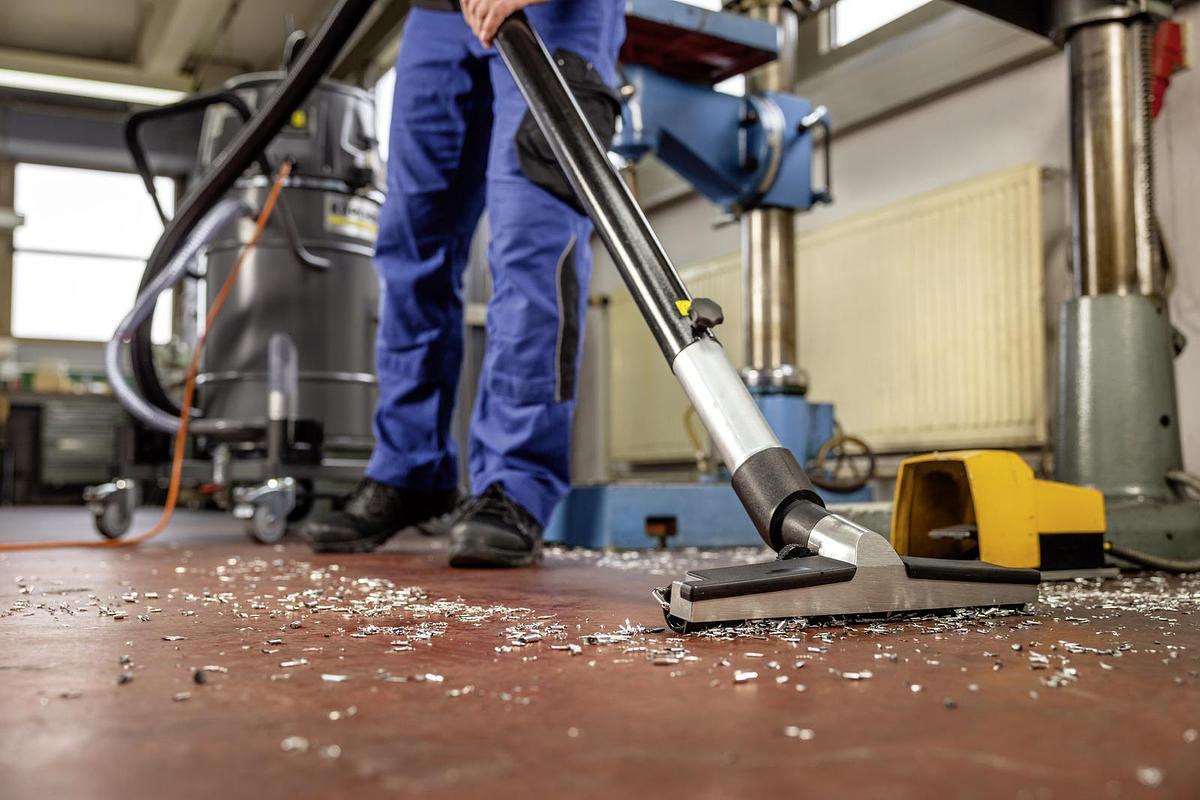

Liquid and swarf vacuum cleaner IVR-L 65/24-2 Tc with a 1.25 mm thick steel construction for operation with alternating current. Suitable for vacuuming oil and metal swarf.

A washable pocket filter and a two-turbine solution with 2.4 kW input power are key features of the mobile liquid and swarf vacuum cleaner IVR-L 65/24-2 Tc. In combination, they ensure continuous operation. The device is designed for vacuuming metal swarf, oils, or cooling emulsions. An optional sieve basket separates solid and liquid components. Liquids can be disposed of separately by releasing the drain hose on the 65-litre collection container; alternatively, the tilting chassis with a roll-off mechanism serves for emptying. Powered by alternating current and featuring a 1.25 mm thick steel construction, the vacuum cleaner is built for industrial use. A sound pressure level of 68 dB(A) is achieved by the sound-insulated drive unit and the exhaust silencer. The device consists of 31% recycled plastic.

Features and benefits

Ergonomic tilting chassis

  • Sophisticated system for safe, manual, effortless emptying.
  • Chassis system enables ergonomic tilted emptying using the roll-off mechanism.
  • Quick and easy emptying of the container: just tip backwards and you are done!

    • High robustness, flexibility and modularity

  • The device and chassis are designed for industrial use due to their wall thickness.
  • Rotatable hose connection with up to 360° rotatable pipe bend.
  • Optionally available with overfill protection, strainer or accessories holder.

    • Fitted with two very quiet fan motors

  • For powerful suction power and optimum cleaning performance.
  • Fans can be switched on separately for individual suction power as required.
  • The drive head with a sound pressure level of 68 dB(A) ensures an even discharge of the cooling air.

    • Equipped with compact surface filter of dust class L

  • Reliably prevents coarse particles from entering the suction turbines.

    • Equipment

  • Main filter: Surface filter
  • Accessories included in the scope of delivery: no
    • Show All
