Industrial vacuums IVR-L 400/24-2 Tc

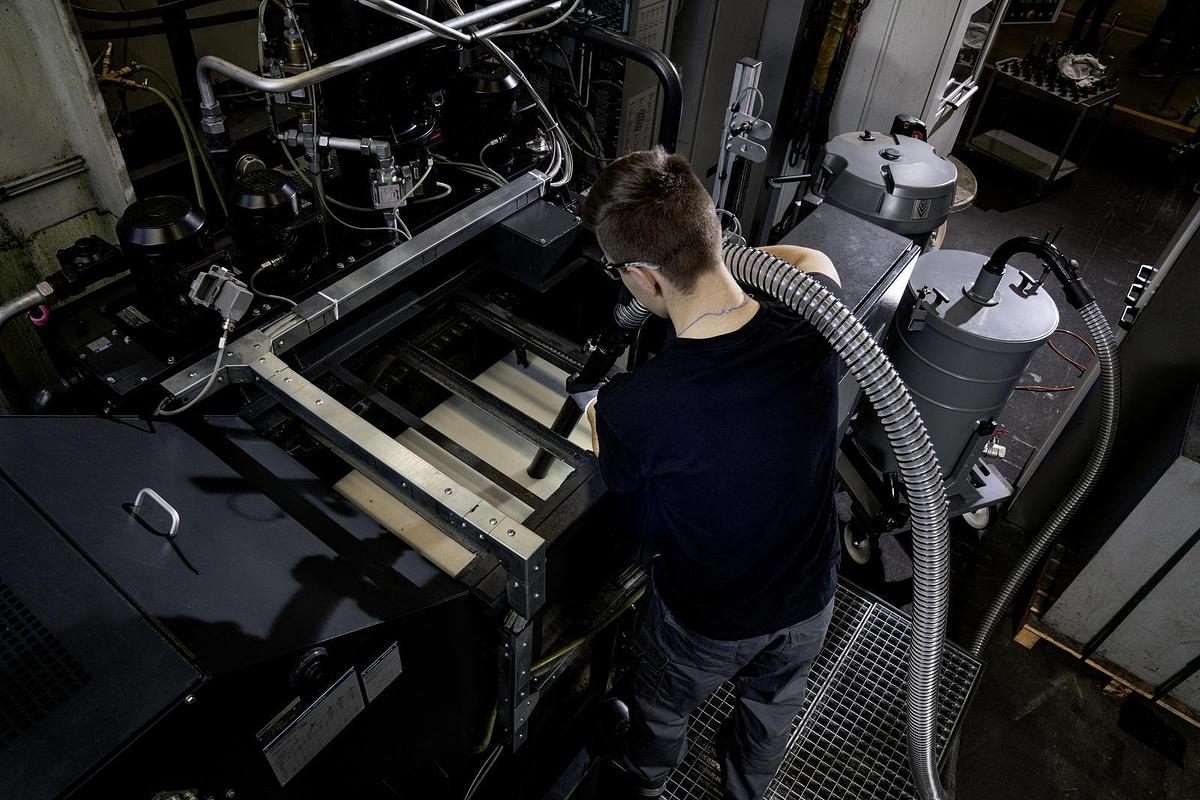

For vacuuming large quantities of coarse metal shavings and liquids such as oils and coolant emulsions: IVR-L 400/24-2 Tc mobile liquid and swarf vacuum. With 400 l container capacity.

Vacuuming swarf, sludge, oils, and cooling emulsions is the primary application of the mobile liquid and swarf vacuum cleaner IVR-L 400/24-2 Tc. Two bypass turbines and the washable pocket filter ensure continuous suction power. With an input power of 2.4 kW, the AC-powered and mobile vacuum cleaner features a 1.25 mm thick steel design built for industrial use. A sound pressure level of 68 dB(A) is achieved by the sound-insulated drive unit and exhaust silencer. The 400-litre container is emptied using a tilting chassis with a roll-off mechanism or with the help of a forklift. Liquids are drained by releasing the drain hose with a fill level indicator.

Features and benefits

Ergonomic tilting chassis with roll-off mechanism

Sophisticated system for safe, manual, effortless emptying.Chassis system enables ergonomic tilted emptying using the roll-off mechanism.Quick and convenient emptying of the large 400-litre containers by tilting.

Convenient and time-saving emptying option using a forklift

Welded in forklift plug-in units enable safe grabbing and transportation.

Visual filling level indicator

Transparent hose for checking the amount of fluid absorbed.The hose is also used for easy emptying.

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance.

Fans can be switched on separately for individual suction power as required.

The drive head with a sound pressure level of 68 dB(A) ensures an even discharge of the cooling air.

Equipped with compact surface filter of dust class L

Reliably prevents coarse particles from entering the suction turbines.

Equipment

Main filter: Surface filter
