Industrial vacuums IVR-L 100/24-2 Tc Dp

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)1
Voltage (V)220 - 240
Frequency (Hz)50 - 60
Air flow (l/s/m³/h)148 / 532
Vacuum (mbar/kPa)230 / 23
Container capacity (l)100
Rated input power (kW)2,4
Vacuuming typeElectric
Connection nominal diameterDN 50
Accessory nominal diameterDN 50
Main filter dust classL
Filter area for main filter (m²)0,45
Sound pressure level (dB(A))68
Cable length (m)10
Weight without accessories (kg)57
Weight (with accessories) (kg)57
Weight incl. packaging (kg)57,8
Dimensions (L × W × H) (mm)840 x 660 x 1320

Description

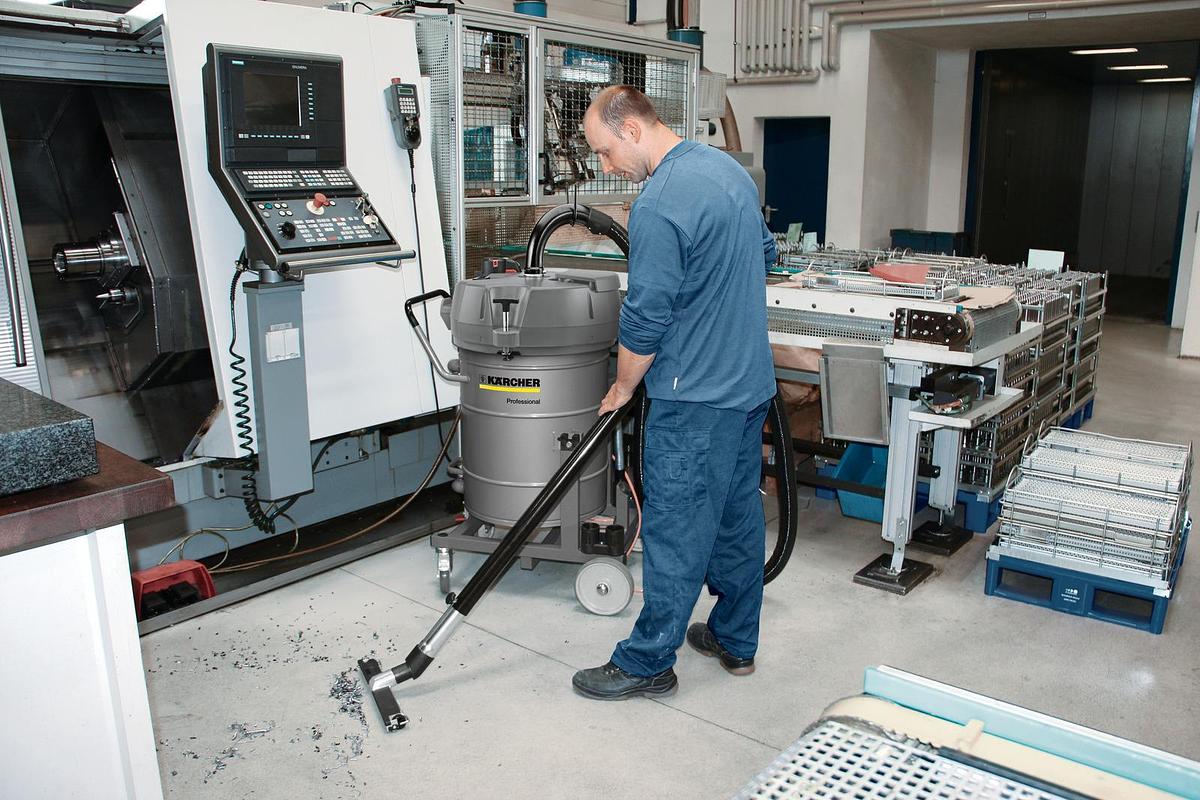

IVR-L 100/24-2 Tc Dp mobile liquid and swarf vacuum. AC-powered, suitable for oils, coolant emulsions or fine, light metal shavings in medium quantities, for example.

AC-powered liquid and swarf vacuum cleaner IVR-L 100/24-2 Tc Dp for vacuuming oils, cooling emulsions, as well as fine and light metal swarf. The two-turbine solution achieves a sound pressure level of 68 dB(A) at an input power of 2.4 kW. The washable pocket filter enables continuous operation, while an optional sieve basket separates liquid and solid vacuumed media. Vacuumed liquids are drained from the 100-litre collection container by releasing the drain hose or via the integrated, infinitely variable barrel pump; a fill level indicator prevents overfilling. The emptying system with a tilting chassis allows emptying via a roll-off mechanism. The use of a forklift or crane is also possible.

Features and benefits

Ergonomic tilting chassis

  • Sophisticated system for safe, manual, effortless emptying.
  • Chassis system enables ergonomic tilted emptying using the roll-off mechanism.
  • Quick and easy emptying of the container: just tip backwards and you are done!

    • Drum pump function

  • An autonomous barrel pump significantly increases the ability for vacuumed matter to be returned.
  • Transparent hose for checking the amount of fluid absorbed.

    • High robustness, flexibility and modularity

  • The device and chassis are designed for industrial use due to their wall thickness.
  • Rotatable hose connection with up to 360° rotatable pipe bend.
  • Optionally available with overfill protection, strainer or accessories holder.

    • Fitted with two very quiet fan motors

  • For powerful suction power and optimum cleaning performance.
  • Fans can be switched on separately for individual suction power as required.
  • The drive head with a sound pressure level of 68 dB(A) ensures an even discharge of the cooling air.

    • Equipped with compact surface filter of dust class L

  • Reliably prevents coarse particles from entering the suction turbines.

    • Equipment

  • Main filter: Surface filter
  • Drum pump function
    • Show All
