Vacuum sweeper KM 150/500 R LPG

LPG-operated, fully hydraulic industrial sweeper with three-wheel rear-wheel steering. For tough applications in construction material and metalworking companies or foundries, as well as other industries that are subject to dirty conditions.

The fully hydraulic, LPG-powered KM 150/500 R LPG industrial sweeper for indoor and outdoor use is suitable for applications in building materials, metal, and foundry facilities, as well as in industries with high levels of dirt. Fine debris and coarse dirt are collected using the direct-throw principle. The main brush automatically adapts to uneven surfaces and can be replaced without tools; the waste container closes automatically during transport. Two horizontally mounted flat-pleat filters provide dust filtration, supported by filter cleaning at the push of a button via a dual scraper. The filters accessible for maintenance and can be replaced without tools. The basic functions are controlled via the EASY Operation concept using a rotary knob. A cyclone pre-filter cleans the intake air before it reaches the engine filter and protects the filter element from premature clogging.

Features and benefits

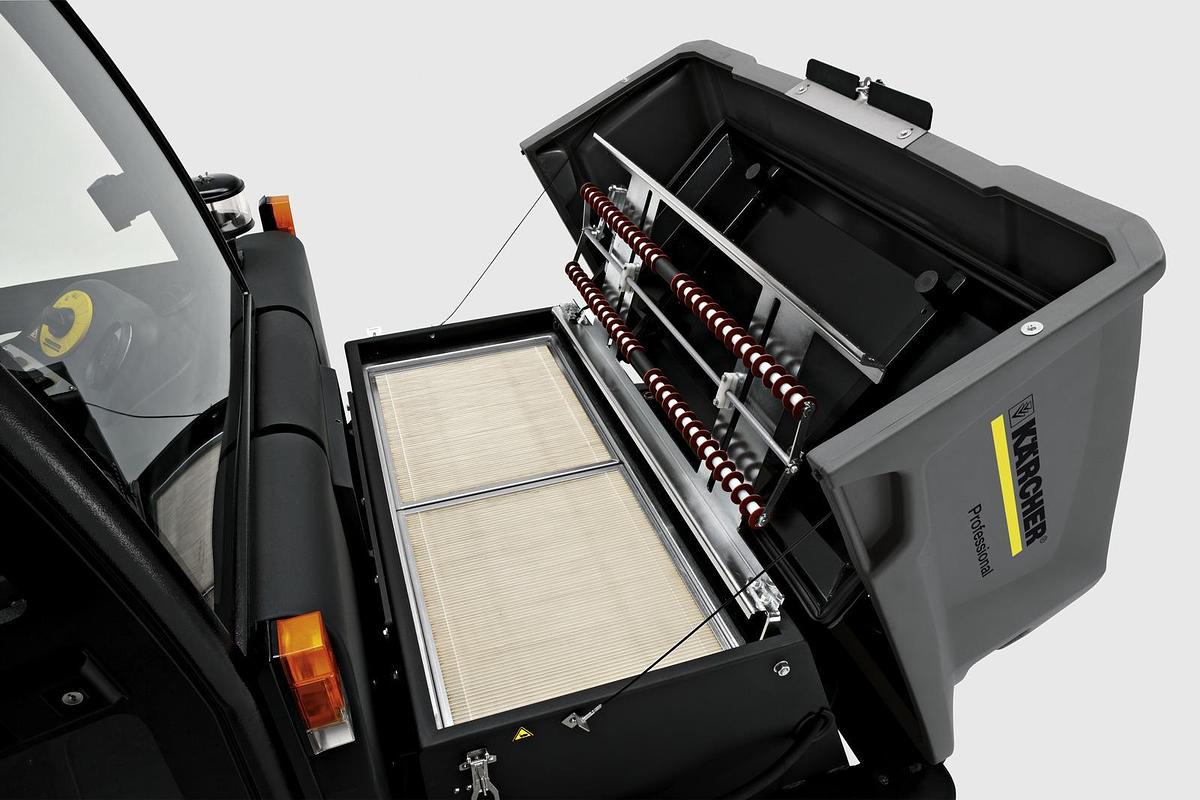

High performance filtration system with 7 m² filter area

Flat pleated filter with 7 m² filter area.

Effective cleaning with dual scraper.

For dust-free sweeping.

Comfortable workspace

All control elements are clearly arranged and within easy reach.

All displays within view.

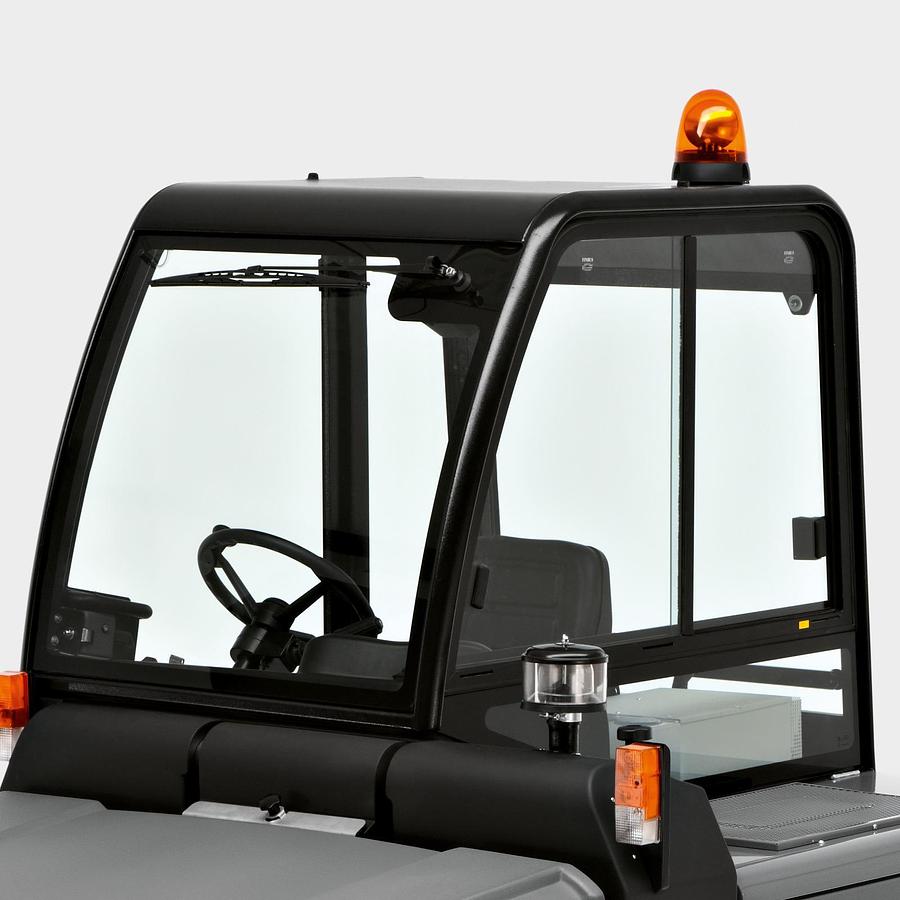

Optional: cabs with heating or air conditioning.

Simple operation, maintenance and servicing

Very simple technology with tried-and-tested components: fully hydraulic drive, electric rather than electronic.

Easy access to the motor compartment for quick and easy servicing.

Main sweeper roller and flat pleated filter can be changed without tools.

Classic version with diesel drive

Simple operation via lever.

Large pocket filter with 10.5 m² filter area.

Fully hydraulic traction drive.

LPG drive

For indoor and outdoor use.

Low CO₂ emissions.

LPG bottle is easy to change.

Dual scraper

Highly effective filter cleaning.

Can be operated at the push of a button.

Dustpan principle

Good intake of fine and coarse waste.

Low dust dispersion.

Extensive range of accessories and attachment kits

Easily adapts to individual cleaning requirements.

Impressive equipment (e.g. comfort cab, air conditioning, heating).

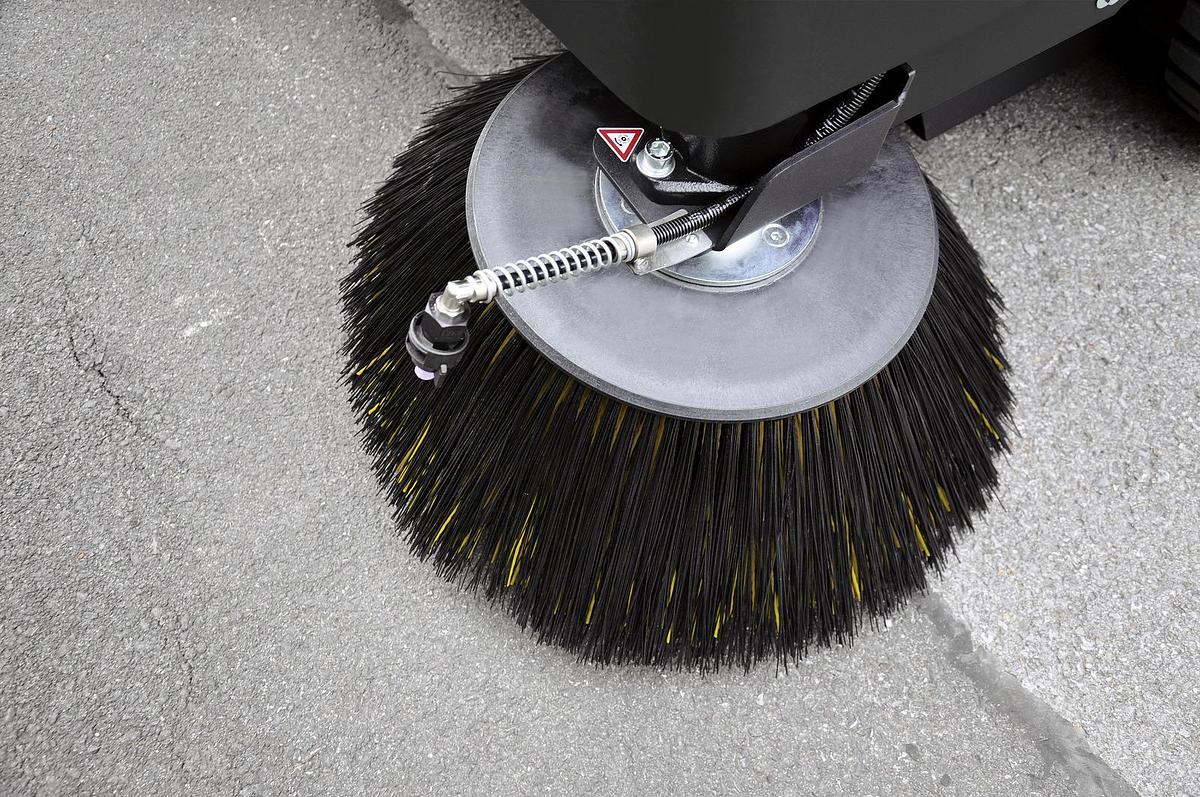

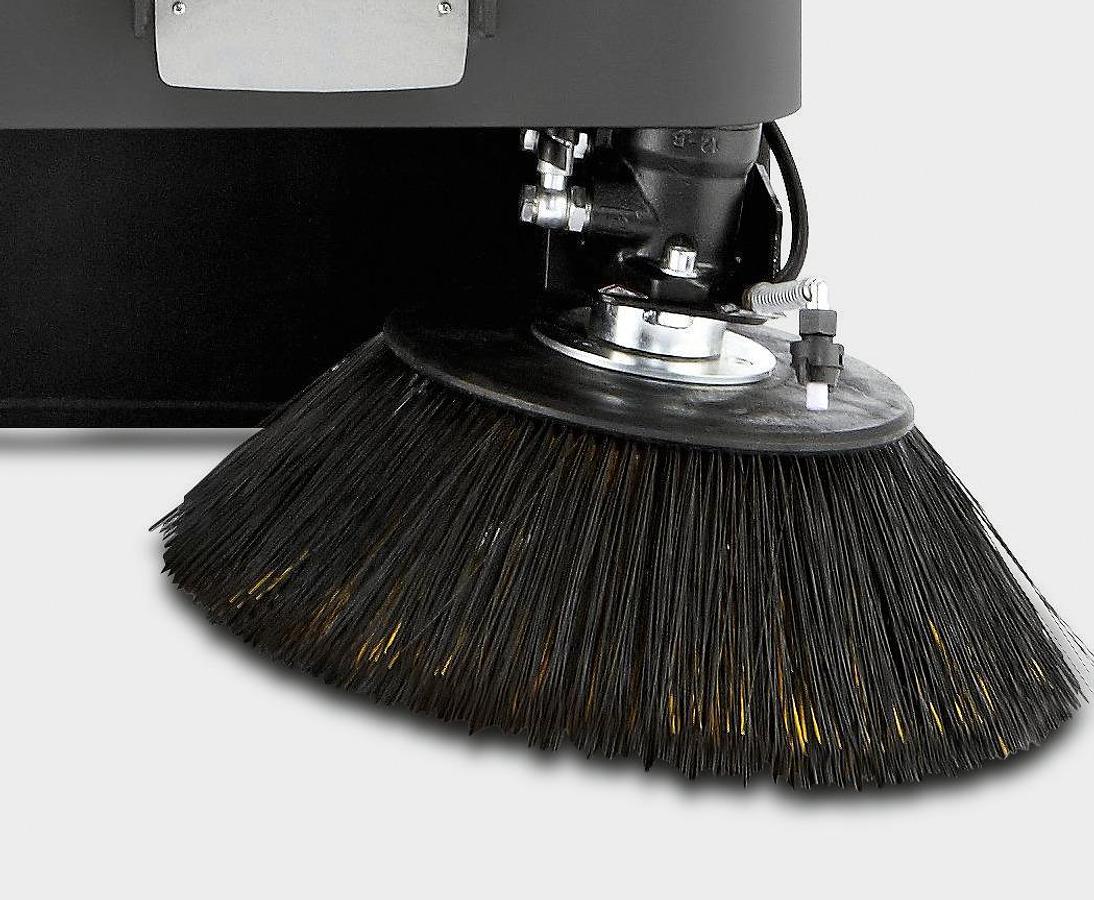

With second and third side brushes on request.

Fully hydraulic traction drive and main sweeper roller/side brush drive

Very low-maintenance.

No wear and tear.

Very long-lasting.

Cyclone prefilter

Increased lifetime of the motor filter.

Longer maintenance intervals.

Scope of supply

Wheels, pneumatic

Equipment

Manual filter cleaning

Adjustable main sweeper roller

Power steering

Suction volume regulation

Dustpan principle

Traction drive, forwards

Traction drive, reverse

Suction

Hydr. high dump

Outdoor use

Indoor use

Elapsed time counter

Sweeping function, can be switched off

Side brush, automatically swings out
