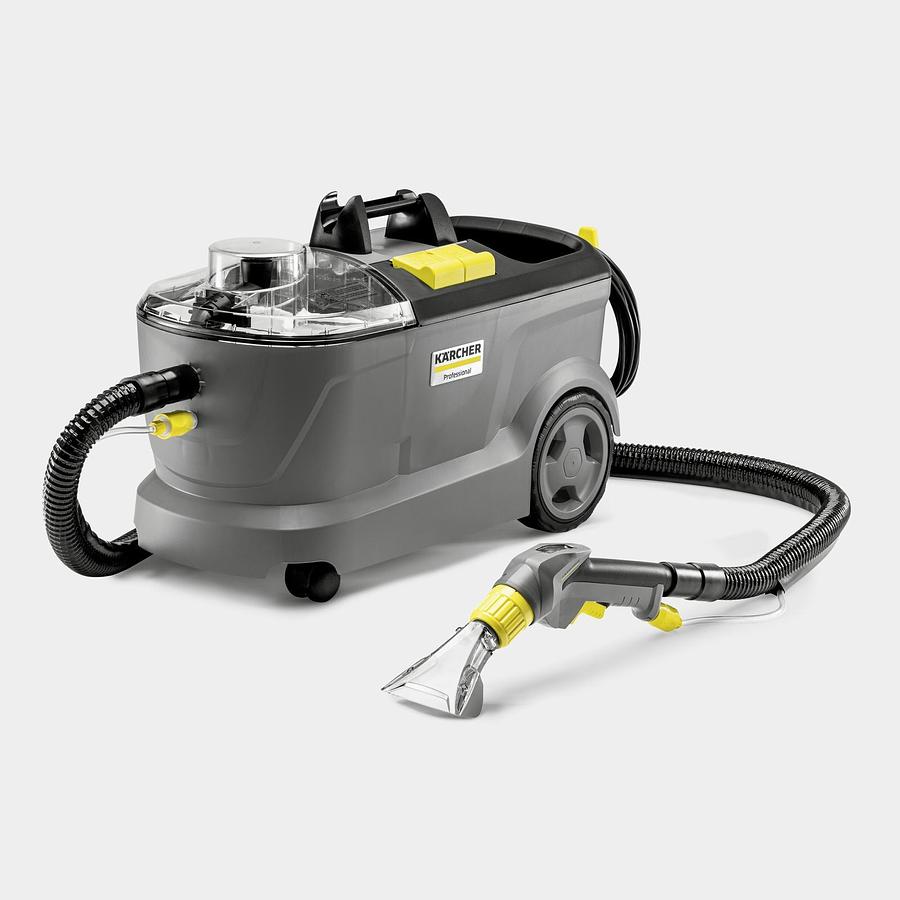

Spray extraction machine Puzzi 10/1 with upholstery nozzle

The powerful Puzzi 10/1 spray extractor with upholstery nozzle removes stains from textile surfaces such as upholstered furniture or vehicle seats thoroughly and carefully.

The professional Puzzi 10/1 spray extraction cleaner with upholstery nozzle from Kärcher provides thorough deep cleaning and leaves low residual moisture, ensuring that textile surfaces can be used again quickly. This result is achieved by an optimal balance between a constant spray rate of 1 l/min and powerful suction with 74 l/s air flow and 254 mbar vacuum. For this purpose, the spray extraction machine sprays the cleaning solution deep into the textile fibres, then removes it again with the dislodged dirt, making it perfect for targeted stain removal as well as for cleaning upholstery and vehicle interiors. To remove dirt on larger carpets, a floor nozzle can be easily retrofitted at any time if required. The compact design of the Puzzi 10/1 is designed for commercial use – ideal for vehicle valeters, building service contractors or the hotel and hospitality sector. The machine lid and the upholstery nozzle are transparent for a better view of the dirty water. Large push-buttons that can be operated by hand or foot and an ergonomic carrying handle increase convenience for the user. In addition, the machine comes with an integrated cable hook and a practical accessory holder.

Features and benefits

Excellent cleaning performance

Excellent cleaning result with visible before-and-after effect.Fast drying due to a very high suction capacity.Extremely fine and even spray pattern from the upholstery nozzle.

Built for professional applications.

Reliable pump technology for commercial applications.Powerful turbine with excellent back suction performance.Sturdy design with bumper protect the machine from bumps and knocks.

Handy upholstery nozzle

Easy yet thorough cleaning of upholstery and upholstered furniture.Perfect for vehicle interior cleaning.110 millimetre-wide nozzle for insertion into the spray/suction gun.

Removable, smart 2-in-1 container

Quick and simple to fill the fresh water tank.

Convenient and simple to remove dirty water.

Easy to operate thanks to two large push-buttons

No need to bend down: on/off foot switch for speed and ease of use.

Quick 1-step method: combined spraying and vacuuming in one operation.

2-step method: Spray on fibres and leave to soak in – then vacuum off.

Ergonomic carrying handle

Designed for one-handed carrying up steps and stairs.

Fixing option for suction tube and spray/suction gun.

Suction tube holder integrated in carrying handle for secure and convenient transport.

Cable hook

For safe storage of the power cable.

Practical and protects the cables.

The machine can be easily and conveniently transported and stored.

Large rear wheels and flexible 360° steering rollers

Easy manoeuvring even on uneven surfaces.

Particularly manoeuvrable and flexible to handle when cleaning.

Integrated accessory storage

Thanks to the clip design, the upholstery nozzle is always within reach.

Scope of supply

Upholstery nozzle

Detergents: RM 760 tablets, 2 Piece(s)

spray/suction hose: 2.5 m

Cable hook

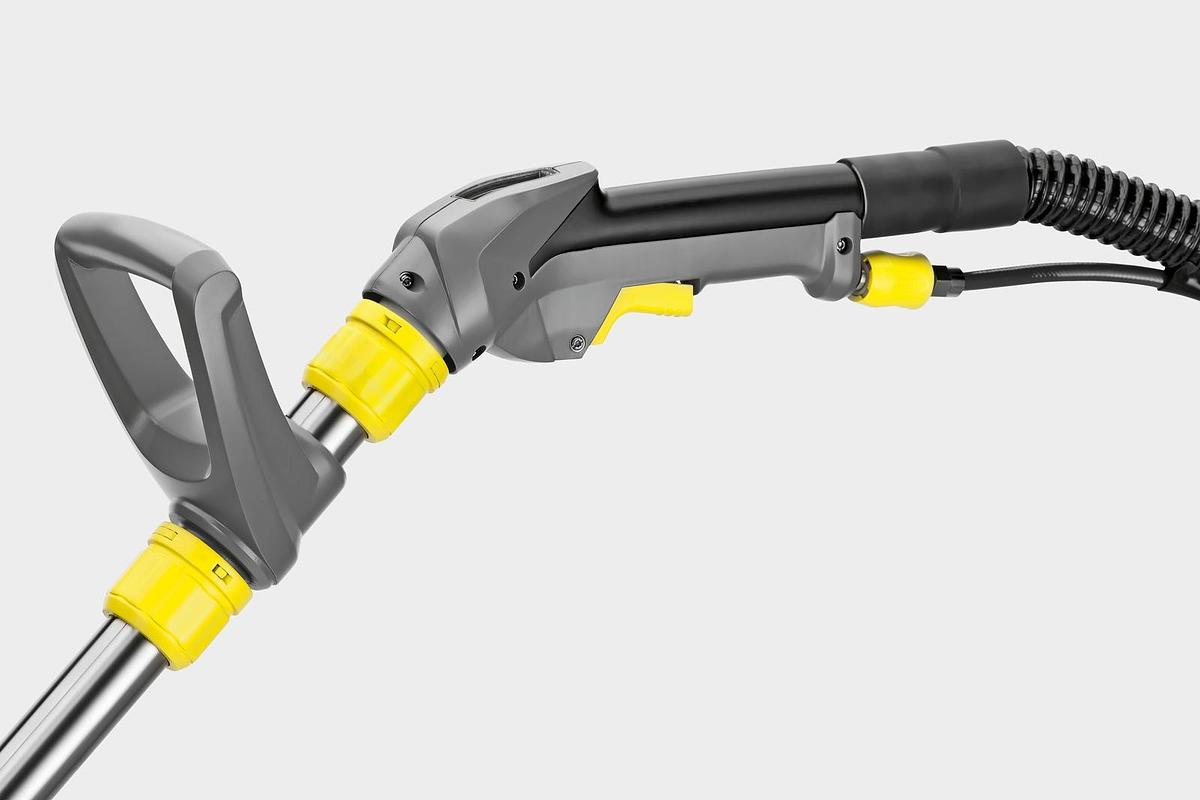

spray/suction gun

removable 2-in-1 container for fresh/dirty water

Equipment

integrated accessory storage for upholstery/crevice nozzle

integrated accessory storage for floor nozzle

nozzle mouthpiece: Upholstery nozzle, blue
