High-pressure cleaner HD 10/19-4 St H

Stationary high-pressure cleaner with a flow rate of $1000 ext{ l/h}$ and an accessible control concept – designed for agriculture and the food industry.

This stationary cold water high-pressure cleaner features a flow rate of 1000 l/h and an operating pressure of 190 bar; a water inlet temperature of up to 85 °C is permitted. The pump is protected by a large water filter. The design allows for straightforward installation, operation, and maintenance. Electronic monitoring with error display supports operational safety. The unit is equipped with a 4-pole, slow-running electric motor and a crankshaft pump with a brass cylinder head. The housing and frame are made of stainless steel. The high-pressure cleaner includes a water supply tank with dry-run and descaling protection, including a level indicator. Detergent can be ingested and dosed via a valve, with a low-level indicator also provided. Delivery takes place without accessories; these can be added depending on the point of use: pressure gauge, operating hours counter, suction for a second detergent, automatic pressure relief, and various remote controls.

Features and benefits

High-quality equipment

Storage tank with valve, limescale protection and dry-running protection.Frame and cover made of stainless steelReady for connection of remote controls.

Designed for continuous operation in commercial and industrial use.

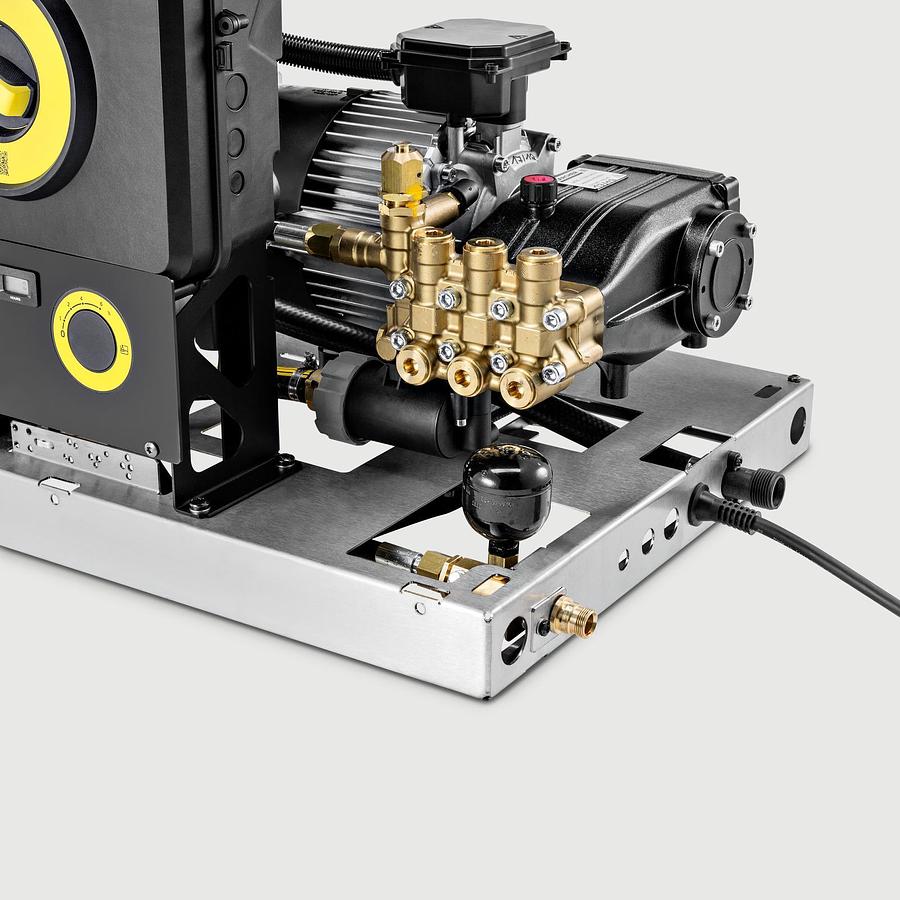

Frame and cover made of stainless steel4-pole, slow-running electric motor guarantees a long working time.Crankshaft pump from Kärcher for consistent pressure generation during operation.

Electronic monitoring for greater operational safety.

Switch off in the event of water shortage, LEDs: standby, service, error.Automatic switch-off in case of low voltage range or overvoltage.Switches off in case of leaks or phase failure.

Easy to use

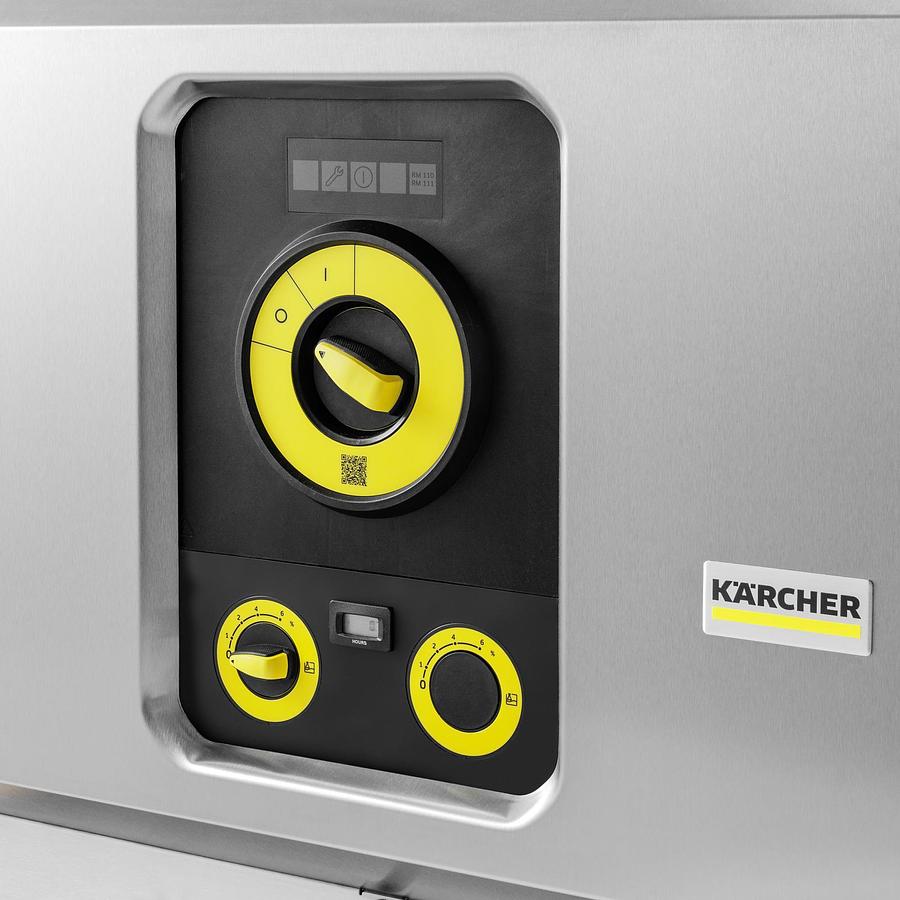

Just one rotary switch for all functions guarantees simple operation without long training times.

Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming induction.

LEDs indicate important operating states

Extensive range of accessories and attachment kits

Pressure gauge and elapsed time counter are available as an option.

Automatic pressure relief is available as an option.

Detergent inlet with valve and empty indicator

The detergent intake system with dosing valve and empty indicator is just part of the high-quality equipment supplied as standard.

Optional: second inlet with valve and empty indicator.

Detergent dosing unit on the suction side.

Designed for continuous commercial and industrial use.

Designed for daily use.

Longer service life, less maintenance effort and lower costs. Ideal for industrial use.

The use of hot water supports the cleaning process and dissolves grease and oil contamination

Large integrated water filter

Large water fine filter for optimal protection of the pump.

Easy to use, easy to clean

Ensures long service life for all high-pressure components.

Easy installation and maintenance

All components are quickly and easily accessible for servicing.

Time- and cost-saving installation on site.

Comprehensive service network with highly trained service technicians.

Is ready for use quickly at any time

Ready at the push of a button, with no set-up times or transporting mobile machines.

The pump starts as soon as the trigger gun is activated, allowing convenient working from any supply point.

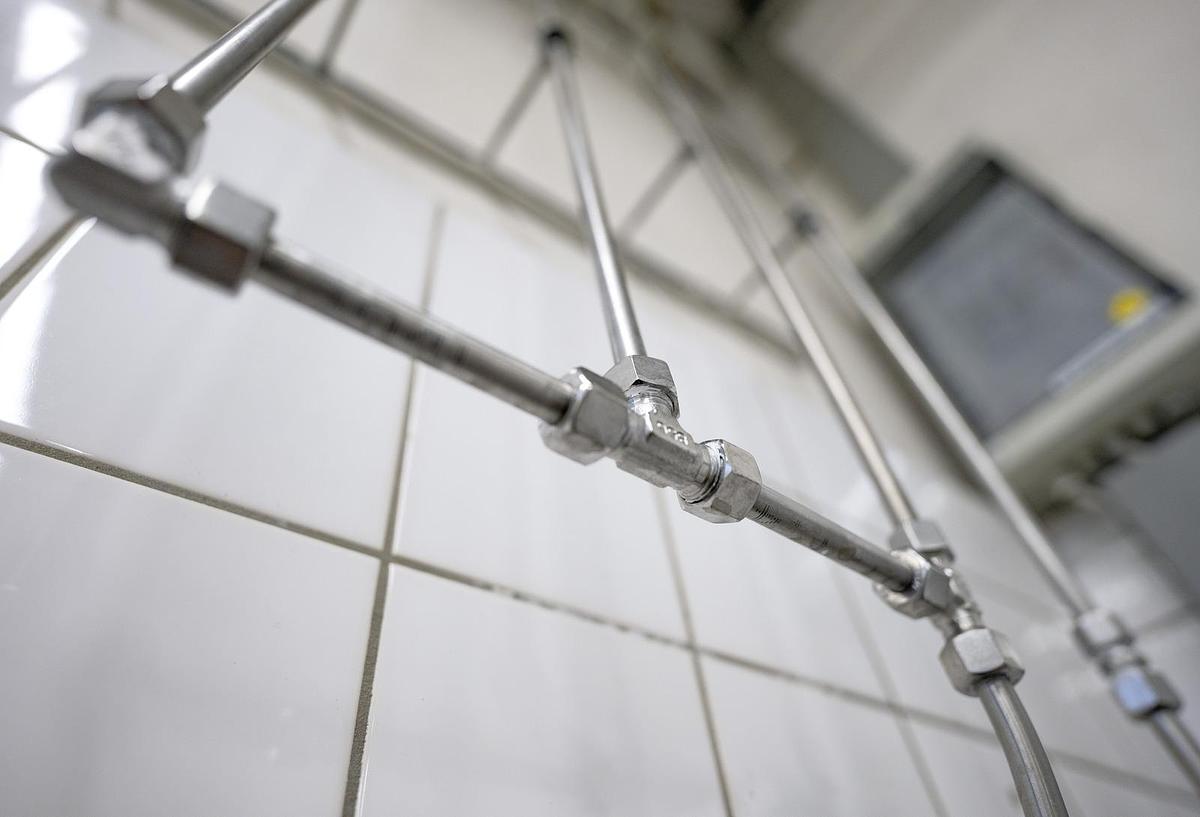

Permanent installation with no hazards: No contamination or loose hoses

Scope of supply

Servo Control

Power nozzle

Frame and cover: Stainless steel

Prepared for Servo Control

Pre-equipped for a detergent inlet

Equipment

Crankshaft pump with ceramic pistons

Advance pressure pump

Calcification protection

Dry-running protection

Large water fine filter

Storage tank with float valve

Prepared for remote operation

RM1 dosage

Sight glass for oil level

Oil dipstick

Air-cooled motor
