High-pressure cleaner HD 17/15-4 St

Stationary high-pressure cleaner with cover and frame made of powder-coated steel. Designed for a flow rate of 1700 l/h, featuring functional equipment to support operational safety.

For stationary continuous operation – our cold water high-pressure cleaner for water inlet temperatures of up to 60°C operates with a flow rate of 1700 l/h and an operating pressure of 150 bar. A large water filter protects the high-pressure pump from contamination. The frame and housing of the machine are constructed from powder-coated steel; power is provided by a 4-pole, slow-running electric motor with water cooling. Additionally, it features an integrated water supply tank with dry-run protection and a detergent suction mechanism with a dosing valve and low-level indicator. Control is provided via a large rotary switch, and the design is tailored for accessible installation and maintenance. Electronic monitoring with error displays supports operational safety. Delivery takes place without accessories; these can be added individually depending on the point of use. Optionally available: pressure gauge, operating hours counter, suction for a second detergent, automatic pressure relief, and remote controls.

Features and benefits

Designed for continuous operation in commercial and industrial use.

Frame and cover made of powder-coated steel.4-pole, slow-running electric motor guarantees a long working time.Crankshaft pump with brass cylinder head and ceramic piston

High-quality equipment

Storage tank with float valve and dry-running protection.Ready for connection of remote controls.

Designed for continuous commercial and industrial use.

Suitable for daily use.Can be used under tough working conditions.Crankshaft pump from Kärcher for consistent pressure generation during operation.

Electronic monitoring for greater operational safety.

Switch off in the event of water shortage, LEDs: standby, service, error.

Automatic switch-off in case of low voltage range or overvoltage.

Easy operation

Just one rotary switch for all functions guarantees simple operation without long training times.

Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming induction.

Practical error display informs users immediately and saves time.

Large integrated water filter

Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.

Ensures long service life for all high-pressure components.

Very easy to clean.

Service-friendly design with easily accessible maintenance points

Indicator: error codes, operating status, maintenance intervals.

Comprehensive service network with highly trained service technicians.

Extensive range of accessories and attachment kits

Automatic pressure relief is available as an option.

Optional: second inlet with valve and empty indicator.

Pressure gauge and elapsed time counter are available as an option.

Is ready for use quickly at any time

Ready at the push of a button, with no set-up times or transporting mobile machines.

The pump starts as soon as the trigger gun is activated, allowing convenient working from any supply point.

The machine is always ready to go for maximum productivity and flexibility.

Servo Control

Pressure and water flow can be adjusted at the gun.

Versatile and flexible uses.

Diverse applications and excellent cleaning results.

Scope of supply

Servo Control

Power nozzle

Frame and cover: Steel, powder-coated

Prepared for Servo Control

Pre-equipped for a detergent inlet

Equipment

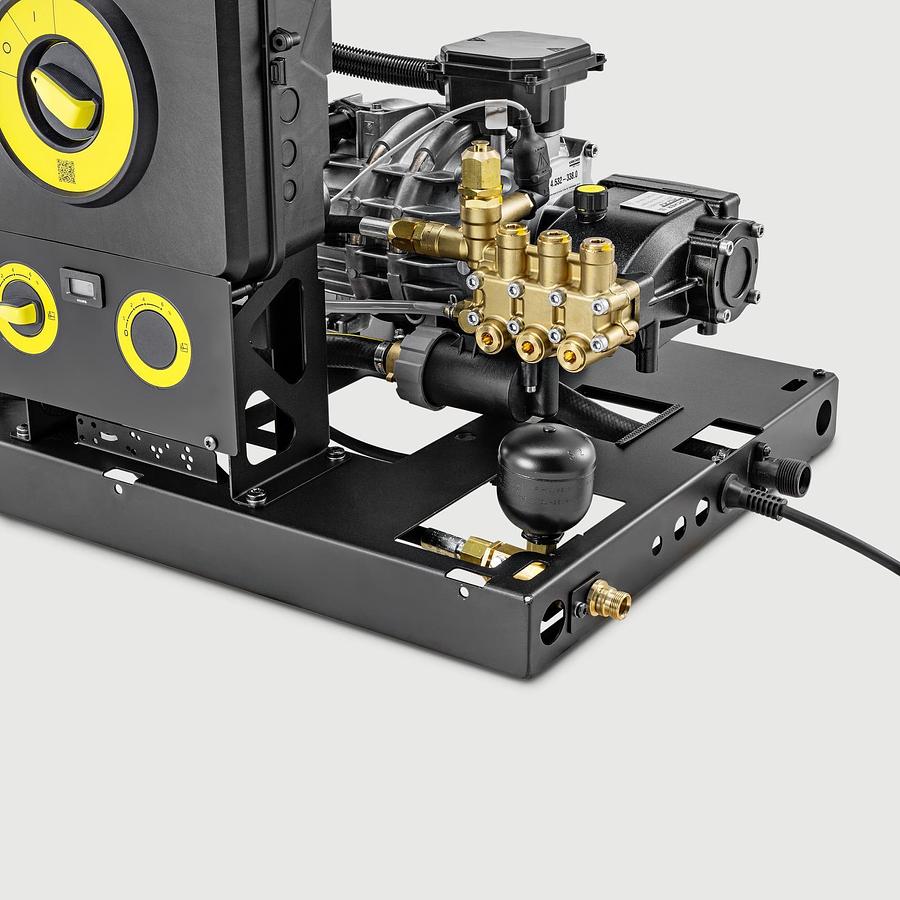

Crankshaft pump with ceramic pistons

Dry-running protection

Large water fine filter

Storage tank with float valve

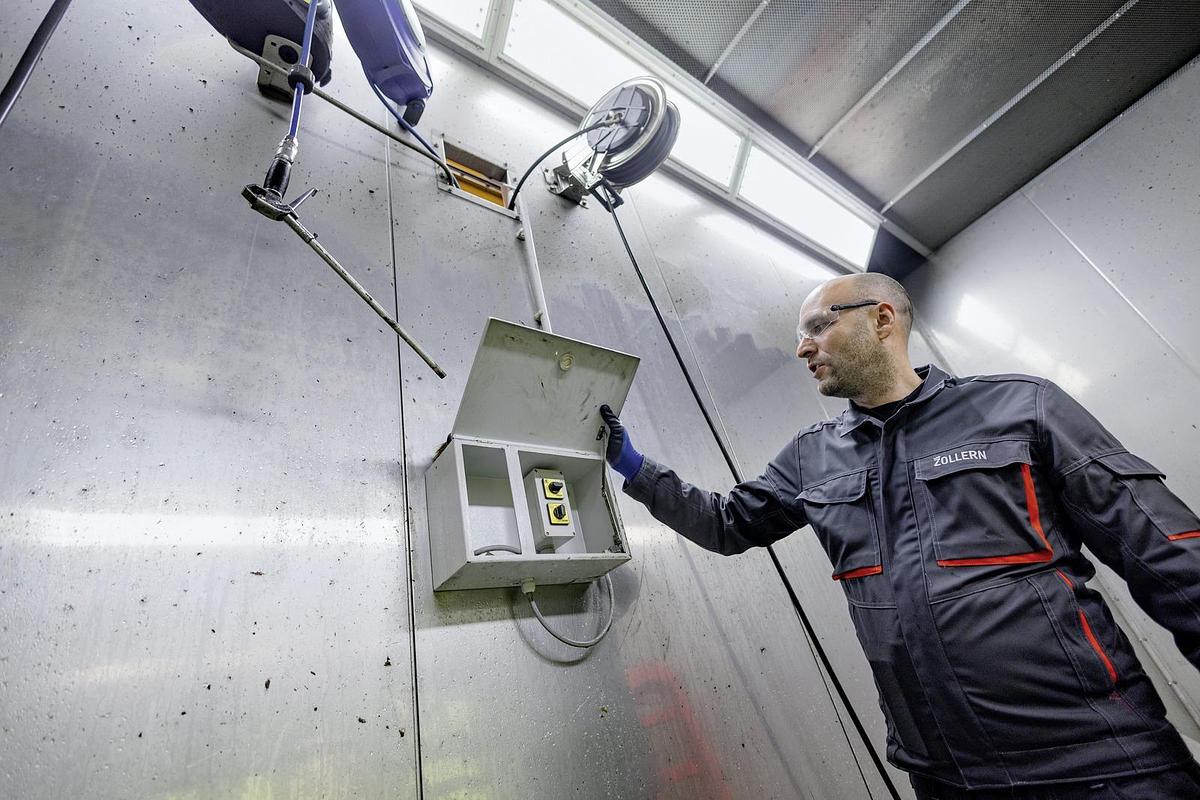

Prepared for remote operation

RM1 dosage

Sight glass for oil level

Oil dipstick

Water-cooled motor
