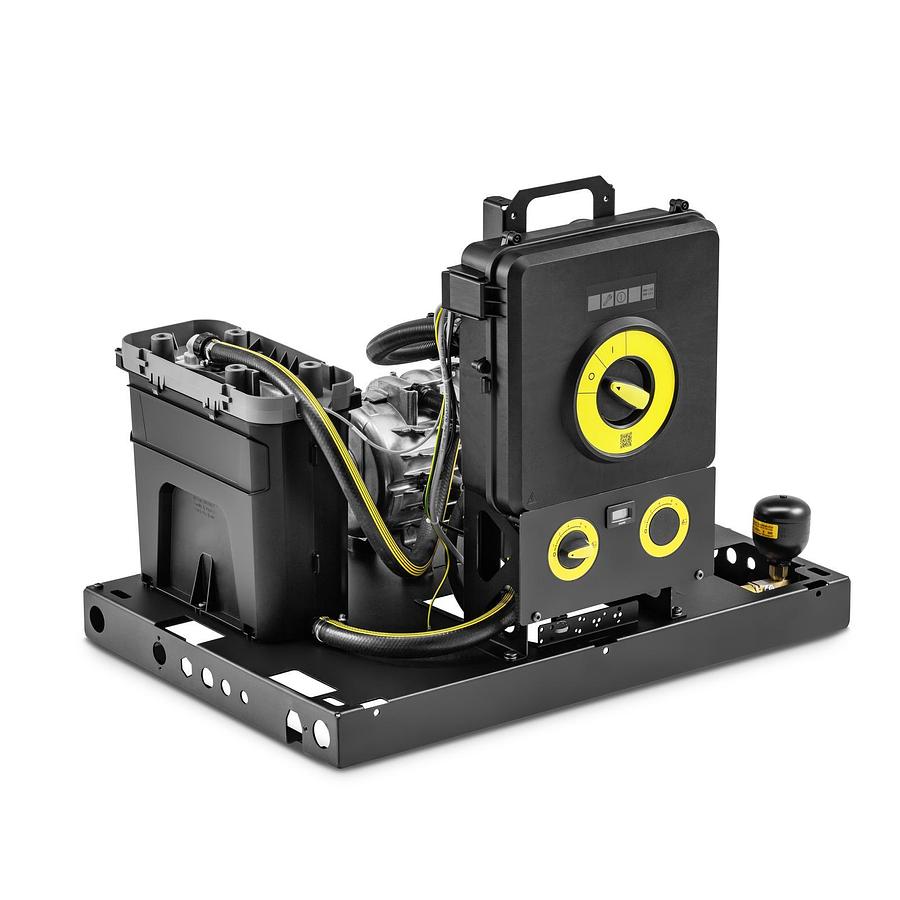

High-pressure cleaner HD 8/18-4 St
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 500 - 800 |
| Working pressure (bar/MPa) | 180 / 18 |
| Max. pressure (bar/MPa) | 240 / 24 |
| Inlet temperature (°C) | 60 |
| Connected load (kW) | 5,5 |
| Protection (A) | 16 |
| Power cable (m) | 5 |
| Water inlet | 1″ |
| Number of users | 1 |
| Portability | stationary |
| Weight (with accessories) (kg) | 68 |
| Weight incl. packaging (kg) | 77,8 |
| Dimensions (L × W × H) (mm) | 800 x 605 x 600 |
Description
Stationary cold water high-pressure cleaner with a flow rate of 800 l/h and an operating pressure of 180 bar - designed with an accessible control concept for continuous commercial and industrial operation.

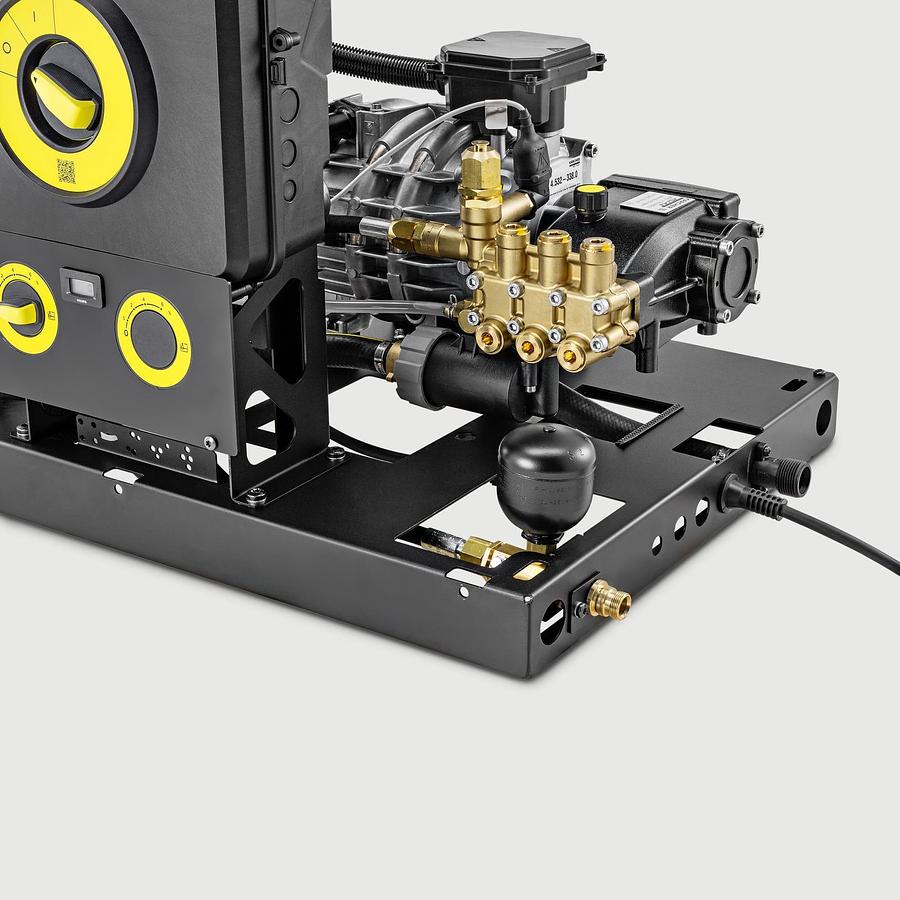

Our cold water high-pressure cleaner for stationary continuous operation can be operated with a water inlet temperature of up to 60°C. With an operating pressure of 180 bar and a flow rate of 800 l/h it is suitable for cleaning machinery or production facilities. The unit is equipped with a crankshaft pump featuring a brass cylinder head and a 4-pole, slow-running electric motor. The housing and frame are constructed from powder-coated steel. The machine includes a detergent suction system with a dosing valve and low-level indicator, as well as a water supply tank with dry-run protection and level indicator. Electronic monitoring with displays for errors and maintenance intervals supports safe operation. Control is provided via a large rotary switch; the design is tailored for straightforward installation and maintenance. Accessories such as operating hours counters, remote controls, or automatic pressure relief are not included in the scope of delivery and can be added individually depending on the point of use.
Features and benefits
Designed for continuous operation in commercial and industrial use.
4-pole water-cooled electric motor.Crankshaft pump with brass cylinder head and ceramic pistonCrankshaft pump from Kärcher for consistent pressure generation during operation.High-quality equipment
Storage tank with float valve and dry-running protection.Frame and cover made of powder-coated steel.Ready for connection of remote controls.Easy operation
Just one rotary switch for all functions guarantees simple operation without long training times.Practical error display informs users immediately and saves time.Self-explanatory symbols and a clearly-arranged operating field for easy comprehension and increased productivity.Designed for continuous commercial and industrial use.
Cleaning agent suction and dosing system for even better cleaning results
Water fine filter
Electronic monitoring for greater operational safety.
Indicator: error codes, operating status, maintenance intervals
Is ready for use quickly at any time
Always flexible thanks to fast retrofitting capability
Scope of supply
Equipment
