High-pressure cleaner HD 10/21-4St

Hassle-free operation, high safety and robustness: powerful stationary cold water high-pressure cleaner with 1000 l/h and 210 bar, designed for 230 V / 50 Hz / 3 Ph

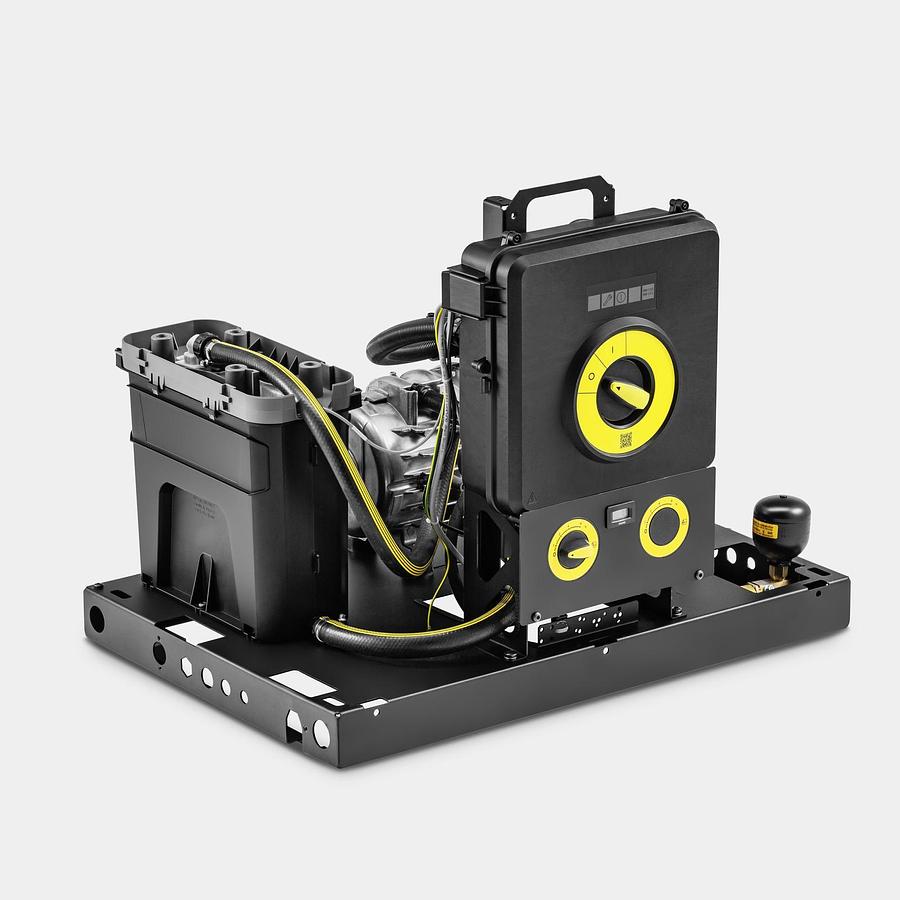

This stationary cold water high-pressure cleaner is designed for an inlet water temperature of up to 60°C and operates with a flow rate of 1000 l/h and an operating pressure of 210 bar. These performance parameters enable continuous operation in the agricultural and industrial sectors. The housing and frame are made of powder-coated steel; pressure generation is provided by a crankshaft pump with a brass cylinder head and a 4-pole, slow-running electric motor with water cooling. Additionally, the machine features an integrated water supply tank with dry-run protection and a low-level indicator. Detergent suction is managed via a dosing valve with an integrated low-level indicator. The unit is controlled via a large rotary switch, and the design is tailored for accessible installation and maintenance. Accessories are not included in the scope of delivery and can be selected individually depending on the takeoff point. Optionally available: pressure gauge and operating hours counter, suction for a second detergent, automatic pressure relief, and remote controls.

Features and benefits

Designed for continuous operation in commercial and industrial use.

Crankshaft pump from Kärcher for consistent pressure generation during operation.Crankshaft pump with brass cylinder head and ceramic pistonPowerful, 4-pole, slow-running electric motor.

High-quality version

Frame and cover made of powder-coated steel.Storage tank with float valve and dry-running protection.Ready for connection of remote controls.

Easy operation

Just one rotary switch for all functions guarantees simple operation without long training times.Practical error display informs users immediately and saves time.Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming induction.

Designed for continuous commercial and industrial use.

Suitable for daily use.

Can be used under tough working conditions.

Designed for continuous workflows in commercial and industrial operations.

Practical detergent system

The detergent intake system with dosing valve and empty indicator is just part of the high-quality equipment supplied as standard.

Detergent dosing unit on the suction side.

A detergent inlet with dosing valve and empty indicator is included in the scope of supply as standard, with the option of adding a second.

Always flexible thanks to fast retrofitting capability

Automatic pressure relief is available as an option.

Pressure gauge and elapsed time counter are available as an option.

Optional: second inlet with valve and empty indicator.

Large integrated water filter

Effectively protects the pump from contamination.

Easy to use, easy to clean

Ensures long service life for all high-pressure components.

Electronic monitoring for greater operational safety.

Protects the pump against dry running.

Automatic switch-off in the event of leaks or phase failure.

Overvoltage and undervoltage protection.

Very easy servicing

Indicator: error codes, operating status, maintenance intervals.

Easy access to all service and maintenance components.

Comprehensive service network with highly trained service technicians.

Is ready for use quickly at any time

Ready at the push of a button, with no set-up times or transporting mobile machines.

The pump starts as soon as the trigger gun is activated, allowing convenient working from any supply point.

The machine is always ready to go for maximum productivity and flexibility.

Scope of supply

Servo Control

Power nozzle

Frame and cover: Steel, powder-coated

Prepared for Servo Control

Pre-equipped for a detergent inlet

Equipment

Crankshaft pump with ceramic pistons

Dry-running protection

Large water fine filter

Storage tank with float valve

Prepared for remote operation

RM1 dosage

Sight glass for oil level

Oil dipstick

Water-cooled motor
