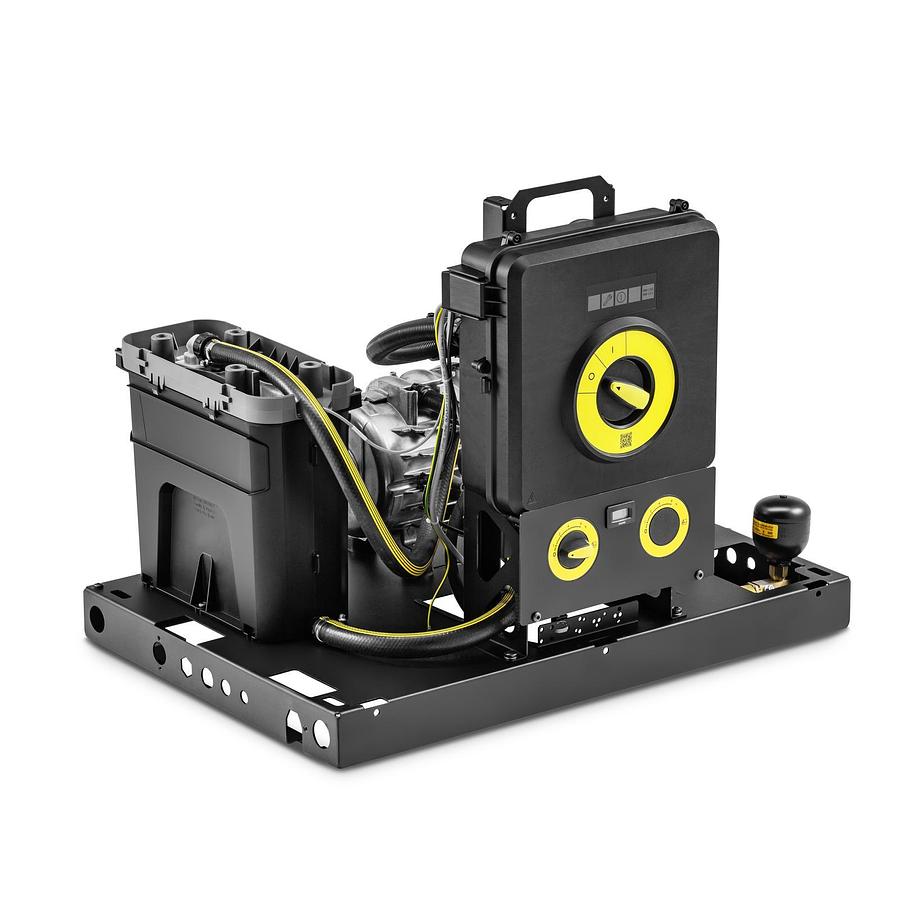

High-pressure cleaner HD 13/18-4 St

Hassle-free operation, high safety and robustness: powerful stationary cold water high-pressure cleaner with 1,300 l/h and 180 bar.

esigned for continuous operation in commercial applications: Our stationary high-pressure cleaner for water inlet temperatures of up to 60 °C operates with a flow rate of 1700 l/h and a pressure of 150 bar. The high-pressure pump is protected against impurities by a large water filter. The frame and housing are constructed from powder-coated steel, powered by a 4-pole, slow-running electric motor with water cooling. Additionally, the unit features an integrated water supply tank with dry-run protection as well as a detergent suction mechanism with a dosing valve and low-level indicator. A large rotary switch provides control, while the design allows for straightforward installation and maintenance. Electronic monitoring of the machine with error display supports operational safety. Delivery takes place without accessories; these can be added individually depending on the point of use. Optionally available: pressure gauge, operating hours counter, suction for a second detergent, automatic pressure relief, and various remote controls.

Features and benefits

Designed for continuous operation in commercial and industrial use.

Crankshaft pump with brass cylinder head and ceramic pistonPowerful, 4-pole, slow-running electric motor.

High-quality equipment

Detergent dosing unit on the suction side.Storage tank with float valve and dry-running protection.Ready for connection of remote controls.

Electronic monitoring for greater operational safety.

Switches off in case of leaks or phase failure.Automatic switch-off in case of low voltage range or overvoltage.LEDs indicate readiness for use, water shortage and service interval.

Easy operation

Just one rotary switch for all functions guarantees simple operation without long training times.

Practical error display informs users immediately and saves time.

Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming induction.

Service-friendly design with easily accessible maintenance points

Easy access to all service and maintenance components.

Comprehensive service network with highly trained service technicians.

LEDs indicate important operating states

Large integrated water filter

Large water fine filter for optimal protection of the pump.

Ensures long service life for all high-pressure components.

Easy to use, easy to clean

Designed for continuous commercial and industrial use.

Designed for daily use.

Can be used under tough working conditions.

Designed for continuous professional and industrial operation.

Extensive range of accessories and attachment kits

Is ready for use quickly at any time

Ready at the push of a button, with no set-up times or transporting mobile machines.

The machine is always ready to go for maximum productivity and flexibility.

The pump starts as soon as the trigger gun is activated, allowing convenient working from any supply point.

Servo Control

Pressure and water flow can be adjusted at the gun.

Allows versatile application possibilities.

Versatile and flexible uses.

Scope of supply

Servo Control

Power nozzle

Frame and cover: Steel, powder-coated

Prepared for Servo Control

Pre-equipped for a detergent inlet

Equipment

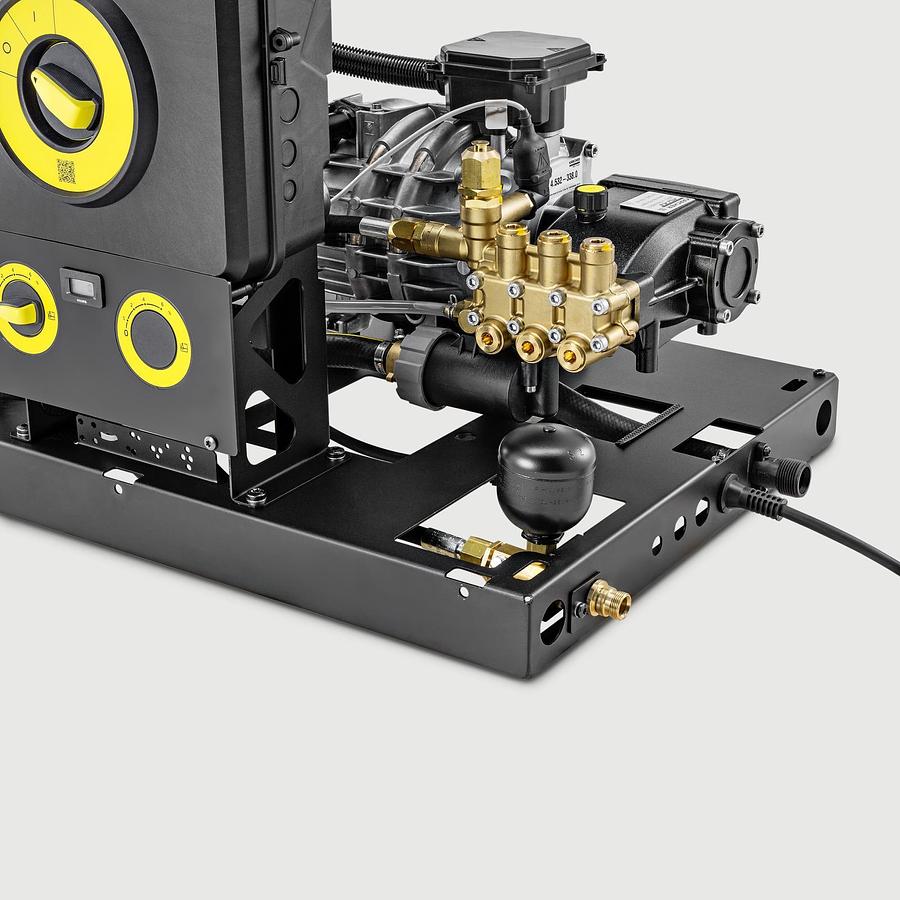

Crankshaft pump with ceramic pistons

Dry-running protection

Large water fine filter

Storage tank with float valve

Prepared for remote operation

RM1 dosage

Sight glass for oil level

Oil dipstick

Water-cooled motor
