High-pressure cleaner HD 17/12-4 St H

The stationary pressure washer delivers a flow rate of 1700 l/h and features an accessible design for operation and maintenance. Developed for applications in agriculture and industry.

Our stationary cold water high-pressure cleaner is designed for continuous operation with a flow rate of $1700 ext{ l/h}$ and an operating pressure of $120 ext{ bar}$, such as in the food industry. A water inlet temperature of up to $85 ext{ }^circ ext{C}$ is permitted. The crankshaft pump features a brass cylinder head, and the housing and frame are made of stainless steel. The high-pressure cleaner includes a water supply tank with dry-run and descaling protection, including a level indicator. Detergent can be ingested and dosed via a valve, with a low-level indicator also provided. The unit is equipped with a 4-pole, slow-running electric motor and electronic monitoring to support operational safety. Its design allows for straightforward installation, operation, and maintenance. The system can be extended at any point of use with accessories including a pressure gauge, operating hours counter, suction for a second detergent, automatic pressure relief, and remote controls

Features and benefits

High-quality equipment

Storage tank with valve, limescale protection and dry-running protection.Frame and cover made of stainless steelAdvance pressure pump for inlet temperatures of up to 85°C.

Designed for continuous operation in commercial and industrial use.

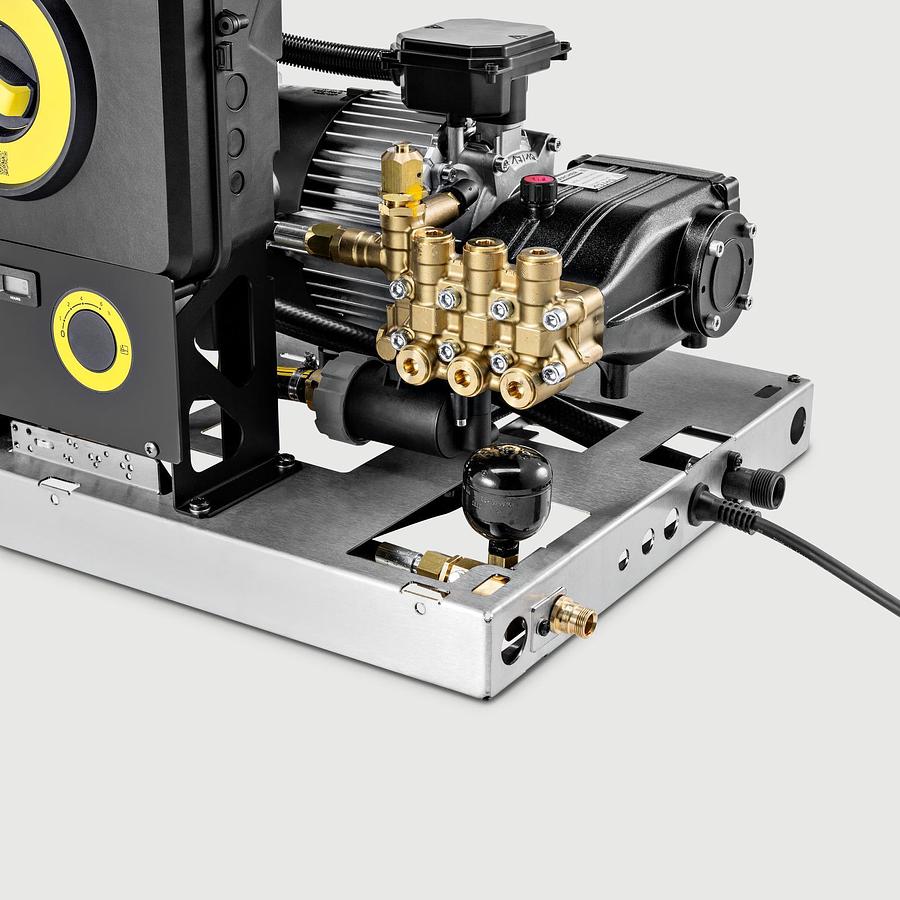

Crankshaft pump with brass cylinder head and ceramic piston4-pole, slow-running electric motor guarantees a long working time.Prevention of limescale.

Electronic monitoring for greater operational safety.

Switch off in the event of water shortage, LEDs: standby, service, error.Switches off in case of leaks or phase failure.Automatic switch-off in case of low voltage range or overvoltage.

Easy operation

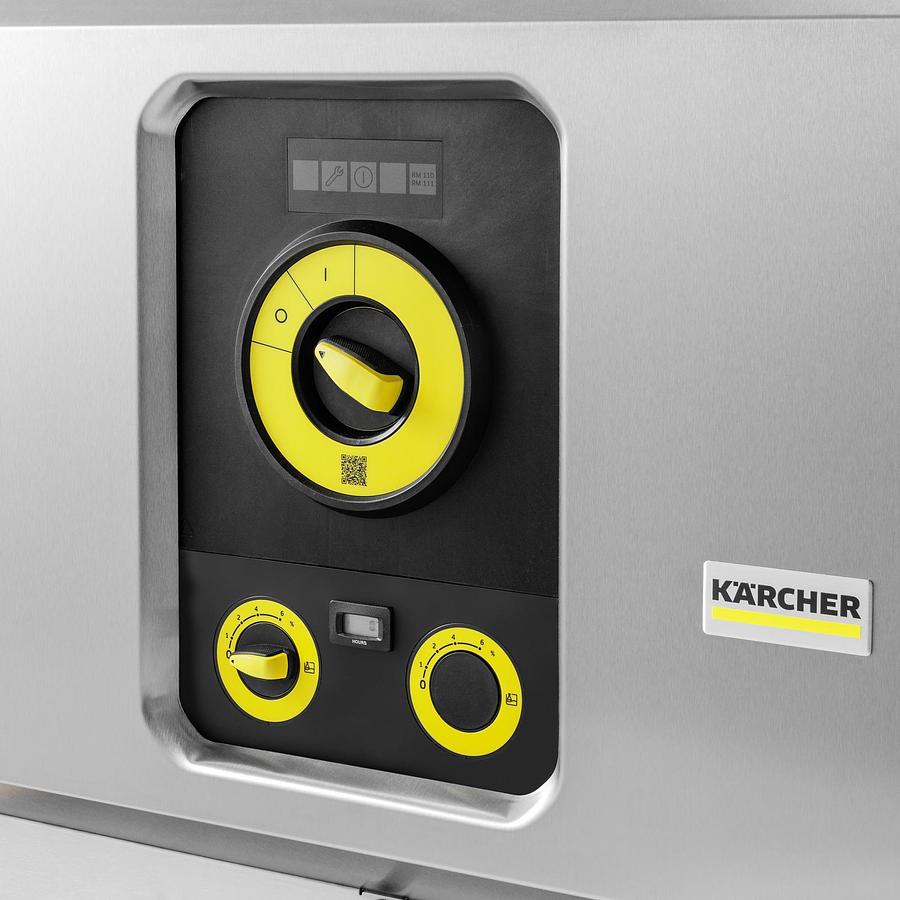

Just one rotary switch for all functions guarantees simple operation without long training times.

Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming induction.

LEDs indicate important operating states

Extensive range of accessories and attachment kits

Pressure gauge and elapsed time counter are available as an option.

Automatic pressure relief is available as an option.

Remote controls can be used directly at the point of use.

Detergent inlet with valve and empty indicator

The detergent intake system with dosing valve and empty indicator is just part of the high-quality equipment supplied as standard.

Optional: second inlet with valve and empty indicator.

Detergent dosing unit on the suction side.

Designed for continuous commercial and industrial use.

Suitable for daily use.

The use of hot water supports the cleaning process and dissolves grease and oil contamination

Ideal for long periods of use

Large integrated water filter

Ensures long service life for all high-pressure components.

Large water fine filter for optimal protection of the pump.

Easy to use, easy to clean

Is ready for use quickly at any time

Ready at the push of a button, with no set-up times or transporting mobile machines.

The pump starts as soon as the trigger gun is activated, allowing convenient working from any supply point.

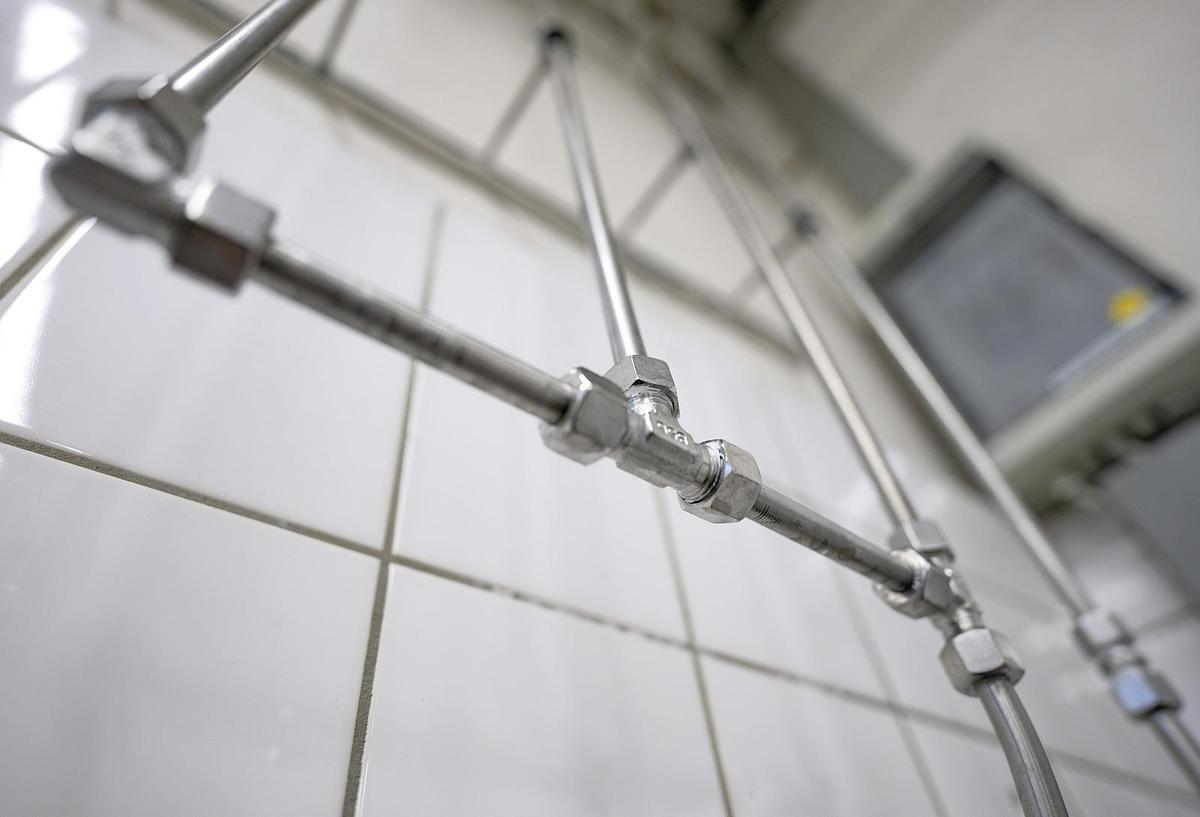

Permanent installation with no hazards: No contamination or loose hoses

Easy installation and maintenance

All components are quickly and easily accessible for servicing.

Quick and easy installation saves assembly costs.

Display of error codes and status, facilitates servicing

Scope of supply

Servo Control

Power nozzle

Frame and cover: Stainless steel

Prepared for Servo Control

Pre-equipped for a detergent inlet

Equipment

Crankshaft pump with ceramic pistons

Advance pressure pump

Calcification protection

Dry-running protection

Large water fine filter

Storage tank with float valve

Prepared for remote operation

RM1 dosage

Sight glass for oil level

Oil dipstick

Air-cooled motor
