High-pressure cleaning system HDC 80/16 VA

The HDC 80/16 VA, housed in a stainless steel frame, delivers 160 bar and 8000 l/h for up to eight users at the same time. The modern PLC control unit ensures intelligent monitoring and optimal operation.

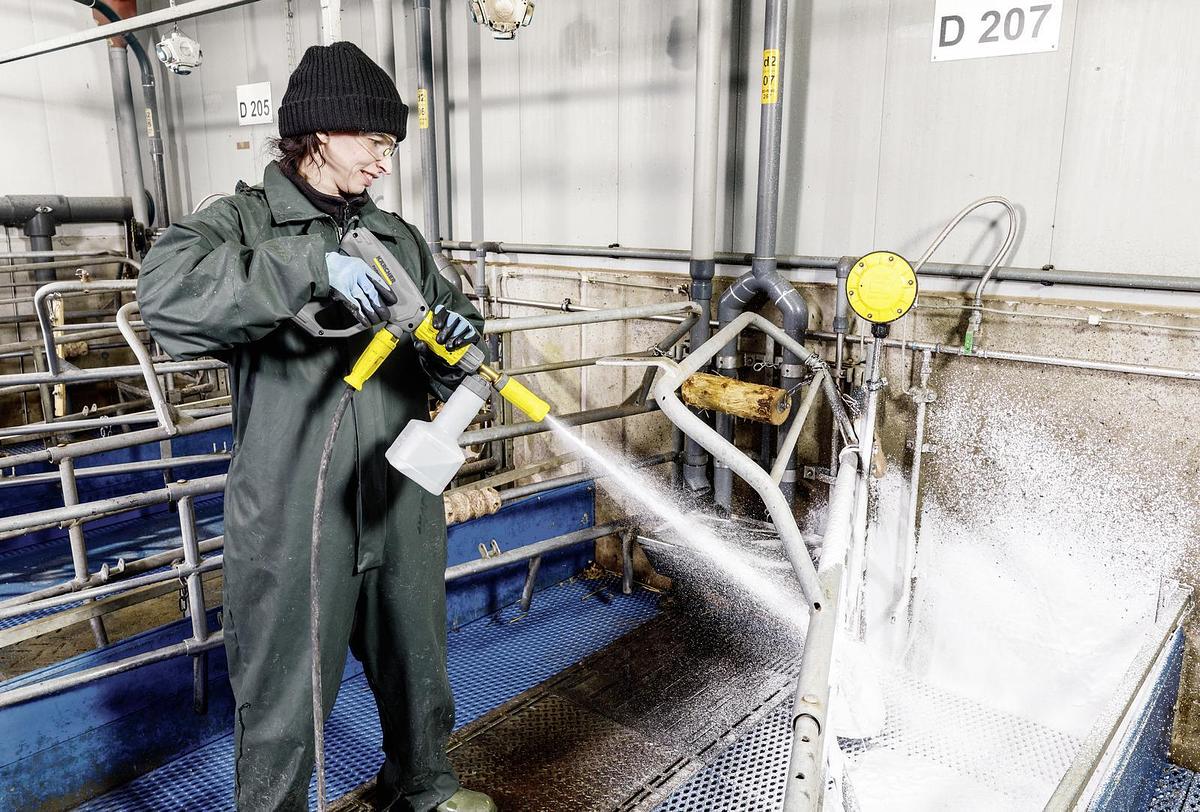

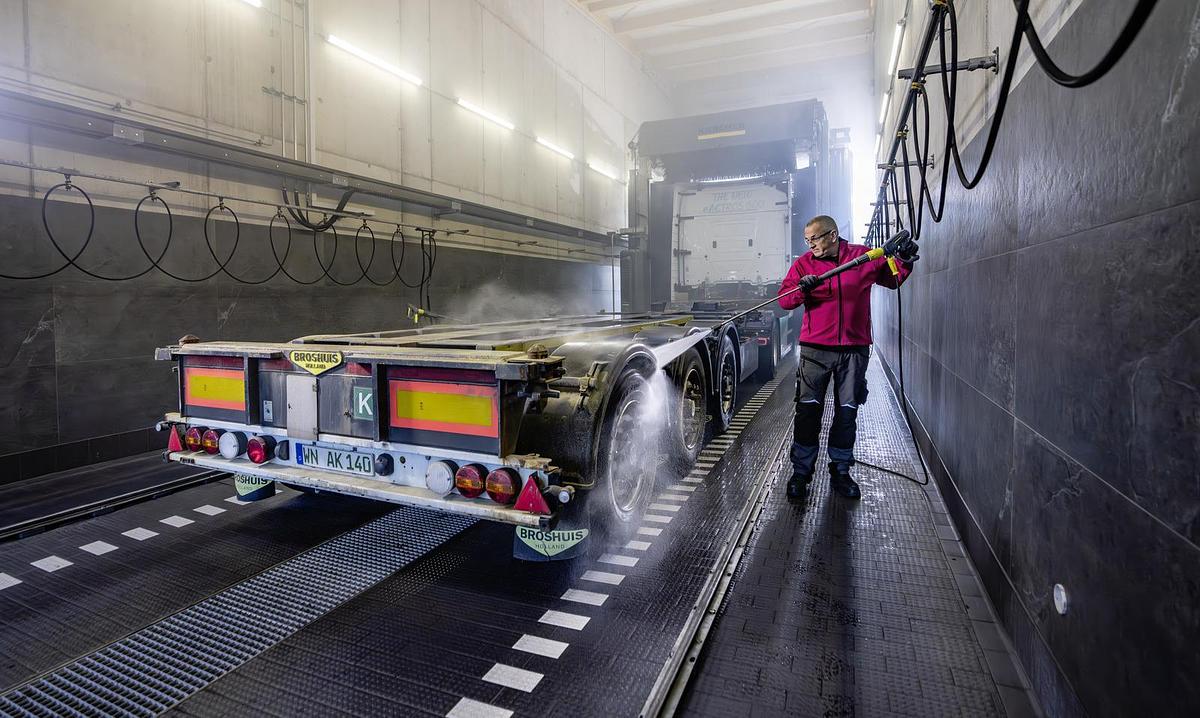

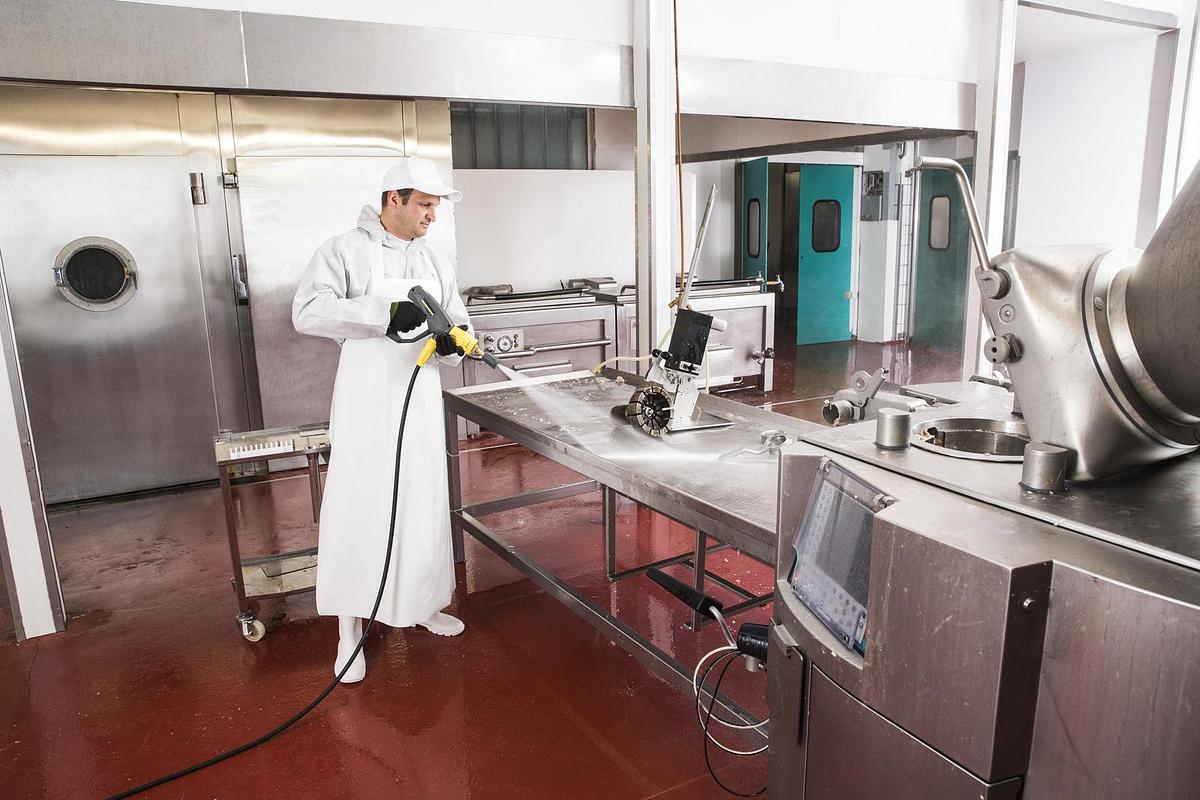

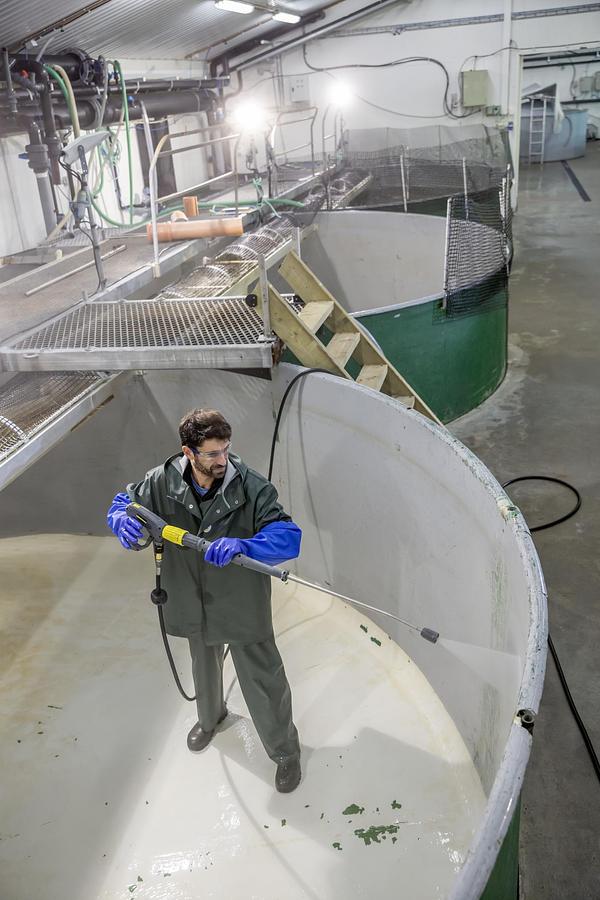

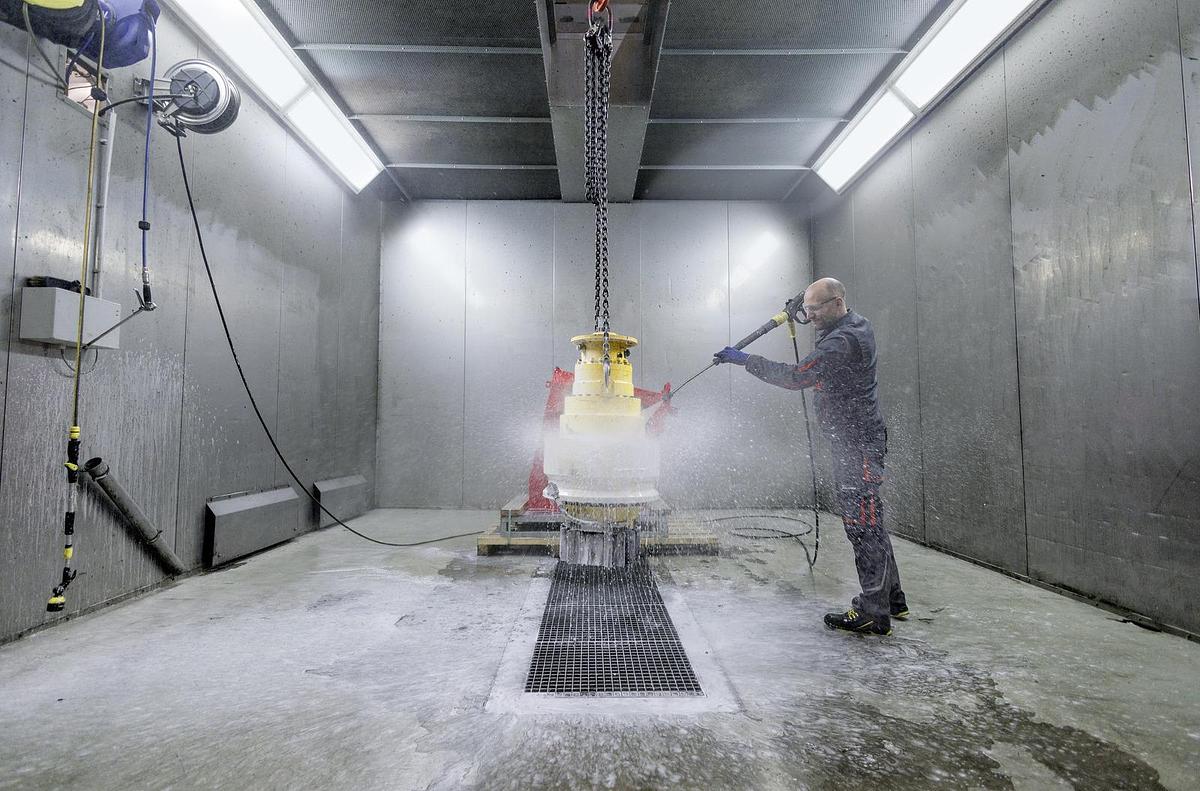

The stationary high-pressure cleaner HDC 80/16 VA is designed for applications with high cleaning demands. With 160 bar and a flow rate of 8,000 l/h, it offers continuously adjustable cleaning performance for industrial use. The system features 4 crankshaft pumps with brass cylinder heads controlled via an PLC control system. The PLC automatically activates or deactivates the pumps based on water demand and balances operating hours to ensure equal workload distribution across all 4 motors. The system capacity allows up to 8 operators to work simultaneously at 1,000 l/h each. The stainless steel frame construction houses the components for daily multi-shift operation, while 4-pole electric motors with soft start minimize mechanical load peaks. A key functional element is the PLC control: operating parameters can be configured for specific applications, and real-time status updates and error notifications are displayed to the user. In the event of operational irregularities, the control system shuts down the machine automatically for protective purposes. This makes the HDC 80/16 VA a specialized solution for industry, agriculture, and the transport sector.

Features and benefits

Simultaneous use by up to 8 users possible

Increased productivity and time savings through parallel completion of cleaning tasks by several employees.No set-up times thanks to immediate cleaning start at the extraction points.Savings in investment and maintenance costs thanks to a centralised, high-performance machine for multiple operations instead of several high-pressure cleaners.

With PLC control unit that monitors and regulates all parameters

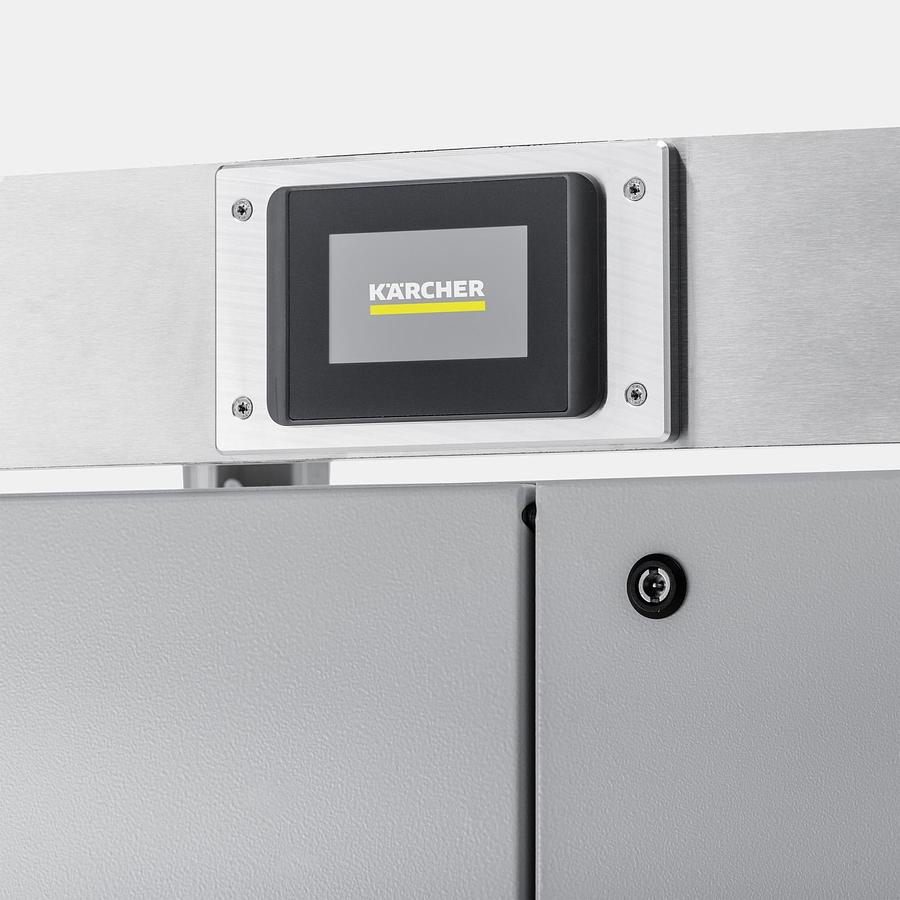

By switching pumps on as needed, the system adjusts its output directly to actual water consumption, avoiding unnecessary energy use and reducing mechanical stress on components during partial operation.The intelligent control unit ensures continuous, safe and trouble-free operation of the plant by automatically monitoring all operating conditions.The built-in display makes it easy to monitor operating parameters and, thanks to clear error messages, reduces response times when maintenance is required.

Powerful and reliable

Low-speed industrial pump4-pole low-speed electric motors with soft-starter guarantee long service life.Crankshaft pump from Kärcher for consistent pressure generation during operation.

PLC control unit with master-slave function

The integrated master-slave function allows two HDC machines to be linked in parallel. The PLC coordinates both units to ensure maximum water flow.

The master-slave function links two machines to form an intelligent system that minimises downtimes and optimises capacity utilisation.

Thanks to the master-slave function, a second unit can be switched on as needed. This allows capacity to be expanded precisely to requirements without having to replace the existing system.

Is ready for use quickly at any time

The pump starts as soon as the trigger gun is activated, allowing convenient working from any supply point.

Ready at the push of a button, with no set-up times or transporting mobile machines.

Shorter set-up times thanks to ready-to-use extraction points that require no installation or connection.

Flexible and versatile

Suitable accessories for every work site and every application can be individually selected from the Kärcher high-pressure range.

Flexible use, thanks to new extraction points for additional areas and higher cleaning requirements.

High productivity, thanks to simultaneous use by multiple users at different operation sites.

Designed for continuous commercial and industrial use.

Corrosion-resistant stainless steel frame with easy-to-clean surfaces.

Crankshaft pump with brass cylinder head and ceramic piston

Constructed with stainless steel and brass components for continuous operation and accessible maintenance.

High-quality equipment

The HDC machine stands out thanks to its high-quality industrial design and extensive technical features.

Large supply tank with a float valve, water filter, temperature monitoring and dry-running protection for maximum safety and consistent process quality.

Intelligent monitoring of operating status, error messages and maintenance intervals for precise control and high operational reliability.

Extensive range of accessories and attachment kits

For applications involving hot water, an optional advance pressure pump attachment kit is available, which ensures reliable operation at water inlet temperatures of up to 85 °C.

An optional mounting kit with a stainless steel housing is available, protecting the unit from splashed water and mechanical stress.

Service-friendly design with easily accessible maintenance points

Less downtime and longer productivity thanks to faster routine maintenance and repairs.

Good accessibility for easy service and maintenance.

Cost-effectiveness thanks to long service life and low repair costs for long-term economical operation.

Equipment

Oil dipstick

Sight glass for oil level

4-pole motor (low-speed machine)

Air-cooled motor

Crankshaft pump with ceramic pistons

Dry-running protection

Storage tank with float valve

Elapsed time counter

Large water fine filter

Pressure gauge

Frame and cover: Stainless steel

Servo Control

Pressure cut-off
