High-pressure cleaning system HDC 40/16

The HDC 40/16, housed in a steel frame, delivers 160 bar and 4,000 l/h for up to four users at the same time. The modern PLC control unit ensures intelligent monitoring and optimal operation.

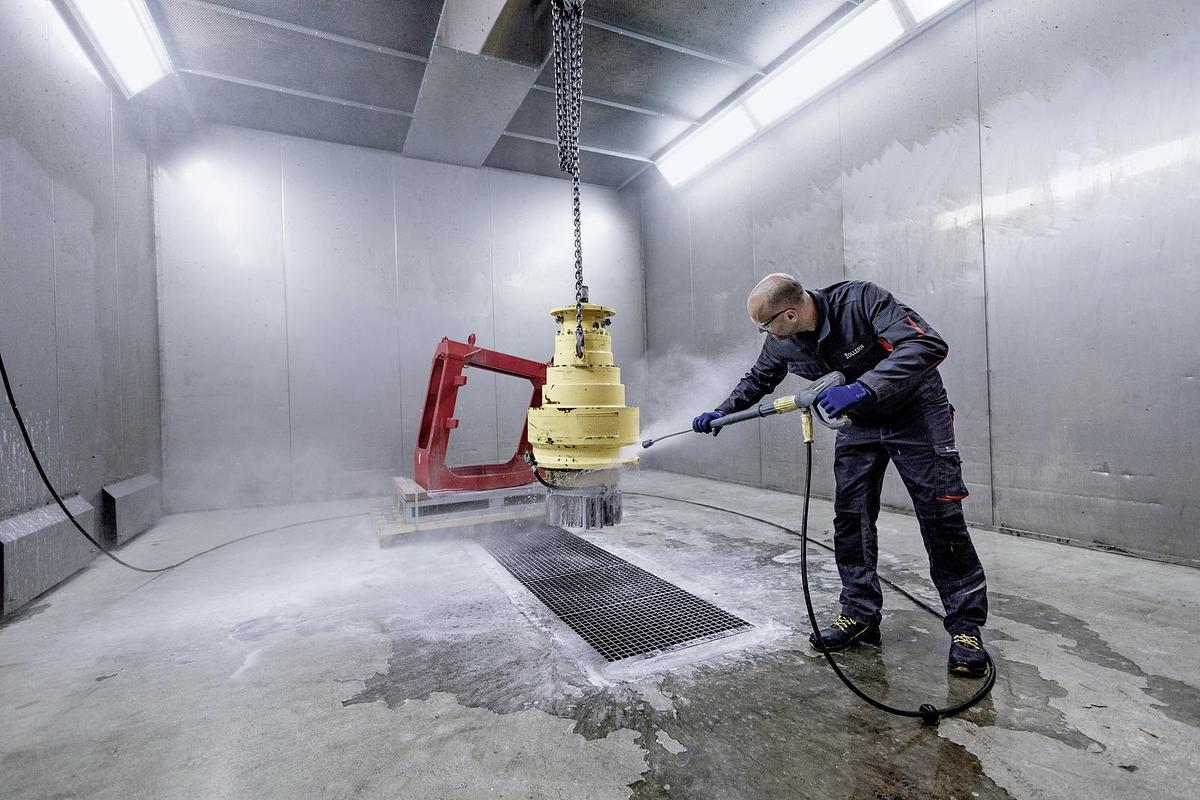

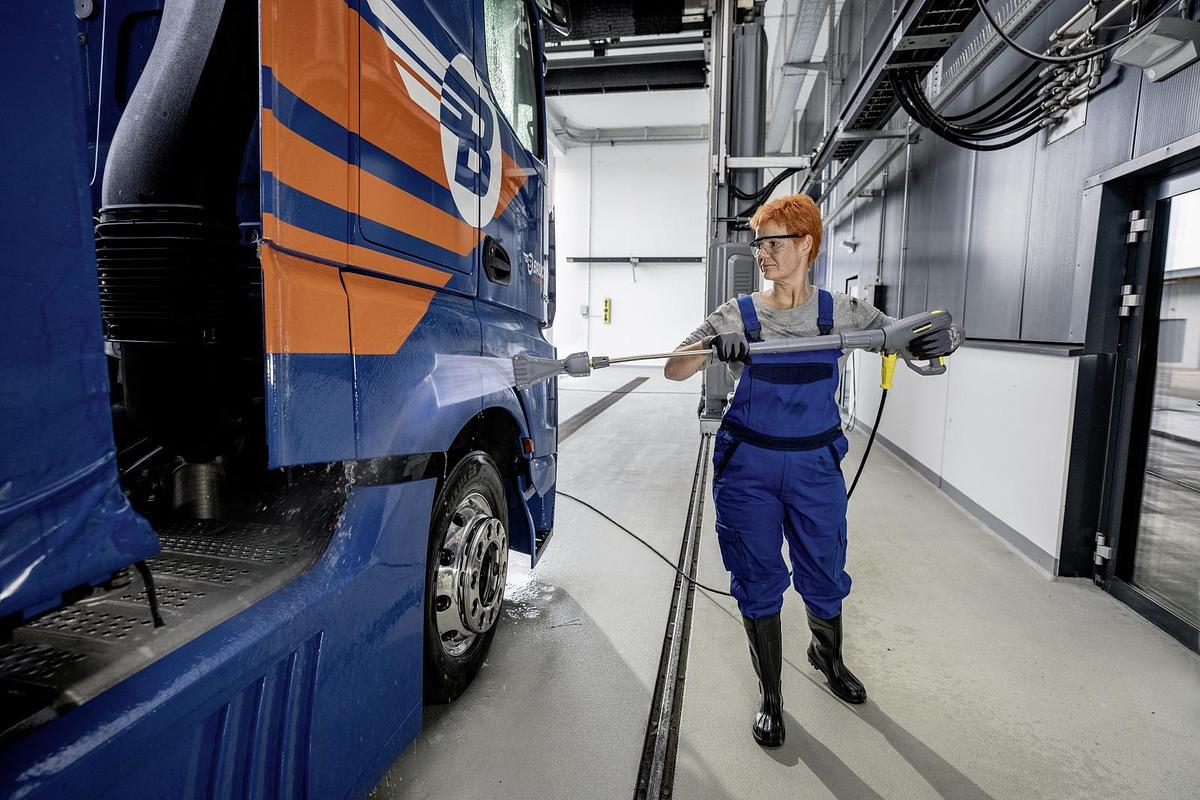

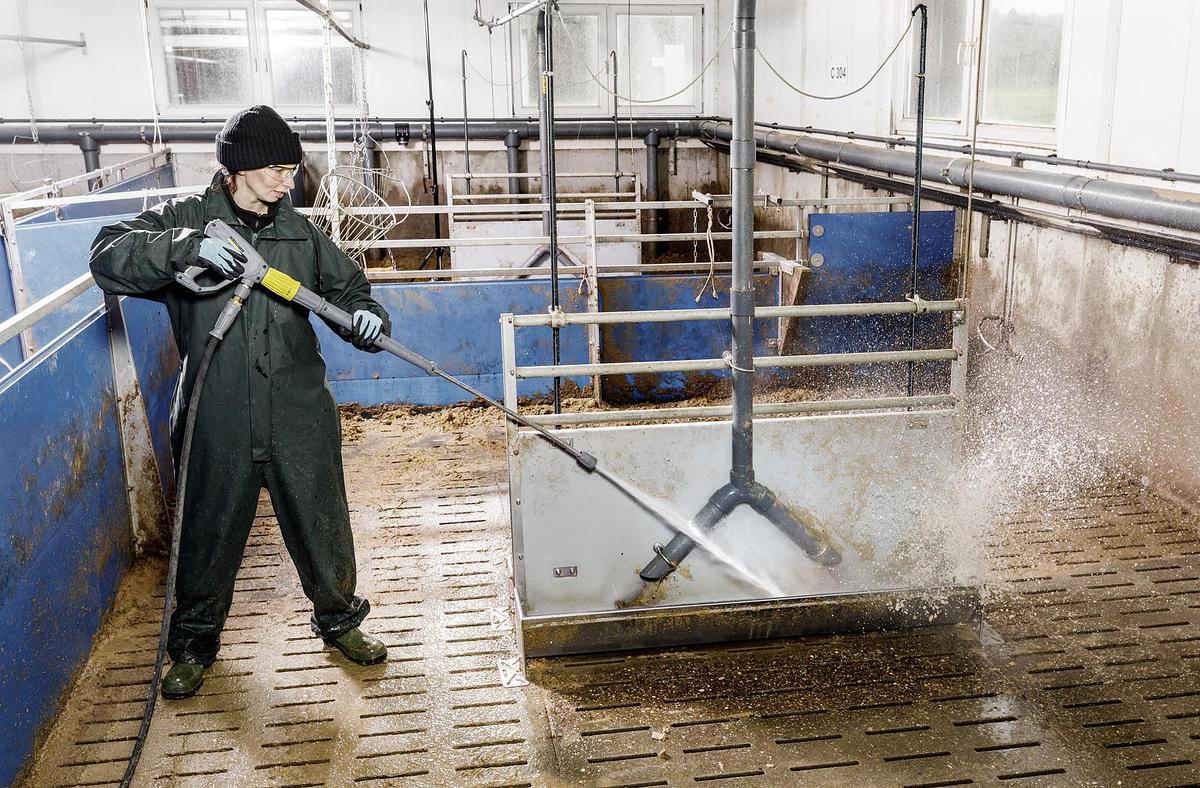

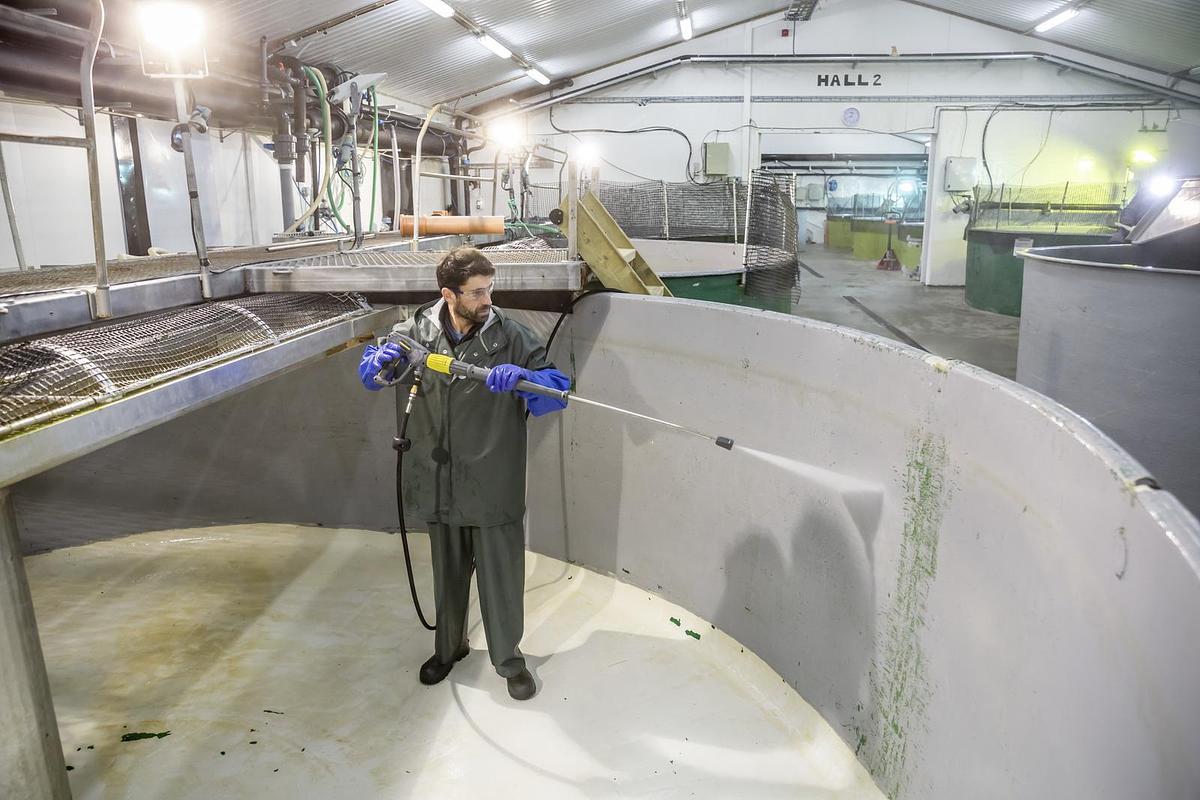

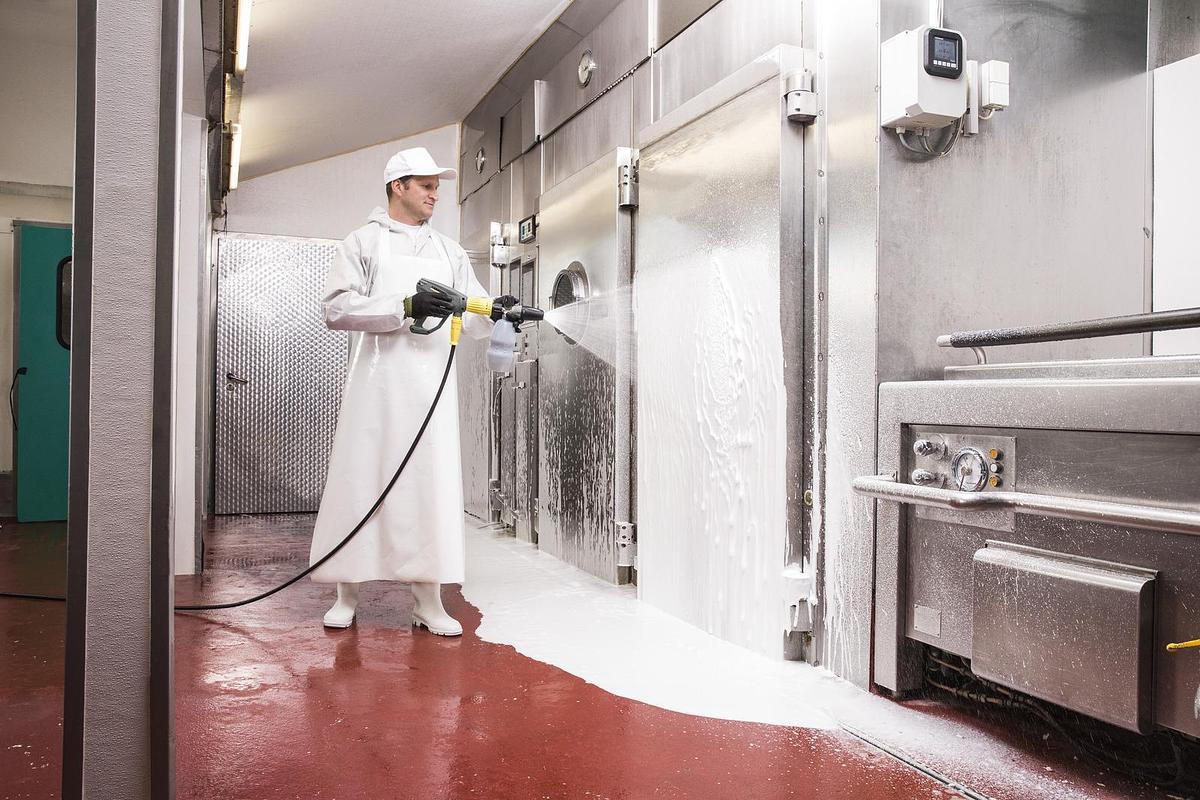

The stationary high-pressure cleaner HDC 40/16 is designed for applications with high cleaning demands. With 160 bar and a flow rate of 4,000 l/h, it offers continuously adjustable cleaning performance for industrial use. The system features 2 crankshaft pumps with brass cylinder heads controlled via an PLC control system. The PLC automatically activates or deactivates the pumps based on water demand and balances operating hours to ensure equal workload distribution across all 2 motors. The system capacity allows up to 4 operators to work simultaneously at 1,000 l/h each. The steel frame construction houses the components for daily multi-shift operation, while 4-pole electric motors with soft start minimize mechanical load peaks. A key functional element is the PLC control: operating parameters can be configured for specific applications, and real-time status updates and error notifications are displayed to the user. In the event of operational irregularities, the control system shuts down the machine automatically for protective purposes. This makes the HDC 40/16 a specialized solution for industry, agriculture, and the transport sector.

Features and benefits

Simultaneous use by up to 4 users possible

Increased productivity and time savings through parallel completion of cleaning tasks by several employees.Savings in investment and maintenance costs thanks to a centralised, high-performance machine for multiple operations instead of several high-pressure cleaners.Shorter set-up times thanks to ready-to-use extraction points that require no installation or connection.

With PLC control unit that monitors and regulates all parameters

The intelligent control unit ensures continuous, safe and trouble-free operation of the plant by automatically monitoring all operating conditions.By switching pumps on as needed, the system adjusts its output directly to actual water consumption, avoiding unnecessary energy use and reducing mechanical stress on components during partial operation.The built-in display makes it easy to monitor operating parameters and, thanks to clear error messages, reduces response times when maintenance is required.

Engineered for continuous commercial and industrial use

Crankshaft pump with brass cylinder head and ceramic pistonLow-speed industrial pump4-pole low-speed electric motors with soft-starter guarantee long service life.

PLC control unit with master-slave function

Thanks to the master-slave function, a second unit can be switched on as needed. This allows capacity to be expanded precisely to requirements without having to replace the existing system.

The integrated master-slave function allows two HDC machines to be linked in parallel. The PLC coordinates both units to ensure maximum water flow.

The master-slave function links two machines to form an intelligent system that minimises downtimes and optimises capacity utilisation.

Designed for continuous commercial and industrial use.

Solid steel frame.

Crankshaft pump with brass cylinder head and ceramic piston

Crankshaft pump from Kärcher for consistent pressure generation during operation.

Is ready for use quickly at any time

The machine is always ready to go for maximum productivity and flexibility.

The pump starts as soon as the trigger gun is activated, allowing convenient working from any supply point.

Ready at the push of a button, with no set-up times or transporting mobile machines.

Extensive range of accessories and attachment kits

For applications involving hot water, an optional advance pressure pump attachment kit is available, which ensures reliable operation at water inlet temperatures of up to 85 °C.

An optional mounting kit with a steel housing is available, protecting the unit from splashed water and mechanical stress

Suitable accessories for every work site and every application can be individually selected from the Kärcher high-pressure range.

Simple operation, maintenance and servicing

The display of error codes, operating status and maintenance intervals for the pumps, as well as monitoring of the machine for faults, makes servicing easier.

Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming induction.

Less downtime and longer productivity thanks to faster routine maintenance and repairs.

Flexible and versatile

High productivity, thanks to simultaneous use by multiple users at different operation sites.

Versatile - ideal for various cleaning tasks.

Flexible use, thanks to new extraction points for additional areas and higher cleaning requirements.

High-quality equipment

Large supply tank with a float valve, water filter, temperature monitoring and dry-running protection for maximum safety and consistent process quality.

Intelligent monitoring of operating status, error messages and maintenance intervals for precise control and high operational reliability.

The HDC machine stands out thanks to its high-quality industrial design and extensive technical features.

Equipment

Oil dipstick

Sight glass for oil level

4-pole motor (low-speed machine)

Air-cooled motor

Crankshaft pump with ceramic pistons

Dry-running protection

Storage tank with float valve

Elapsed time counter

Large water fine filter

Pressure gauge

Frame and cover: Steel, powder-coated

Servo Control

Pressure cut-off
