High-pressure cleaner HDS 8/18 -4 St EU-I

Designed for continuous operation: The stationary HDS 8/18-4 St hot water pressure washer with oil burner is built for demanding cleaning tasks

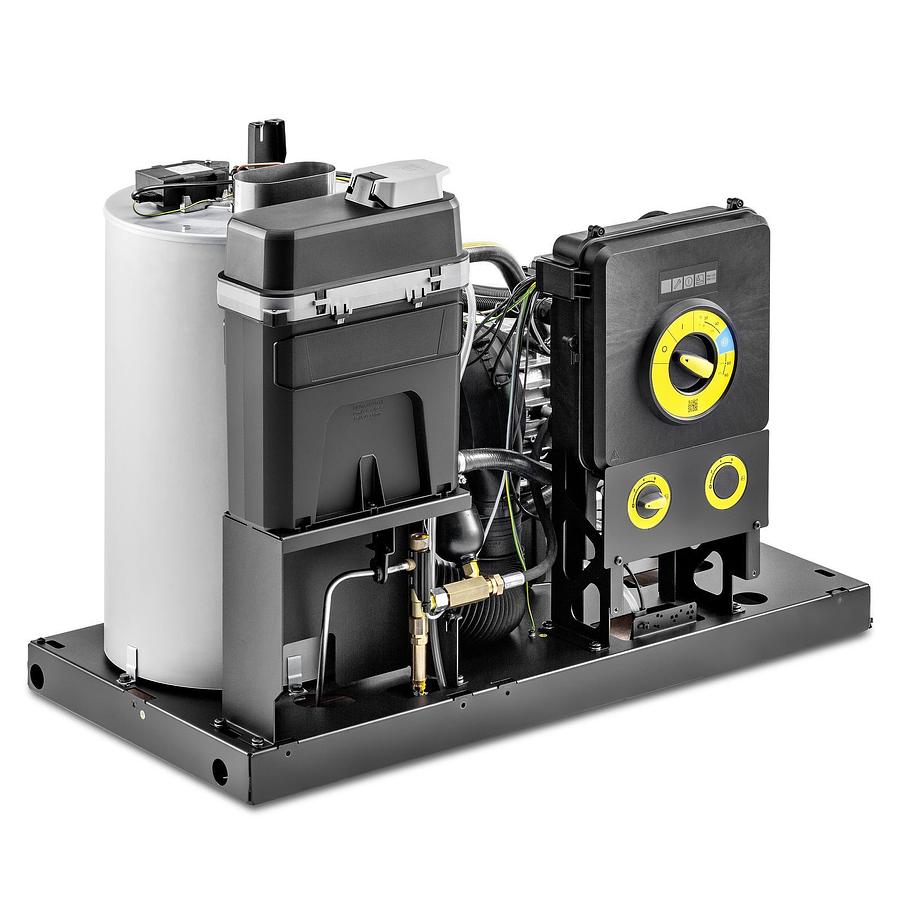

The HDS 8/18-4 St is a stationary hot water high-pressure cleaner with an oil burner that provides an operating pressure of up to 180 bar. Its 4-pole, low-speed electric motor delivers the required power for continuous operation. The crankshaft pump with brass cylinder head delivers up to 800 liters of water per hour. The water break tank integrates a limescale protection system and a water filter to protect the pump. Detergent is drawn in and metered via a control valve, with a low-level indicator alerting the user when the detergent container is empty. Electronic monitoring of the oil burner and system parameters provides continuous operational control. A rotary switch or an optional remote control enables system operation, while service and maintenance points are structured for ease of access. A range of available accessories allows the HDS 8/18-4 St to be adapted to different cleaning tasks. The unit can be equipped with a pressure gauge, an operating hours counter, a second detergent dosing system, and a pressure relief system.

Features and benefits

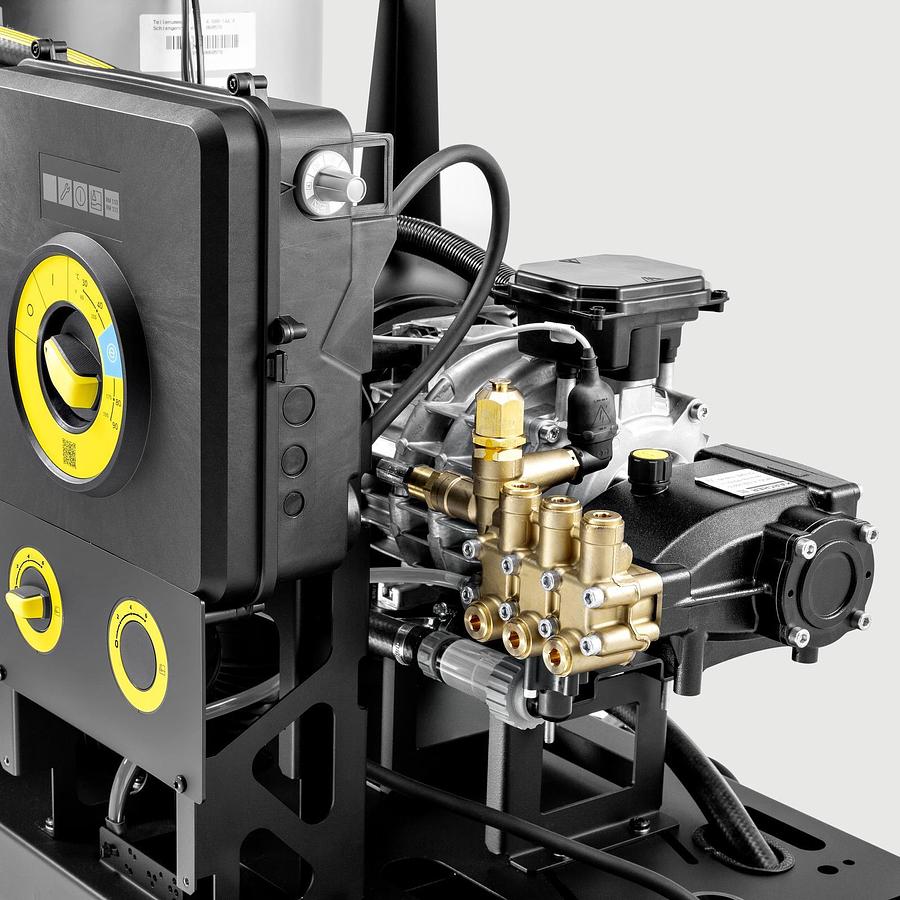

Crankshaft pump with brass cylinder head

Crankshaft pump from Kärcher for consistent pressure generation during operation.

Designed for continuous operation in commercial and industrial use.

Longer service life, less maintenance effort and lower costs. Ideal for industrial use.

High-quality equipment

The integrated water reservoir with limescale protection and empty indicator protects the heating coil and the entire system from lime deposits.

The housing and frame are made from powder-coated steel

A detergent inlet with dosing valve and empty indicator is included in the scope of supply as standard, with the option of adding a second.

Water-cooled four-pole electric motor

4-pole, slow-running electric motor guarantees a long working time.

Water-cooled motor for a high performance and long service life.

Only very low engine vibrations.

Engineered Kärcher burner technology with demand-based fuel feed

High-output oil burner with upright heating coil and detonation-free continuous ignition.

Upright construction style prevents condensation and corrosion.

Burner technology with a minimum output-to-input ratio of 91% – Made in Germany.

Electronic monitoring for greater operational safety.

Automatic switch-off in the event of leaks or phase failure.

Automatic shutoff in event of low voltage range or overvoltage.

Integrated protection and monitoring systems for flame and exhaust gas temperatures, water shortage, overpressure, and limescale status ensure continuous equipment protection

Easy to use

Just one rotary switch for all functions guarantees simple operation without long training times.

Simple concept with self-explanatory symbols and clearly arranged control panel.

Practical error display informs users immediately and saves time.

Cleaning agent suction and dosing system for even better cleaning results

For precise and infinitely variable cleaning agent dosing.

Service-friendly design with easily accessible maintenance points

Easy access to all service and maintenance components.

Comprehensive service network with highly trained service technicians.

Display of error codes, operating status, pump maintenance intervals and monitoring for faulty operation of the burner and the entire machine make servicing easier.

Large, transparent water fine filter

Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.

Integrated water filter can be removed and cleaned without any tools.

Leads to longer service life of components and machine.

High flexibility

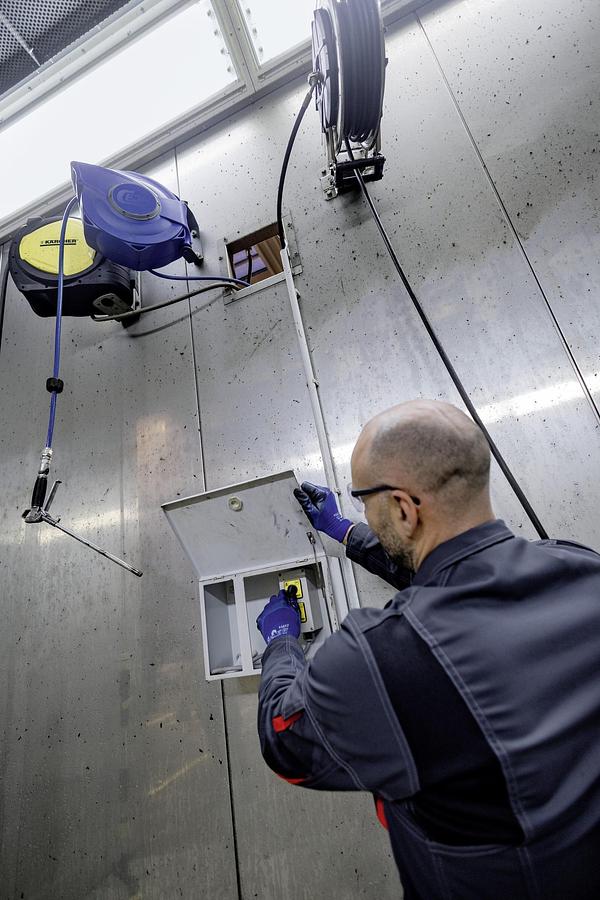

The machine can alternatively be controlled with a remote control.

Scope of supply

Flame monitoring

Prepared for Servo Control

Prepared for remote operation

Power nozzle

Detergent function: Suction

Equipment

Oil dipstick

Sight glass for oil level

Pre-equipped for a detergent inlet

RM1 dosage

Dry-running protection

Large water fine filter

Storage tank with float valve

Crankshaft pump with ceramic pistons

Water-cooled motor

Frame and cover: Steel, powder-coated
