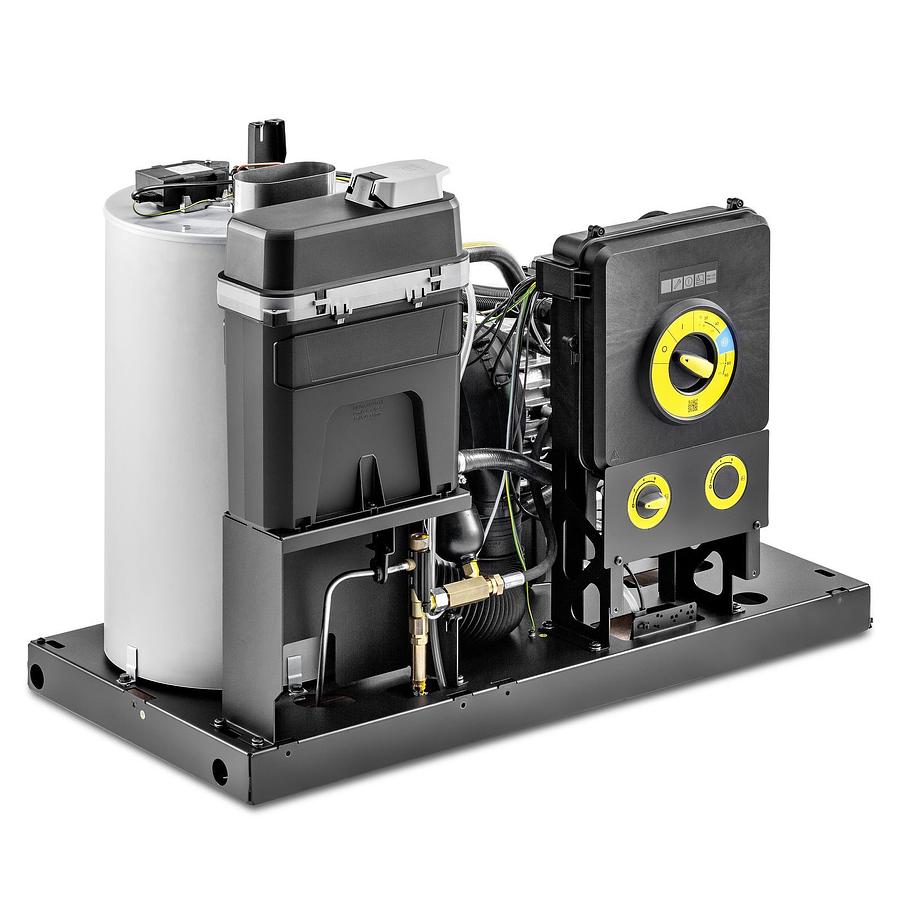

High-pressure cleaner HDS 13/20 -4 St EU-I
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | min. 700 - max. 1300 |
| Working pressure (bar) | 200 |
| Max. pressure (bar) | 235 |
| Temperature (for supply 12 °C) (°C) | max. 80 |
| Inlet temperature (°C) | max. 30 |
| Connected load (kW) | 9,5 |
| Consumption of fuel oil at full load (kg/h) | 9,1 |
| Heat energy (kW) | 108 |
| Power cable (m) | 5 |
| Water inlet | 1″ |
| Number of users at one time | 1 |
| Portability | stationary |
| Protection (A) | 25 |
| Weight (with accessories) (kg) | 160 |
| Weight incl. packaging (kg) | 170 |
| Dimensions (L × W × H) (mm) | 1142 x 578 x 790 |
Description
Designed for continuous use without compromise: the HDS 13/20-4 St stationary hot water high-pressure cleaner with oil burner cleans by delivering up to 1300 litres of water per hour at 200 bar pressure.
The HDS 13/20-4 St is a stationary hot water high-pressure cleaner with an oil burner. Its 4-pole, low-speed electric motor supplies power for continuous operation in demanding environments. The crankshaft pump with brass cylinder head enables cleaning with up to 1,300 liters of water per hour and 200 bar pressure. A water filter protects the pump from dirt particles. The integrated water break tank features a limescale protection system. Detergent is drawn in and metered via a control valve. A low-detergent indicator alerts the user when the tank is empty. Electronic monitoring of the oil burner and system parameters provides continuous operational control. A rotary switch or an optional remote control enables system operation, while service and maintenance points are structured for ease of access. A range of available accessories allows the HDS 13/20-4 St to be adapted to different cleaning tasks. The unit can be equipped with a pressure gauge, an operating hours counter, a second detergent dosing system, and a pressure relief system
Features and benefits
High-performance crankshaft pump
4-pole low-speed electric motor
Engineered Kärcher burner technology with demand-based fuel feed
High-quality equipment
Electronic monitoring for greater operational safety.
Simple and intuitive operation
Large, transparent water fine filter
High flexibility
Cleaning agent suction and dosing system for even better cleaning results
Service-friendly design with easily accessible maintenance points
Scope of supply
Equipment
