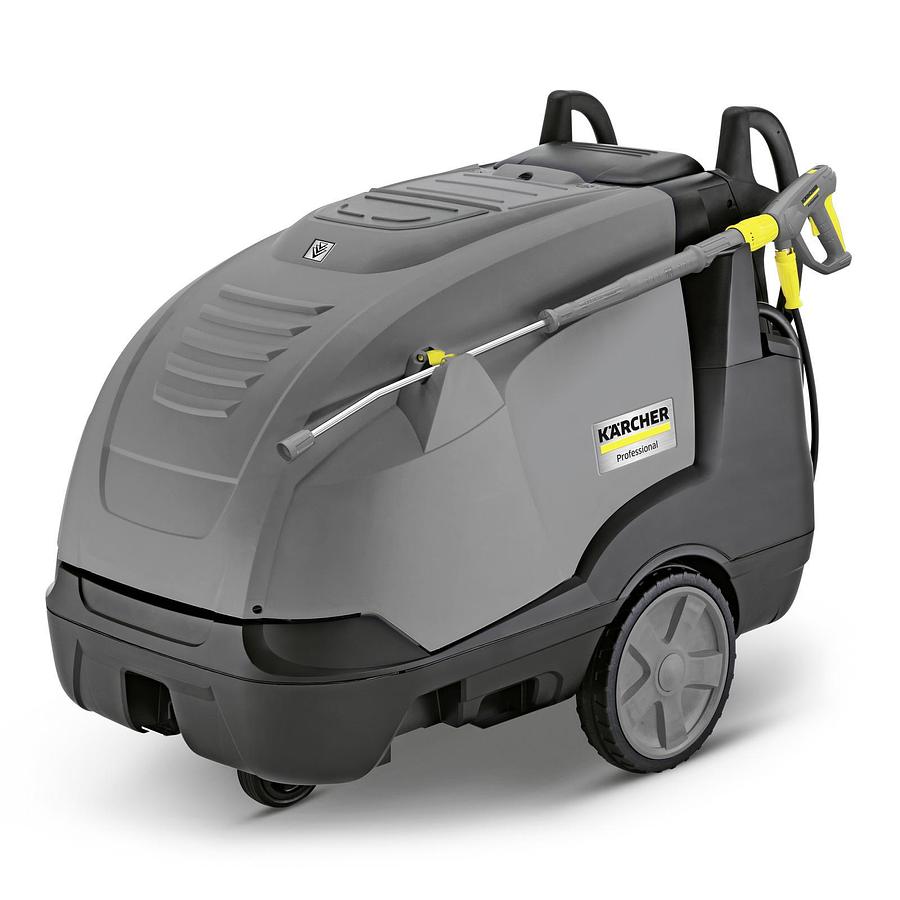

High-pressure cleaner HDS-E 8/16-4 M 24 kW

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)3
Voltage (V)400
Frequency (Hz)50
Flow rate (l/h)300 - 760
Working pressure (bar/MPa)30 - 160 / 3 - 16
Temperature (for supply 12 °C) (°C)min. 45 - max. 85
Connected load (kW)29,5
Power cable (m)5
Heating output (kW)24
Weight (with accessories) (kg)122,1
Weight incl. packaging (kg)133,8
Dimensions (L × W × H) (mm)1330 x 750 x 1060

Description

The electrically heated HDS E 8/16-4 M hot water high-pressure cleaner impresses with 24 kW heating output wherever exhaust gases are undesirable or not permitted.

Economical yet enormously powerful: the innovative HDS E 8/16-4 M hot water high-pressure cleaner offers a 24 kW heating output and a high work temperature of maximum 85°C. It is also extremely economical. The innovative, highly effective boiler insulation of the electrically heated machine reduces the power consumption in stand-by mode by a full 40%. When the Eco!Mode is activated, the high-pressure cleaner automatically switches to highly economical 60°C operation, which is entirely sufficient for most cleaning tasks. If, however, very oily and greasy dirt needs to be removed, the maximum possible work temperature is worth using. With Servo Control, it is easy to maintain a temperature of up to 70°C, even in continuous operation. Additional innovative details such as the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jetto reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, round off the outstanding equipment package.

Features and benefits

Reduced operating costs

  • Highly effective insulating material saves up to 40% energy in stand-by mode.
  • Economical Eco!Mode.

    • Particularly high work temperature

  • Large water reservoir (max. 85°C).
  • Up to 45°C in continuous operation under full load or 70°C with Servo Control.

    • Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

  • Fatigue-free work at last: the EASY!Force high pressure gun.
  • Robust EASY!Lock quick-release couplings: five times faster than screws.

    • Servo Control

  • For delivering a significantly higher water temperature to the accessories.

    • Scope of supply

  • Spray gun: EASY!Force Advanced
  • High-pressure hose length: 10 m
  • High-pressure hose specification: DN 6, 250 bar
  • Spray lance: 1050 mm
  • Power nozzle

    • Equipment

  • Exhaust-free electric heating
  • Control bar with display light
  • Pressure cut-off
  • 2 Detergent tanks
  • Servo Control
    • Show All
