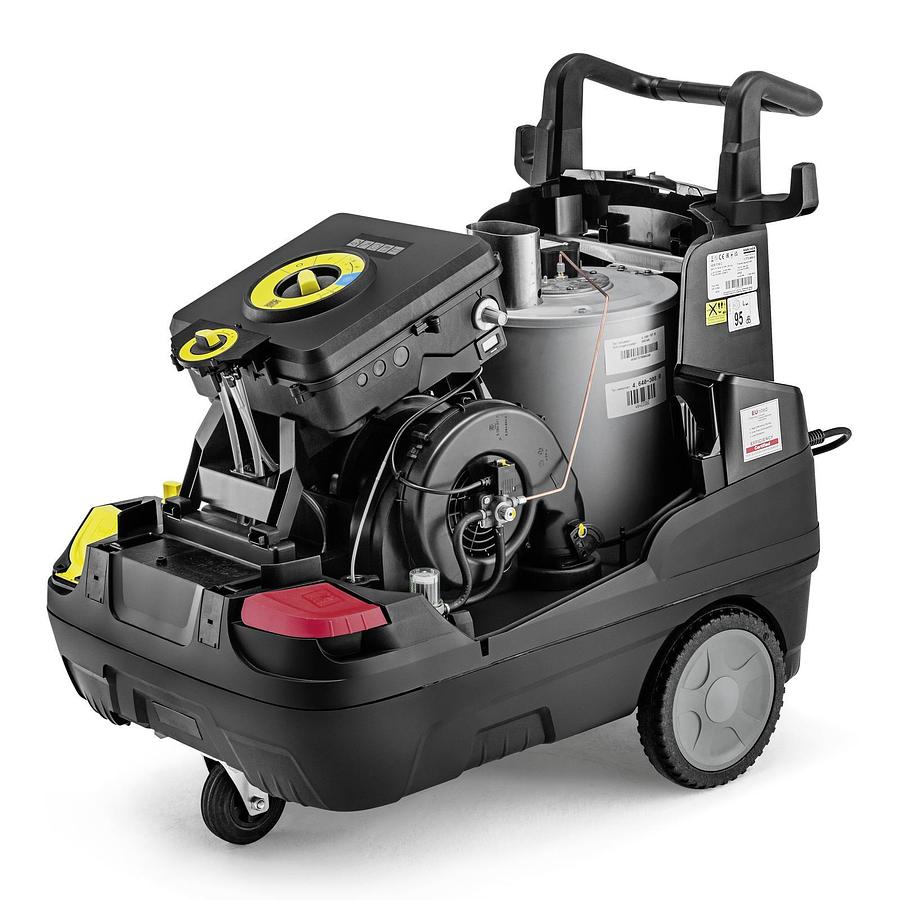

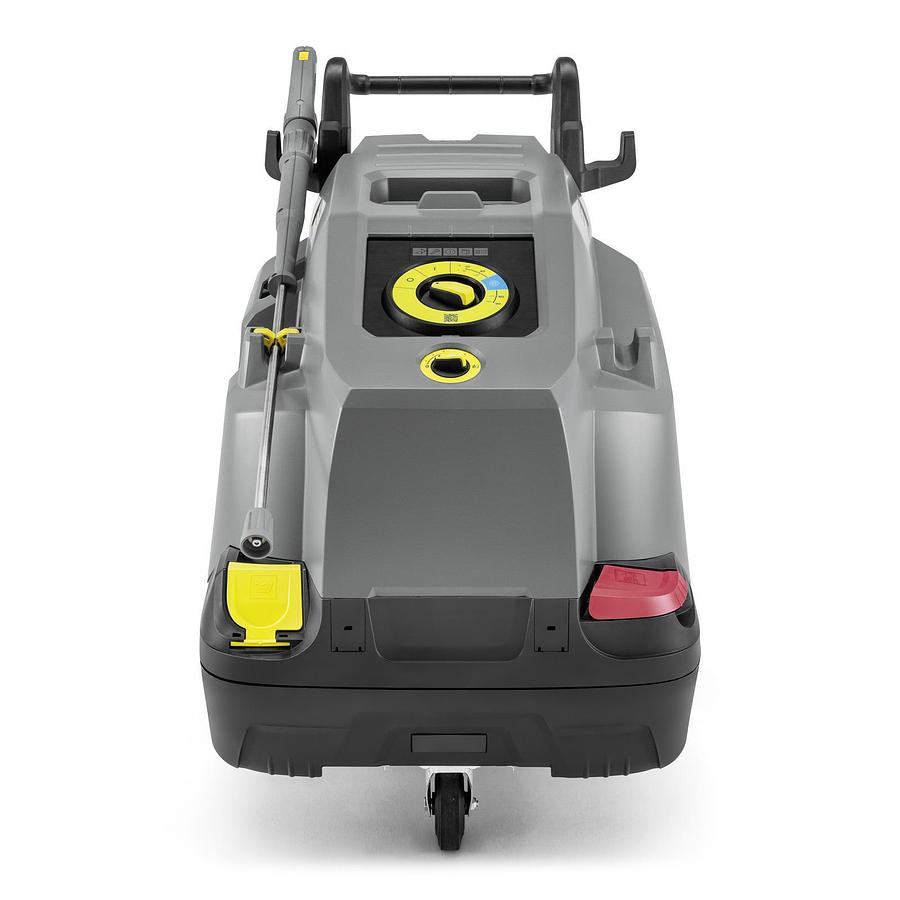

High-pressure cleaner HDS 7/16 C

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)3
Voltage (V)400
Frequency (Hz)50
Flow rate (l/h)310 - 660
Working pressure (bar/MPa)30 - 160 / 3 - 16
Max. pressure (bar)220
Temperature (for supply 12 °C) (°C)max. 80
Connected load (kW)4,4
Consumption of fuel oil at full load (kg/h)3,6
Consumption of heating oil in eco!efficiency mode (g/h)2,9
Power cable (m)5
Nozzle size040
Fuel tank (l)15
Weight (with accessories) (kg)111,4
Weight incl. packaging (kg)120
Dimensions (L × W × H) (mm)1066 x 650 x 920

Description

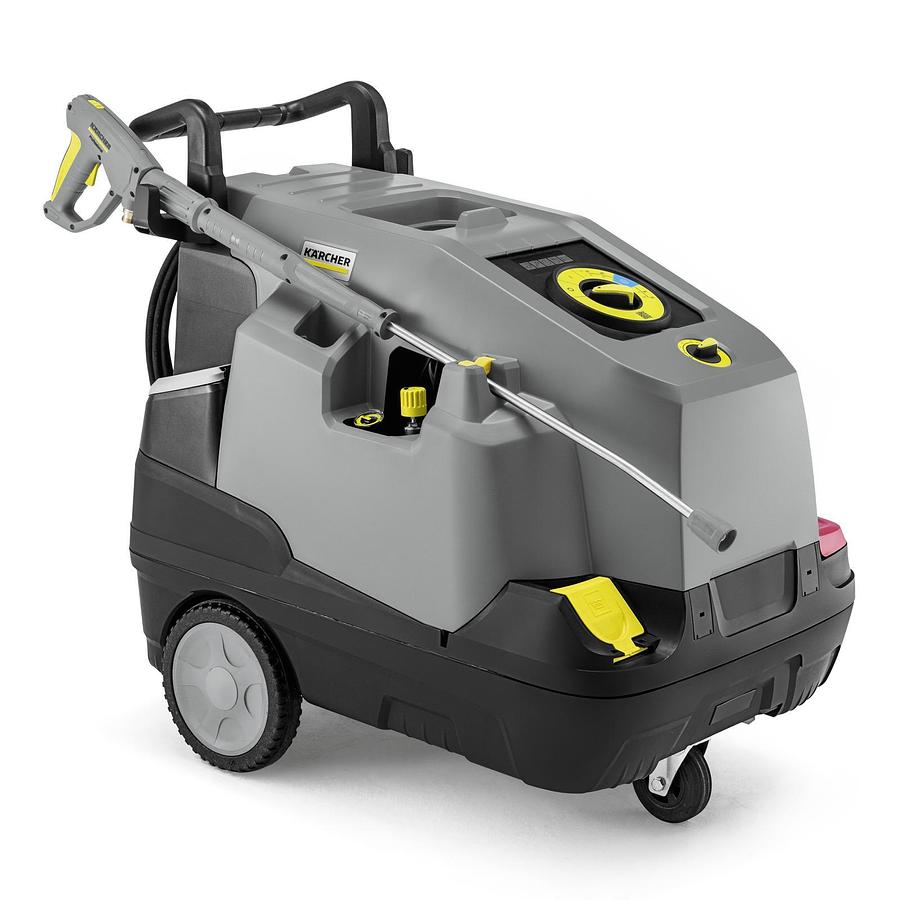

Powerful HDS 7/16 C 3-phase hot water high-pressure cleaner in the compact class with Eco!Mode, intuitive single-button operation and EASY!Force Advanced high-pressure gun.

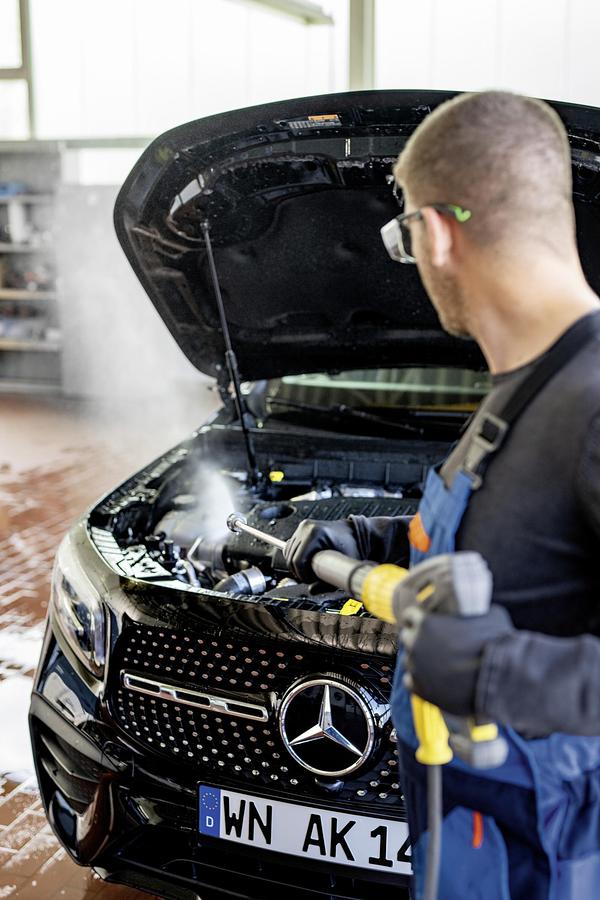

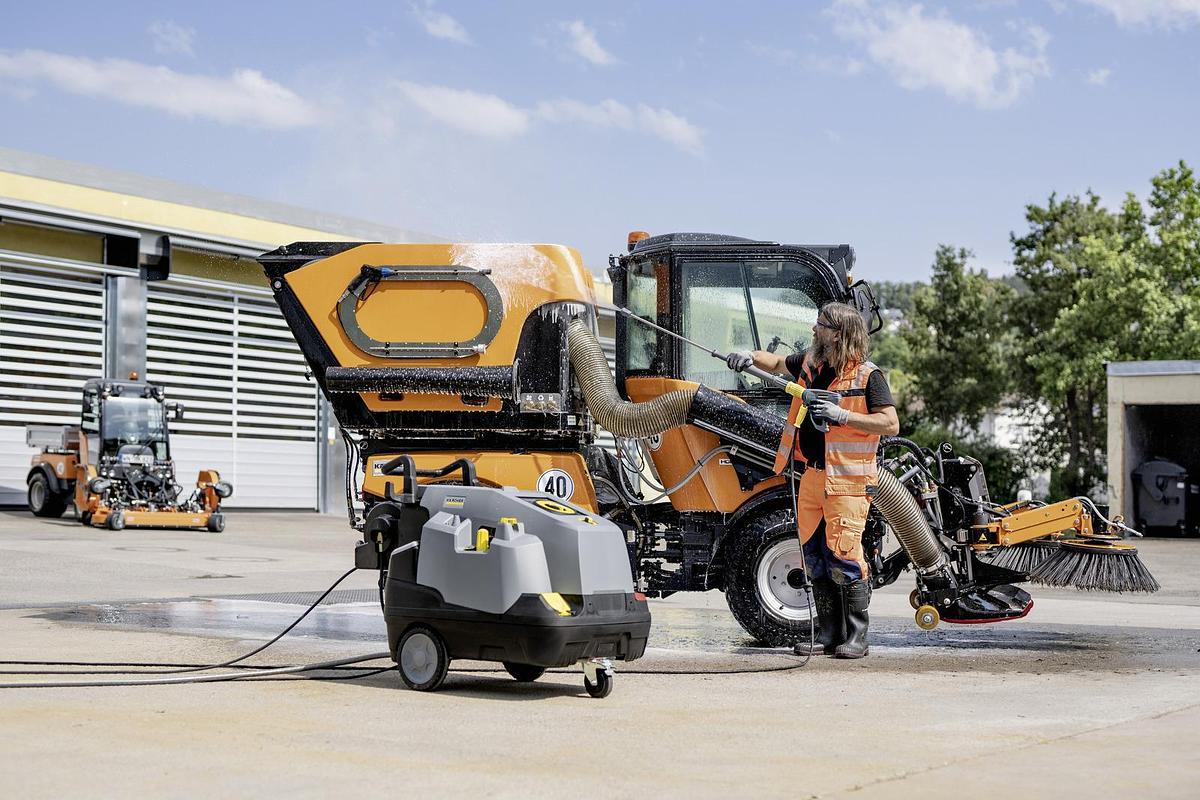

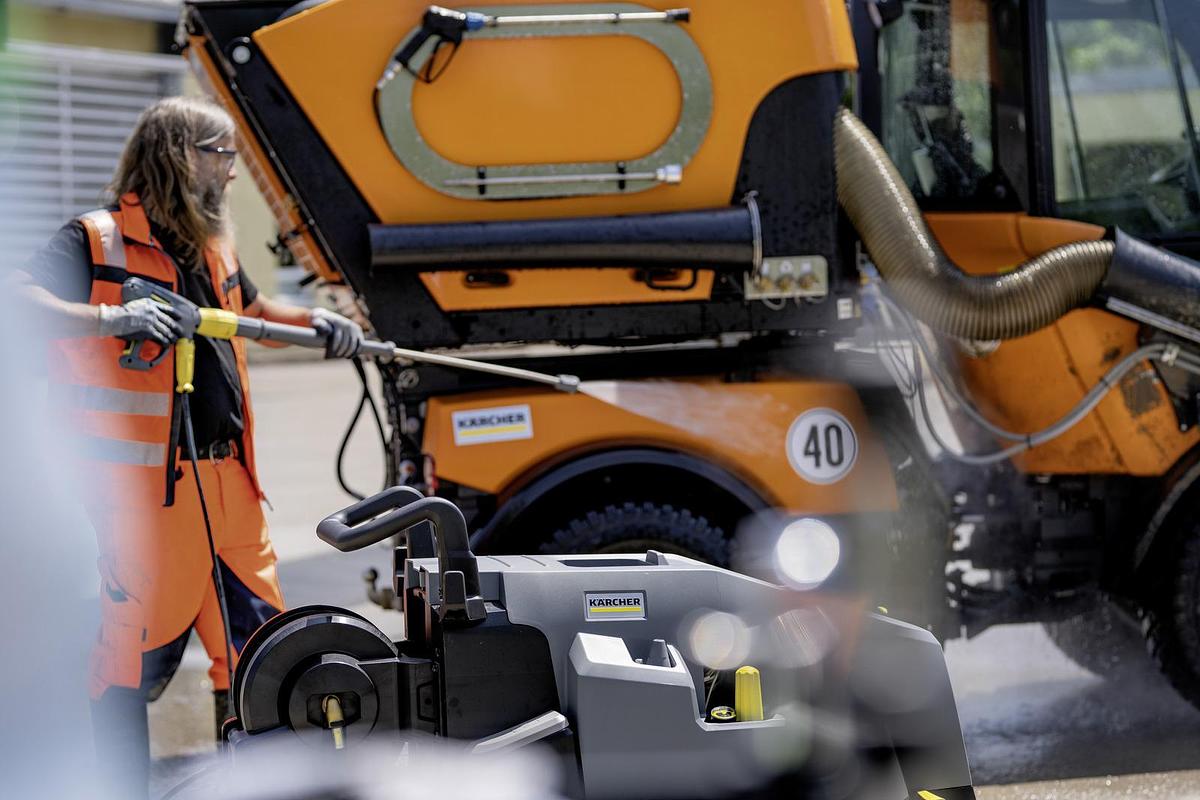

Powerful 3-phase hot water high-pressure cleaner in the compact class: the HDS 7/16 C with a powerful air-cooled motor with Eco!Mode. A robust axial pump with three ceramic pistons builds up high pressure. The EASY!Force Advanced high-pressure gun with patented nozzle technology and EASY!Lock quick-release fasteners make for ergonomic work. The Soft Damping System (SDS) reduces vibrations. The hot water technology effectively breaks up even lubricants and reduces the use of detergents, which are precisely dosed from a 15.5-litre tank. The pressure and water flow can be adjusted depending on the task. The maintenance-friendly HDS 7/16 C is designed for daily use under hard conditions. The descaling option, a water filter and a safety valve protect the technology. A robust chassis protects against impacts, while large wheels and a steering roller/castor offer high manoeuvrability. There are integrated storage possibilities for accessories. When Eco!Mode is activated, the high-pressure cleaner automatically switches to particularly economical 60 °C operation, which is completely sufficient for most cleaning tasks and at the same time brings at least 20% fuel savings compared to maximum hot water operation at 90 °C.

Features and benefits

Highly cost-effective

  • eco!efficiency mode – economical and environmentally friendly, even during longer periods of use.
  • Reduces fuel consumption and CO₂ emissions by 20%.

    • Wide-ranging accessories with EASY!Lock

  • EASY!Force Advanced for fatigue-free work without any holding force.
  • Rotating 1050 mm stainless steel lance.
  • Patented Kärcher power nozzle can offer up to 40 per cent more impact force than conventional nozzles.

    • Operational safety

  • Easy-to-access water filter protects the pump against dirt particles in the water.
  • Safety valves, water shortage and fuel protection ensure the availability of the machine.

    • Reliability

  • Water softening system to protect the heating coil against calcification damage.
  • The Soft Damping System (SDS) compensates for vibrations and pressure peaks in the high-pressure system.

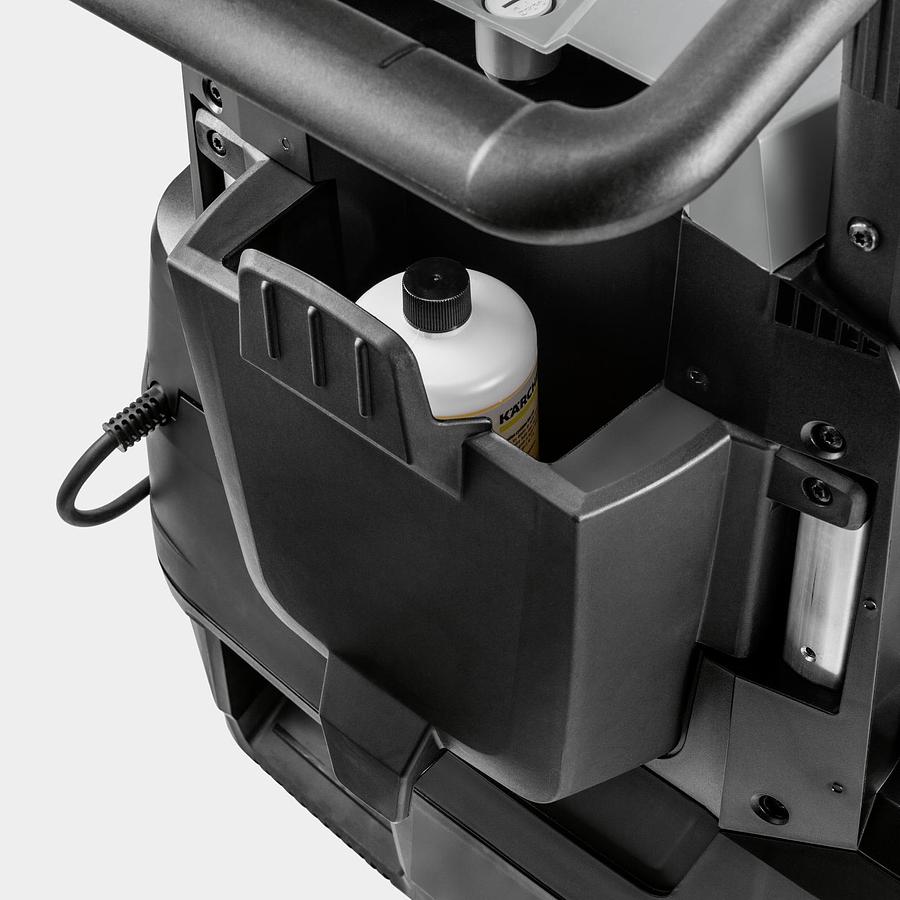

    • Multiple storage spaces for accessories integrated into the machine

  • Storage hooks for power cable and high-pressure hose.
  • Integrated nozzle storage.
  • Integrated lance holder for transport.

    • Detergent dosing unit

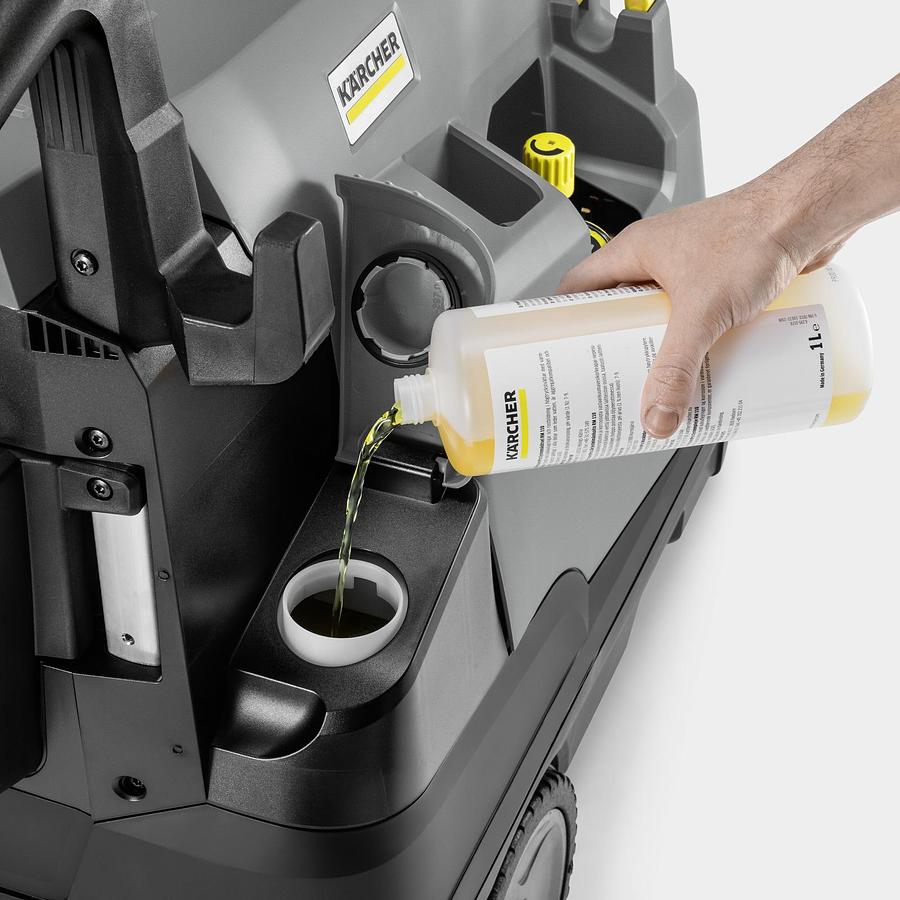

  • Precise detergent dosing unit with rinse function.
  • Large tank opening with filling chute.

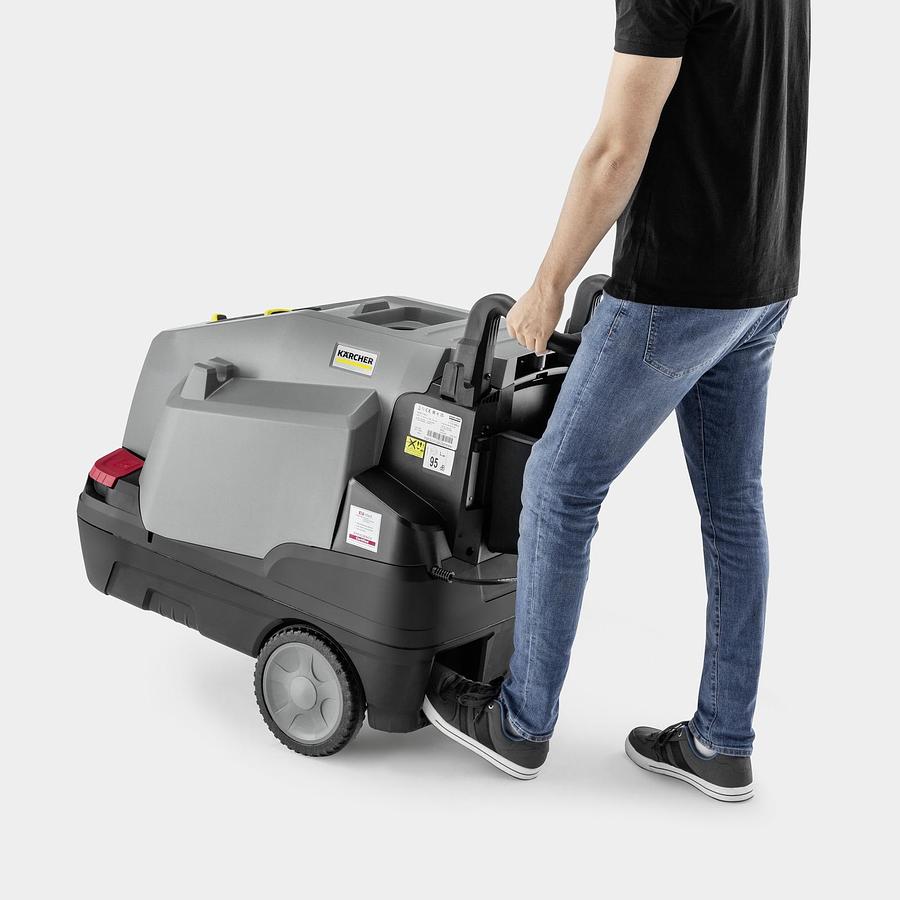

    • Mobility concept

  • "Jogger" design with large rubber wheels and steering roller.
  • Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
  • Push handles for simple transport and manoeuvrability.

    • Easy to use controls

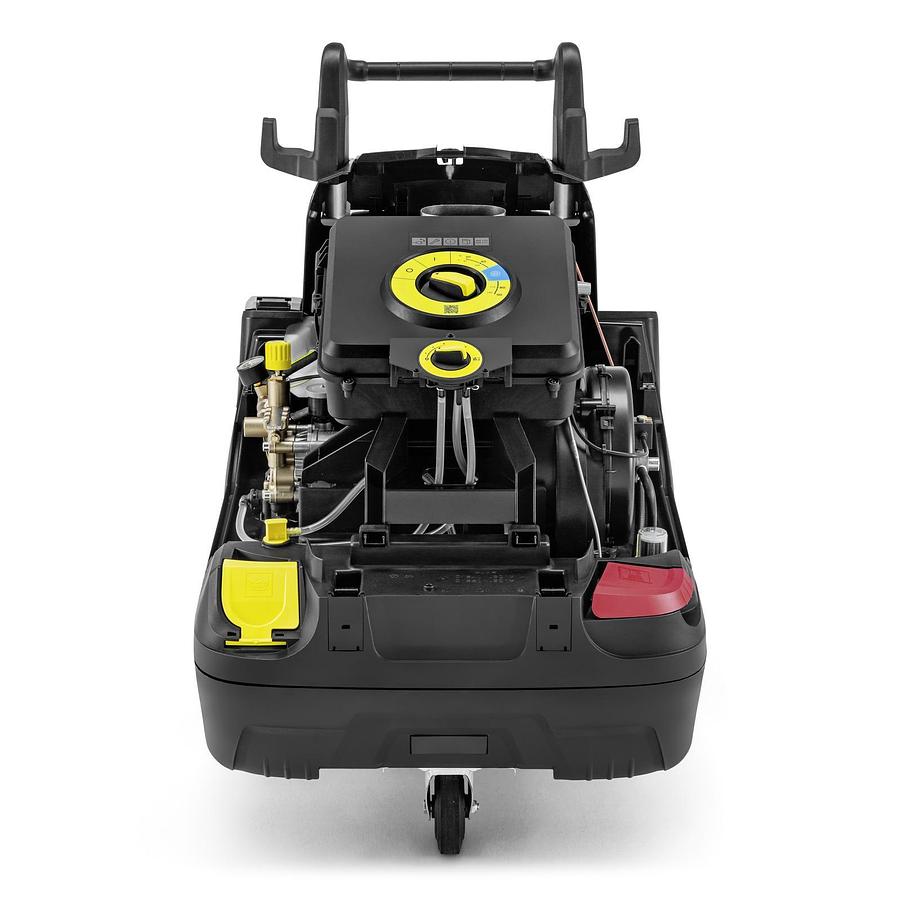

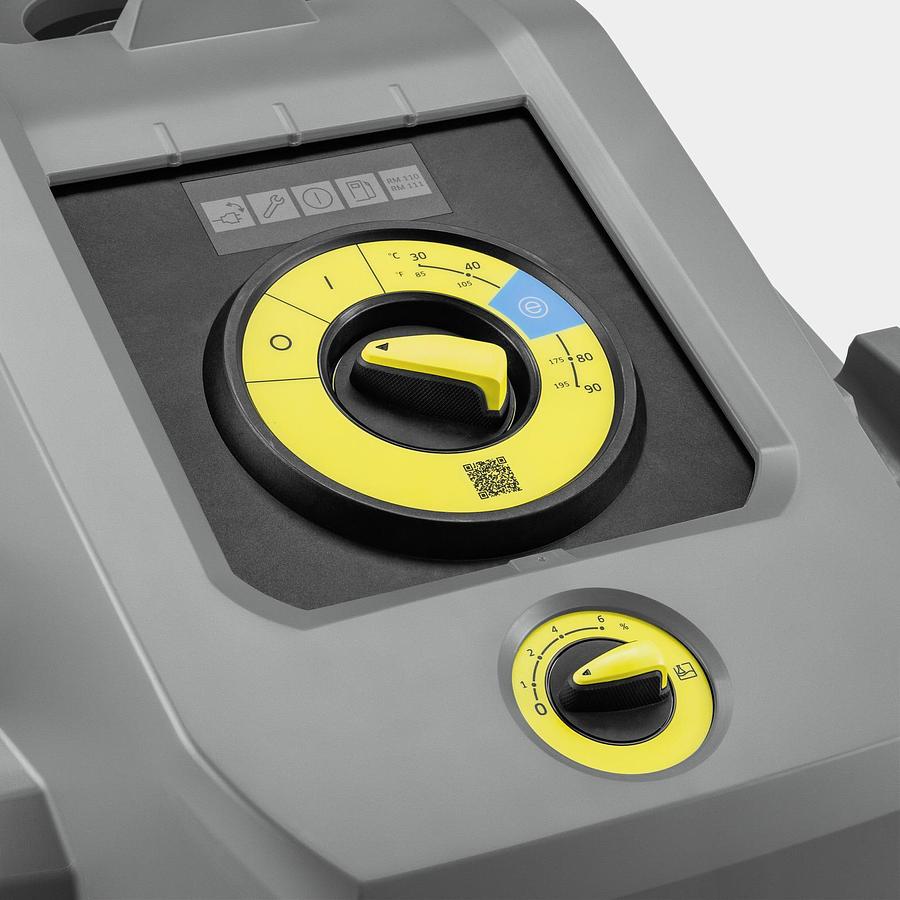

  • Intuitive operation thanks to the large single-button selector switch.

    • Scope of supply

  • Spray gun: EASY!Force Advanced
  • Spray lance: 1050 mm
  • Power nozzle

    • Equipment

  • High-pressure hose length: 10 m
  • Soft Damping System (SDS)
  • Pressure cut-off
  • Integrated fuel and detergent tank
    • Show All
