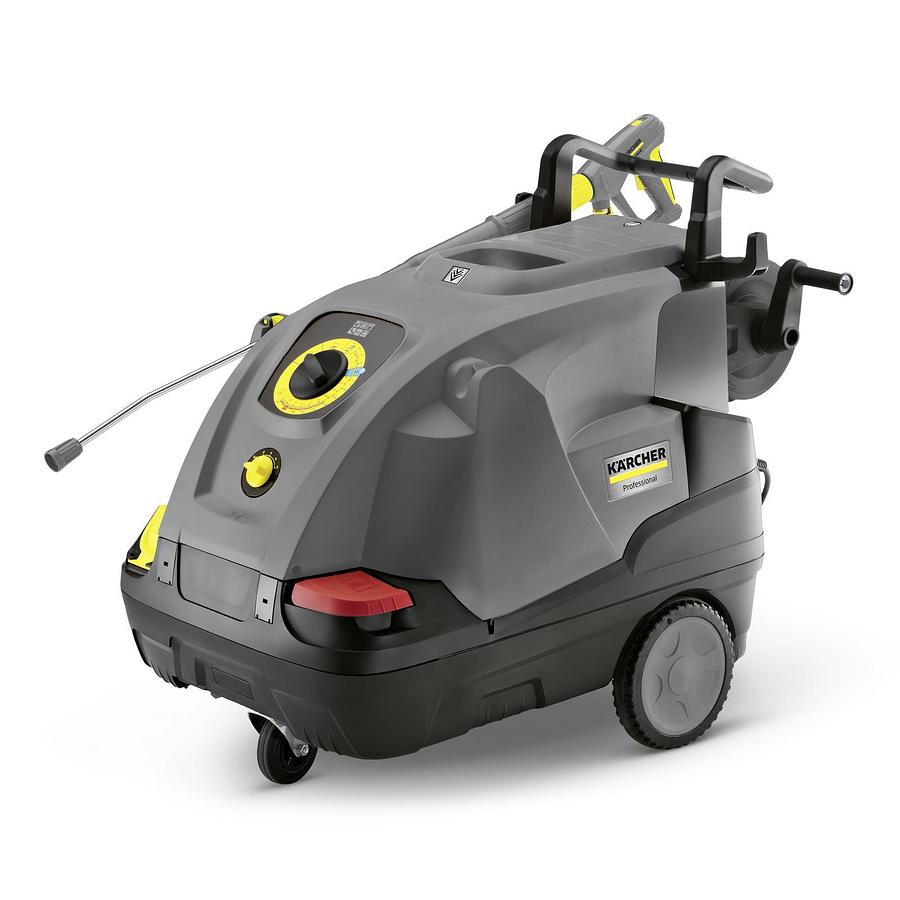

High-pressure cleaner HDS 7/16 CX
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 270 - 660 |
| Working pressure (bar/MPa) | 30 - 160 / 3 - 16 |
| Temperature (for supply 12 °C) (°C) | max. 80 |
| Connected load (kW) | 4,7 |
| Consumption of fuel oil at full load (kg/h) | 4,1 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 3,3 |
| Power cable (m) | 5 |
| Fuel tank (l) | 15 |
| Weight (with accessories) (kg) | 111 |
| Weight incl. packaging (kg) | 119,8 |
| Dimensions (L × W × H) (mm) | 1215 x 650 x 920 |
Description
The 3-phase hot water high-pressure cleaner HDS 7/16 CX in the compact class with economical eco!efficiency mode and integrated hose reel with 15 metre high-pressure hose.
The powerful 3-phase HDS 7/16 CX from the HDS compact class has an integrated hose reel including 15 metre high-pressure hose. In addition, the hot water high-pressure cleaner has a clever single-button operation as well as large wheels and a steering roller/castor which make handling and transport very easy for the user. Superior equipment and the extremely efficient and environment-friendly operation thanks to eco!efficiency mode characterise this machine. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. Tanks for cleaning agent and fuel are protected in the hard-wearing chassis that also permits tougher applications. Accessories, nozzles and tools can be easily stowed in the practical storage compartments.
Features and benefits
Economic efficiency
mode – economical and environmentally friendly, even during longer periods of use.Reduces fuel consumption and CO₂ emissions by 20%.Precise detergent dosing unit with rinse function.User-friendliness
Intuitive operation thanks to the large single-button selector switch.Large tank opening with filling chute.System care bottle can be changed from the outside for added convenience.Storage
Lockable accessory compartment for nozzles, tools, etc.Integrated hose reel with 15 m pressure hose. For a large operating radius and effortless stowage (CX versions).Integrated lance holder for transport.Reliability
Portability
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners
Scope of supply
Equipment
