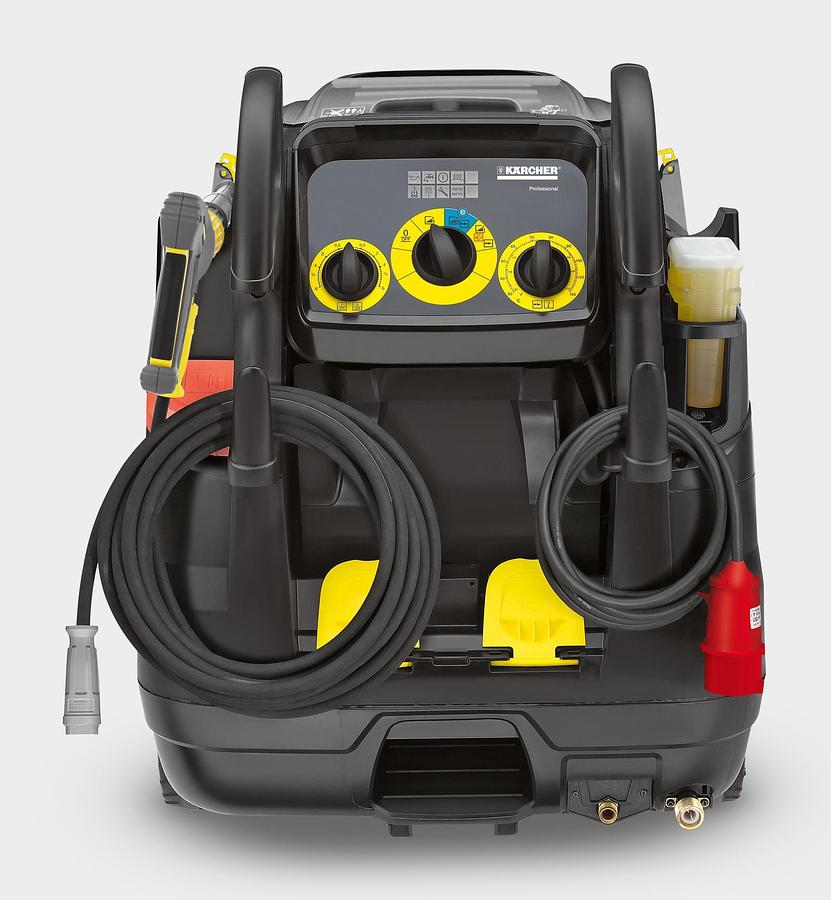

High-pressure cleaner HDS 7/12-4 MX
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 1 |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 350 - 700 |
| Working pressure (bar/MPa) | 30 - 120 / 3 - 12 |
| Temperature (for supply 12 °C) (°C) | min. 80 - max. 155 |
| Connected load (kW) | 3,4 |
| Consumption of fuel oil at full load (kg/h) | 4,6 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 3,7 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 161,5 |
| Weight incl. packaging (kg) | 173,5 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
Description
The HDS 7/12-4 MX from Kärcher with electric motor, two cleaning agent tanks and built-in hose reel is the ideal entry-level machine in the Middle class of hot water high-pressure cleaners.
Efficient, economical, user-friendly: the HDS 7/12-4 MX from Kärcher is a single-phase, heated, entry-level high-pressure cleaner in the Middle class. The hot water high-pressure cleaner is fitted with a 4-pole electric motor (240 V) and offers not only extensive equipment but an ideal balance between outstanding cleaning results and maximum environmental protection. This is ensured on the one hand by the patented nozzle technology, ceramic pistons, turbo blower and increased pump efficiency, and on the other by the unique eco!efficiency mode, precise cleaning agent dosing unit and optimised burner engineering. The machine also offers maximum user-friendliness for you as the operator: the in-built hose reel with 20-metre pressure hose, intuitive control panel, LED displays and sophisticated mobility concept simplify operation, handling and transport of the machine. And you will not haveto make any compromises when it comes to servicing and maintenance, as all of the components required for maintenance are easily accessible, and operating data can be retrieved at any time using the service switch.
Features and benefits
Economic efficiency
In Eco!Mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.Maximum performance
Proven and highly efficient burner technology.4-pole, slow-running electric motor guarantees a long working time.Operational safety
The large, integrated water fine filter reliably protects the high-pressure pump against small dirt particles.The integrated exhaust gas thermostat switches off the drive motor if the emission temperature exceeds 300 °C.The Soft Damping System (SDS) compensates for vibrations and pressure peaks in the high-pressure system.Storage
Mobility concept
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners
Scope of supply
Equipment
