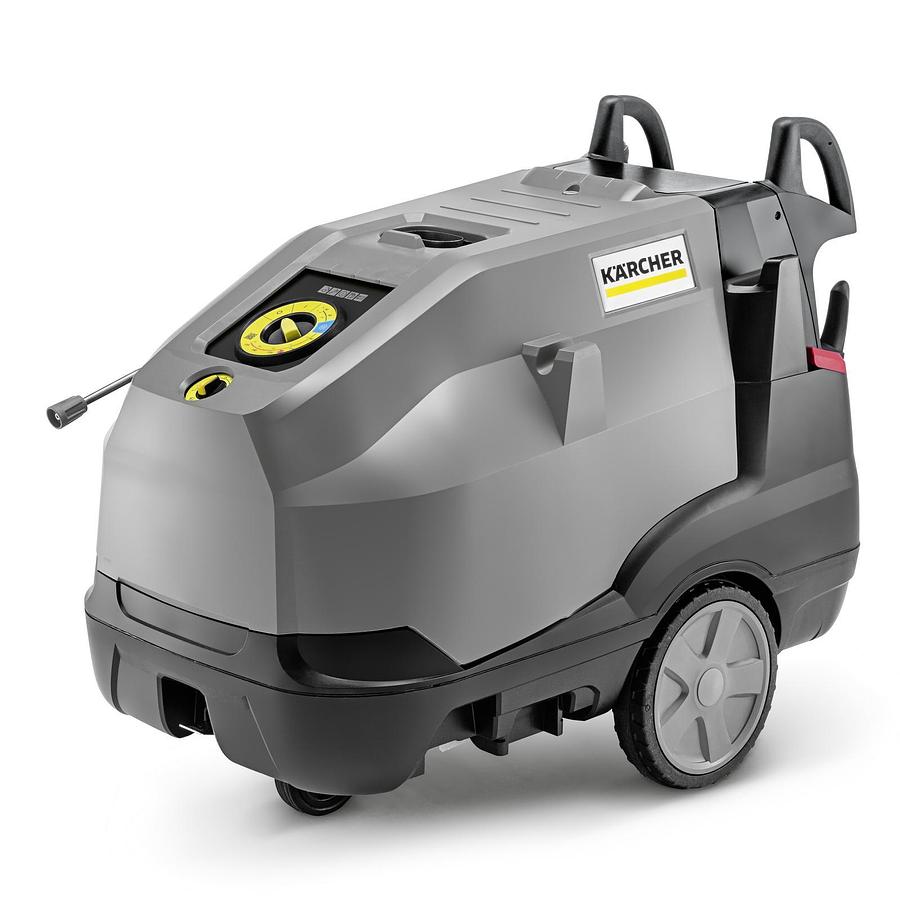

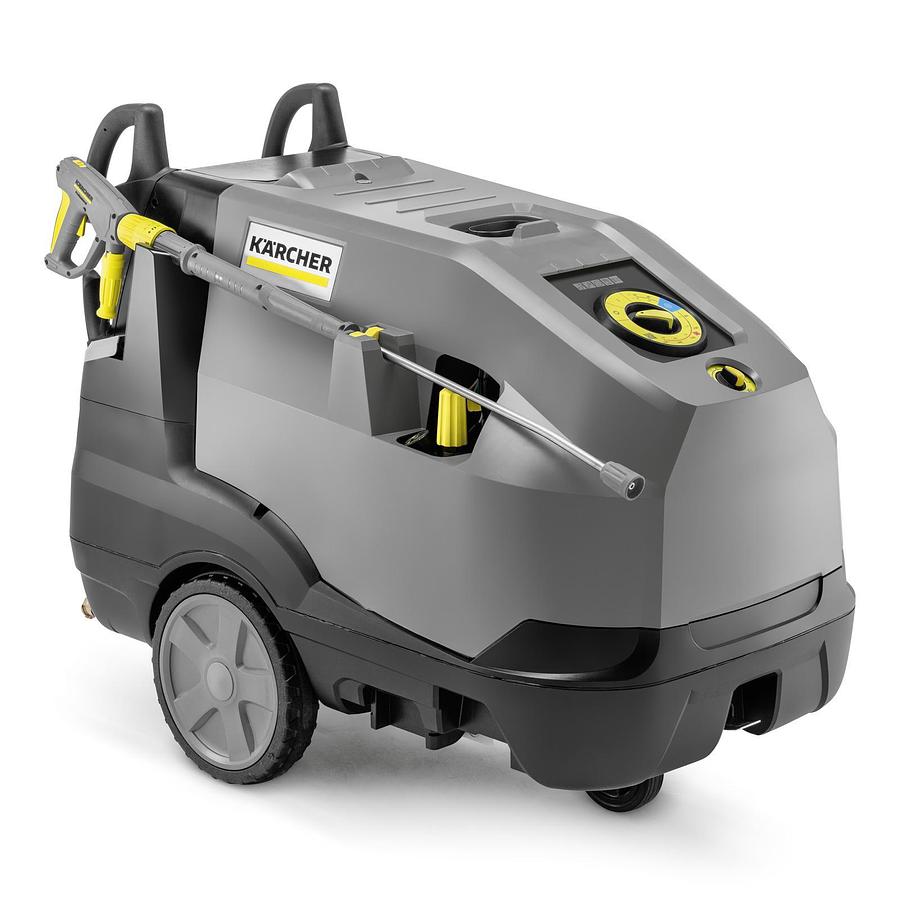

High-pressure cleaner HDS 10/21-4 M
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 500 - 1000 |
| Working pressure (bar/MPa) | 30 - 210 / 3 - 21 |
| Temperature (for supply 12 °C) (°C) | min. 80 - max. 155 |
| Connected load (kW) | 8 |
| Consumption of fuel oil at full load (kg/h) | 7,3 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 5,8 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 160,2 |
| Weight incl. packaging (kg) | 170,1 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
Description

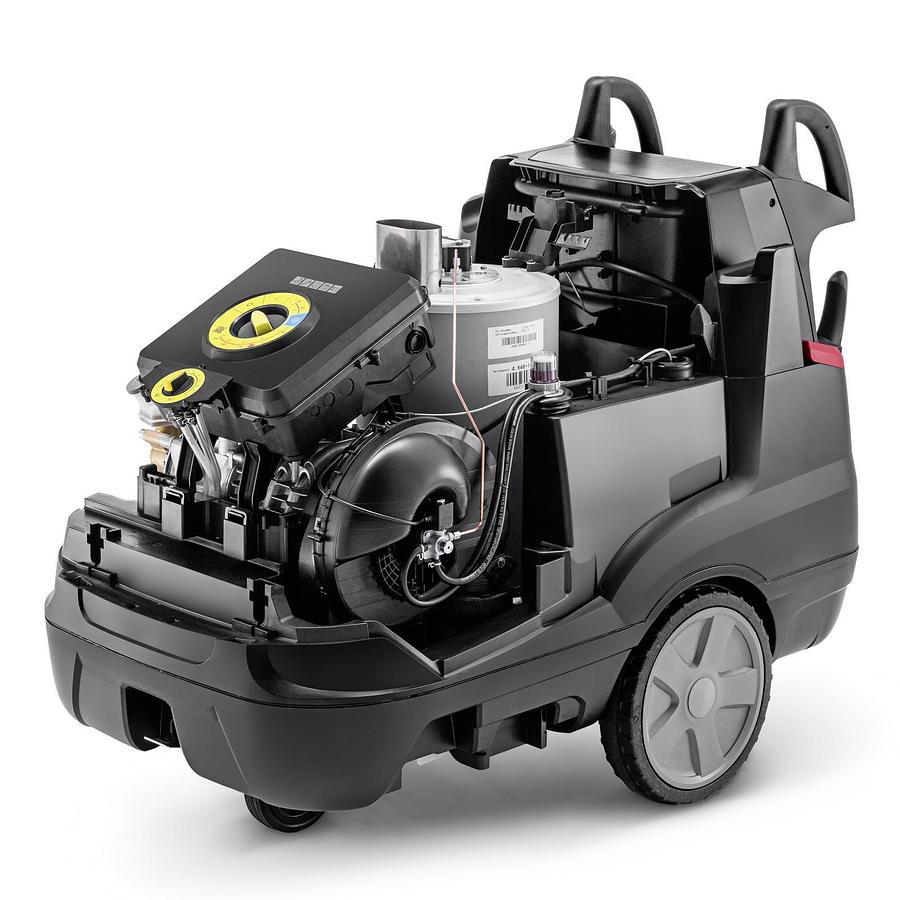

User-friendly, powerful hot water high-pressure cleaner with 4-pole, water-cooled electric motor, Eco!Mode and 2 detergent tanks.
The HDS 10/21-4 M is one of the most powerful hot water high-pressure cleaners in the middle class and also impresses with its sophisticated ergonomics and high level of user-friendliness. Its low-speed, 4-pole and water-cooled electric motor, the robust 3-piston axial pump with ceramic piston and the Eco!Mode simultaneously ensure high performance and reliable, economical operation. When Eco!Mode is activated, the high-pressure cleaner automatically switches to particularly economical 60 °C operation, which is completely sufficient for most cleaning tasks and at the same time reduces fuel consumption by at least 20% compared to maximum hot water operation at 90 °C. The energy-saving EASY!Force Advanced HP trigger gun with servo control and 1050-millimetre-long spray lance with patented nozzle technology as well as the EASY!Lock quick-release fasteners are also included as standard for fatigue-free and time-saving work. Many other equipment and performance details are also impressive, such as the optimised burner engineering, the 2 detergent tanks, the convenient mobility concept, the extensive safety technology, the simple operation with just one switch or the clever accessory storage options.
Features and benefits
Highly cost-effective
In Eco!Mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.Wide-ranging accessories with EASY!Lock
Advanced for fatigue-free work without any holding force.Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.Rotating 1050 mm stainless steel lance.Maximum performance
Burner technology with a minimum output-to-input ratio of 91% – Made in Germany.4-pole electric motor with 3-piston axial pump.Water-cooled motor for a high performance and long service life.Operational safety

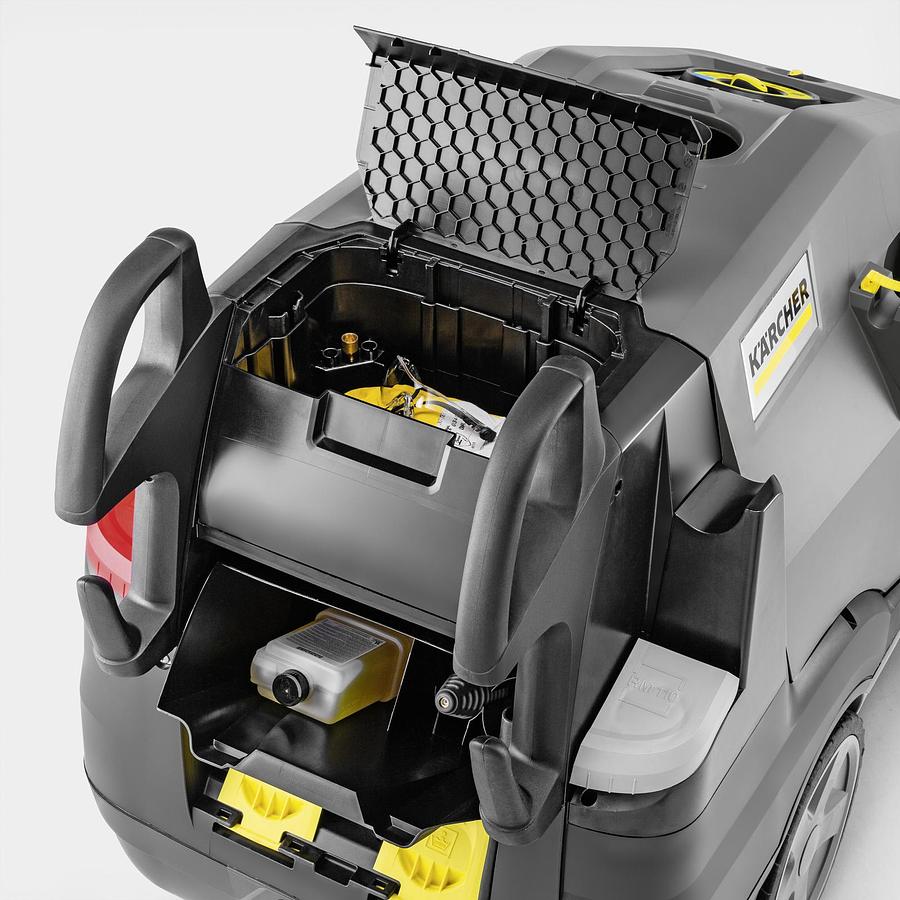

Multiple storage spaces for accessories integrated into the machine

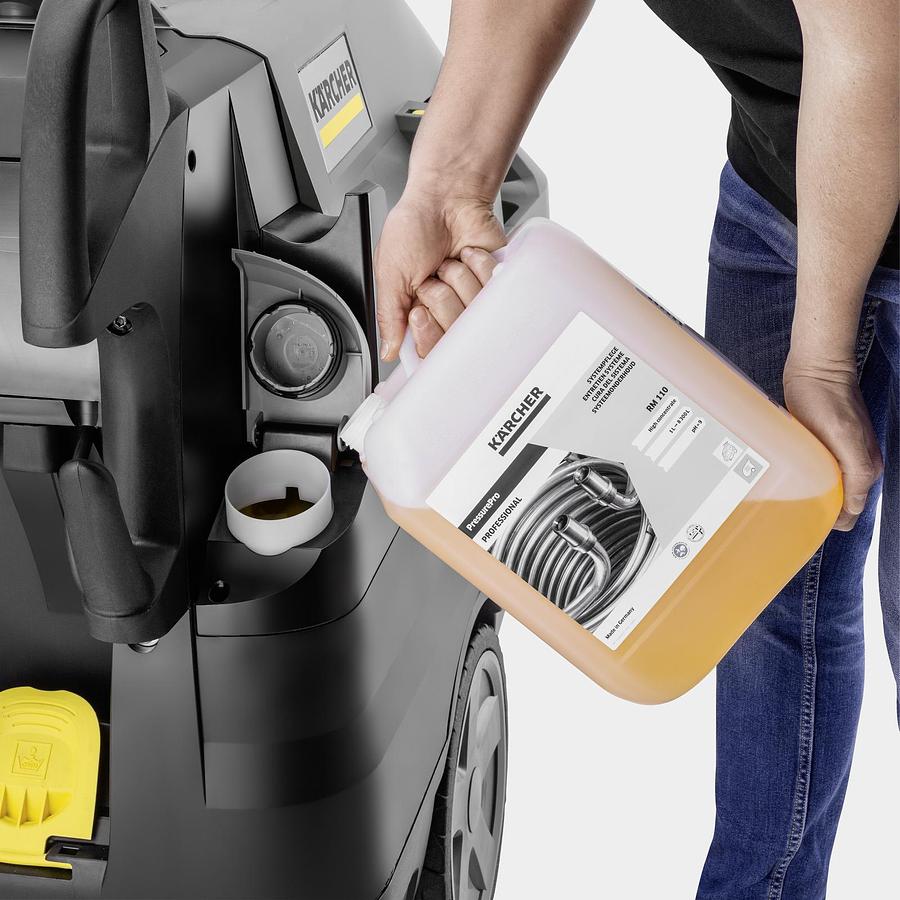

Detergent dosing unit

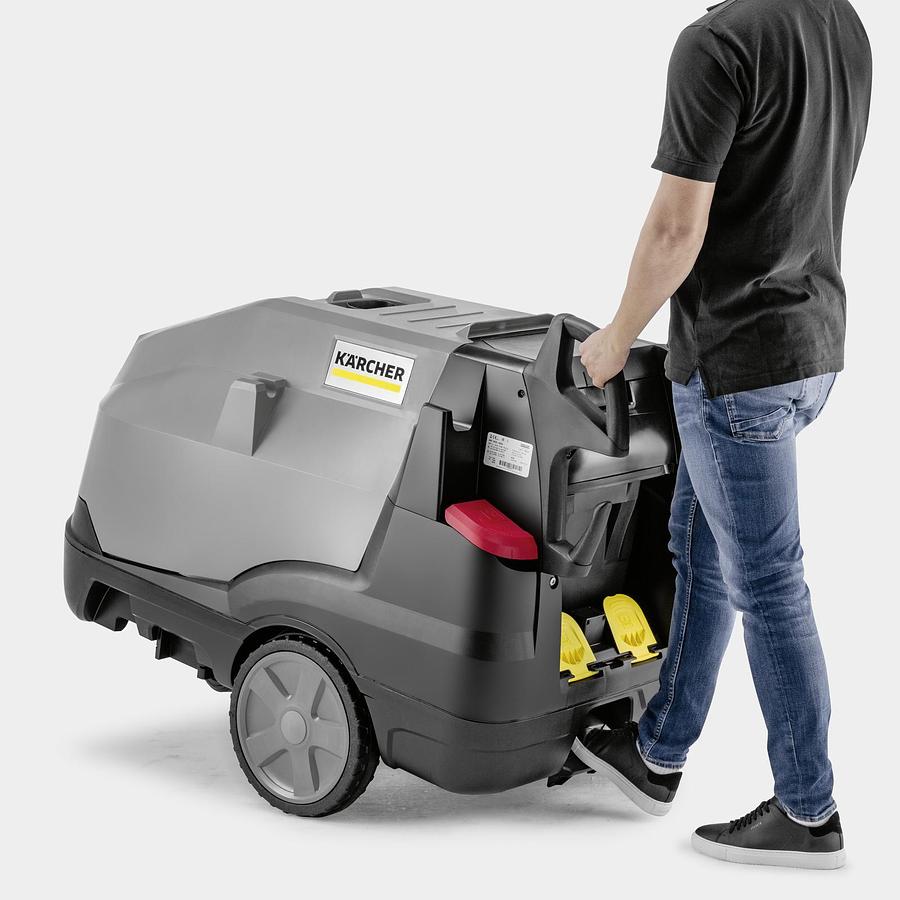

Mobility concept

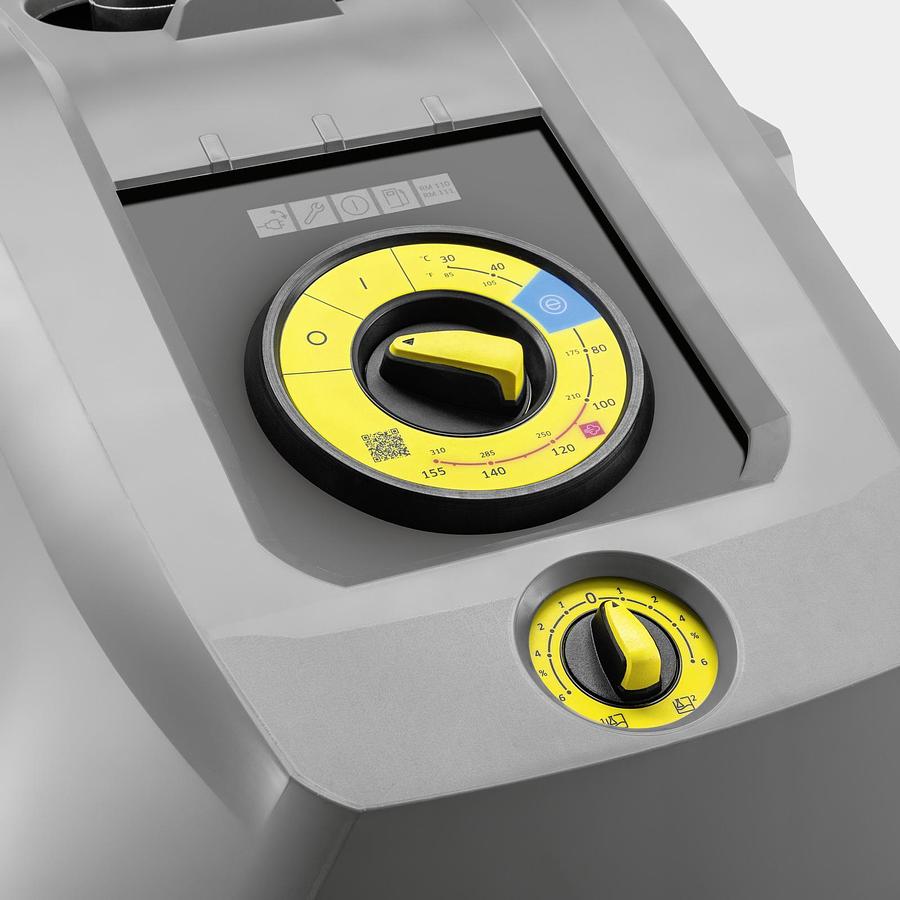

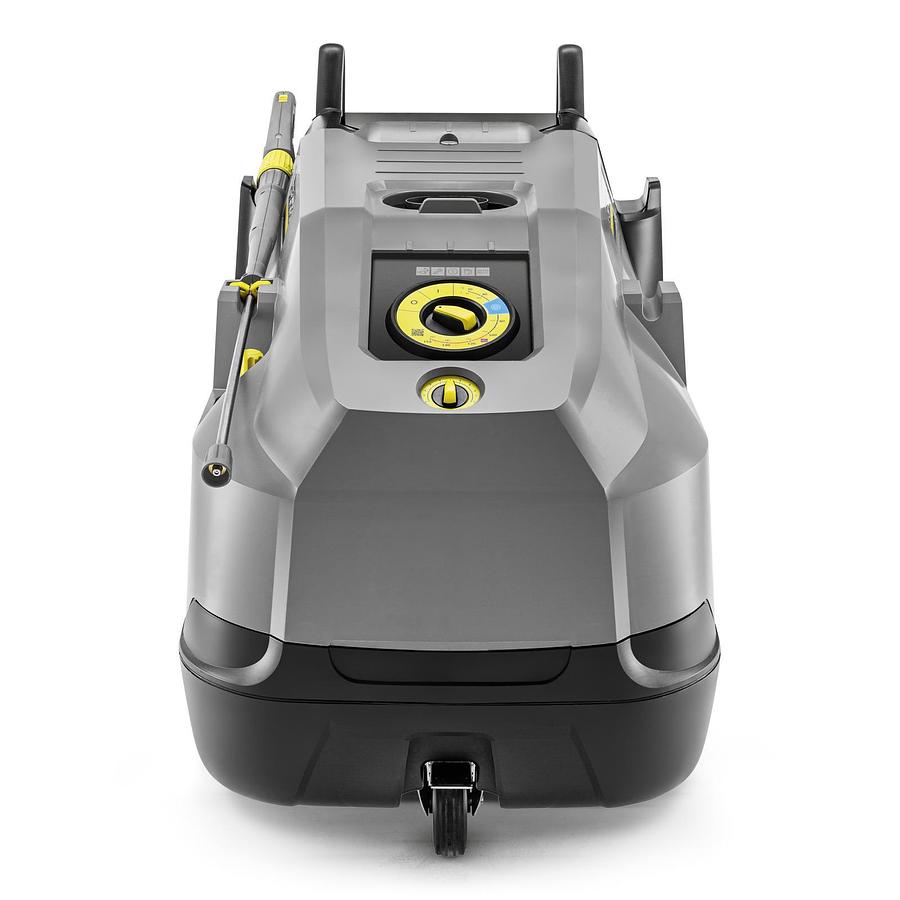

Easy to use controls
Scope of supply
Equipment
