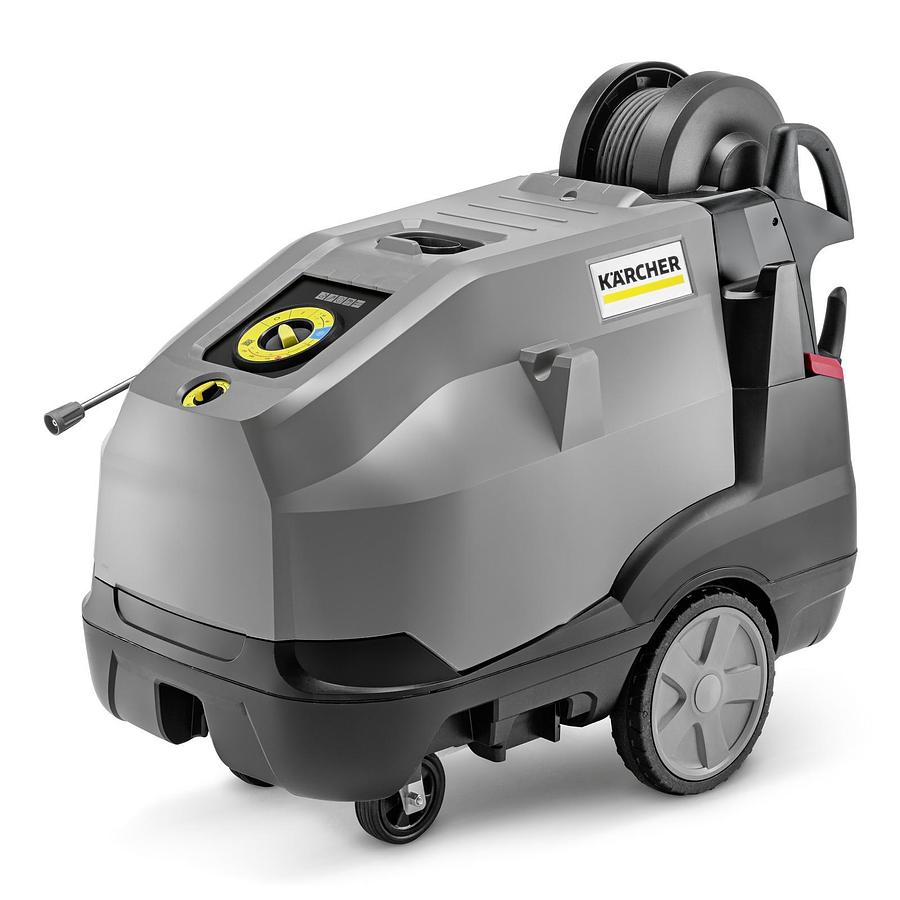

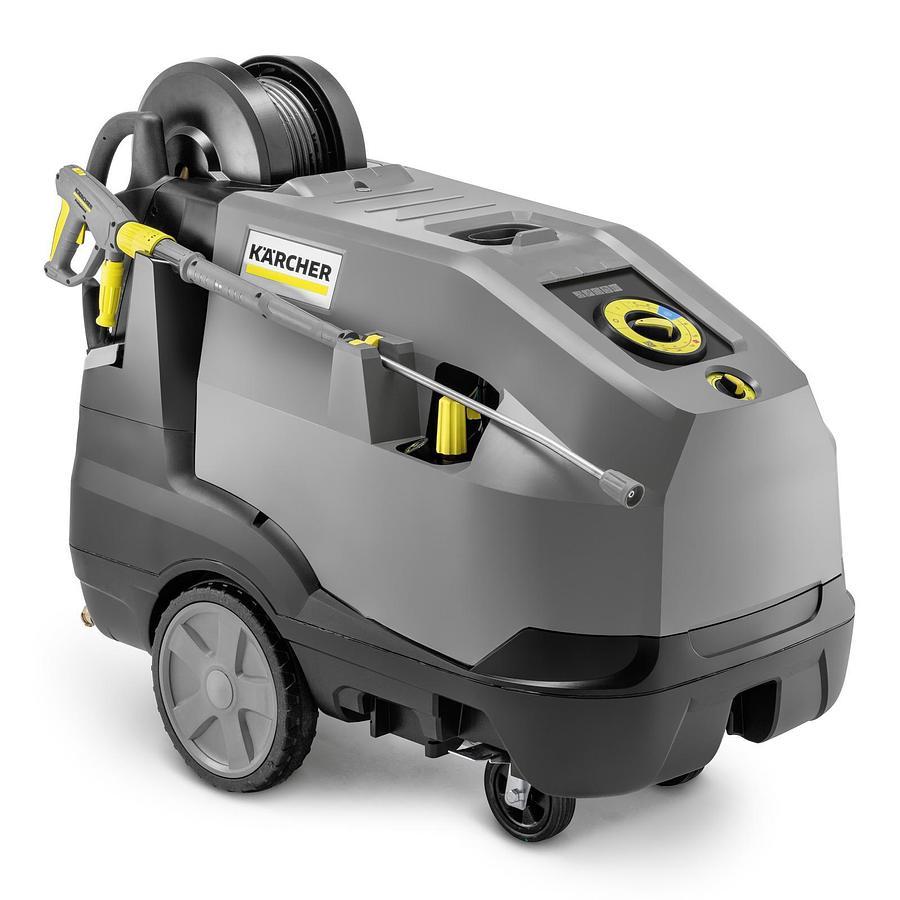

High-pressure cleaner HDS 12/18-4 SXA

The super class hot water high-pressure cleaner scores with its high flow rate and sophisticated equipment features such as the automatic hose reel with 20 m Ultra Guard high-pressure hose.

For up to 50 percent faster set-up times and very ergonomic working: The HDS 12/18-4 SXA hot water high-pressure cleaner from Kärcher's super class has an integrated automatic hose reel including Ultra Guard high-pressure hose. This solution allows the 20-metre-long, Teflon-coated hose to be rolled up and unrolled at an angle of up to 45°. A slow-running, water-cooled, 4-pole electric motor and the robust 3-piston axial pump with ceramic piston ensure reliable and safe operation. In addition, the Eco!Mode and optimised burner engineering ensure high economy. When Eco!Mode is activated, the high-pressure cleaner automatically switches to particularly economical 60 °C operation, which is completely sufficient for most cleaning tasks and at the same time reduces fuel consumption by at least 20% compared to maximum hot water operation at 90 °C. Thanks to intuitive single-button operation and energy-saving EASY!Force Advanced HP trigger gun with 1050 millimetre long spray lance, servo control and patented nozzle technology, the HDS 12/18-4 SXA also offers high user-friendliness. A clever mobility concept, 2 detergent tanks with precise dosing, descaling options, proven safety technology, high ease of maintenance and ergonomic accessory storage complete the machine's comprehensive overall package.

Features and benefits

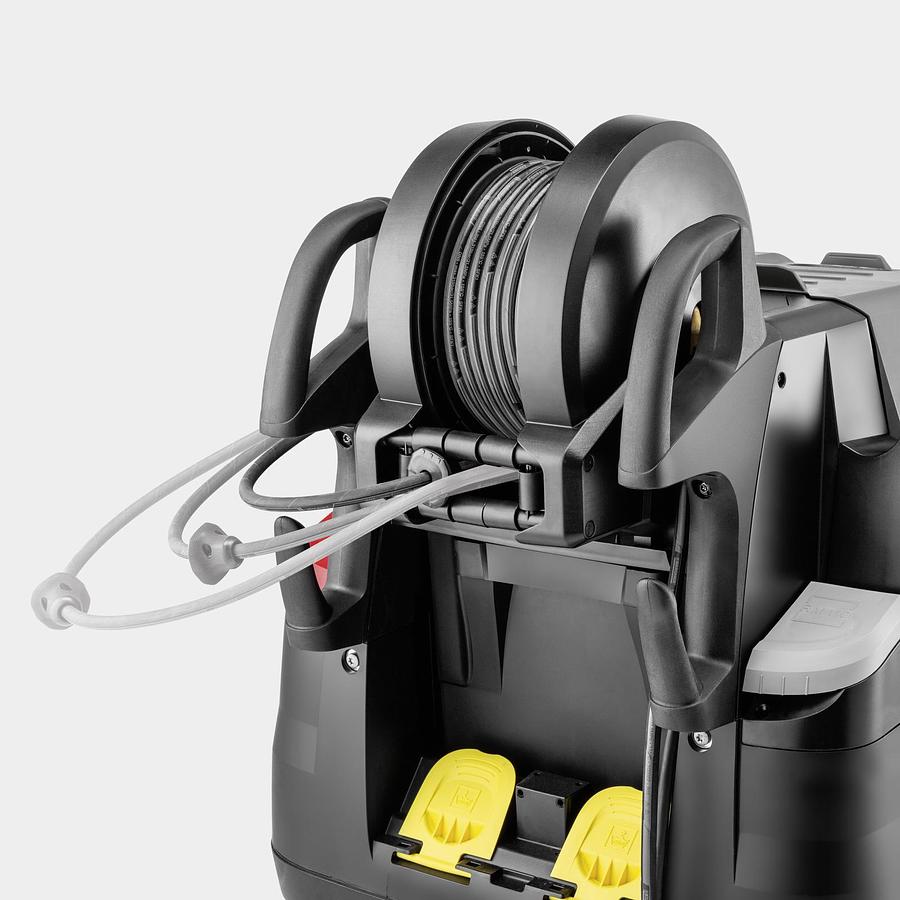

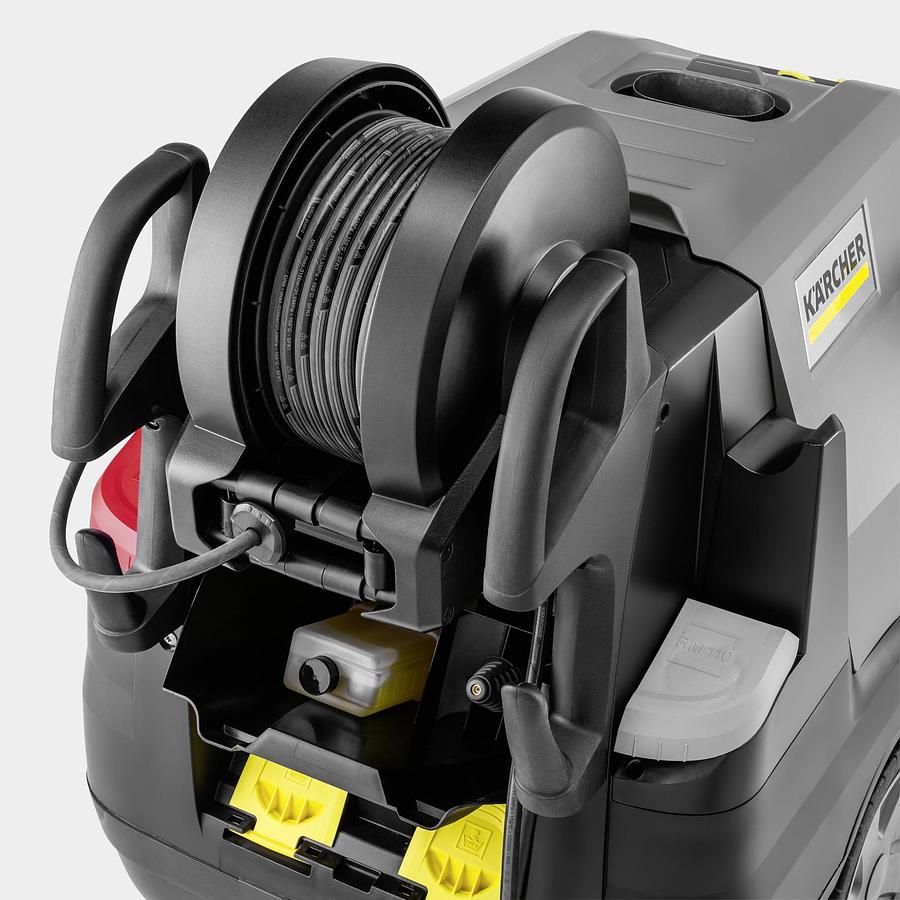

Automatic hose reel

Enables set-up times to be reduced by over 50%. Allows the hose to be wound and unwound at an angle of up to 45°, even under pressure.

Highly cost-effective

In Eco!Mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.

Maximum performance

Burner technology with a minimum output-to-input ratio of 91% – Made in Germany.4-pole electric motor with 3-piston axial pump.Water-cooled motor for a high performance and long service life.

Wide-ranging accessories with EASY!Lock

EASY!Force Advanced for fatigue-free work without any holding force.

Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.

Rotating 1050 mm stainless steel lance.

Operational safety

Easy-to-access water filter protects the pump against dirt particles in the water.

Safety valves, water shortage and fuel protection ensure the availability of the machine.

The Soft Damping System (SDS) compensates for vibrations and pressure peaks in the high-pressure system.

Multiple storage spaces for accessories integrated into the machine

On-board storage for full range of accessories. Includes 2 hooks for suction hose and power cord.

Spacious storage compartment, e.g. for detergents, gloves or tools.

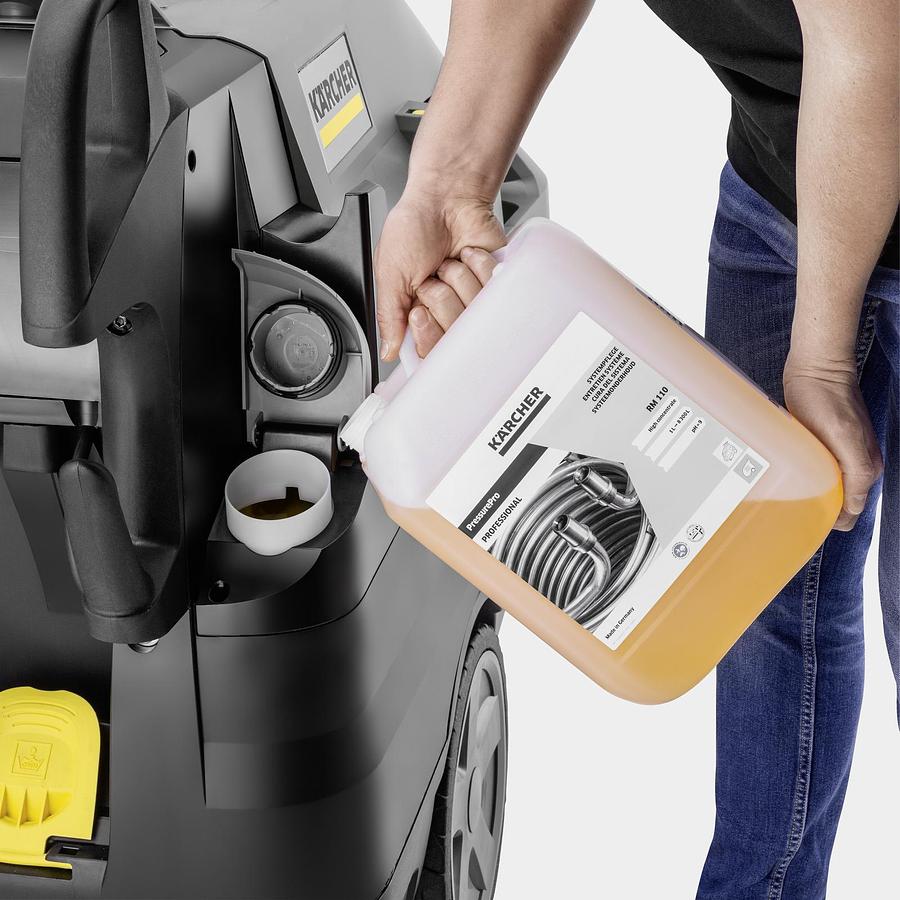

Detergent dosing unit

Easy to switch between detergent tank 1 and 2.

Precise detergent dosing unit with rinse function.

The precise dosing valve ensures low consumption.

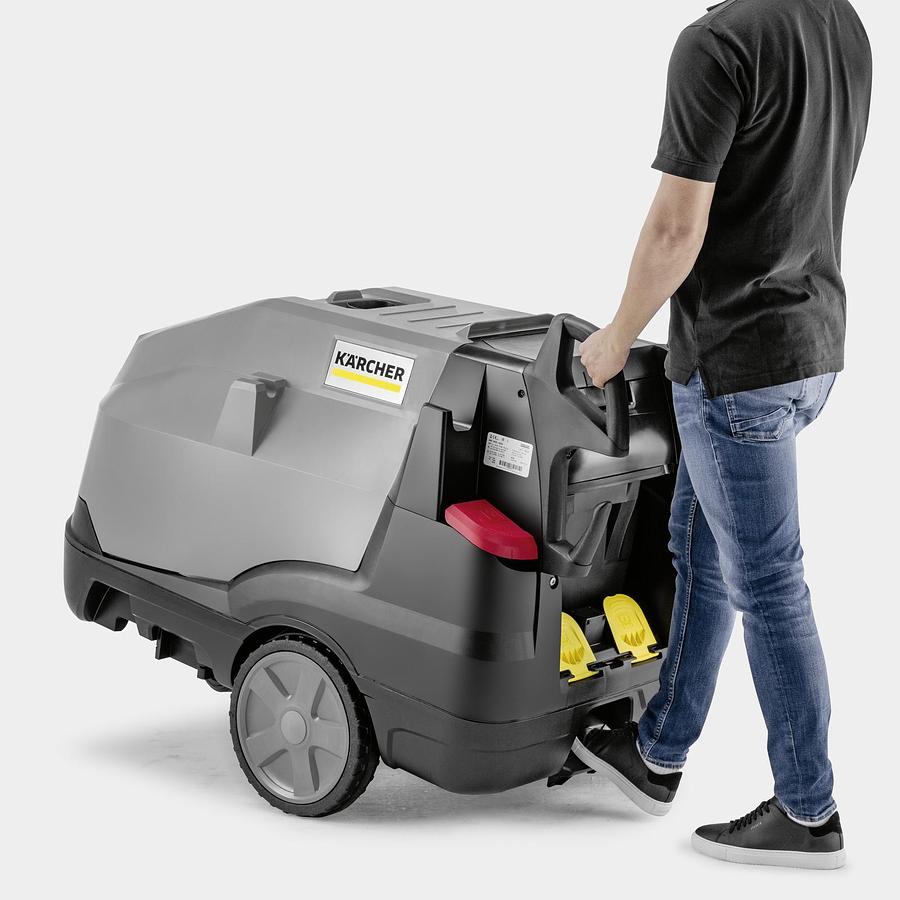

Mobility concept

"Jogger" design with large rubber wheels and steering roller.

Integrated tipping trough for effortless transport over ledges.

Push handles for simple transport and manoeuvrability.

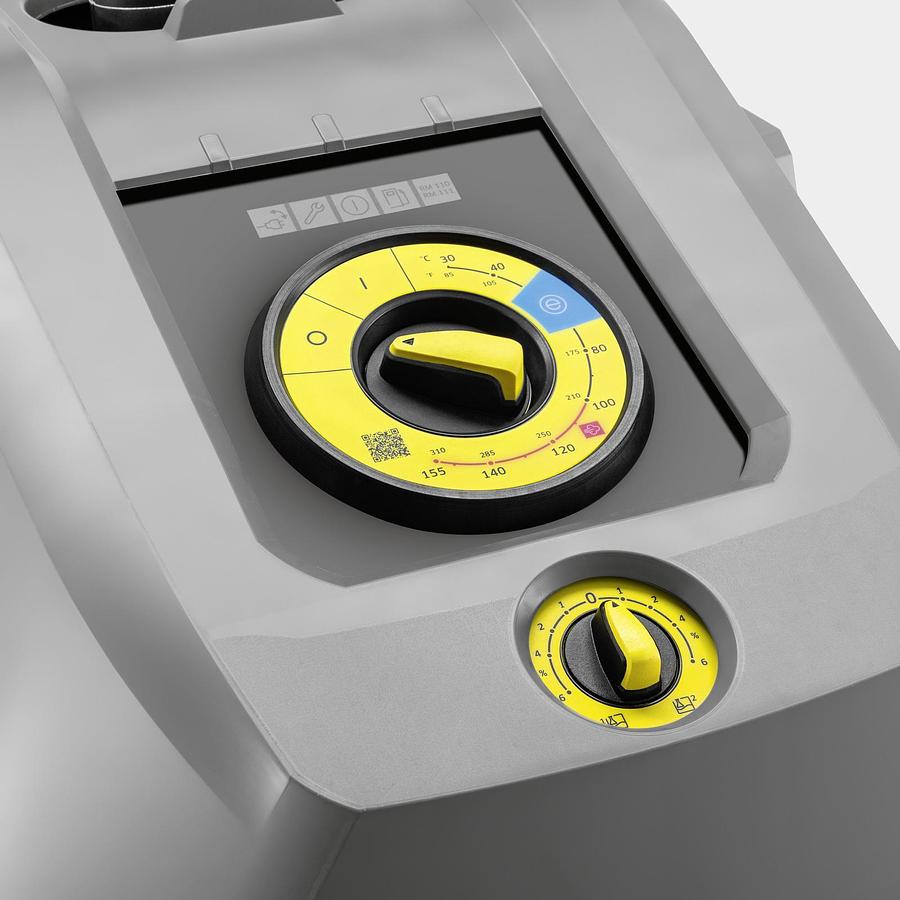

Easy to use controls

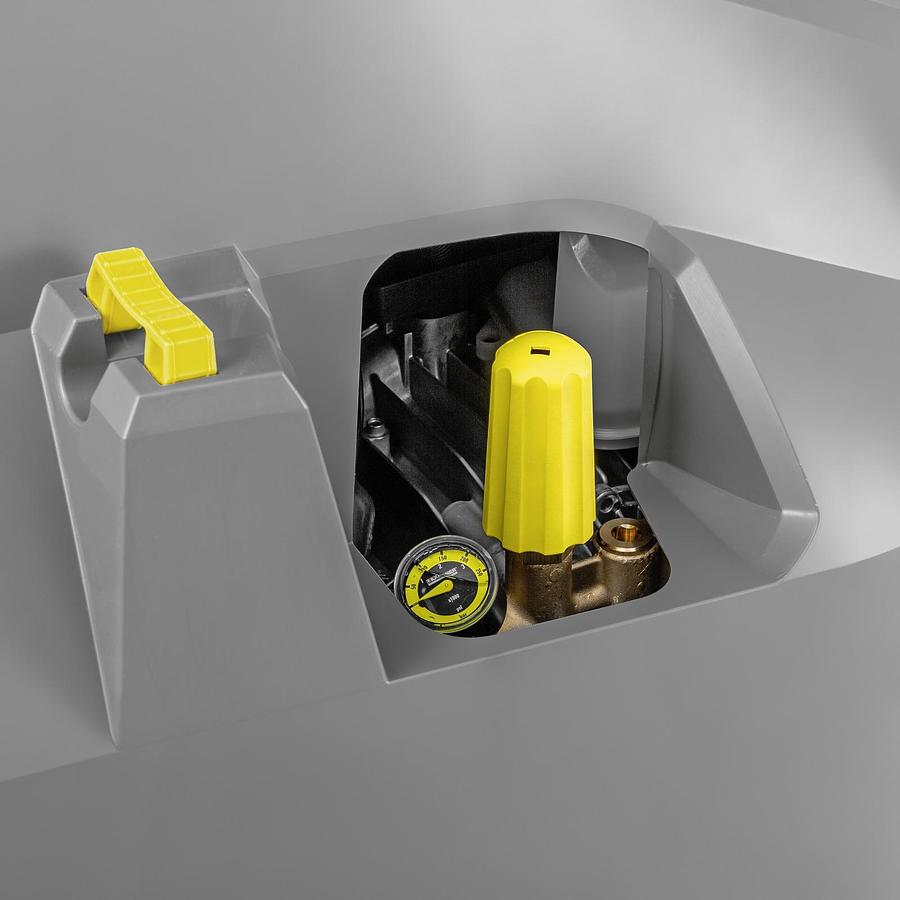

Steam stage can be selected by means of infinitely variable regulation of water pressure/quantity at the pump.

Simple and intuitive 1-button operation.

Scope of supply

Spray gun: EASY!Force Advanced

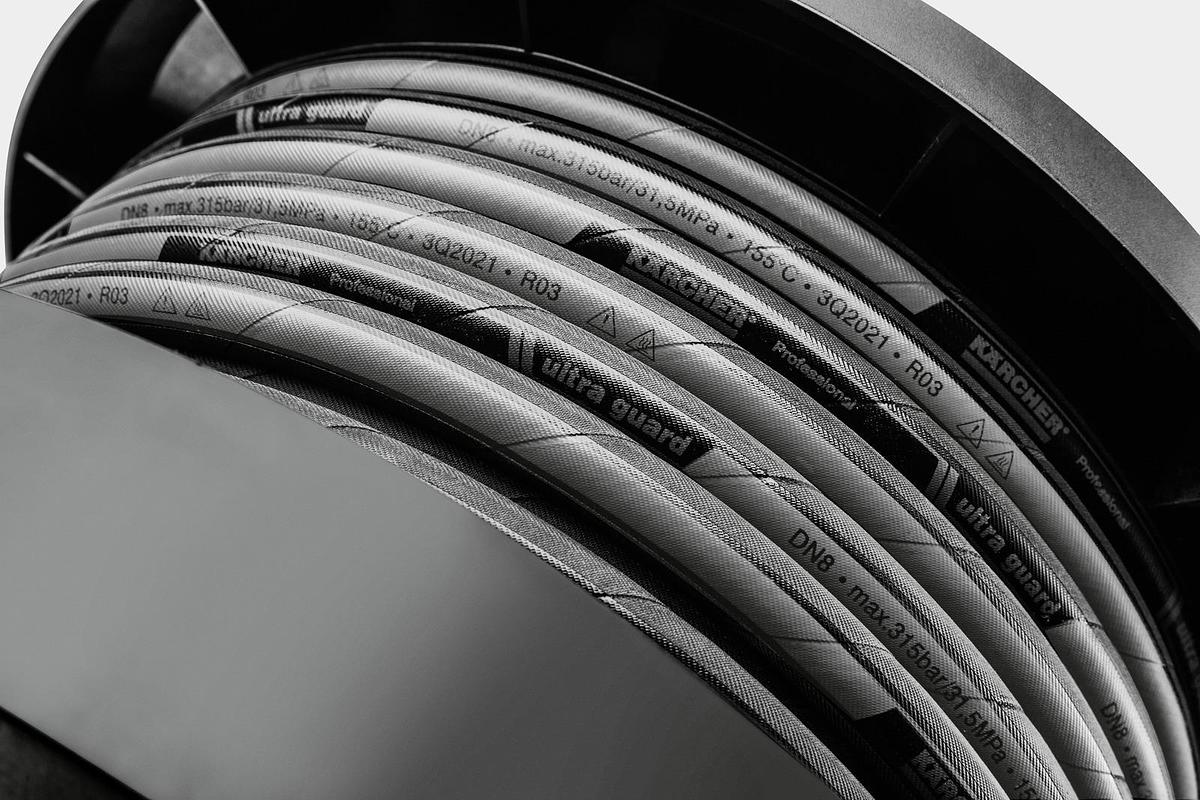

High-pressure hose length: 20 m

High-pressure hose specification: DN 8, 315 bar

Spray lance: 1050 mm

Power nozzle

Servo Control

Equipment

Integrated automatic hose reel

Pressure cut-off

Option for the 2 spray lance operation

Pole reverse plug (3~)

Soft Damping System (SDS)

2 Detergent tanks

Dry-running protection
