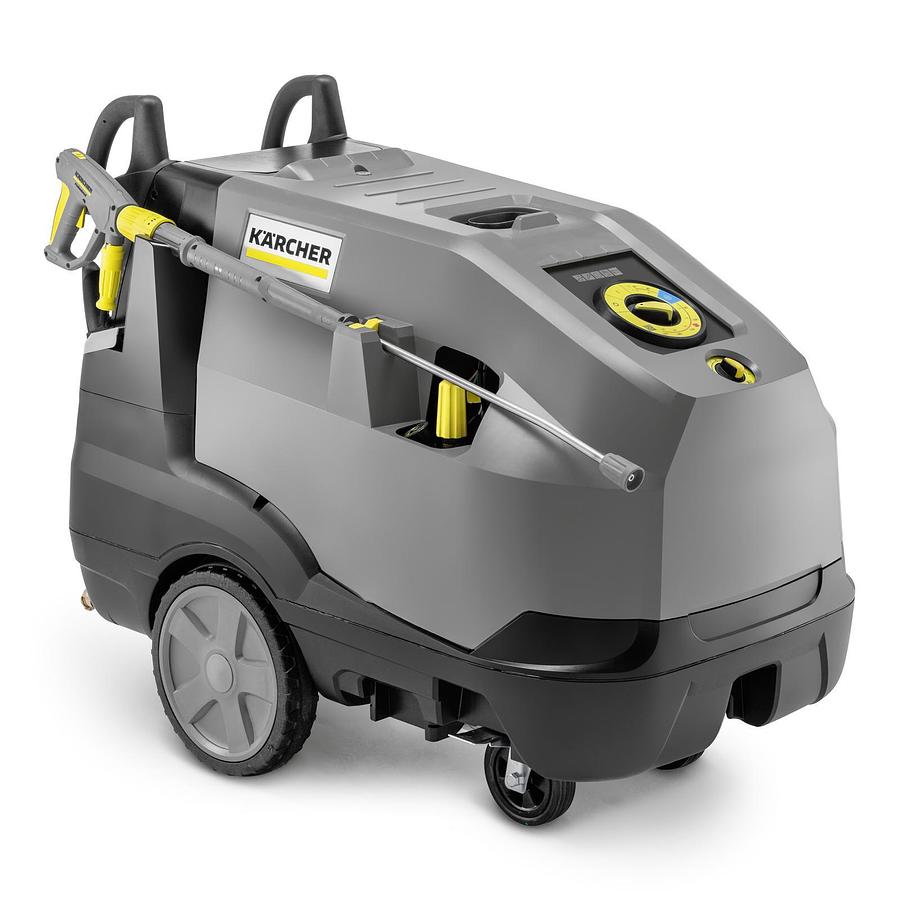

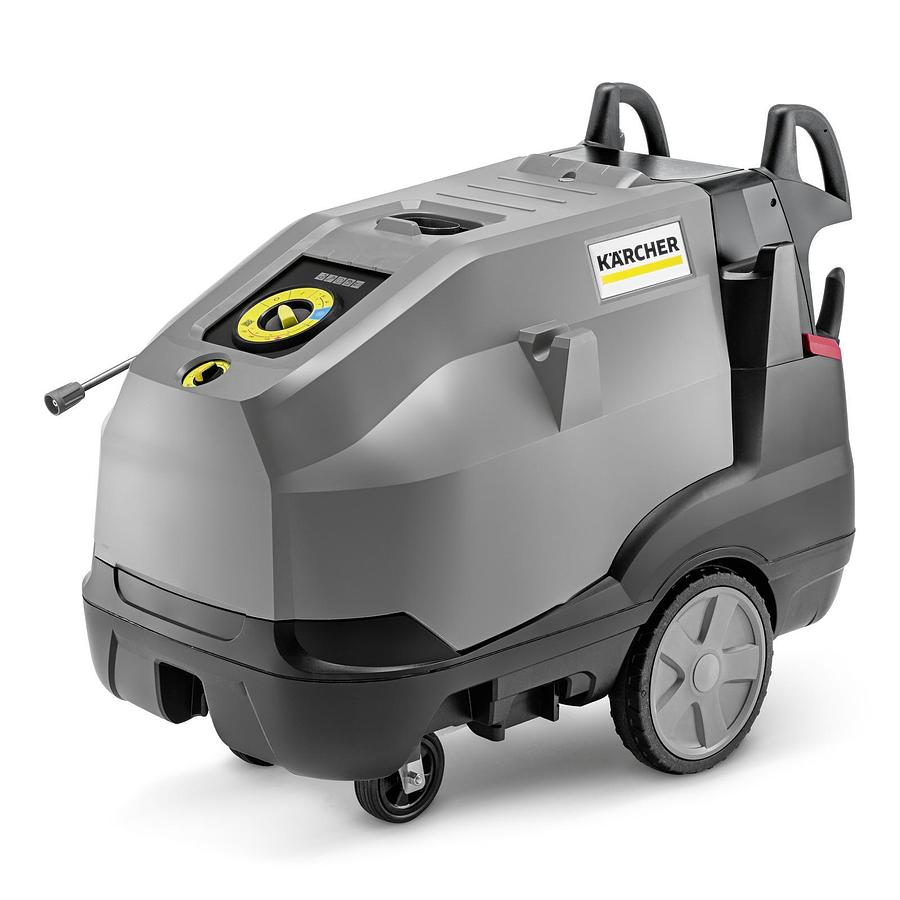

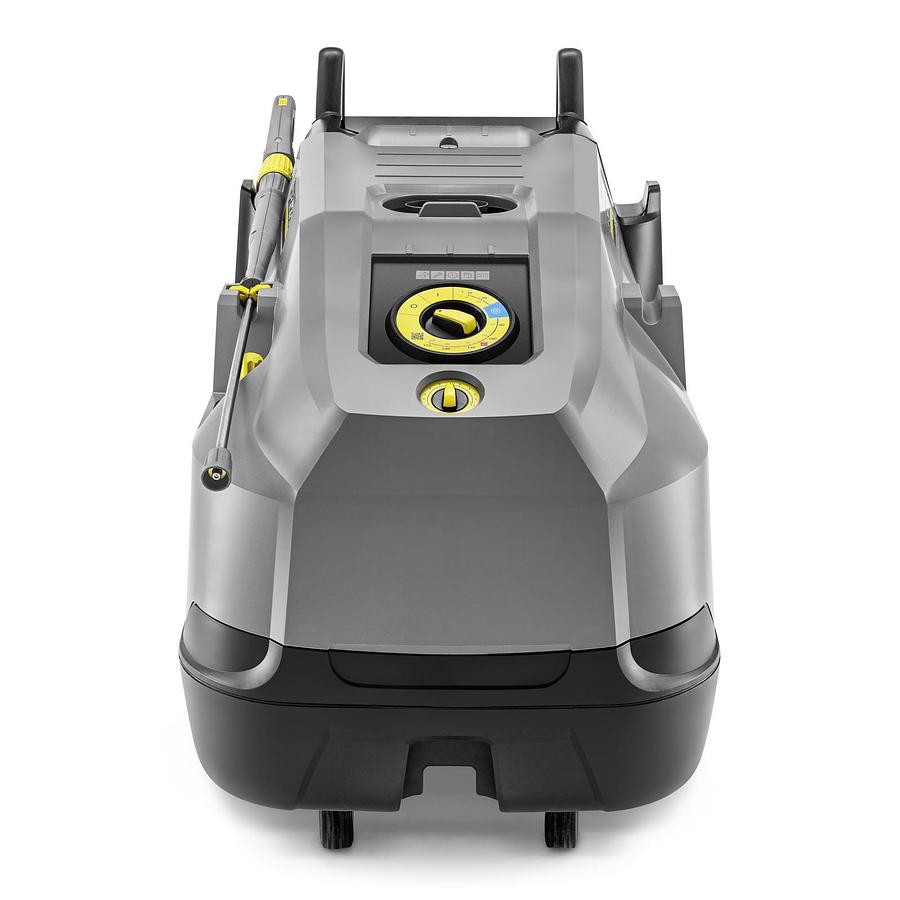

High-pressure cleaner HDS 13/20-4 S
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 600 - 1300 |
| Working pressure (bar/MPa) | 30 - 200 / 3 - 20 |
| Temperature (for supply 12 °C) (°C) | min. 80 - max. 155 |
| Consumption of fuel oil at full load (kg/h) | 9,5 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 7,6 |
| Connected load (kW) | 9,5 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 206 |
| Weight incl. packaging (kg) | 215,9 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
Description
For maximum performance in the harshest conditions: the super class hot water high-pressure cleaner with 4-pole, water-cooled electric motor and robust 3-piston axial pump.
As one of the most powerful machines in Kärcher's super class, the HDS 13/20-4 S hot water high-pressure cleaner impresses with the best cleaning results under the harshest operating conditions. High-quality components such as the low-speed, 4-pole, water-cooled electric motor and the robust 3-piston axial pump with ceramic piston provide high quality, while the Eco!Mode ensures high efficiency. When Eco!Mode is activated, the high-pressure cleaner automatically switches to particularly economical 60 °C operation, which is completely sufficient for most cleaning tasks and at the same time reduces fuel consumption by at least 20% compared to maximum hot water operation at 90 °C. Very easy to operate and maintain, ergonomically designed and easy to transport, the HDS 13/20-4 S also scores highly in terms of user-friendliness. This is underlined not least by the energy-saving EASY!Force Advanced HP trigger gun with servo control and 1050-millimetre-long spray lance with patented nozzle technology. The optimised burner engineering, 2 detergent tanks, extensive safety technology, time-saving EASY!Lock quick-release fasteners and sophisticated accessory storage options round off the machine's lavish equipment package.
Features and benefits
Highly cost-effective
In Eco!Mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.Maximum performance

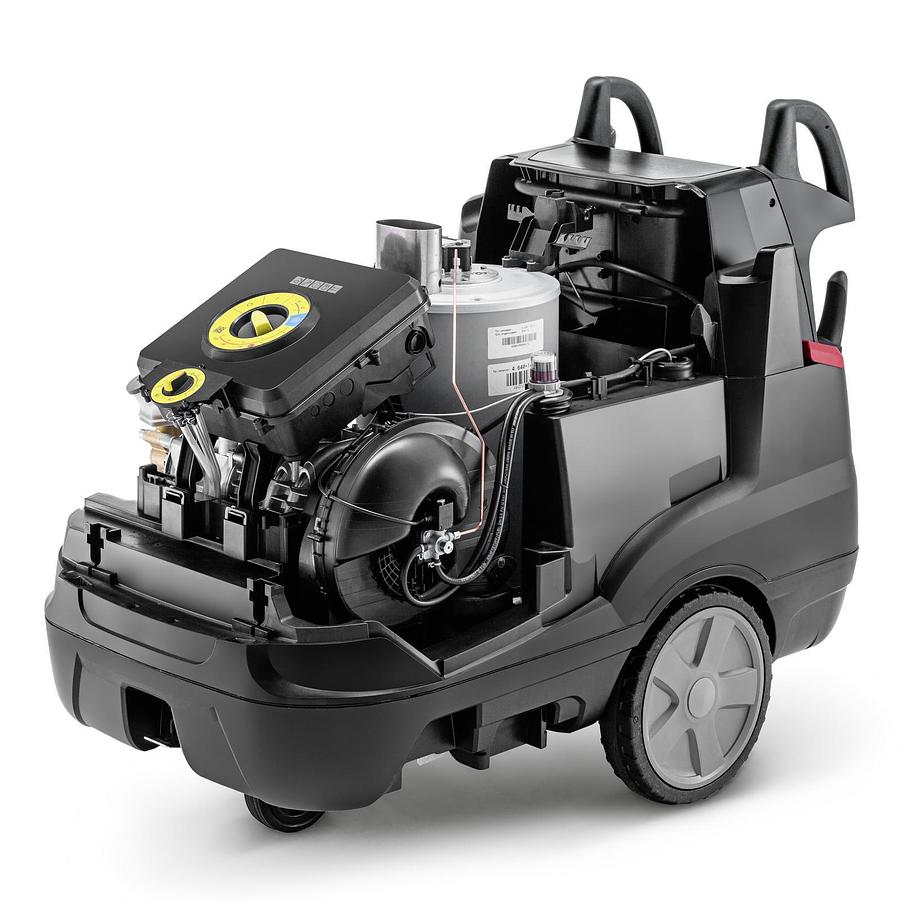

Burner technology with a minimum output-to-input ratio of 91% – Made in Germany.4-pole electric motor with 3-piston axial pump.Water-cooled motor for a high performance and long service life.Multiple storage spaces for accessories integrated into the machine

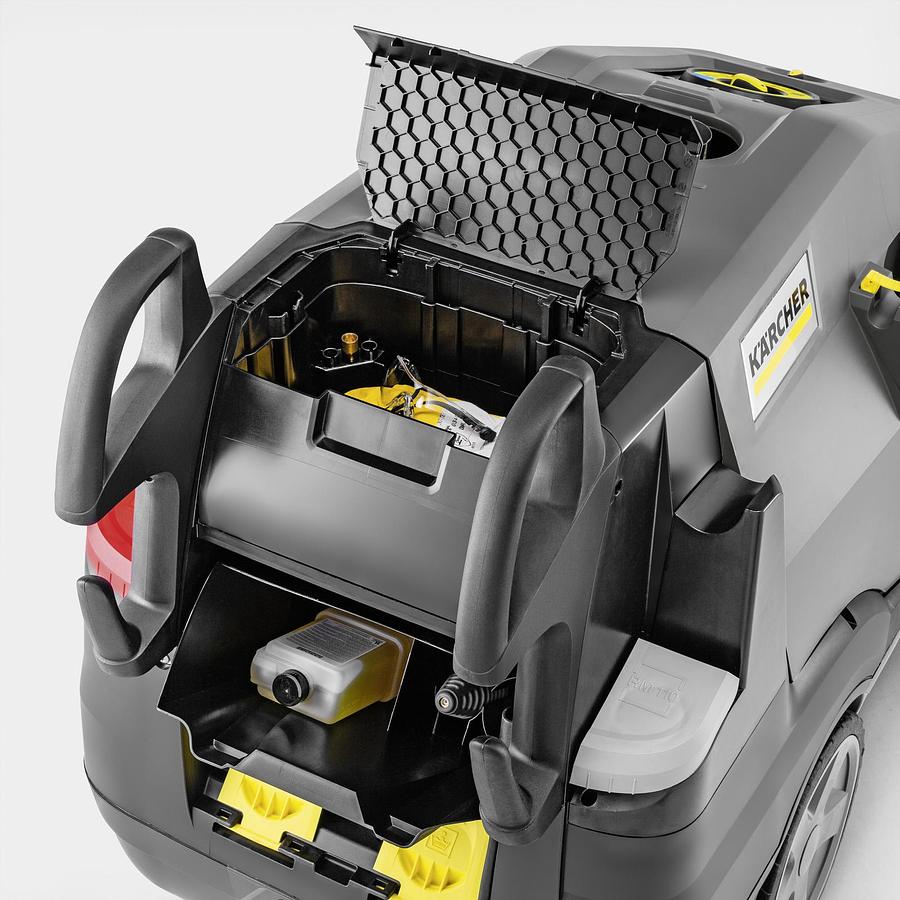

On-board storage for full range of accessories. Includes 2 hooks for suction hose and power cord.Spacious storage compartment, e.g. for detergents, gloves or tools.Operational safety
Wide-ranging accessories with EASY!Lock

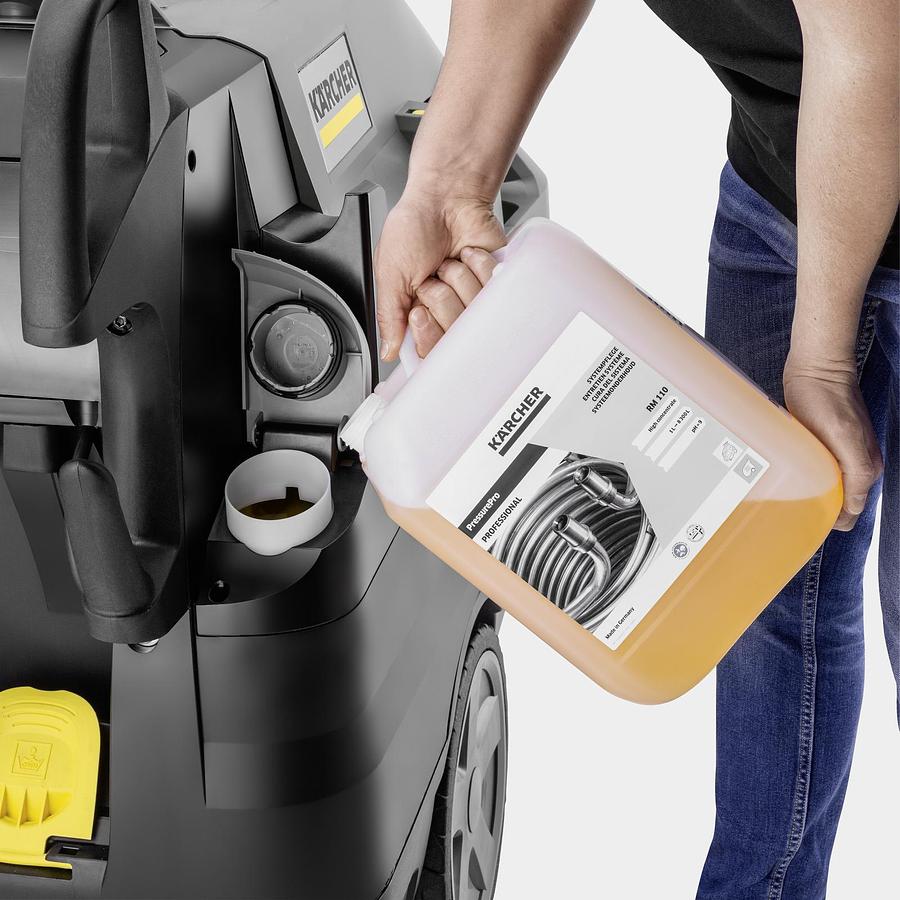

Detergent dosing unit

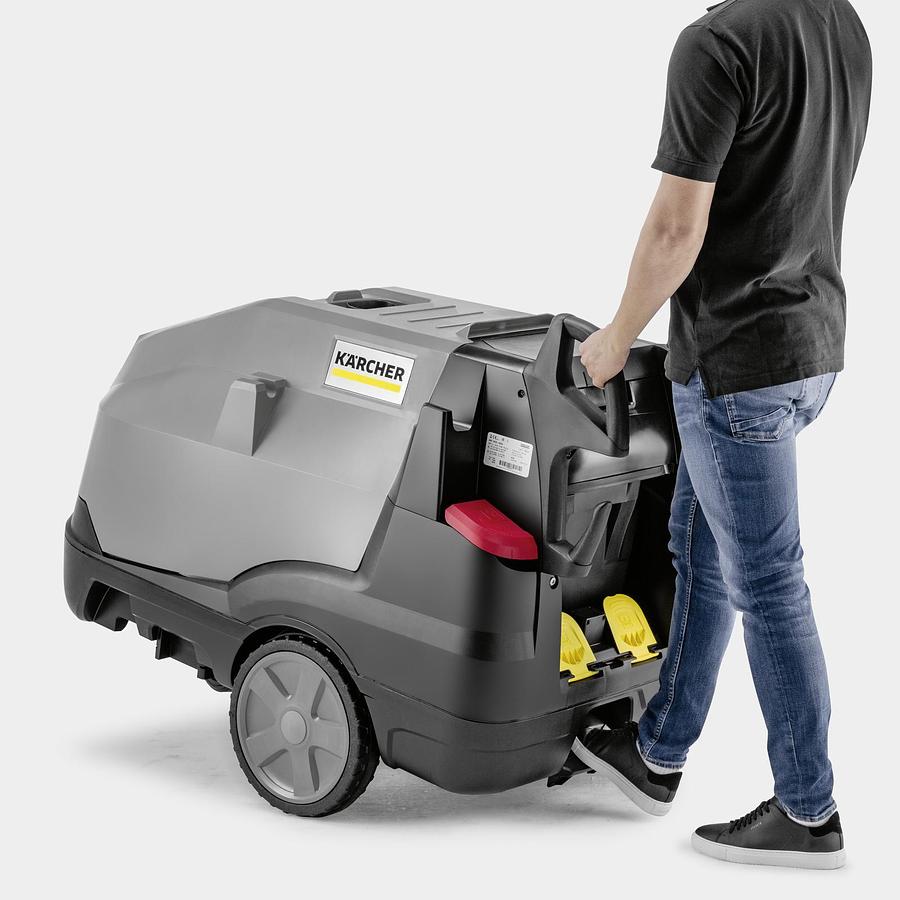

Mobility concept

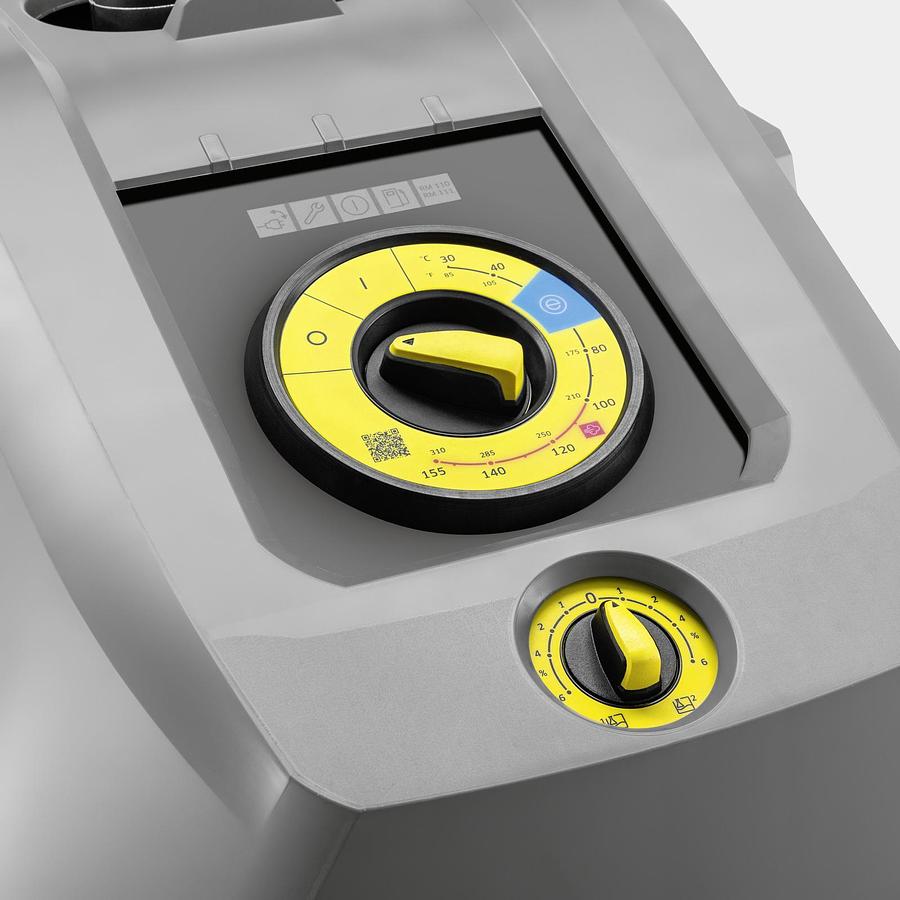

Easy to use controls
Scope of supply
Equipment
