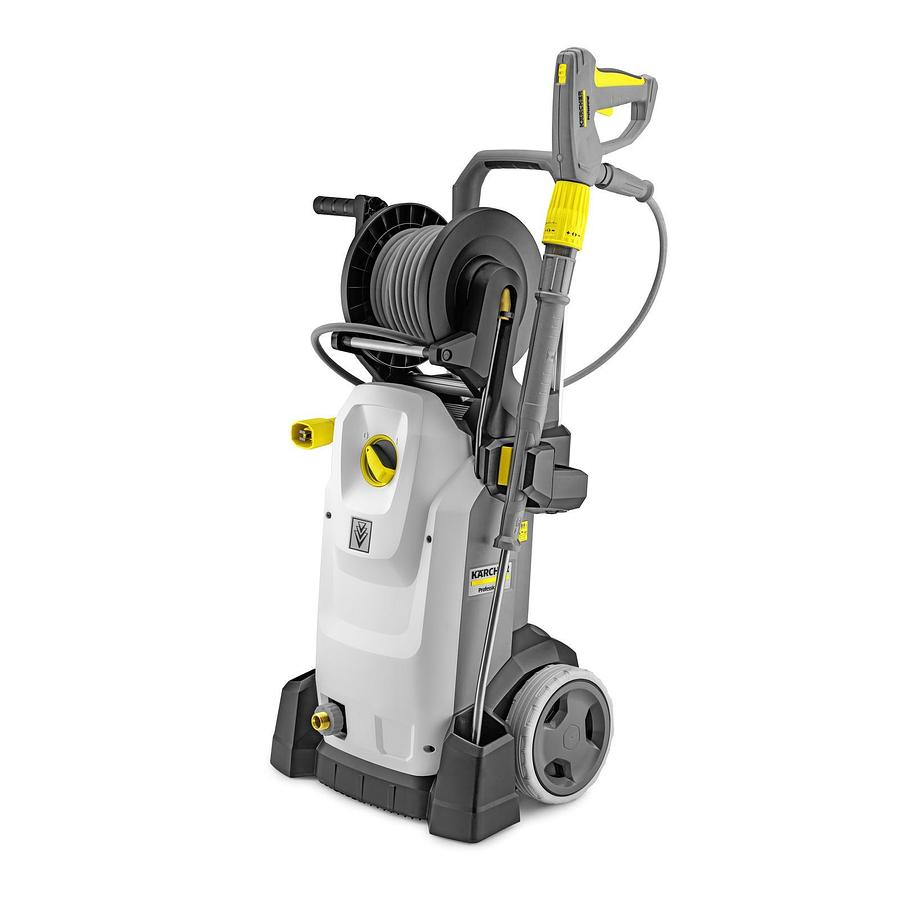

High-pressure cleaner HD 8/12-4 MX Food

High-pressure cleaner for the food industry: 800 l/h, 120 bar, hose reel with 15 m of hose, integrated pressure control on the trigger gun and a foam lance.

The HD 8/12-4 MX Food cold water high-pressure cleaner is designed for commercial use in the Food industry. With a flow rate of 800 l/h and an operating pressure of 120 bar, the machine operates at a permitted water inlet temperature of up to 80 °C, which helps to break down residues containing fat and protein. The working pressure can be adjusted directly on the high-pressure gun using a rotary control. A manual hose reel with 15 metres of food-grade high-pressure hose extends the operating range. The scope of delivery includes a high-pressure gun, a cup foam lance for dispensing detergents, an 840-mm stainless steel jet pipe and a power nozzle.

Features and benefits

Hygiene requirements

The built-in hose reel, featuring 15 metres of food-grade high-pressure hose, allows for a wide operating radius.Water inlet temperature up to 80°C.Easy-care appliance cover (white): smooth, hard-wearing surface for easy cleaning in hygiene-sensitive areas.The built-in water filter with a stainless steel mesh protects the brass pump from dirt particles. The filter can be removed and rinsed for easy cleaning.

Hygiene requirements

Servo Control

Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.For gentle cleaning of sensitive surfaces.Pressure and water flow can be adjusted at the gun.

High-quality accessories included

Fatigue-free EASY!Force high-pressure gun.

840-mm-long stainless steel lance.

Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.

Patented power nozzle with up to 40 percent stronger cleaning action compared with conventional nozzles.

Cup foam lance for effortlessly applying detergent

Stainless steel spray lance.

High-quality accessories included

High-quality equipment

4-pole, slow-running electric motor guarantees a long working time.

High-quality brass cylinder head

4-pole electric motor with 3-piston axial pump.

Practical detergent system

Cup foam lance for effortlessly applying detergent

For optimal foam quality.

Better foam formation reduces the need for cleaning agents.

Outstanding mobility

The push handle, which can be retracted at the touch of a button, increases the compactness of the machine and reduces the spatial requirement.

The integrated storage ensures all accessories are stowed in such a way that they cannot get lost and are always ready to hand.

The hose reel offers high comfort and reduced set-up time.

Very easy servicing

Easy access to the cylinder head through the open part at the bottom of the machine.

Quick access to the electrical box by simple removal of the machine cover.

Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.

Practical accessory storage

Holder for the cup foam lance.

Practical nozzle compartment for storing the rotary nozzle.

Storage possibilities for all accessory parts directly on the machine.

Scope of supply

Spray gun: EASY!Force

High-pressure hose length: 15 m

High-pressure hose type: Food design

High-pressure hose specification: DN 6, 250 bar

Stainless steel spray lance: 840 mm

Power nozzle

High-pressure hose: 15 m

Servo Control

Foam lance

Equipment

Integrated high-pressure hose reel

Pressure cut-off

Infinitely variable pressure and water flow regulation
