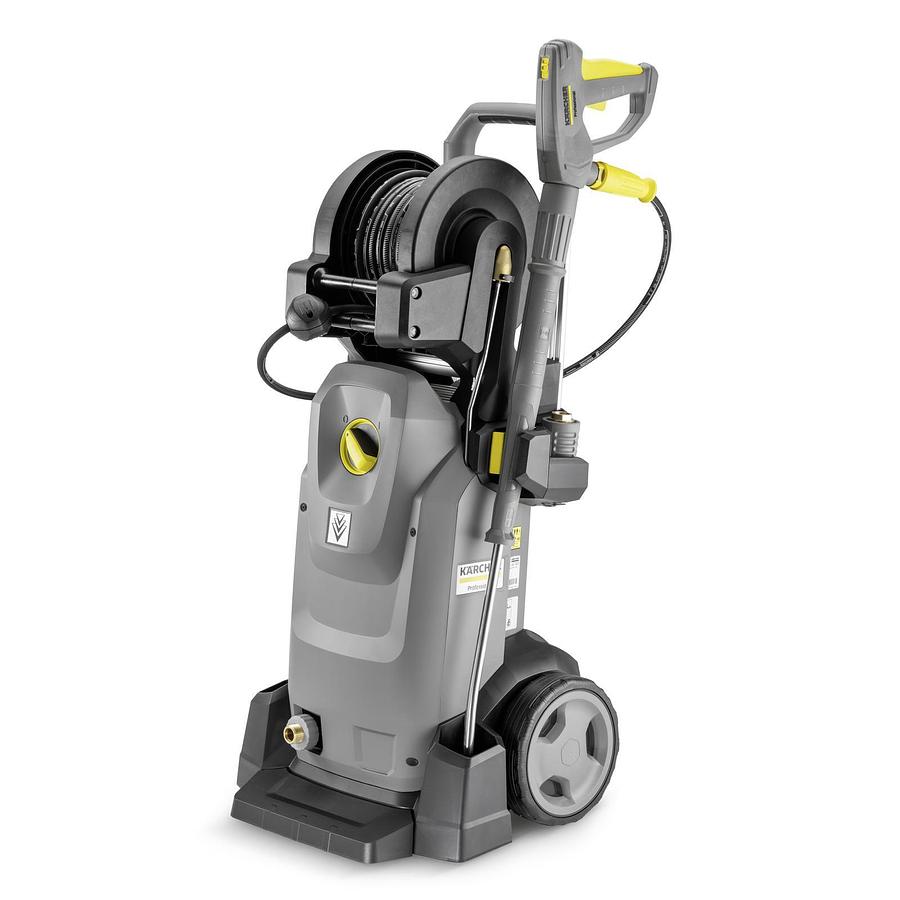

High-pressure cleaner HD 6/15 MXA Plus

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)1
Voltage (V)230
Frequency (Hz)50
Flow rate (l/h)560
Inlet temperature (°C)60
Working pressure (bar/MPa)150 / 15
Max. pressure (bar/MPa)225 / 22,5
Connected load (kW)3,1
Power cable (m)5
Water inlet3/4″
ColourAnthracite
Weight (with accessories) (kg)35,1
Weight incl. packaging (kg)39
Dimensions (L × W × H) (mm)400 x 455 x 966

Description

Compact HD 6/15 MX high-pressure cleaner with AC motor, hose reel for convenient handling of the high-pressure hose, 150 bar working pressure and automatic pressure relief.

The high-pressure cleaner HD 6/15 MXA Plus is equipped with an integrated, spring-driven automatic hose reel. The AC-powered device features a pressure switch control, a 3-piston axial pump with a brass cylinder head, and automatic pressure relief for stand-by operation. The device comes with the EASY!Force high-pressure gun and EASY!Lock quick-release fasteners. The design allows access to the high-pressure pump and the electronic components.

Features and benefits

Spring-mounted automatic hose reel

  • Maximum comfort when handling the high-pressure hose.
  • Makes possible short set-up times thanks to quick winding and unwinding.
  • Avoids tripping hazards, thus increasing operational safety.

    • Additional stand

  • Enlarges the stand area of the machine.
  • Increases the tilt stability when operated upright.

    • High-quality equipment

  • Automatic pressure relief for protecting the components extends their life.
  • Powerful, 2-pole, air-cooled electric motor.
  • High-quality brass cylinder head

    • Clever accessory storage

  • Holder for the cup foam lance.
  • EASY!Lock TR20 permits storage of the Power nozzle or a surface cleaner directly at the machine.
  • Practical nozzle compartment for storing the rotary nozzle.

    • Outstanding mobility

  • The push handle, which can be retracted at the touch of a button, increases the compactness of the machine and reduces the spatial requirement.
  • Can be easily stored in service vehicles.
  • Integrated storage possibilities reduce the set-up times.

    • Flexible operation

  • For vertical and horizontal operation.
  • Maximum stability during horizontal operation as the wheels do not touch the floor.

    • Easy servicing

  • Easy access to the cylinder head through the open part at the bottom of the machine.
  • Quick access to the electrical box by simple removal of the machine cover.
  • Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.

    • Effortless and time-saving solutions

  • Fatigue-free EASY!Force high-pressure gun.
  • Robust EASY!Lock quick-release couplings: five times faster than screws.

    • Increased energy efficiency

  • Newly developed 3-piston axial pump for considerably reduced flow and pressure losses.
  • 20% increase in cleaning performance and energy efficiency.

    • Scope of supply

  • Spray gun: EASY!Force
  • Spray lance: 840 mm
  • Power nozzle
  • Dirt blaster

    • Equipment

  • High-pressure hose length: 15 m
  • High-pressure hose type: Flex
  • Integrated high-pressure hose reel
  • ANTI!Twist
  • Pressure cut-off
    • Show All
