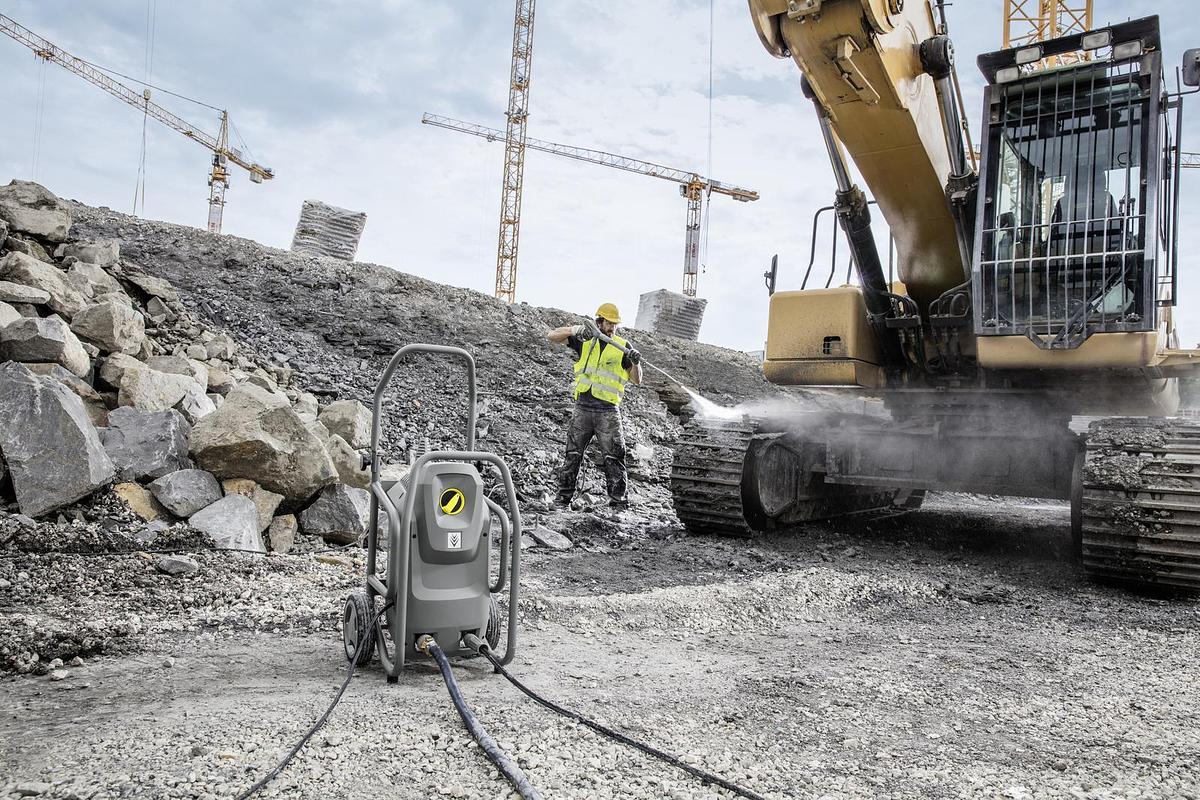

High-pressure cleaner HD 6/16-4 M Cage

or
Call (914) 738-4400

Specifications

ManufacturerKaercher
ConditionNew
Number of current phases (Ph)1
Voltage (V)230
Frequency (Hz)50
Flow rate (l/h)600 - 600
Inlet temperature (°C)60
Working pressure (bar/MPa)160 / 16
Max. pressure (bar/MPa)240 / 24
Connected load (kW)3,1
Power cable (m)5
Water inlet3/4″
ColourAnthracite
Weight (with accessories) (kg)41,7
Weight incl. packaging (kg)46
Dimensions (L × W × H) (mm)420 x 460 x 970

Description

HD 6/16-4 M Cage: The 4-pole, slow-running AC motor and the powder-coated tubular steel frame are among the main features of the high-pressure cleaner.

The unheated high-pressure cleaner HD 6/16-4 M Cage operates with a working pressure of 140 bar and a flow rate of 600 liters per hour. The device is equipped with a powder-coated tubular steel frame and a 3-piston axial pump with a brass cylinder head. It is driven by a 4-pole AC motor with pressure switch control. The HD 6/16-4 M Cage is designed for horizontal and vertical operation. The equipment includes the EASY!Force high-pressure gun and EASY!Lock quick-release fasteners. Automatic pressure relief protects the high-pressure components.

Features and benefits

Designed for continuous operation in commercial and industrial use.

Sturdy tubular steel frame protects all components.The tubular steel frame is also suitable for simple fastening and lashing of the machine in the service vehicle.Robust plastic chassis reliably protects the pump against damage and dirt.

High-quality equipment

Automatic pressure relief for protecting the components extends their life.Powerful, 4-pole, slow-running electric motor.High-quality brass cylinder head

Easy servicing

Easy access to the cylinder head through the open part at the bottom of the machine.Quick access to the electrical box by simple removal of the machine cover.Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.

Increased energy efficiency

  • Newly developed 3-piston axial pump for considerably reduced flow and pressure losses.
  • 20% increase in cleaning performance and energy efficiency.

    • Effortless and time-saving solutions

  • Fatigue-free EASY!Force high-pressure gun.
  • Robust EASY!Lock quick-release couplings: five times faster than screws.

    • Flexible operation

  • For vertical and horizontal operation.

    • Clever accessory storage

  • Holder for the cup foam lance.
  • EASY!Lock TR20 permits storage of the Power nozzle or a surface cleaner directly at the machine.

    • Scope of supply

  • Spray gun: EASY!Force
  • Spray lance: 840 mm
  • Power nozzle

    • Equipment

  • High-pressure hose length: 10 m
  • High-pressure hose type: Premium quality
  • Pressure cut-off
    • Show All
