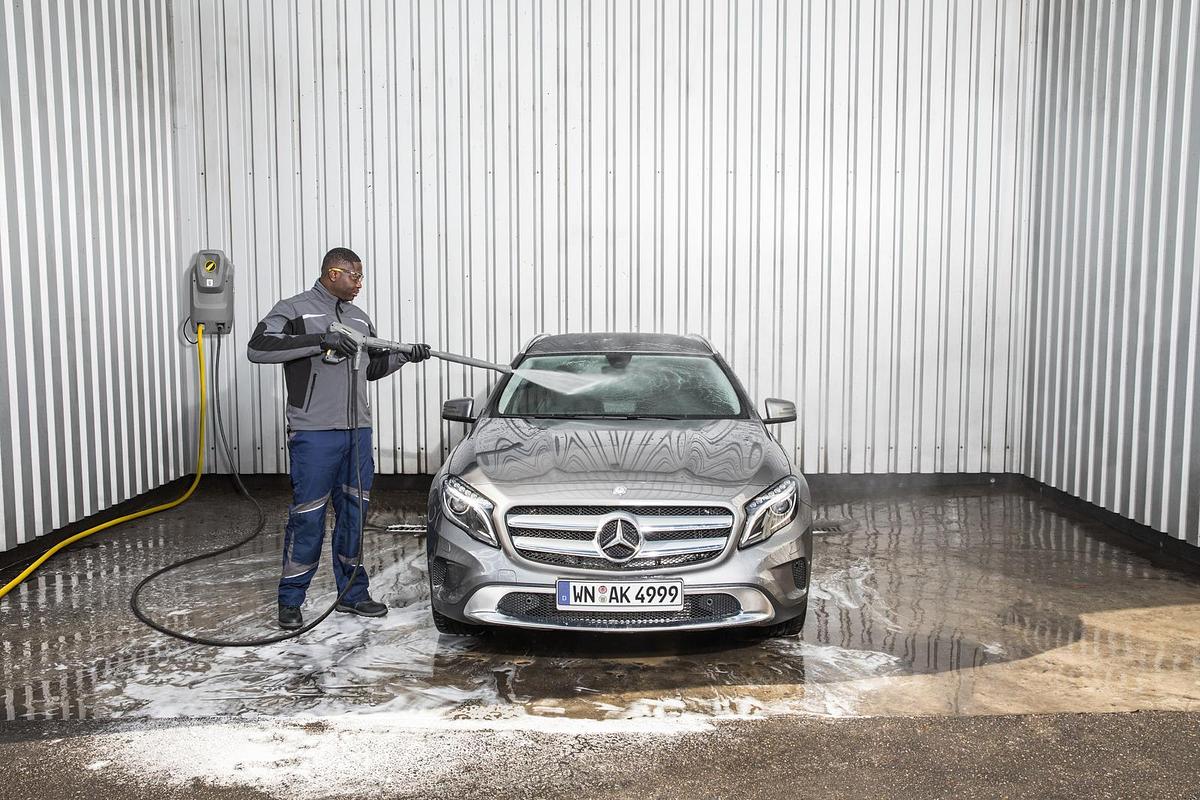

High-pressure cleaner HD 7/17 M St

Pump unit HD 7/17 M PU with 3-piston axial pump with hardened stainless steel pistons, three-phase motor and wall mounting for stationary use.

The motor/pump unit HD 7/17 M PU with three-phase motor and pressure switch control offers a flow rate of 700 liters per hour and a working pressure of 170 bar. The 3-piston axial pump is equipped with stainless steel pistons and a brass cylinder head. The device is intended for stationary use and can be mounted and operated horizontally or vertically. On the back, there is a 3-point mount for vertical or horizontal mounting. The high-pressure pump and electronic components are accessible. The pump is equipped with a fine water filter.

Features and benefits

High-quality equipment

Automatic pressure relief for protecting the components extends their life.Powerful, 2-pole, air-cooled electric motor.High-quality brass cylinder head

Flexible operation

For vertical and horizontal operation.

Prepared for stationary operation

Simple and solid 3-point attachment for wall mounting on the rear of unit.Space-saving, compact design.Robust plastic chassis reliably protects the pump against damage and dirt.

Easy servicing

Easy access to the cylinder head through the open part at the bottom of the machine.

Quick access to the electrical box by simple removal of the machine cover.

Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.

Increased energy efficiency

Newly developed 3-piston axial pump for considerably reduced flow and pressure losses.

20% increase in cleaning performance and energy efficiency.

Equipment

Pressure cut-off
