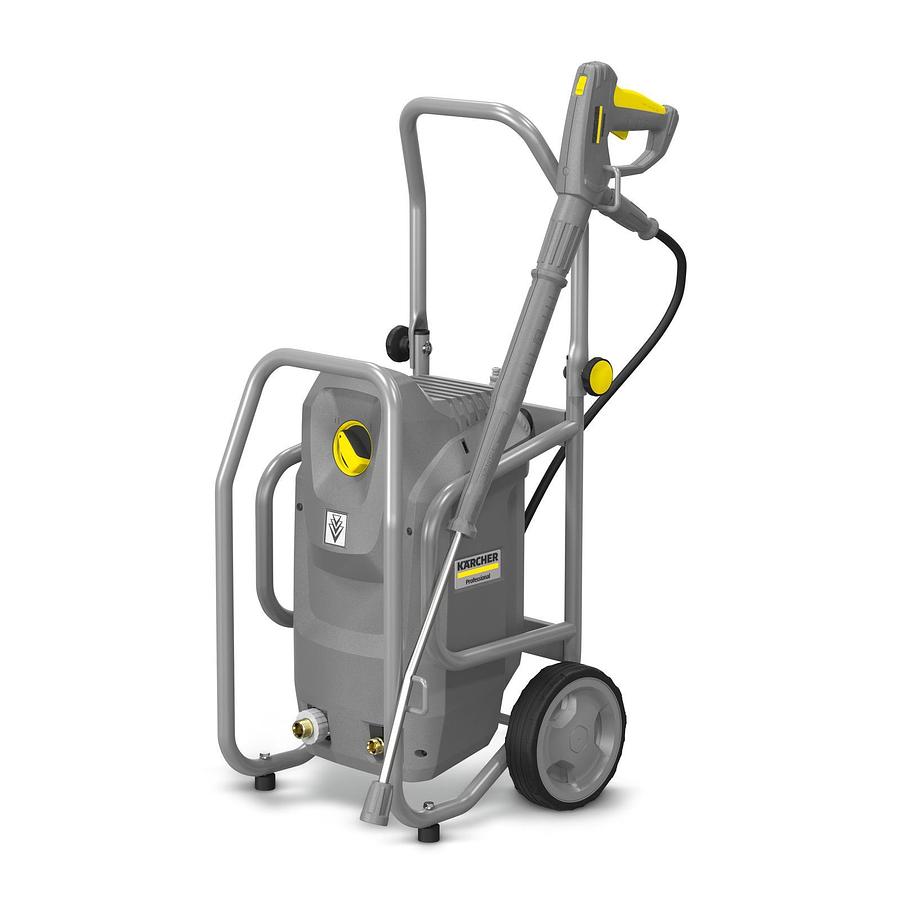

High-pressure cleaner HD 7/17 M Cage
Specifications
| Manufacturer | Kaercher |
| Condition | New |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 700 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 170 / 17 |
| Max. pressure (bar/MPa) | 255 / 25,5 |
| Connected load (kW) | 4,2 |
| Power cable (m) | 5 |
| Water inlet | 3/4″ |
| Colour | anthracite |
| Weight (with accessories) (kg) | 36,6 |
| Weight incl. packaging (kg) | 40,9 |
| Dimensions (L × W × H) (mm) | 420 x 460 x 970 |
Description
Up to 700 litres of water per hour for optimum cleaning results: powerful HD 7/17 M Cage high-pressure cleaner with steel tubular frame, three-phase motor and automatic pressure relief.
The HD 7/17 M Cage ST with three-phase motor is a mobile and highly robust high-pressure cleaner fitted with a powder-coated steel tubular frame which has been designed for vertical or horizontal use under tough working conditions. The new 3-piston axial pump with brass cylinder head is easily accessible thanks to the service-friendly machine design and enables 20% higher cleaning performance and energy efficiency. An additional water fine filter is installed to protect the pump, while automatic pressure relief prevents loads on the pump and other high-pressure components in stand-by operation. Our innovative EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero as standard, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity.
Features and benefits
Designed for continuous operation in commercial and industrial use.
Sturdy tubular steel frame protects all components.The tubular steel frame is also suitable for simple fastening and lashing of the machine in the service vehicle.Robust plastic chassis reliably protects the pump against damage and dirt.High-quality equipment
Automatic pressure relief for protecting the components extends their life.Powerful, 2-pole, air-cooled electric motor.High-quality brass cylinder headEasy servicing
Easy access to the cylinder head through the open part at the bottom of the machine.Quick access to the electrical box by simple removal of the machine cover.Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.Increased energy efficiency
Effortless and time-saving solutions
Flexible operation
Clever accessory storage
Scope of supply
Equipment
